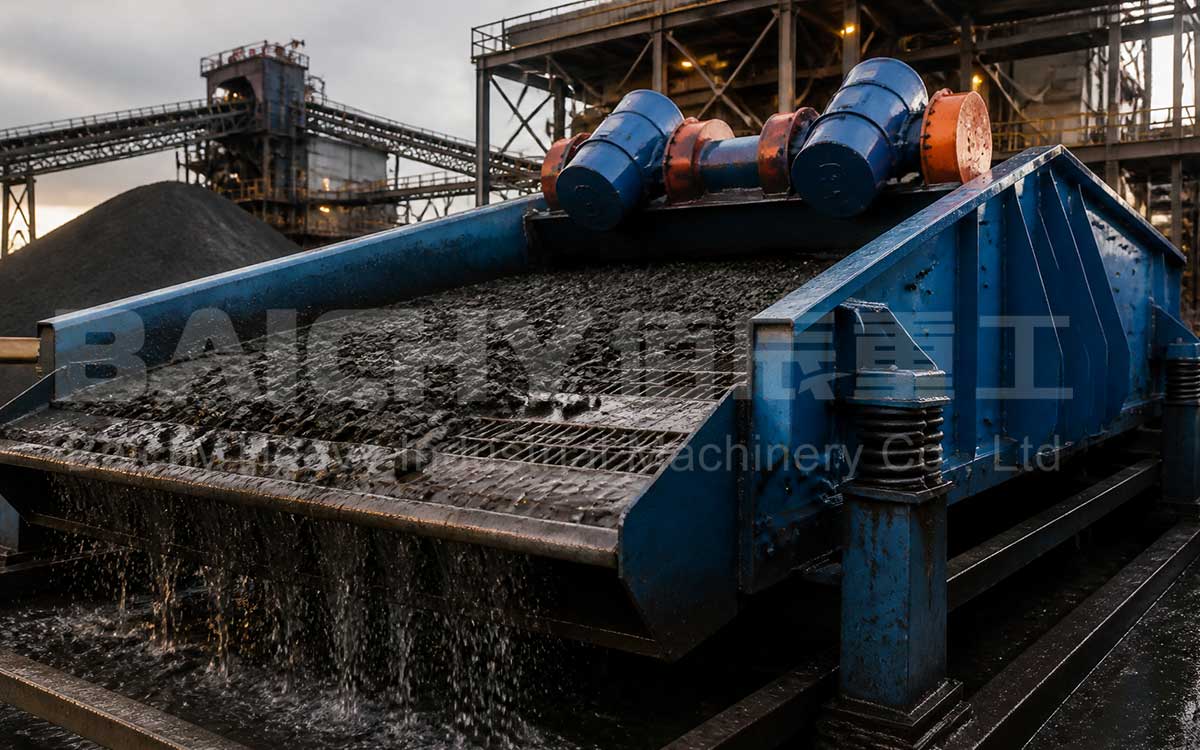

Coal Slime Dewatering Screen
Coal slime represents the biggest "wet burden" for coal preparation plants, yet it is also an undervalued source of profit. Baichy Heavy Industry’s coal slime dewatering screen can reduce the moisture content of flotation tailings and dense-medium clean coal—initially 30%–40%—to approximately 18% in a single pass. Compared to filter presses, it offers lower investment costs, continuous operation, and reduced electricity consumption per ton; unlike open-air drying, it is not constrained by weather conditions or site availability. By installing these screens, plants transform coal slime from a disposal liability into a product for blending and sale, turning the value per ton from negative to positive and typically recouping the equipment investment within one year.
I. What is a coal slime dewatering screen?

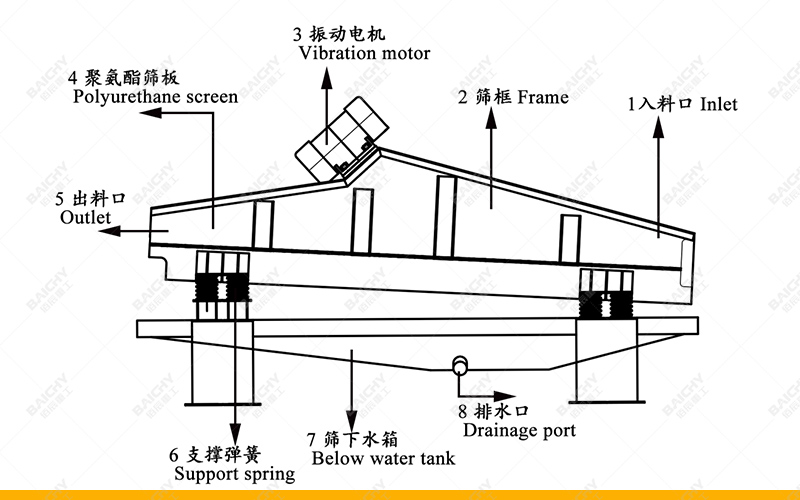

The coal slime dewatering screen is a piece of linear-vibration dewatering equipment. Two synchronously counter-rotating exciters generate a linear vibration trajectory, causing the coal slime to be continuously tossed and propelled forward across the screen surface. Under the combined action of vibration and gravity, water is rapidly discharged through the wedge-wire screen mesh, while fine coal particles are retained and conveyed to the discharge point. The entire dewatering process is continuous and requires no manual intervention, making it the core dewatering unit in a plant's coal slime water system.
Unlike the "intermittent high-pressure squeezing" method used by filter presses, the coal slime dewatering screen employs a combination of "high-frequency, low-amplitude vibration" and a "wedge-wire screen surface." This continuous operation achieves high processing capacity, making it ideal for the pre-dewatering of high-flow coal slime water and the recovery of fine coal. Compared to natural drying, it is independent of weather conditions and requires minimal space, directly meeting strict environmental regulations that mandate coal slime be kept off the ground and out of open-air storage.
II. Application Scenarios: Where are coal slime dewatering screens most needed?
1. Dewatering of plant tailings: Recovers fine clean coal from flotation tailings and thickened underflow; once moisture content meets standards, the material can be blended for sale or loaded directly for transport.
2. Dewatering of dense-medium clean coal: Removes medium and water from clean coal following dense-medium separation; this reduces the load on subsequent drying stages and recovers marketable clean coal.
3. Coal Slurry Water Closed-Loop Circulation: After thickening in a thickener, the underflow enters the coal slurry dewatering screen; the filtrate is returned to the washing system for reuse, achieving a closed-loop water circuit with zero external discharge.
4. Briquetting and Coal Blending Workshop: Dewatered coal slurry is blended with dry coal at a specific ratio, enhancing mixture uniformity and calorific value stability while replacing the need for purchased low-cost blending additives.

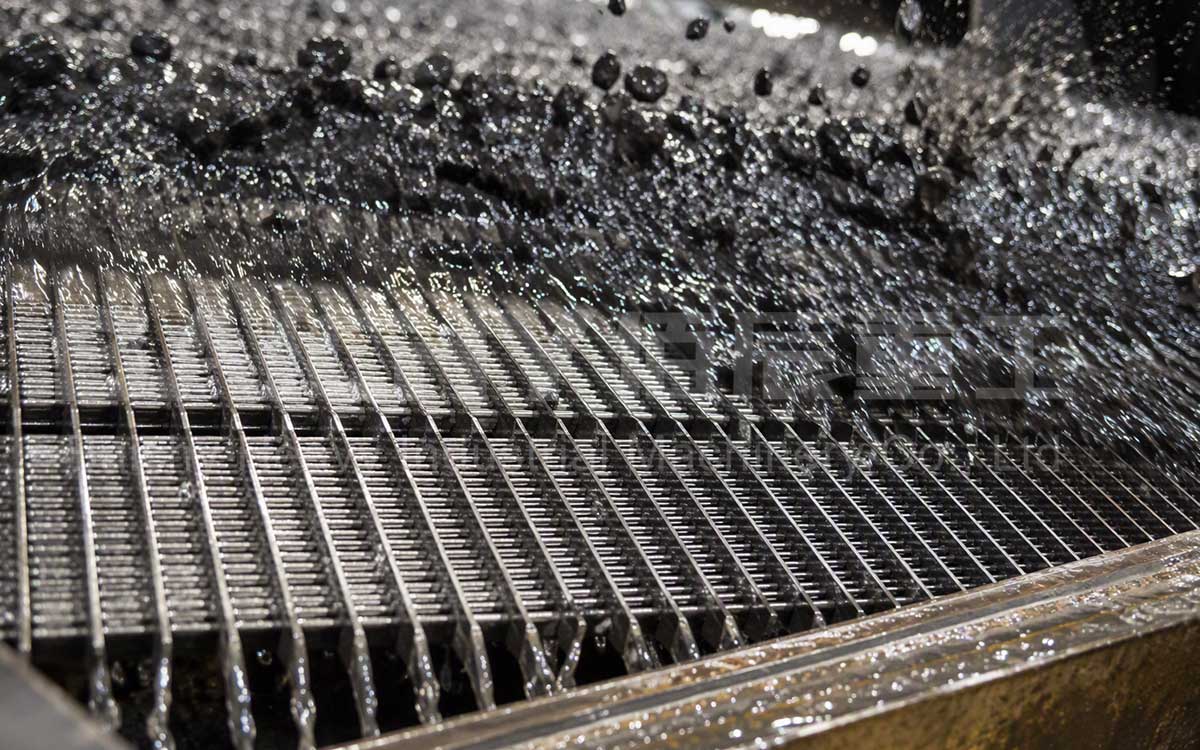

Coal slime dewatering screen
III. Equipment Advantages: Continuous Operation, Low Consumption, High Recovery
Coal slurry dewatering screens have become standard equipment in coal preparation plants due to three key performance indicators:
1. Continuous Operation without Downtime: The linear vibrating screen surface features strong self-cleaning capabilities, allowing for continuous material feed and discharge. A single unit supports 24-hour production, aligning with the plant's requirement for uninterrupted washing and dewatering—an advantage unmatched by intermittent filter presses.
2. High Recovery Rate and Minimal Coarse Particle Loss: The wedge-wire screen features uniform apertures, enabling a fine coal recovery rate exceeding 90%. The resulting filtrate has high clarity and can be recycled into the system, reducing fine coal loss and the need for fresh water makeup.
3. Low Energy Consumption and Maintenance Costs: Compared to filter presses, coal slurry dewatering screens offer lower electricity consumption per unit of throughput and eliminate filter cloth replacement costs. The wear-resistant polyurethane wedge-wire screen offers a long service life (measured in years), with routine maintenance limited to checking the exciter and vibration-damping springs.
Based on a calculation of 20 tons of coal slurry processed per hour—reducing moisture content from 32% to 18% and removing approximately 170 kg of water per ton—processing 400 tons daily allows for the recovery of an additional ~68 tons of dry coal. This transforms coal slurry from a waste stream incurring disposal fees into a product for blending and sale; with an added value of 30–50 RMB per ton, the daily value increase ranges from 12,000 to 20,000 RMB, and the investment payback period is typically under 12 months.
IV. Key Specifications Table
The table below lists common specifications for the Baichen TDS series linear dewatering screen; aperture sizes, amplitudes, and motor configurations can be customized based on coal type and site conditions:
| Model | Screen Surface Dimensions (mm) | Aperture (mm) | Processing Capacity (t/h) | Amplitude (mm) | Motor Power (kW) |
|---|---|---|---|---|---|
| TDS-1230 | 1200×3000 | 0.25–1.5 | 5–15 | 4–8 | 3×2 |
| TDS-1530 | 1500×3000 | 0.25–1.5 | 10–25 | 4–8 | 4×2 |
| TDS-1830 | 1800×3000 | 0.25–1.5 | 15–35 | 4–8 | 5.5×2 |
| TDS-2445 | 2400×4500 | 0.25–1.5 | 30–60 | 4–8 | 7.5×2 |
| TDS-3055 | 3000×5500 | 0.25–1.5 | 50–90 | 4–8 | 11×2 |

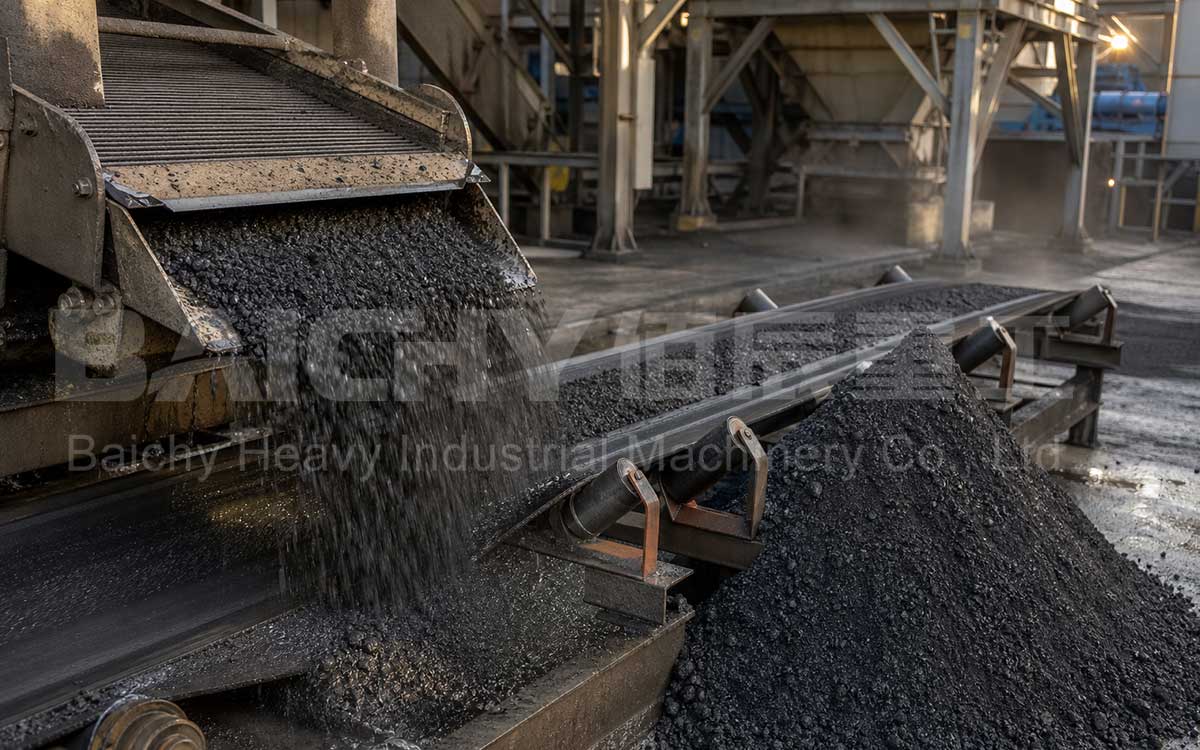

coal preparation plant slime processing
V. Typical Application Case
A coal preparation plant in North China processes 1.2 million tons of raw coal annually. Its coal slime water system previously relied solely on filter presses, resulting in capacity constraints and frequent filter cloth replacements. Following a system upgrade, a combination of a thickener, two TDS-2445 coal slime dewatering screens, and a filter press (for final cleanup) was adopted. The dewatering screens handle approximately 70% of the dewatering load, significantly reducing the burden on the filter press and cutting filter cloth consumption by half. The moisture content of the coal slime has stabilized at around 18% (down from 32%), and the recovery rate for fine coal has risen to over 90%; filtrate is returned to the wash-water system to achieve a closed-loop cycle. Post-upgrade, the coal slime can be directly blended and sold, generating over one million yuan in additional annual revenue and allowing the equipment investment to be recouped in approximately eight months.
VI. Recommended Auxiliary Equipment
A single coal slime dewatering screen cannot function effectively as a standalone line; a three-stage configuration—"thickening, dewatering, and recovery"—is recommended:
• Thickening Equipment: Peripheral-drive thickener (NS/NZ series) for pre-thickening coal slime water; this increases the feed concentration for the dewatering screen and stabilizes dewatering performance.
• Dewatering Equipment: Coal slime dewatering screen (TDS series) for primary dewatering, combined with a high-frequency dewatering screen for fine dewatering; a two-stage series setup ensures the target moisture content is achieved.
• Auxiliary Conveying: Belt conveyors, slurry pumps, and cyclone clusters form a closed-loop coal slime water system, achieving zero discharge of wash water.
Baichen offers comprehensive EPC services—ranging from system design and equipment selection to installation and commissioning—and customizes the entire production line based on your specific coal type, feed concentration, and capacity targets.
VII. FAQ
Q1: To what level can the coal slime dewatering screen reduce moisture content?
Primary dewatering typically reduces the moisture content of coal slime from 30%–40% down to approximately 18%. If further reduction to below 15% is required, a high-frequency dewatering screen or filter press can be added for secondary dewatering; the process can be customized to meet specific moisture targets.
Q2: How do I choose between a coal slime dewatering screen and a filter press?
Consider two factors: capacity and target moisture content. Choose a coal slime dewatering screen for high-flow, continuous operations; it offers lower investment and energy consumption. Choose a filter press if the requirement is moisture content below 15% or the recovery of high-value fine coal. In practice, the two are often used in combination: the dewatering screen performs pre-dewatering to reduce the load, while the filter press handles final processing.
Q3: Will the screen mesh get clogged by highly viscous coal slime?
No. The coal slime dewatering screen utilizes polyurethane wedge-wire mesh with apertures that widen from top to bottom, providing self-cleaning capabilities. Combined with high-frequency, low-amplitude vibration and an optional spray-cleaning system, the screen ensures stable water drainage without clogging, even with highly viscous coal slime, and offers a service life measured in years.
