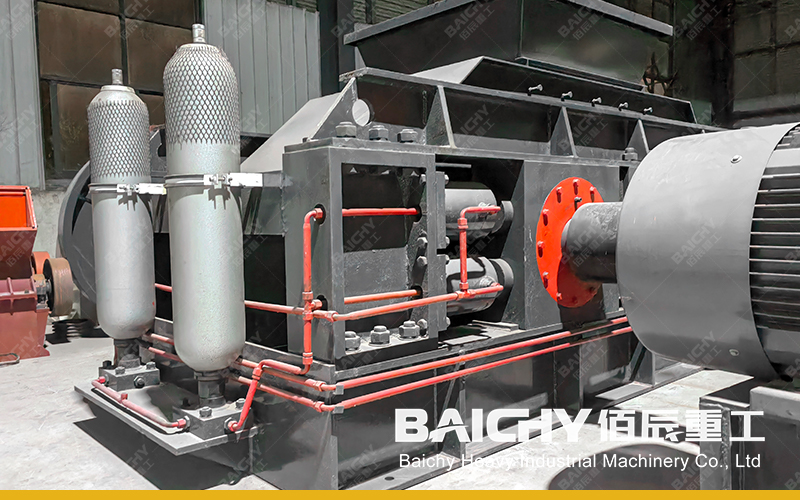

Smooth roll crusher
The smooth-roll crusher (also known as a smooth-surface roll crusher) is the optimal solution for the fine and final crushing of brittle materials with low to medium hardness, such as coal, coke, cement clinker, and limestone. It utilizes two counter-rotating smooth rolls to crush material through a combination of compression and shearing. The output particle size is directly determined by the roll gap—ensuring high precision—and the rate of over-pulverization (excessive fines generation) is significantly lower than that of hammer crushers or impact crushers. When your primary concerns shift from "can it crush the material?" to "is the product uniform?" and "how much fine dust is produced?", it is time to consider a smooth-roll crusher.
I. What is a smooth-roll crusher?
The smooth-roll crusher belongs to the "smooth-roll" category of the double-roll crusher family. Unlike toothed-roll crushers, which tear material using teeth, this type features a crushing chamber formed by two rolls with smooth surfaces. Material entering the space between the rolls is drawn in by the rotating surfaces and crushed by continuous compression and slight shearing forces at the roll gap; the finished product is then continuously discharged from beneath the gap.
Working Principle
The operation of a smooth-roll crusher involves just three steps:

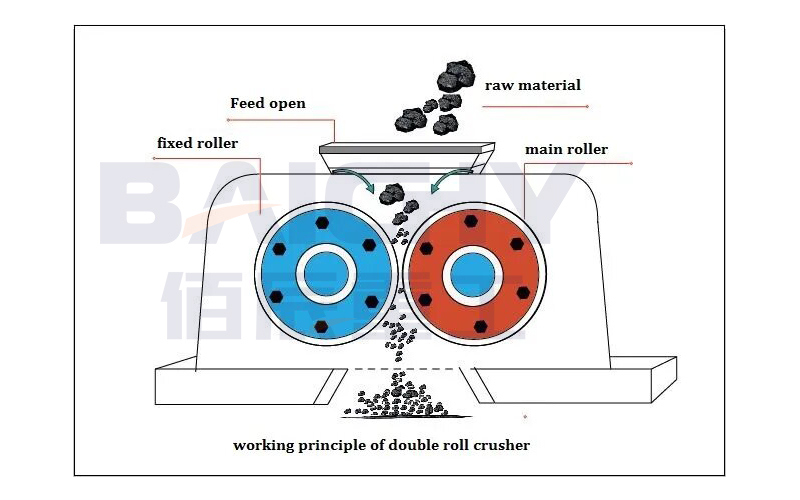

Structural diagram of a double-roll crusher
• Feeding: Material falls onto the top of the two rolls and is drawn into the roll gap by gravity and the friction of the roll surfaces;
• Compression Crushing: The two rolls rotate towards each other, generating high compressive force at the gap, causing the material to fracture along its weakest planes;
• Sized Discharge: The width of the roll gap determines the maximum particle size of the output; particles smaller than the gap pass through directly, yielding a uniform product without the need for additional screening.
Comparison with Toothed Roll Crushers
| Comparison Item | Smooth Roll Crusher | Toothed Roll Crusher |
|---|---|---|
| Crushing Method | Compression + Shearing; produces 2–10mm fines | Tearing via teeth; primarily for 10–40mm medium crushing |
| Suitable Materials | Clinker, coke, glass, limestone | Coal, coal gangue, clay, and other soft materials |
| Fines Generation Rate | Low (<10%) | Moderate |
| Adaptability to Wet/Sticky Materials | Scrapers prevent clogging | Tooth profile inherently resists sticking |
II. Application Scenarios for Smooth Roll Crushers
Smooth roll crushers are suitable for brittle and medium-soft materials with a compressive strength ≤150 MPa, making them the top choice for "precision-sized fine crushing" scenarios:
| Scenario | Material | Target Output |
|---|---|---|
| Coking/Coal Washing | Coke, lump coal | 2–13mm uniform granules |
| Cement Industry | Clinker, gypsum, limestone | 3–15mm; reduces grinding energy consumption |
| Glass/Ceramics | Glass cullet, feldspar | 2–8mm; high particle size consistency |
| Metallurgical Sintering | Sinter, manganese ore | 3–10mm; low fines generation |
| Chemicals/Fertilizers | Salt, fertilizer agglomerates | 2–10mm; prevents over-crushing |
III. Core Advantages of Smooth Roll Crushers
| Technical Feature | Direct Benefit |
|---|---|
| Precise roll gap control | Uniform output; eliminates frequent screening; improves product pass rate |
| Low-speed compression crushing; fines rate <10% | Increases coke/clinker product yield by 5–15% |
| Smooth roll + scraper design | Prevents clogging/sticking with wet materials (8%–12% moisture) |
| Alloy roll surface repairable via hardfacing | Roll shell lifespan of 6–12 months; repair cost is only 20%–30% of a new roll |
| Low speed, high torque | 30% lower electricity consumption per ton compared to impact crushers; lower dust and noise levels |
Why are smooth rolls better for the fine crushing stage? Hammer crushers and impact crushers rely on high-speed impact, inevitably generating large amounts of fine powder as material is repeatedly struck; in contrast, smooth-roll crushers concentrate crushing force along the "line" of the roll gap, subjecting material to a single compression event that yields a highly uniform particle size distribution. For materials like coke and clinker—where "over-crushing" leads to a drop in value—every 5% reduction in the fines generation rate translates directly into tangible profit.
IV. Main Parameters of Smooth Roll Crushers (Typical Configuration for 2PG Series)
Standard parameters for Baichy Heavy Industry’s 2PG double-roll crushers; smooth roll and toothed roll models share the same machine platform, with configurations selected based on the roll surface type:
| Model | Roll Diameter × Length (mm) | Feed Size (mm) | Capacity (t/h) | Motor Power (kW) |
|---|---|---|---|---|
| 2PG-400×250 | 400×250 | ≤25 | 2–10 | 2×5.5 |
| 2PG-610×400 | 610×400 | ≤30 | 5–20 | 2×15 |
| 2PG-610×750 | 610×750 | ≤30 | 5–25 | 2×18.5 |
| 2PG-750×400 | 750×400 | ≤30 | 10–40 | 2×18.5 |
| 2PG-800×600 | 800×600 | ≤40 | 12–50 | 2×22 |
| 2PG-800×800 | 800×800 | ≤40 | 20–60 | 2×22 |
| 2PG-900×900 | 900×900 | ≤50 | 50–100 | 2×37 |
| 2PG-1200×900 | 1200×900 | ≤50 | 60–130 | 2×45 |
| 2PG-1200×1200 | 1200×1200 | ≤50 | 80–150 | 2×45 |
Note: Capacity is rated based on limestone (1.6 t/m³); for lightweight materials such as coke, a conversion factor of 0.45–0.55 applies. Discharge particle size is determined by the roll gap and is adjustable between 2–40 mm. For smooth roll crushers, a scraper device should be selected based on the material's moisture content.
V. Typical Case Studies and Market Validation
Cement Clinker Final Crushing Retrofit (Middle East): A cement plant replaced its original hammer crusher with a smooth roll crusher (2PG-800×800) for clinker processing. The output particle size stabilized at 3–10 mm, and the fines generation rate dropped from 18% to below 7%. With uniform feed size entering the mill, the ball mill's hourly output increased by approximately 10%, and overall specific power consumption for grinding was reduced by over 20%.
Coke Sizing and Fine Crushing at a Coking Plant (Southeast Asia): A 2PG-610×400 smooth roll crusher was integrated into a coke screening line. It achieved a high concentration of 8–13 mm product and reduced the coke breeze rate, resulting in an annual increase of several hundred tons of qualified coke. The initial service life of the high-manganese steel roll shells was approximately 8 months, and they remained in service after undergoing two rounds of hard-facing repair.
VI. Recommended Auxiliary Equipment
Smooth roll crushers have an upper limit on feed particle size (generally not exceeding 1/10 to 1/15 of the roll diameter). The following equipment configuration is recommended for a complete production line:
PE Series Jaw Crusher: Primary crushing to reduce raw material size to ≤40 mm before feeding into the smooth roll crusher;
ZSW Vibrating Feeder: Ensures uniform feeding to prevent uneven loads that could damage the roll surfaces;
RCYD Iron Remover: Removes tramp iron at the source to protect roll surfaces and the adjustment mechanism;
YK Circular Vibrating Screen: Enables closed-circuit screening; oversized particles are returned for re-crushing to ensure consistent product sizing;
Ball Mill / HGM Ultrafine Grinding Mill: Material enters the mill directly after fine crushing, creating a highly efficient "crushing + grinding" combination.
VII. Selection Recommendations & Pitfalls to Avoid
Consider Hardness: For materials with a compressive strength >150 MPa (e.g., granite, basalt), choose a jaw crusher or cone crusher; smooth-roll crushers are unsuitable.
Consider Roll Surface: Choose smooth rolls for uniform, fine-grained output; choose toothed rolls for processing high-moisture, high-stickiness materials like coal gangue or clay.
Consider Moisture Content: If moisture content >12%, a scraper mechanism is essential, and the feed rate must be controlled.
Calculate Power Consumption: For the same production capacity, the electricity consumption per ton for smooth-roll crushers is lower than that of impact crushers; calculate annual operating costs (OPEX) based on yearly operating hours before making a decision.
VIII. FAQ (Frequently Asked Questions)
Q1: How do I choose between a smooth-roll crusher and a toothed-roll crusher?
A: It depends on the target particle size and material characteristics. Choose a smooth-roll crusher for uniform, fine output (2–10 mm) using medium-hard, brittle materials (clinker, coke, limestone, glass cullet). Choose a toothed-roll crusher for soft, high-moisture materials like coal gangue or clay, as the toothed rolls offer superior tearing capability and are less prone to clogging.
Q2: Will a smooth-roll crusher clog when processing wet material?
A: Not if equipped with a scraper mechanism. The smooth roll surface, combined with a spring-loaded scraper that continuously removes adhered material, allows for normal operation even with moisture levels of 8%–12%. This is a key reason why smooth-roll crushers are replacing hammer crushers in the coal washing and chemical industries.
Q3: Can the output particle size remain stable over the long term? What happens when the roll shells wear down?
A: Yes, it can. Particle size is determined by the roll gap; if wear widens the gap, it can be compensated for using spring or hydraulic adjustment mechanisms (a minor adjustment takes about 5 minutes every 300–400 hours). The roll shells are made of high-manganese steel or alloy hard-facing material and support on-site hard-facing repair; the cost of a single repair is only 20%–30% of a new roll, and a set of shells can be repaired 2–3 times.
