Smooth Double-Roll Crusher
The smooth double-roll crusher is the optimal solution for "precision fine crushing" and "low-fines sand making" in the mining, construction materials, and chemical industries. It crushes material by squeezing it at low speeds between two counter-rotating, smooth-surfaced rolls. The output particle size is directly determined by the roll gap—ensuring uniformity and control—while the rate of fines generation is significantly lower than that of hammer crushers or impact crushers. When your production priorities shift from simply "can it crush?" to "is the product uniform?", "are fines minimized?", and "are electricity costs saved?", the smooth double-roll crusher provides the answer.
I. What is a smooth double-roll crusher?
The smooth double-roll crusher belongs to the "smooth roll" category of the double-roll crusher family. Two smooth-surfaced rolls form the crushing chamber; material is drawn into the gap by the rotating rolls and fractures along planes of weakness under high compressive force and slight shearing action, with the finished product continuously discharged from beneath the gap. Unlike toothed-roll crushers that rely on tearing, smooth double-roll crushers excel at reducing medium-soft, brittle materials into uniform fine particles (2–15 mm), serving as a prime example of "crushing via compression rather than impact."
Three-Step Working Principle
• Feeding: Material falls onto the top of the two rolls and is drawn into the gap by gravity and friction against the roll surfaces;
• Compression Crushing: The rolls rotate toward each other, creating high pressure at the gap; material is crushed in a single pass without repeated impacts;
• Precision Discharge: The roll gap width dictates the maximum output particle size; particles smaller than the gap pass through directly, yielding a uniform product without the need for screening.

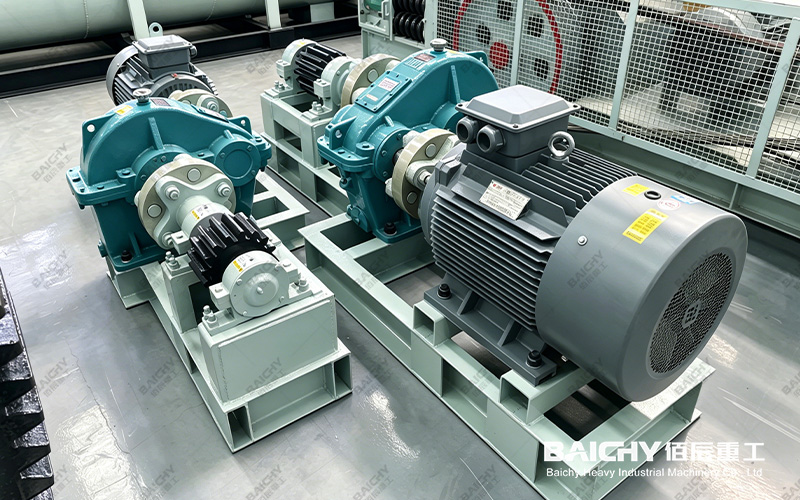

Double-Roll Crusher
Differentiation from Toothed-Roll and Hammer Crushers
| Comparison Item | Smooth Double-Roll Crusher | Toothed-Roll Crusher | Hammer Crusher |
|---|---|---|---|
| Crushing Method | Low-speed compression + shear | Toothed tearing | High-speed impact |
| Typical Output | 2–15mm uniform fine particles | 10–40mm medium-sized particles | 10–50mm; high proportion of fines |
| Fines Generation Rate | Low (<10%) | Moderate | High |
| Electricity Consumption (per ton) | Low | Moderate | High |
| Adaptability to Wet/Sticky Materials | No clogging (with scrapers) | Good anti-sticking properties | Prone to chamber clogging |
II. Application Scenarios
Smooth double-roll crushers are suitable for brittle and medium-soft materials with a compressive strength of ≤150 MPa; they excel at "precision fine crushing":
| Scenario | Material | Target Output | Selection Key Points |
|---|---|---|---|
| Manufactured Sand/Sand-making Line | Limestone, dolomite, river pebbles | 2–6mm | Closed-circuit with screening; replaces cone crushers in the fine crushing stage |
| Coking/Coal Washing | Coke, lump coal | 2–13mm | Fixed roll gap to reduce coke fines |
| Cement Industry | Clinker, gypsum | 3–15mm | Uniform feed size for mills; reduces grinding power consumption |
| Glass/Ceramics | Glass batch, feldspar | 2–8mm | Good particle size consistency |
| Metallurgical Sintering | Sinter, manganese ore | 3–10mm | Low fines generation rate |
| Chemicals/Fertilizers | Salt, caked fertilizer | 2–10mm | Prevents over-crushing |
III. Core Advantages
The advantages of smooth double-roll crushers translate directly into tangible economic benefits:
| Technical Feature | Direct Benefit (Value Translation) |
|---|---|
| Precise roll gap control for output size | Higher product pass rate; reduced material recirculation and screening load |
| Low-speed compression; fines rate <10% | 5–15% higher yield of coke/clinker; value difference of fines represents profit |
| Smooth roll + spring scraper structure | No roll coating or clogging with wet/sticky materials (8%–12% moisture) |
| Dual-motor, high-torque design | Power consumption per tonne is approximately 30% lower than that of impact crushers, resulting in significant annual electricity cost savings |
| Alloy hardfacing for roll shells | Roll shell service life ranges from 6 to 12 months; refurbishment costs are only 20%–30% of the price of new shells |
| Spring/hydraulic roll gap adjustment | Automatic retraction upon encountering uncrushable material (tramp iron) protects the roll surfaces, drastically reducing downtime for maintenance |
Perspective: Why switch to a smooth double-roll crusher for the fine crushing stage? Hammer crushers and impact crushers rely on high-speed impact; repeatedly striking the material inevitably generates large amounts of fines. In contrast, a smooth double-roll crusher concentrates crushing force along the "line" of the roll gap, compressing the material in a single pass and yielding a product with a highly consistent particle size distribution. For materials like coke, clinker, and glass batch—where "over-crushing" reduces value—every 5% reduction in the fines rate translates directly into tangible profit.

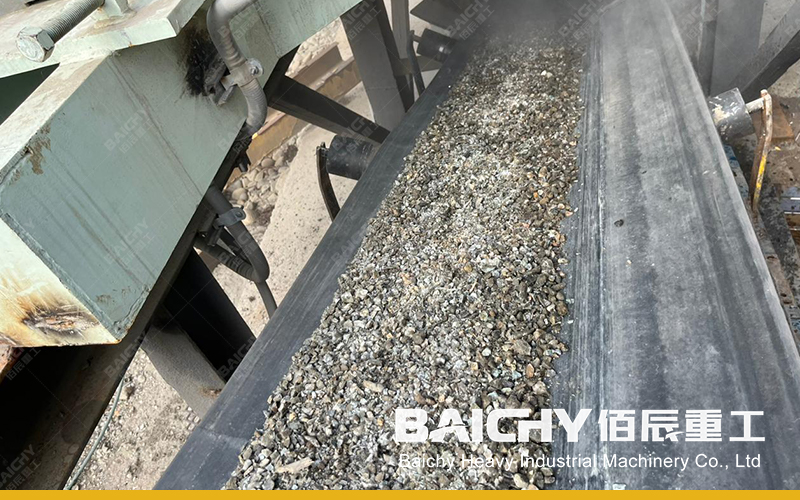

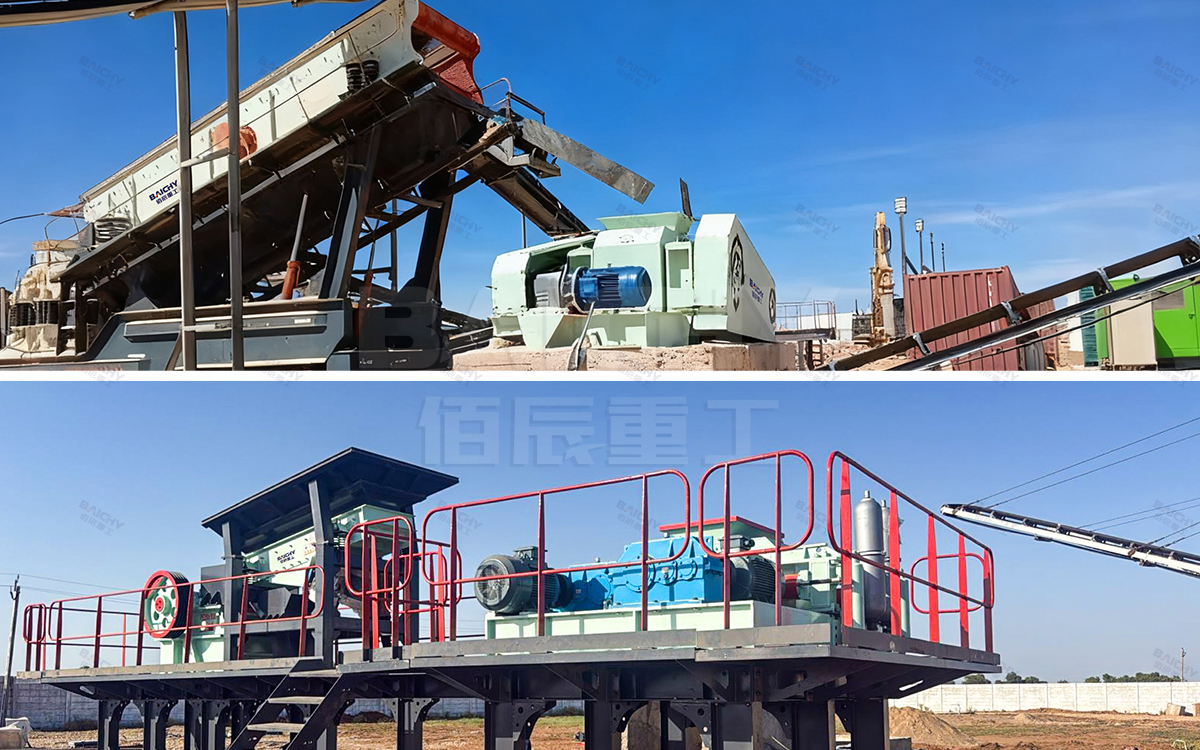

Smooth Double-Roll Crusher
IV. Main Technical Parameters (2PG Smooth Roll Series)
Standard parameters for Baichy Heavy Industry's 2PG smooth double-roll crusher. The smooth-roll and toothed-roll models share the same machine platform; the specific configuration is selected based on the roll surface type:
| Model | Roll Diameter × Roll Length (mm) | Feed Size (mm) | Discharge Size (mm) | Capacity (t/h) | Motor Power (kW) |
|---|---|---|---|---|---|
| 2PG-400×250 | 400×250 | ≤25 | 2–8 | 2–10 | 2×5.5 |
| 2PG-610×400 | 610×400 | ≤30 | 2–10 | 5–20 | 2×15 |
| 2PG-610×750 | 610×750 | ≤30 | 2–10 | 5–25 | 2×18.5 |
| 2PG-750×400 | 750×400 | ≤30 | 2–10 | 10–40 | 2×18.5 |
| 2PG-800×600 | 800×600 | ≤40 | 2–15 | 12–50 | 2×22 |
| 2PG-800×800 | 800×800 | ≤40 | 2–15 | 20–60 | 2×22 |
| 2PG-900×900 | 900×900 | ≤50 | 3–20 | 50–100 | 2×37 |
| 2PG-1200×900 | 1200×900 | ≤50 | 3–25 | 60–130 | 2×45 |
| 2PG-1200×1200 | 1200×1200 | ≤50 | 3–30 | 80–150 | 2×45 |
Note: Production capacity is rated based on limestone (1.6 t/m³); for lightweight materials like coke, a conversion factor of 0.45–0.55 applies. Discharge particle size is determined by the roll gap and is adjustable within the 2–30 mm range. If moisture content exceeds 12%, a scraper device must be installed, and the feed rate must be controlled.
V. Typical Case Studies
Silica Sand Production Retrofit (Middle East): A silica sand plant replaced its original impact crusher with a smooth double-roll crusher (2PG-800×800) to process quartz stone. The discharge size stabilized at 2–6 mm, and the fines generation rate dropped from 16% to below 6%. With uniform feed size entering the mill, hourly output increased by approximately 10%, electricity consumption per ton of sand decreased by about 20%, and the yield of finished silica sand improved significantly.
Coke Sizing and Fine Crushing (Southeast Asia): A 2PG-610×400 smooth double-roll crusher was integrated into a coke screening line. It produced a highly consistent 8–13 mm output with a significant reduction in coke fines, resulting in an annual increase of several hundred tons of qualified coke. The initial service life of the high-manganese steel roll shells was approximately 8 months; they remained in service after two rounds of hard-facing repair, significantly lowering the amortized cost of spare parts.
Cement Clinker Final Crushing Retrofit (Middle East): A cement plant replaced its original hammer crusher with a 2PG-900×900 smooth double-roll crusher for clinker processing. The discharge size stabilized at 3–10 mm, and the fines generation rate dropped from 18% to below 7%. Hourly output of the ball mill increased by approximately 10%, and overall electricity consumption for grinding was reduced by more than 20%.
VI. Recommended Auxiliary Equipment
Smooth double-roll crushers have an upper limit on feed particle size (generally not exceeding 1/10–1/15 of the roll diameter). A complete production line is best configured as follows:
• PE Series Jaw Crusher: For primary coarse crushing; reduces raw material to ≤40mm before feeding into the double-roll crusher.
• ZSW Vibrating Feeder: Ensures uniform feeding and prevents uneven loads that could damage the roll surfaces.
• RCYD Iron Remover: Removes iron contaminants at the source to protect roll surfaces and the adjustment system.
• YK Circular Vibrating Screen: For closed-circuit screening; oversized particles are returned for re-crushing to ensure product size consistency.
• Wheel-bucket/Spiral Sand Washer: Paired with sand-making operations to produce clean finished sand.
• Ball Mill/HGM Ultrafine Grinding Mill: Material enters the mill directly after fine crushing, creating an efficient "crushing + grinding" combination.
VII. Selection Advice & Pitfalls to Avoid
• Consider Hardness: If material compressive strength >150 MPa (e.g., granite, basalt), choose a jaw crusher or cone crusher; smooth double-roll crushers are unsuitable.
• Consider Roll Surface: Choose smooth rolls for uniform fine particles (2–15mm); choose toothed rolls for processing high-moisture, high-viscosity materials like coal gangue or clay.
• Consider Moisture Content: If moisture content >12%, a scraper device is essential, and feed speed must be controlled.
• Calculate Power Consumption: For the same production capacity, double-roll crushers consume less electricity per ton than impact crushers; calculate OPEX based on annual operating hours before making a decision.
VIII. FAQ (Frequently Asked Questions)
Q1: How do I choose between a smooth double-roll crusher and a toothed roll crusher?
A: It depends on the target particle size and material characteristics. Choose a smooth double-roll crusher for uniform fine output (2–15mm) using medium-hard, brittle materials (clinker, coke, limestone, glass cullet). Choose a toothed roll crusher for soft materials with high moisture content (such as coal gangue or clay), as the toothed rolls offer superior tearing capability and are less prone to clogging.
Q2: Will a smooth double-roll crusher clog when processing wet, sticky materials?
A: Not if equipped with a scraper mechanism. The rolls have smooth surfaces; a spring-loaded scraper continuously removes material adhering to the rolls, allowing for normal operation even with moisture content between 8% and 12%. This capability is a key reason why smooth double-roll crushers are replacing hammer crushers in the coal washing and chemical industries.
Q3: Can the output particle size remain stable over the long term? What happens when the roll shells wear down?
A: Yes, it can. Particle size is determined by the roll gap; if wear causes the gap to widen, it can be compensated for using spring or hydraulic adjustment mechanisms (requiring a minor adjustment every 300–400 hours, taking about 5 minutes). The roll shells are made of high-manganese steel or alloy hard-facing material and support on-site hard-facing repair; the cost per repair is only 20%–30% of the price of a new roll, and a single set of shells can be repaired 2–3 times.
