PE Series Jaw Crushers: A Comprehensive Guide to Selection for Primary Crushing in Mining

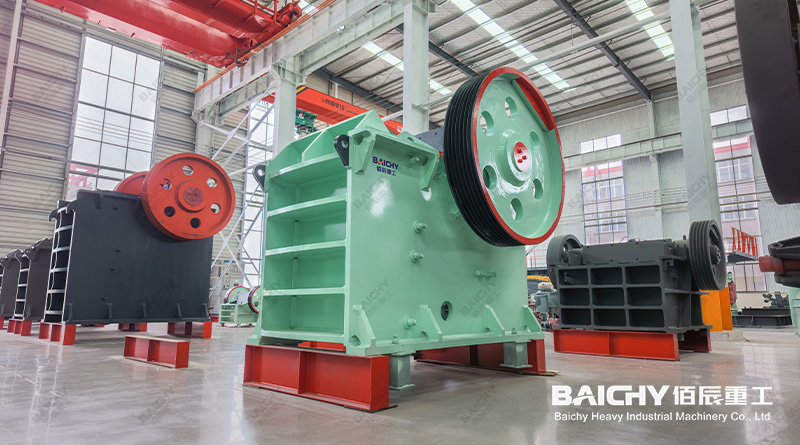

PE Series Jaw Crushers

The PE series jaw crusher is the most widely used primary crushing equipment in the mining and aggregate industries. The series encompasses six mainstream models ranging from PE-250×400 to PE-900×1200, featuring a maximum feed size of 750mm and a single-unit capacity of 5–450 t/h. It meets all primary crushing requirements, from small-scale mining sites with an hourly output of 10 tons to large-scale production lines with a daily output of 10,000 tons. For medium-to-high hardness rocks such as granite, basalt, and iron ore, the PE series jaw crusher represents a reliable investment with low maintenance demands—making it the preferred choice for the primary crushing stage in the vast majority of stationary and mobile production lines worldwide.

I. Overview of the PE Series Jaw Crusher

1.1 What is the PE Series Jaw Crusher?

The PE series jaw crusher is the primary crushing workhorse within the jaw crusher family. The numbers in the model designation indicate the width and length of the feed opening (e.g., PE-600×900 signifies a feed opening of 600mm × 900mm). Utilizing the principle of compression crushing via jaw plates, its structure comprises a frame, a swing jaw, an eccentric shaft, fixed and movable jaw plates, a toggle plate, and a flywheel. Renowned for its simple structure and strong adaptability, it is often hailed as an "evergreen" classic in the field of crushing equipment.

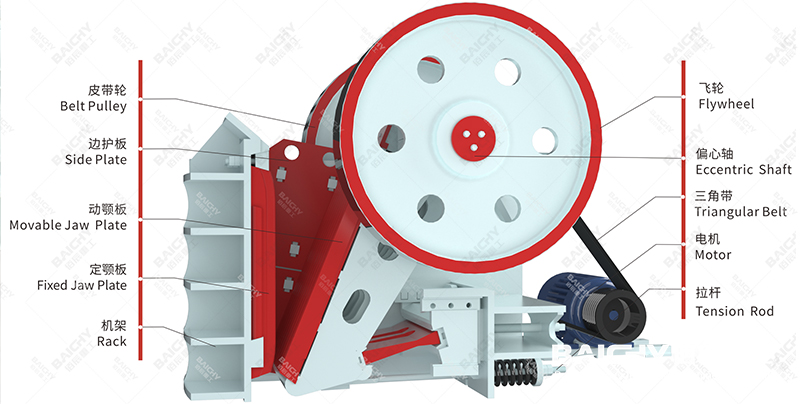

Structural Overview of the PE Series Jaw Crusher

1.2 Working Principle

An electric motor drives the eccentric shaft to rotate via a V-belt, causing the swing jaw to oscillate back and forth around its suspension point. Material entering the space between the fixed and movable jaw plates is progressively crushed through the combined actions of compression, splitting, and bending. Once the material is reduced to a size smaller than the discharge opening, it exits through the bottom as the swing jaw retracts. This crushing method—predominantly compression supplemented by splitting—gives the PE jaw crusher an inherent advantage in handling hard rock, allowing it to reliably process materials with compressive strengths of up to 320 MPa.

II. Key Parameters and Technical Specifications

Parameter Interpretation (Practical Insight): The capacities listed in the table are rated based on medium-hard materials (such as limestone, with a density of approx. 1.6 t/m³). When crushing hard rock like granite or basalt, the actual capacity is approximately 75%–85% of the rated value; therefore, when selecting a model, it is crucial to factor in a margin by calculating "nominal capacity × 0.8"—this is a common pitfall in production line design worldwide. Conversely, regarding feed size requirements: the PE-600×900 can directly accept run-of-mine (ROM) stone up to 500mm in size. For most mining operations, this eliminates the need for secondary blasting, often resulting in significant cost savings on the entire blasting and loading system. III. Application Scenarios

3.1 Primary Crushing in Metal Mines

Used for the primary crushing of run-of-mine (ROM) ore at processing plants for iron, gold, copper, and manganese. Given the large lump size and high hardness of the raw ore, the PE series jaw crusher—featuring a one-piece cast steel frame and a deep V-shaped crushing chamber—is designed to withstand high-frequency impact conditions. It serves as the "first gate" in the mineral processing workflow, preparing the material for subsequent secondary crushing and ball mill grinding (which typically requires a feed size of ≤25mm).

3.2 Sand, Gravel, and Quarrying

Used for the primary crushing of aggregates in granite, basalt, and limestone quarries. When combined with impact crushers or cone crushers, it forms a three-stage process—"jaw crushing + secondary crushing + sand making"—widely used to supply aggregates for highways, railways, and hydroelectric power stations. For aggregate production lines with a daily capacity of 3,000 tons, the PE-750×1060 or PE-900×1200 models are the standard choices for primary crushing.

3.3 River Pebbles and Construction Waste Recycling

River pebbles and cobbles are characterized by high hardness and strong abrasiveness; the PE jaw crusher’s compression-based crushing method ensures controllable wear, making it the preferred choice for primary crushing in river stone sand-making lines. It also efficiently and cost-effectively performs primary crushing on recycled construction materials—such as concrete blocks and old asphalt pavement—aligning with the circular economy approach to construction waste management.

3.4 Core Unit for Mobile Crushing Stations

The PE series serves as the core crushing unit for YDPZ wheeled or tracked mobile stations. These units enable immediate production upon arrival at the mining face, making them ideal for infrastructure and demolition projects that involve dispersed sites and frequent relocation.

IV. Core Advantages

4.1 Deep V-Shaped Crushing Chamber and High Crushing Ratio

The deep V-shaped chamber, combined with an increased eccentric throw, results in a large swing stroke for the moving jaw. This achieves a crushing ratio of up to 4–6:1, allowing large lumps (in the 600mm class) to be gripped and crushed in a single pass, thereby simplifying upstream processes and reducing mining and loading costs.

4.2 High-manganese steel jaw plates: superior lifespan and cost-efficiency

The jaw plates are made of high-manganese steel (Mn13Cr2), offering a service life of approximately 6–12 months in hard-rock applications. Featuring a symmetrical design, the plates can be flipped (swapping top and bottom ends) after wear, effectively doubling the lifespan of a single set and significantly reducing consumable costs per ton.

4.3 Flexible discharge setting and global power compatibility

Discharge settings can be adjusted via wedge or hydraulic systems in just minutes, minimizing downtime when switching production specifications. Motors can be customized to local grid standards (e.g., 380V/50Hz, 400V/50Hz, 440V/460V/60Hz), eliminating the need for costly transformer upgrades for projects in Africa, Southeast Asia, and Latin America.

4.4 TCO (Total Cost of Ownership) advantages

Based on a PE-600×900 model with an hourly output of 120 tons and 300 operating days per year: the 75kW motor consumes approximately 60 kWh at full load, resulting in an electricity consumption of only about 0.5 kWh per ton; annual costs for consumables—such as jaw plates and toggle plates—account for just 3%–5% of the total equipment price. Compared to cone crusher configurations with similar capacity, the jaw crusher primary crushing stage offers a 15%–20% lower cost per ton, making it the primary crushing option with the fastest return on investment.

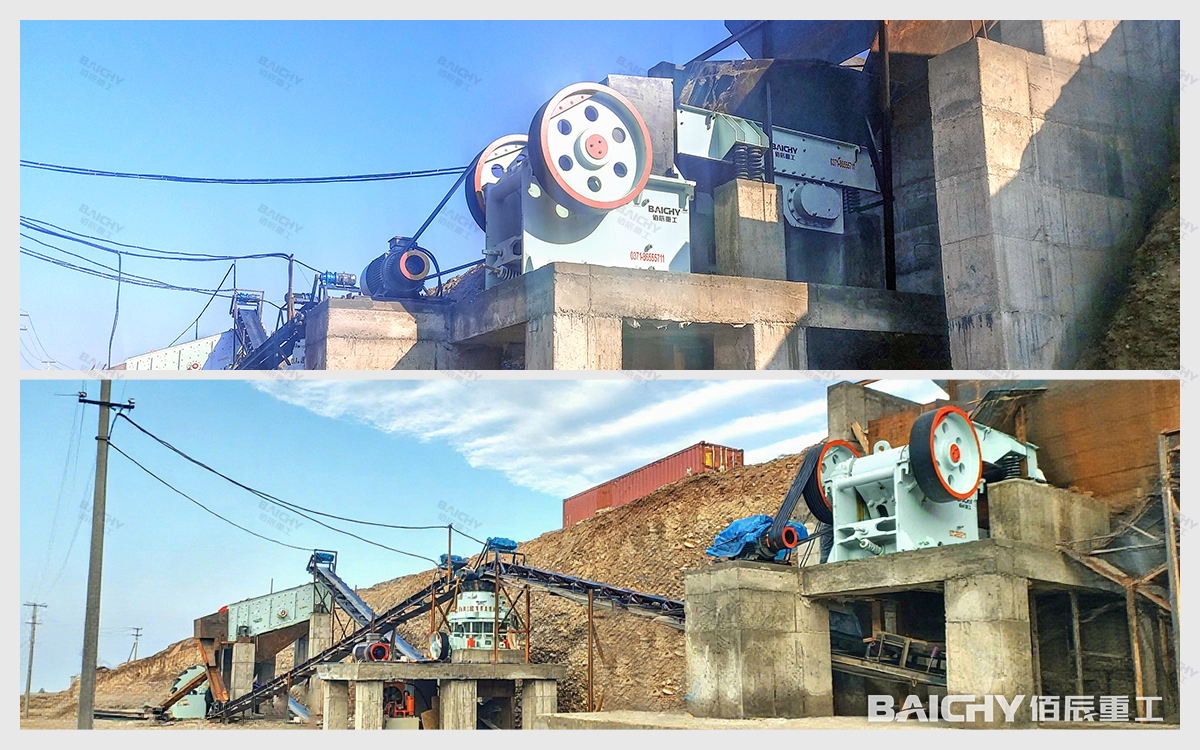

100–150 tph Jaw Crushing Production Line

V. Real-World Case Studies

Case 1: Fixed Granite Production Line in Rwanda (100–150 t/h capacity; PE-600×900)

After commissioning, a single set of jaw plates lasted 8 months, and electricity consumption was approximately 0.45 kWh per tonne. The project owner reported a ~20% reduction in crushing cost per tonne compared to imported used equipment, with the equipment investment recouped within 16 months.

Case 2: Basalt Quarry in Ethiopia (PE-400×600):

Designed for airport infrastructure aggregate production; powered by a direct 380V/50Hz connection; actual stable capacity of 55–60 t/h; no recorded unplanned downtime in the primary crushing stage to date. Similar PE-series configurations are widely used in mobile river-stone plants in Venezuela, river-pebble processing lines in the Philippines, and granite quarries in Mexico, demonstrating proven adaptability to various operating conditions.

VI. Recommended Related Equipment

As the primary crusher in the production line, the PE series jaw crusher must be paired with the following equipment to form a complete process chain:

Selection Advice: For hard rock (granite, basalt, iron ore), prioritize the "PE Jaw Crusher + Cone Crusher + VSI" combination. For medium-soft rock (limestone, river pebbles), the lower-cost "PE Jaw Crusher + Impact Crusher" combination is suitable, reducing the cost per ton by an additional 8%–12%.

VII. FAQ

Q1: What is the difference between the PE series jaw crusher and the PEX fine jaw crusher?

The PE series handles primary (coarse) crushing; it features a deep crushing chamber, a large feed opening, and a wide discharge adjustment range (e.g., PE-600×900 discharges at 65–160mm), designed to reduce large rocks into smaller pieces. The PEX series handles secondary crushing; it features a narrow, elongated feed opening and a fine discharge setting (e.g., PEX-250×1200 discharges at 25–60mm), designed to reduce medium-sized rocks into fine material. A two-stage jaw crushing configuration can serve as an alternative to processes involving hammer crushers or impact crushers; it is particularly suitable for small-to-medium-sized production lines processing hard rock where particle shape requirements are not extremely stringent.

Q2: How do I select the right PE series model based on production capacity?

Follow this three-step method:

① Determine the target finished product capacity and include a 20% safety margin;

② Ensure the maximum feed size does not exceed the model's limit (e.g., for 500mm raw stone, choose the PE-600×900 or larger);

③ For hard rock, adjust the nominal capacity by a factor of 0.8 before consulting the selection chart—choose the PE-400×600 for 50 tph, PE-500×750 for 100 tph, PE-600×900 for 150 tph, and PE-750×1060 for capacities exceeding 200 tph. If you are unsure, simply provide details on material hardness and capacity targets, and Baichy can generate a free equipment selection plan for you.

Q3: How hard a rock can the PE series jaw crusher handle? What are the feed requirements?

It is suitable for materials with a compressive strength of ≤320 MPa, covering the vast majority of mining and aggregate materials such as granite, basalt, iron ore, river pebbles, and limestone. Please note three points regarding the feed: the lump size must not exceed the model's maximum feed limit (otherwise, the crushing chamber may jam); if the clay content is high (>8%), pre-screening with a vibrating screen is recommended; and metal foreign objects (such as drill rods or anchor bolts) must be strictly prevented from entering the machine, as jaw crushers are highly sensitive to iron—installing an iron remover is recommended.
