Primary Crushing in Mining: A Comprehensive Guide to Parameters, Equipment Selection, and Production Line Solutions

Mining primary crushing

Primary crushing is the initial mechanical stage in the journey of ore from the extraction site to the processing plant; it reduces blasted run-of-mine ore—ranging from large blocks of 500–1000 mm—down to sizes below 100–200 mm, thereby paving the way for conveyor transport, secondary/tertiary crushing, and grinding. An error in selecting the primary crusher can either bottleneck the entire production line's capacity or cause long-term cost overruns due to excessive electricity consumption and wear-and-tear expenses; it is the single most critical decision point affecting the mine's return on investment. For the vast majority of mines with capacities between 50 and 800 tons per hour (t/h), the jaw crusher remains the mainstream choice, offering the best balance of cost-effectiveness and ease of maintenance.

I. Overview: What is Primary Crushing?

Primary crushing takes place after the feeding stage and before secondary crushing, serving as the first stage of the crushing process. Run-of-mine ore from open-pit blasting typically ranges from 300 mm to 1000 mm in size; as such, it cannot be fed directly into secondary/tertiary crushing equipment or ball mills. It must first undergo primary crushing to reduce the particle size to the 100–200 mm range, meeting the requirements for ore pass discharge, conveyor transport, and downstream processing feeds.

Primary crushing fulfills three key roles: ensuring particle size compliance (providing suitable feed for downstream stages); setting the capacity ceiling (the hourly output of the entire line is limited by the primary crusher's capacity); and acting as a cost anchor (primary crushing accounts for approximately 25%–35% of the total crushing section's electricity consumption, and the costs of wear parts—such as jaw plates—can be determined upfront). The industry principle of "crush more, grind less" also begins at the primary crushing stage: executing this first stage effectively—resulting in finer, more uniform ore feed for the grinding circuit—is the primary lever for cost reduction in mineral processing plants. Mainstream configurations include stationary jaw crushing stations and mobile jaw crushing stations; gyratory crushers are generally considered only for ultra-large-scale operations (single-unit capacities exceeding 2000 t/h). For the vast majority of aggregate, metal, and construction material mines, jaw crusher solutions offer significant advantages in terms of capital expenditure (CAPEX) and spare parts availability.

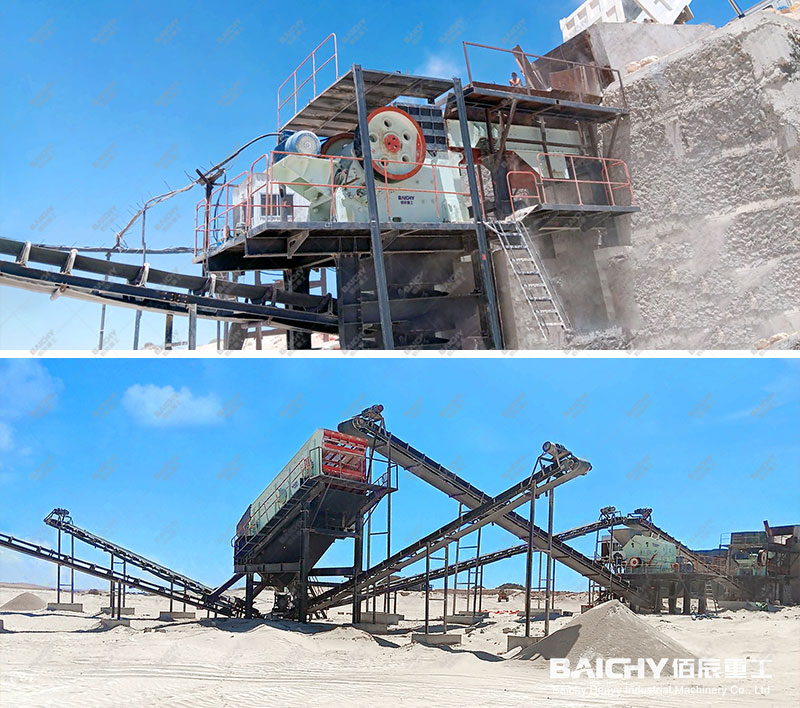

Primary Crushing in Mining

II. Three Key Criteria for Selecting Primary Mine Crushers

2.1 Feed Size Compatibility: The inlet must accommodate run-of-mine (ROM) rock

The maximum feed size determines the inlet dimensions; for instance, the PE-900×1200 model can handle ROM rock up to 750 mm. If loose blasting practices frequently result in oversized material, it is advisable to install a grizzly screen or select a model with a larger inlet to prevent chamber blockages and production stoppages.

2.2 Capacity Compatibility: Adjust for rock hardness before selecting the model

Nominal capacities are rated based on limestone (1.6 t/m³). When crushing harder materials like granite or basalt, apply a correction factor (0.8–0.85) or iron ore (0.7–0.8) before matching the model; it is better to oversize than undersize, as actual on-site throughput is often only 80% of the rated capacity, which can force a slowdown across the entire production line.

2.3 Operational Compatibility: Power supply, temperature, and clay content

Primary crushers must be compatible with the local power grid (customizable for 380V/50Hz, 400V, or 440V/60Hz). In extremely cold mining regions, low-temperature lubrication and startup strategies must be considered. If the raw ore contains more than 8% clay, incorporate a pre-screening stage or select a deep-chamber design to prevent clay clumps from clogging the crushing chamber.

III. Core Specifications: PE Series Primary Mining Crushers

Note: Capacities are rated based on limestone; for granite, multiply by 0.8–0.85; for iron ore, multiply by 0.7–0.8. Actual configuration depends on the specific selection plan.

Value Proposition: Taking the PE-600×900 as an example, the 75 kW motor consumes approximately 60 kWh per hour at full load. Based on an output of 120 t/h, the energy consumption per ton is only about 0.5 kWh—significantly lower than the 0.8–1.2 kWh required by impact crushers. The longer the primary crusher operates, the more valuable this energy-saving advantage becomes. With the optional hydraulic discharge opening adjustment, the time required to change specifications is reduced from 2–3 hours (for shim-based systems) to just a few minutes; for mines handling orders with multiple specifications, this adds 40–80 hours of effective annual production time.

IV. Typical Application Scenarios

4.1 Primary Crushing Stations for Open-Pit Metal Mines

Raw ores from iron, copper, and gold mines are often hard and large in size. Primary crushing equipment—featuring cast-steel frames designed to withstand high-frequency impacts—reduces the ore to under 150mm, preparing it for ball mill processing. It is recommended to pair this equipment with an iron remover to protect downstream machinery, utilizing a three-stage configuration: "Jaw Crusher + Cone Crusher + Screening."

4.2 Fixed Production Lines for Sand and Aggregate Mines

Quarries represent the most common application for primary crushing. Following initial jaw crushing, the process branches based on rock hardness: impact crushers are used for medium-soft rock, while cone crushers are used for hard rock. The resulting graded aggregates (5–31.5mm) are supplied directly to highway, railway, and commercial concrete projects. The former offers the lowest cost per ton, while the latter provides superior wear resistance and more stable output.

4.3 Mobile Primary Crushing

For small mines requiring frequent relocation, temporary quarry sites, and tunnel muck processing projects, the YDPZ series mobile jaw crushing station integrates the feeder, jaw crusher, and conveyor belt onto a tracked or wheeled chassis. Requiring no civil engineering or complex installation, it allows for immediate operation upon arrival—offering a highly flexible solution that shifts primary crushing from "building a fixed plant" to "driving in and crushing."

4.4 Mining Areas with Special Operating Conditions

Equipment can be customized for specific conditions: low-temperature lubrication and thermal insulation for cold-start capabilities in high-latitude, frigid regions (-30°C); deep-cavity jaw crushers paired with pre-screening for high-moisture, sticky ores; and compact, low-profile designs for underground operations. The entire range of primary crushing equipment is customizable to site conditions, serving markets in high-latitude regions such as Russia and Canada.

5. Core Advantages

5.1 High Crushing Ratio, Simple Structure, Lowest Failure Rate in the Line

With a primary crushing ratio of 3–6:1, minimal moving parts, and centralized lubrication points, this is the most robust unit in the entire processing line. It requires low operator skill levels, making it ideal for mining areas in Africa and Southeast Asia where maintenance resources may be limited—avoiding even a single unplanned shutdown translates into tens of tons of additional output value.

5.2 Reversible High-Manganese Steel Jaw Plates; Transparent, Controllable Wear Costs

The high-manganese steel jaw plate is the core wear part for primary crushing. Featuring a symmetrical Mn13Cr2 design, the plates can be flipped (swapping top and bottom ends) to extend service life to 6–12 months in hard-rock applications. Wear costs can be estimated in advance, eliminating "black-box" after-sales pricing and providing a clear view of the 5-year Total Cost of Ownership (TCO).

5.3 Dual Configurations (Stationary & Mobile); Transparent CAPEX/OPEX

The same PE primary crusher unit can be installed in a stationary primary crushing station or integrated into a mobile station. Mines can use a mobile station to verify ore reserves before transitioning to a stationary line for capacity expansion; this ensures clear investment estimates and reduces upfront financial pressure.

5.4 Full Compatibility with Power Grids and Operating Conditions; Proven Global Delivery Experience

The entire series supports various voltage standards, ensuring compatibility with power grids in South Africa, Latin America, Southeast Asia, and the Middle East. A wear-parts list and localized operation manuals are included, helping overseas mines shorten their ramp-up period.

5.5 Synergy with the Grinding Stage; Realizing "Crush More, Grind Less"

A more stable primary crushing output size ensures a more uniform feed size for the mill, simultaneously reducing both electricity and steel consumption during grinding. Optimizing the discharge opening setting is a cost-free way to improve energy efficiency. VI. Practical Case Study

The primary crushing stage of this line operates for an average of 520 hours per month; the initial set of jaw plates lasted 9 months, and electricity consumption was 0.46 kWh per ton. The crushing cost per ton is approximately 20% lower than that of previously used imported equipment, with the investment recovered in 16 months. This same primary crushing configuration has been widely deployed in infrastructure aggregate projects in Africa, iron ore operations in South America, and limestone projects in the Middle East, consistently proving its reliability in high-hardness and high-abrasion operating conditions.

VII. Recommended Auxiliary Equipment

Selection Advice: For hard rock (granite, basalt, iron ore), choose the "Jaw Crusher + Cone Crusher + VSI" combination. For medium-soft rock (limestone, river pebbles), choose the "Jaw Crusher + Impact Crusher" combination to further reduce per-ton costs by 8%–12%. Sending actual material samples to the manufacturer for targeted testing is more reliable than relying on empirical formulas.

VIII. FAQ

Q1: What is the typical output size for primary mine crushing?

Mainstream PE series primary crushers offer an adjustable output range of 40–160mm; the discharge opening setting determines the particle size. A typical configuration produces 100–150mm material for subsequent secondary/fine crushing. Increasing the discharge opening by 40mm boosts capacity by approximately 30% but results in coarser output; this must be balanced with the secondary crushing capacity to avoid operational bottlenecks.

Q2: Should I choose a stationary or mobile primary crushing station?

It depends on the ore body's lifecycle and relocation frequency. For sites with defined reserves and a service life exceeding 5 years, choose a stationary primary crushing station for lower per-ton costs. For dispersed sites, short-term projects, or operations requiring rapid startup, choose a mobile jaw crushing station; it eliminates the need for civil engineering and installation, allowing for immediate production upon arrival. Both solutions utilize the same PE primary crusher unit, enabling seamless future upgrades or equipment interchangeability.

Q3: How do I select the right primary crusher for a mine, and what information is required?

Only three sets of data are needed: maximum feed size (determines the feed opening), target hourly throughput (determines the model and motor), and material hardness and clay content (determine capacity adjustments and pre-screening configuration). Sending samples to the manufacturer for crushing test calibration and comparing the results against CAPEX/OPEX estimates is the safest way to avoid selection errors.
