Jaw Crushing Equipment Factory: Understanding the First Stage of the Primary Crushing Line from a Manufacturing Perspective

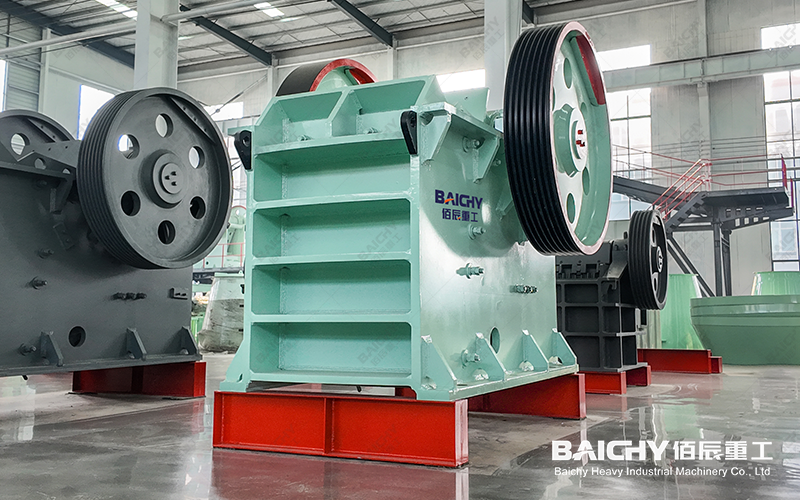

PE Jaw Crusher

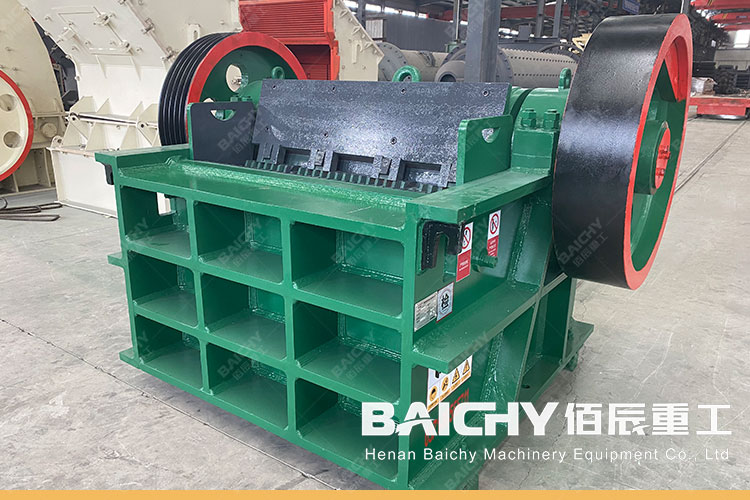

PEX Fine Jaw Crusher

The jaw crusher is the most widely used primary crushing equipment in global mining and aggregate production lines. Selecting a professional jaw crusher manufacturer directly determines the cost per ton, the service life of the jaw plates, and the timeline for bringing the entire production line online. As a manufacturer deeply rooted in the production of mining crushing, ore grinding, and mineral processing equipment, we offer the PE/PEX series of jaw crushers as our core product, delivering both stationary and mobile plant solutions to over 60 countries. This article helps you make an informed decision when selecting a jaw crusher manufacturer by examining three key dimensions: manufacturing capabilities, application scenarios, and real-world case studies.

I. What a Professional Jaw Crusher Manufacturer Offers

A "jaw crusher manufacturer" is not merely a workshop for a single product; it is an equipment manufacturing enterprise covering the entire value chain—including design, casting, machining, assembly, testing, and after-sales service. The value of a professional manufacturer lies in three areas: first, core components like the frame and jaw plates are produced in-house, ensuring quality traceability; second, motors and electrical control systems can be customized to match local power standards (e.g., 380V/50Hz, 400V/50Hz, 460V/60Hz); and third, the manufacturer possesses the capability to supply complete production lines, delivering not just a single machine but a comprehensive process package covering "feeding, crushing, screening, and sand making."

For buyers, dealing directly with the manufacturer eliminates intermediary markups and provides access to accurate technical specifications, container loading plans, and lists of wear parts prior to commissioning—precisely the areas where hidden costs most often arise in international procurement.

II. Key Application Scenarios

Jaw crushers are renowned for their large feed openings, high crushing ratios, and simple structure, making them suitable for virtually all operations requiring primary crushing:

2.1 Primary Crushing of Run-of-Mine (ROM) Ore in Metal Mines

In processing plants for iron, manganese, copper, and gold ores, the primary crushing stage handles ROM ore with feed sizes often reaching 500–800 mm. The jaw crusher reduces the ore to 150–250 mm before it proceeds to secondary crushing or ball milling. Capable of processing ores with compressive strengths of up to 320 MPa, the jaw crusher is the standard primary crushing equipment in mineral processing workflows.

2.2 Sand, Gravel Aggregates, and Quarries

Aggregate production lines for highways, railways, and hydropower projects typically employ a three-stage process: "jaw crusher + impact/cone crusher + sand-making machine." The jaw crusher handles over 70% of the primary crushing load, thereby determining the production line's maximum capacity.

2.3 Mobile Crushing Station Units

By mounting a jaw crusher onto a YDPZ-series wheeled or tracked mobile station, operations can begin immediately upon arrival at the quarry face. This setup is ideal for decentralized applications—such as infrastructure projects requiring frequent site relocation and construction waste recycling—while eliminating the costs associated with pouring fixed foundations.

2.4 Construction Waste and Tailings Recycling

When performing primary crushing and recycling of concrete blocks and reclaimed pavement materials, there is a high risk of feedstocks containing foreign objects like rebar. Jaw crushers offer superior tolerance for such impurities compared to impact crushers, making them the preferred choice for primary crushing in recycled aggregate production lines.

III. Core Equipment and Specifications

The table below lists the specifications for our factory's primary PE-series jaw crushers and PEX-series fine jaw crushers (capacities are rated based on medium-hard material with a density of approximately 1.6 t/m³):

Specification Notes: When crushing hard rock such as granite or basalt, actual capacity is approximately 75%–85% of the rated value; a 20% capacity margin should be factored in during model selection. The 400×600 feed opening model is suitable for small-to-medium production lines (40–80 t/h), while models sized 750×1060 and above are designed for large-scale projects with hourly outputs exceeding 200 tons. Discharge settings utilize a hydraulic wedge adjustment system (optional), allowing for specification changes in just minutes and directly minimizing downtime losses.

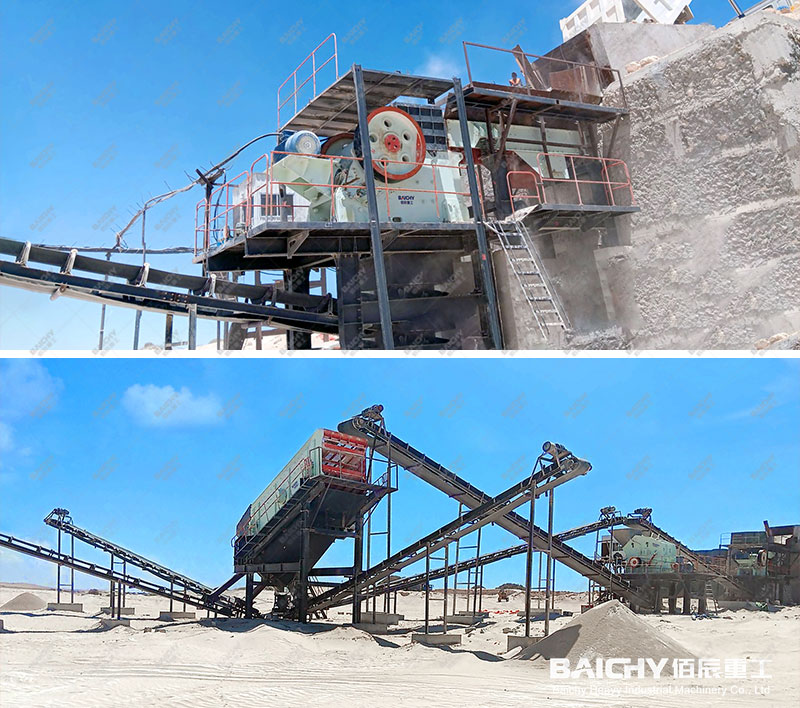

Jaw crushing equipment factory

IV. Equipment and Manufacturing Advantages

4.1 Deep-cavity structure with a crushing ratio of 4–6:1

The deep V-shaped crushing cavity and increased eccentric throw design enable large ore blocks to be crushed in a single pass. This eliminates the need for secondary blasting in most mining operations, reducing mining and loading costs by approximately 10%–15%.

4.2 High-manganese steel jaw plates with doubled service life

The jaw plates are made of Mn13Cr2 high-manganese steel, offering a service life of 6–12 months in hard-rock applications. The symmetrical design allows the plates to be flipped end-for-end after wear, effectively doubling the lifespan of a single set; annual consumable costs account for only about 3%–5% of the total equipment price.

4.3 In-house production of frames and core castings

With proprietary casting and heat treatment capabilities, the factory produces frames featuring integrated cast-steel or welded structures and unified bearing housings. This eliminates quality fluctuations associated with outsourced components—a fundamental difference between factory-direct supply and trading-company distribution.

4.4 Controllable TCO and rapid investment payback

Taking the PE-600×900 model as an example: the 75kW motor consumes approximately 60 kWh at full load. At a rate of $0.10/kWh, the electricity consumption is roughly 0.42 kWh per ton. Compared to other primary crushing solutions of similar capacity, the jaw crusher stage offers a 15%–20% lower cost per ton, allowing most projects to recoup their equipment investment within 12–18 months.

4.5 Low maintenance requirements, ideal for overseas projects

Routine maintenance is limited to lubrication and checking the toggle plate clearance. With minimal operator skill requirements, the equipment is particularly well-suited for projects in regions with limited technical support resources, such as Africa, Southeast Asia, and Latin America.

V. Real-World Project Cases

Case 1: Fixed River Pebble Processing Line in the Philippines (C90 Primary Crusher).

The client processes river pebbles (hardness: 120–160 MPa) using a configuration comprising a C90 jaw crusher, a cone crusher, and a sand-making machine. Measured capacity is 90–110 t/h, producing three aggregate grades (0–5 mm, 5–15 mm, and 15–25 mm). After eight months of operation, the jaw plate integrity rate exceeded 90%, with an electricity consumption of 0.45 kWh per ton.

Case 2: Granite Project in Mexico (PE-500×750).

Featuring a motor customized for a 60Hz power grid and paired with an impact crusher, this setup forms an aggregate production line with an hourly output of 80–100 t/h and a capacity achievement rate of 96%; the client subsequently placed a repeat order for a complete mobile crushing station. Thanks to its large 425mm feed opening and compact footprint, this model has become a best-selling mainstay for small-to-medium-scale production lines in the Latin American market.

Case 3: Airport Aggregate Project in Ethiopia (PE-400×600).

To accommodate high-altitude operating conditions (2,300m above sea level), the motor was customized for 380V/50Hz operation with derating. The production line has run stably for two years, yielding over 300,000 tons of aggregate in total, thereby demonstrating the manufacturer's capability to deliver customized jaw crushing equipment for specialized operating environments.

VI. Recommended Equipment

As the primary crusher in the production line, the jaw crusher must be combined with the following equipment to form a complete process chain:

Selection Advice: For hard rock, prioritize the "Jaw Crusher + Cone Crusher + VSI" configuration. For medium-soft rock (limestone, river pebbles, dolomite), choose the more cost-effective "Jaw Crusher + Impact Crusher" combination, which can reduce the cost per ton by another 8%–12%.

VII. FAQ

Q1: How do I determine if a jaw crusher manufacturer is reliable?

Check three factors: First, verify if core components—such as the frame and jaw plates—are manufactured in-house (quality is difficult to control with outsourced parts). Second, check if they provide capacity data based on actual operating conditions rather than just nominal ratings. Third, confirm if they can customize motors for local voltage and provide container loading plans. Reliable manufacturers also provide a list of wear parts and a warranty commitment of 12–18 months.

Q2: How is jaw crusher capacity calculated based on the material?

Capacities in parameter tables are rated based on medium-hard material (1.6 t/m³): for granite/basalt, calculate using 80% of the rated value; for limestone and river pebbles, use 90%–100%. Increasing the discharge opening by 30% can boost output by approximately 30%, though the product particle size will become coarser; this must be balanced with the capacity of the secondary crusher. If the feed material contains more than 8% fines (soil/clay), a preliminary screening stage is recommended.

Q3: How are delivery times and after-sales support guaranteed when purchasing from the jaw crusher factory?

Standard delivery times are 15–25 days for inpidual PE series units and 30–45 days for complete production line solutions; services include container loading for sea freight and on-site installation guidance. Regarding after-sales support, we maintain an inventory of wear parts—such as jaw plates and toggle plates—and offer expedited replacement delivery via DHL. For large-scale projects, we can dispatch engineers for on-site commissioning to ensure the production line achieves an output of over 90% of its rated capacity.
