500 TPH Mobile Jaw Crushing Station
In fields such as mining, construction aggregate production, and large-scale demolition projects, highly efficient primary crushing is the critical factor determining the capacity and cost-effectiveness of the entire production line. Faced with the growing demand for large-scale projects, a primary crushing unit that offers powerful performance, flexible mobility, and stable operation is absolutely essential. The 500 TPH (tons per hour) mobile jaw crushing station—distinguished by its exceptional crushing force, superior maneuverability, and high reliability—has become the preferred choice for clients across numerous industries for their primary crushing operations. It not only represents the cutting edge of modern mobile crushing technology but also generates substantial direct economic benefits for its users.
Overview of the Mobile Jaw Crushing Station
The mobile jaw crushing station is a complete, self-contained crushing unit that integrates a classic jaw crusher, feeder, vibrating screen, conveyor belts, and a power system onto a single mobile chassis. Its core strength lies in the fusion of "mobility" and "efficiency"; requiring no fixed foundation or permanent installation, it can be rapidly relocated, thereby enabling an advanced production model where the equipment "moves with the material" and "crushes directly at the mining face." Among this product series, the 500 TPH mobile jaw crushing station stands out as the "powerhouse," specifically engineered to handle primary crushing scenarios involving high throughput volumes and extremely hard materials.
The core working component of this equipment is a robust jaw crusher. Through the cyclical compressive motion between a moving jaw and a stationary jaw, it powerfully crushes high-hardness materials—such as granite, basalt, and river pebbles—processing them into primary products that meet the specific feed requirements for subsequent secondary crushing stages.

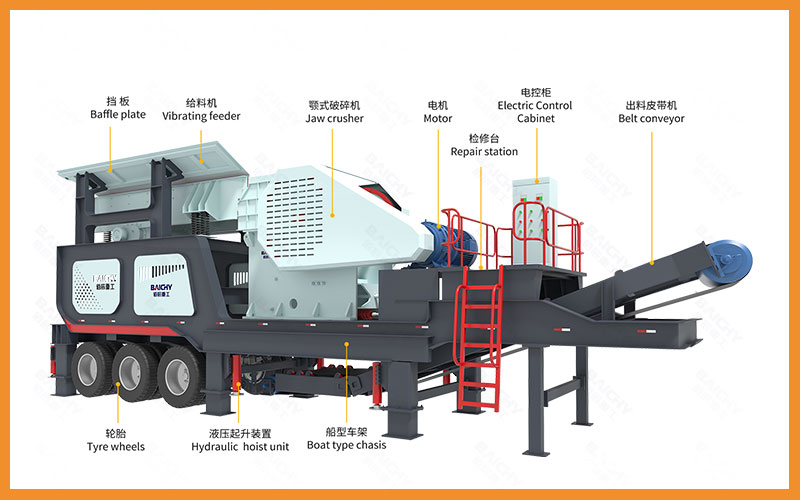

Structural Diagram of a Mobile Jaw Crushing Station
Key Application Scenarios
The 500 TPH mobile jaw crushing station boasts a wide range of applications, primarily covering the following major sectors:
1. Large-Scale Sand and Aggregate Production Lines
In large-scale construction aggregate quarries, it serves as the primary crushing unit, directly processing raw ore extracted via blasting to provide a stable and qualified feedstock for subsequent secondary crushing, fine crushing, and sand-making processes.
2. Open-Pit Mining Operations
At open-pit mining sites for both metallic and non-metallic ores, the unit can be positioned directly near the mining zone to perform the initial crushing of extracted raw ore. This significantly reduces the haulage distance required for mining trucks, thereby lowering overall operational costs.
3. Large-scale Infrastructure Construction
Utilized for the recycling of construction waste or the on-site processing of natural stone materials in major national-level projects—such as expressways, high-speed railways, and hydroelectric power stations—thereby directly supplying base aggregates for these projects.
4. Urban Building Demolition and Recycling
When facing demolition projects involving large building complexes or bridges, the equipment can be deployed directly on-site to rapidly crush and break down massive reinforced concrete components, thereby achieving the resource-oriented treatment of construction waste.
Analysis of Core Equipment Advantages
Selecting a 500 TPH mobile crushing station for primary crushing operations offers users a multitude of significant advantages:
1. Exceptional Productivity, Rapid ROI: With a rated processing capacity of 500 tons per hour, the unit ensures the completion of massive crushing tasks within a short timeframe, significantly accelerating overall project progress and enabling a quick return on equipment investment.
2. High Mobility, Convenient Relocation: Featuring an integrated vehicle-mounted design, the unit can be towed by a tractor unit along ordinary roads. This allows for rapid response to the needs of different construction sites—or different work points within the same site—achieving a "one machine, multiple uses" capability.
3. Direct Feeding, Cost Savings: The equipment can be driven directly to material stockpiles or mining faces, eliminating the time and expense associated with long-distance truck transport of raw materials, thereby reducing material transportation costs at the source.
4. Strong Adaptability, Stable and Reliable: Its heavy-duty structural design and high-quality wear-resistant components enable it to effortlessly handle various high-hardness and highly abrasive materials, ensuring continuous and stable operation even under harsh working conditions.
5. Rapid Positioning, Simple Installation: Upon arrival at the site, the unit requires only simple leveling adjustments using its hydraulic support legs to be quickly deployed and put into production, saving a significant amount of the civil engineering and installation time typically required for fixed production lines.
6. Eco-friendly and Energy-efficient, Standards Compliant: Modern models are typically equipped with advanced dust suppression and noise reduction systems, as well as high-efficiency drive solutions, better enabling them to meet current strict environmental production requirements. Key Technical Parameters at a Glance
To provide you with a clearer understanding of the specifications for the 500 TPH Mobile Jaw Crushing Station, the following table outlines the core parameters of a typical configuration:
| Parameter Item | Technical Specification |
| Model Example | YDPZ116-1214 |
| Designed Production Capacity | 500 Tons per Hour (TPH) |
| Feed Opening Size | 1500mm x 1200mm |
| Max. Feed Size | ≤ 1000mm |
| Main Crusher Type | Deep-Cavity Jaw Crusher (e.g., PE1200×1500) |
| Discharge Opening Adjustment Range | 150mm - 300mm |
| Final Product Size | ≤ 250mm (Adjustable according to requirements) |
| Power System | Diesel Generator or External Power Supply (Standard configuration: Diesel Generator Set) |
| Total Power | Approx. 400 - 450 kW |
| Mobile Chassis | Heavy-Duty Truck Chassis, Full Hydraulic Drive |
| Weight (Approx.) | 80 - 90 Tons |
Note: Specific parameters may vary depending on the manufacturer's design and configuration.

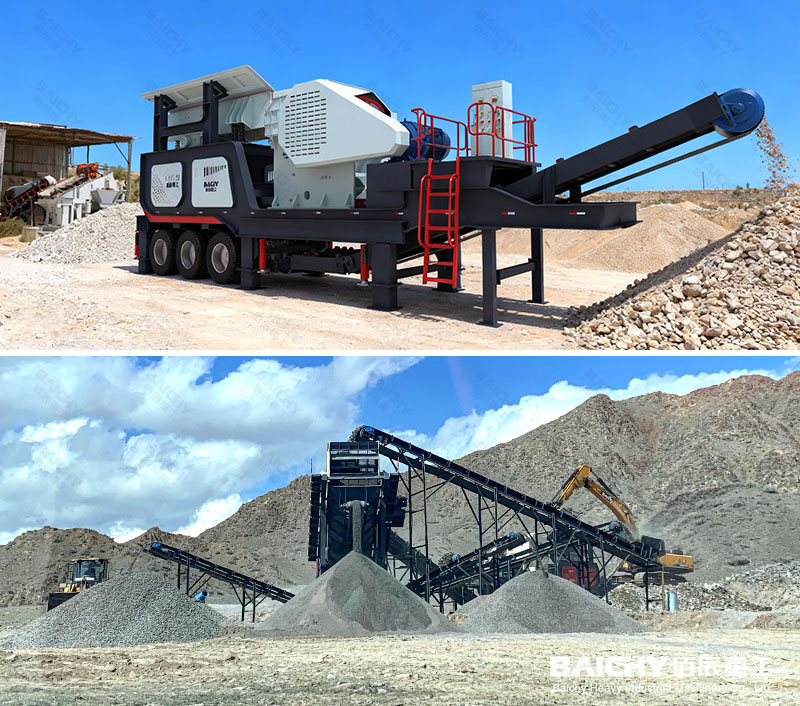

Mobile Jaw Crushing Station-—-Customer Site
Successful Case Studies
• A Large-Scale Granite Aggregate Project in North China: A client introduced one of our company's 500 TPH mobile jaw crushing stations to serve as the primary unit for coarse crushing. The equipment was positioned directly at the edge of the mining pit; the crushed material was then transported via conveyor belts to a downstream, semi-fixed cone crushing production line. This configuration reduced the transport distance for raw ore by over 3 kilometers, boosted overall production efficiency by more than 30%, and achieved a stable annual processing volume of 12 million tons, establishing the project as a regional benchmark.
• A Multinational Infrastructure Project in Southeast Asia: At a hydroelectric power plant construction site located in a remote, urban-free area, our mobile jaw crushing station demonstrated its unparalleled adaptability. As the project progressed, the equipment was relocated multiple times along mountain roads to process basalt excavated from the mountainside directly on-site. By supplying aggregates directly for the dam's concrete pouring, the system perfectly resolved the local challenges of construction material shortages and high transportation costs. Recommended Ancillary Equipment
Based on our coarse crushing solution featuring the 500 TPH Mobile Jaw Crushing Station, we typically recommend the following downstream or complementary equipment to our clients to create a highly efficient and complete mobile production line:
1. Mobile Cone Crushing Station (Medium/Fine Crushing): Serving as a secondary crushing unit, this station receives material from the mobile jaw crusher and further reduces it to finer particle sizes (e.g., under 40 mm). It is ideal for high-end aggregate markets where strict requirements regarding product particle shape are in place.
2. Mobile Impact Crushing Station: As an alternative option for secondary crushing, this station is particularly well-suited for processing materials of medium hardness or softer. It is also suitable for scenarios where specific product particle shapes are required, provided that a slightly higher proportion of stone fines is acceptable; it offers inherent material shaping capabilities.
3. Mobile Screening Station: Designed to work in tandem with the mobile crushing station, this unit classifies and screens the crushed material, rapidly separating it into various finished product specifications to achieve integrated screening operations.
4. Heavy-Duty Apron Feeder: Acting as a pre-feeding unit, this feeder ensures a uniform and steady supply of extra-large-sized materials to the 500 TPH Mobile Jaw Crushing Station. It protects the crusher's feed opening and guarantees continuous, high-efficiency operation.
Frequently Asked Questions (FAQ)
Q1: What types of materials is the 500 TPH Mobile Jaw Crushing Station suitable for processing?
A1: It is specifically engineered to handle high-hardness, large-sized materials. It is highly effective for crushing granite, basalt, quartz, river pebbles, iron ore, and similar substances. It can also be utilized to process recycled resources such as concrete blocks and construction rubble.
Q2: What are the fuel consumption and maintenance costs associated with this equipment?
A2: Modern, advanced 500 TPH mobile crushing stations feature electronically controlled common-rail diesel engines and high-efficiency hydraulic systems, delivering fuel economy that ranks among the best in the industry—even under full-load conditions. Thanks to a modular design and the use of long-life, wear-resistant components, routine maintenance points are centralized and easily accessible, thereby effectively minimizing long-term operating and maintenance costs.
Q3: How long does it typically take from the time an order is placed until the equipment is delivered and commissioned?
A3: For a standard-configuration 500 TPH mobile jaw crushing station—provided that key components are available in stock—the typical delivery lead time is approximately 60 to 90 business days. The exact timeframe may vary depending on customized configurations, order volume, and international logistics conditions. We provide comprehensive installation guidance and commissioning services to ensure the equipment is rapidly brought into full operation.
Conclusion
In today's environment—where the pursuit of high efficiency, low operating costs, and eco-friendly production is paramount—selecting a 500 TPH mobile jaw crushing station with exceptional performance is undoubtedly the most prudent and economical choice for your large-scale primary crushing operations. It serves not only as a powerful production tool for enhancing your core competitiveness but also as a strategic investment for effectively navigating the complexities and fluctuations of the modern market.
