The Baichy Symons Cone Crusher is the cornerstone of secondary and fine crushing, combining over a century of innovation in the mining and aggregate industry. As a professional cone crusher manufacturer, Baichy provides durable, reliable, and high-performance crushers. The CS series adopts the laminated crushing principle and a spring protection system, ensuring excellent product shape, stable operation, and low maintenance costs.
I. Advantages of Baichy Symons Cone Crusher CS160
1.1 Laminated Crushing
By employing a unique choke feeding method, this crusher achieves a "rock-on-rock" laminating crushing effect within the cavity. This process significantly reduces the generation of flat and elongated particles, resulting in a final product that is cubic in shape with excellent gradation. Such superior particle morphology makes it particularly suitable for high-specification concrete and asphalt aggregate production.
1.2 Spring Protection & Reliable Durability
The machine is equipped with heavy-duty spring sets around the frame, which act as a mechanical overload protection system. When uncrushable materials such as iron enter the crushing cavity, the springs compress to allow the passage of the foreign object, after which they automatically reset the cone. This simple yet reliable mechanism effectively prevents damage to core components like the frame and eccentric sleeve, ensuring long-term operational reliability and an extended service life.
1.3 Versatile Cavity Types & Flexible Application
By simply changing the mantle and concave liners, the crusher can be configured into three main cavity types: Standard (for secondary crushing), Medium, and Short Head (for tertiary crushing). This adaptability allows a single crusher body to accommodate different crushing stages and product size requirements, offering flexible solutions for a wide range of applications from pebble crushing to fine sand manufacturing.
1.4 Rugged Structure & Economical Maintenance
Built with a heavy-duty industrial design, the crusher utilizes robust materials for key structural components like the frame, resulting in exceptional durability and a long lifecycle. Its straightforward mechanical structure, compared to complex hydraulic systems, lowers the technical barrier for maintenance. This simplicity, combined with easy liner replacement, contributes to lower overall operating costs and a stable long-term return on investment.
| Key Words | Symons Cone Crusher CS160 4.25-ft Crushing Machine |
|---|---|
| Product Name | CS160 Symons Cone Crusher |
| Feed Size | 115-205 mm |
| Motor Power | 132 kw |
| Capacity109-349 | 109-349 t/h |
| Core Functions | Laminating Crush and Spring Protect. |
| Brand | Baichy Heavy Industry |
| Packing | Standard containers，Nude Packing，Wooden boxes, etc |
| Installation | Engineer Guide |
| Factory visit | Welcomed Warmly |
| Export Countries | Southeast Asia, Central Asia, South America, North America, Africa |
| Payment | T/T,L/C payment,Paypal...etc |
| Please note: The above table data is for reference only. For specific information, please contact us. | |
II. Working Principle and Core Structure of Symons Cone Crusher CS160
2.1 Working Principle of Symons Cone Crusher CS160
Working Principle of the Symons Cone Crusher is centered on eccentric sleeve drive. The motor power drives the eccentric sleeve to rotate via the transmission assembly, which in turn causes the mantle shaft assembly to perform a rhythmic gyrating motion. This motion periodically brings the mantle closer to and farther away from the concave assembly. Material within the crushing chamber formed between them is subjected to continuous, repeated compression and attrition. This process utilizes a unique interparticle (layer) crushing principle to achieve highly efficient size reduction, significantly increasing the proportion of cubical end product. When uncrushable material is encountered, the spring protection system surrounding the main frame automatically compresses, lifting the assembly to widen the discharge opening, eject the foreign object, and then reset, ensuring continuous and stable crusher operation.
2.2 Core Structure of Symons Cone Crusher CS160

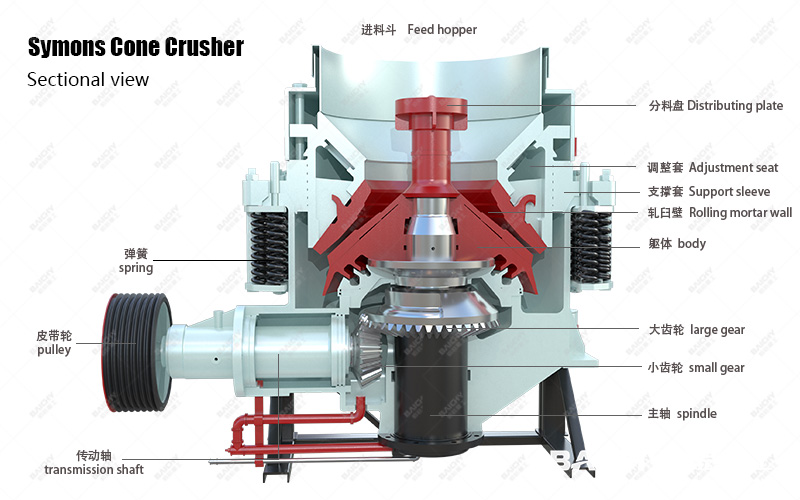

The Core Structure consists of five key components working in synergy: the Mantle Shaft Assembly acts as the core crushing component executing the gyrating motion; the Concave Assembly forms the crushing chamber with the mantle and allows for product size adjustment via vertical movement; the Transmission Assembly accurately transfers motor power to the eccentric sleeve; the Supporting Components bear the entire operational load of the machine; and the Spring Protection System provides reliable mechanical overload protection. Together, these five components form the structural foundation that makes the Symons Cone Crusher robust, durable, and stable in operation.
III. Case Study of Baichy Symons Cone Crusher CS160

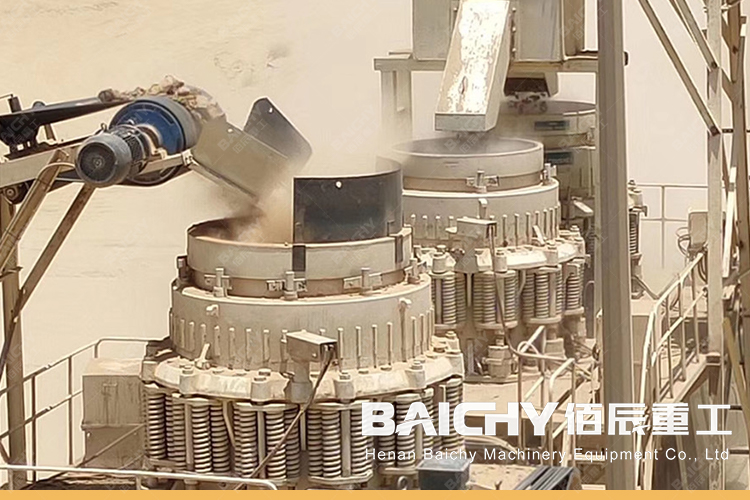

3.1 CS160 Symons Cone Crusher Helps Chilean Customers Produce High-Quality Concrete Aggregates
In the Chile High-Grade Concrete Aggregate Production Project, a leading construction company adopted the Baichy CS160 Symons Cone Crusher as the secondary and fine crusher in their production line to meet the demand for high-quality aggregates required for high-strength concrete and asphalt. The crusher was configured with a short-head cavity and a laminated crushing chamber, specifically designed for fine crushing to ensure cubical aggregate output. Following implementation, production efficiency increased by 25% compared to previous equipment, the output aggregates fully met the stringent particle shape requirements for high-grade concrete, the spring protection system effectively reduced maintenance costs, and the equipment's continuous stable operation ensured smooth production. The project outcome demonstrated that the Baichy CS160 is a reliable, efficient, and cost-effective solution, successfully delivering superior aggregate quality for the construction projects.
3.2 CS160 Symons Cone Crusher Helps Vietnamese Customers Capture the High-End Market
In a high-grade basalt aggregate production line upgrade project in Vietnam, facing the challenge of substandard product shape due to aging equipment, the client selected the Baichy CS160 Symons Cone Crusher (configured with a short-head fine crushing cavity) as the core secondary crushing unit. After commissioning, the flakiness index of 5-15mm aggregate was reduced from 15% to below 8%, fully meeting high-grade concrete standards. The crusher achieved a stable capacity of 180-220 t/h, increasing overall line efficiency by approximately 20%. Thanks to its robust and durable construction and spring protection system, annual maintenance costs were reduced by about 30%. This cost-effective solution successfully helped the client secure a share in the premium market.
IV. FAQ
Q1: What types of materials can the Baichy CS160 Symons Cone Crusher process effectively?
A1: IThe Baichy CS160 Symons Cone Crusher is designed to process medium to hard materials effectively. It handles granite, basalt, limestone, iron ore, and construction waste with high efficiency, ensuring stable performance and reliable output for quarry, mining, and recycling applications.
Q2: How is the product size adjusted on the Baichy CS160 Symons Cone Crusher?
A2: The Baichy CS160 Symons Cone Crusher features a precise mechanical adjustment system. By rotating the adjustment ring, the bowl assembly moves vertically to change the closed-side setting, enabling easy and accurate control of the final product size to meet different specifications.
Q3: Can the Baichy CS160 Symons Cone Crusher handle both secondary and fine crushing tasks?
A3: Yes. The Baichy CS160 Symons Cone Crusher offers high versatility by supporting multiple cavity types, including standard, medium, and short-head configurations. This allows the same machine to be used efficiently for both secondary crushing and fine crushing, adapting flexibly to different production requirements.
V. Related Equipment
To meet various capacity and process requirements, our Symons Cone Crusher series offers a complete solution portfolio. The Baichy CS75 Symons Cone Crusher is suitable for small to medium capacity needs, ideal for compact crushing operations. The Baichy CS110 Symons Cone Crusher delivers medium capacity and stable performance, serving as a reliable unit for secondary crushing stages. The Baichy CS220 Symons Cone Crusher, with its large processing capacity and heavy-duty construction, is designed for high-capacity aggregate and mining operations. For demanding, high-specification aggregate projects, the Baichy CS200 Symons Cone Crusher stands out as a high-capacity fine crusher, capable of meeting the precise crushing needs of large-scale production.
