This solution is custom-tailored for the South African market, employing a two-stage, closed-circuit process featuring a "Jaw Crusher + Impact/Cone Crusher + Multi-layer Screening" configuration. The system boasts a rated processing capacity of 30–50 t/h and produces finished aggregates in four distinct size specifications: 0–5 mm, 5–10 mm, 10–20 mm, and 20–40 mm. The design strikes an optimal balance between investment costs, operational stability, and environmental compliance.
I. Overall Project Conclusions
This production line is capable of achieving continuous and stable operation under typical South African working conditions. It features low unit power consumption, produces finished aggregates with excellent particle shape, and entails low maintenance costs.
Designed and verified in accordance with the ISO 9001 Quality Management System and the technical requirements of the GB/T 14684-2022 standard for "Sand for Construction," this solution is ideally suited for regions in South Africa—such as Gauteng and Mpumalanga provinces—that are rich in river pebble resources.
II. Raw Materials and Product Conclusions
1. Raw Material Characteristics: Conclusions
River pebbles are medium-hard materials characterized by a high degree of roundness. Their crushing difficulty is higher than that of ordinary limestone but lower than that of basalt.
| Project Parameter | Value / Characteristic | Remarks |
| Material Type | Natural River Pebbles | Sourced via riverbed excavation |
| Particle Size Range | 100–500 mm | A small quantity >500 mm requires pre-treatment |
| Mohs Hardness | 6–7 | Medium-to-high hardness |
| Silt/Clay Content | 2%–5% | Recommended addition of a front-end grizzly screen for impurity removal |
Reference Standards: ASTM C33 / GB/T 14685-2022
2. Product Scheme: Conclusions
The system is capable of simultaneously producing four distinct grades of construction aggregates with well-balanced gradation, thereby meeting the relevant specifications and standards set by the South African Roads Agency and the Concrete Society.
| Finished Product Specifications | Application | Proportion (Typical) |
| 0–5 mm | Manufactured Sand / Fine Concrete Aggregate | 20%–25% |
| 5–10 mm | Road Pavement Base Course | 15%–20% |
| 10–20 mm | Coarse Concrete Aggregate | 30%–35% |
| 20–40 mm | Roadbed Fill Material | 20%–25% |

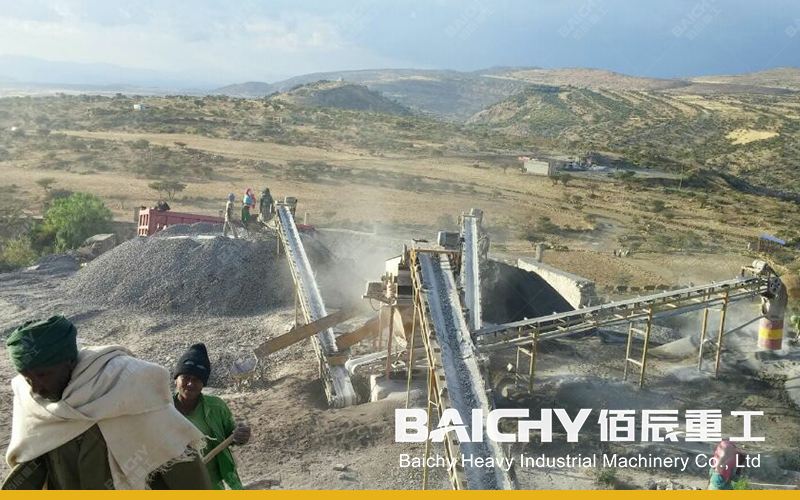

III. Process Flow Conclusion
Adopting a "Two-Stage Crushing + Single-Stage Closed-Circuit Screening" process represents the most cost-effective configuration scheme for operations with a capacity of 30–50 t/h.
1. Process Overview (Conclusion First)
PE500x750 Jaw Crusher
1. Primary Crushing: PE-500×750 Jaw Crusher—reduces raw stone (≤425 mm) to ≤100 mm;

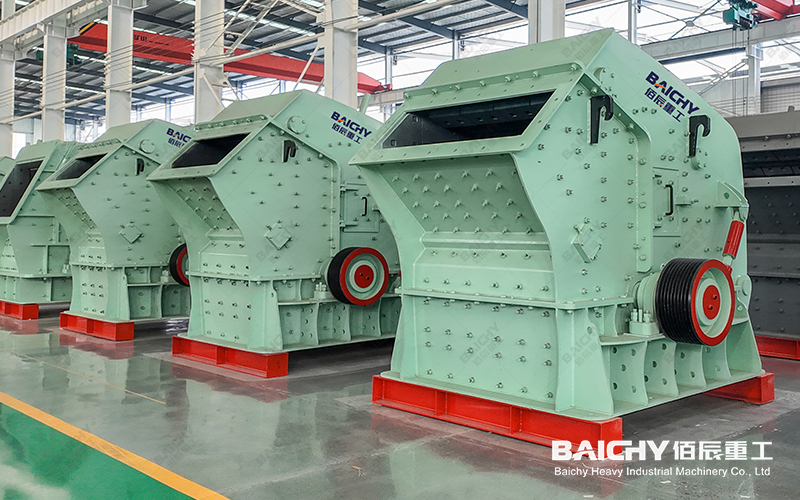

PF1007 Impact Crusher

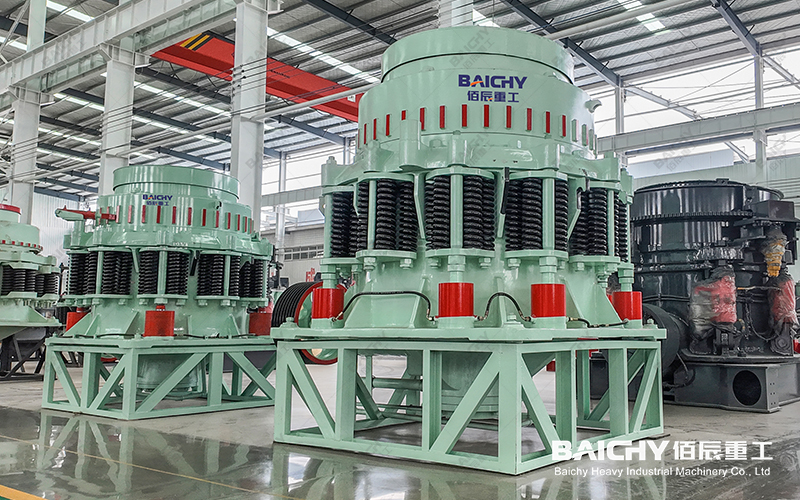

CS75 Symons Cone Crusher
2. Secondary Crushing: PF-1210 Impact Crusher or CS75 Cone Crusher—further reduces material to ≤40 mm;
3. Screening: 3YK-1548 Three-Deck Vibrating Screen—classifies four distinct finished product sizes in a single pass;
4. Closed-Circuit Loop: Oversized material is returned to the secondary crushing stage to maximize finished product yield.
2. Process Flow Diagram

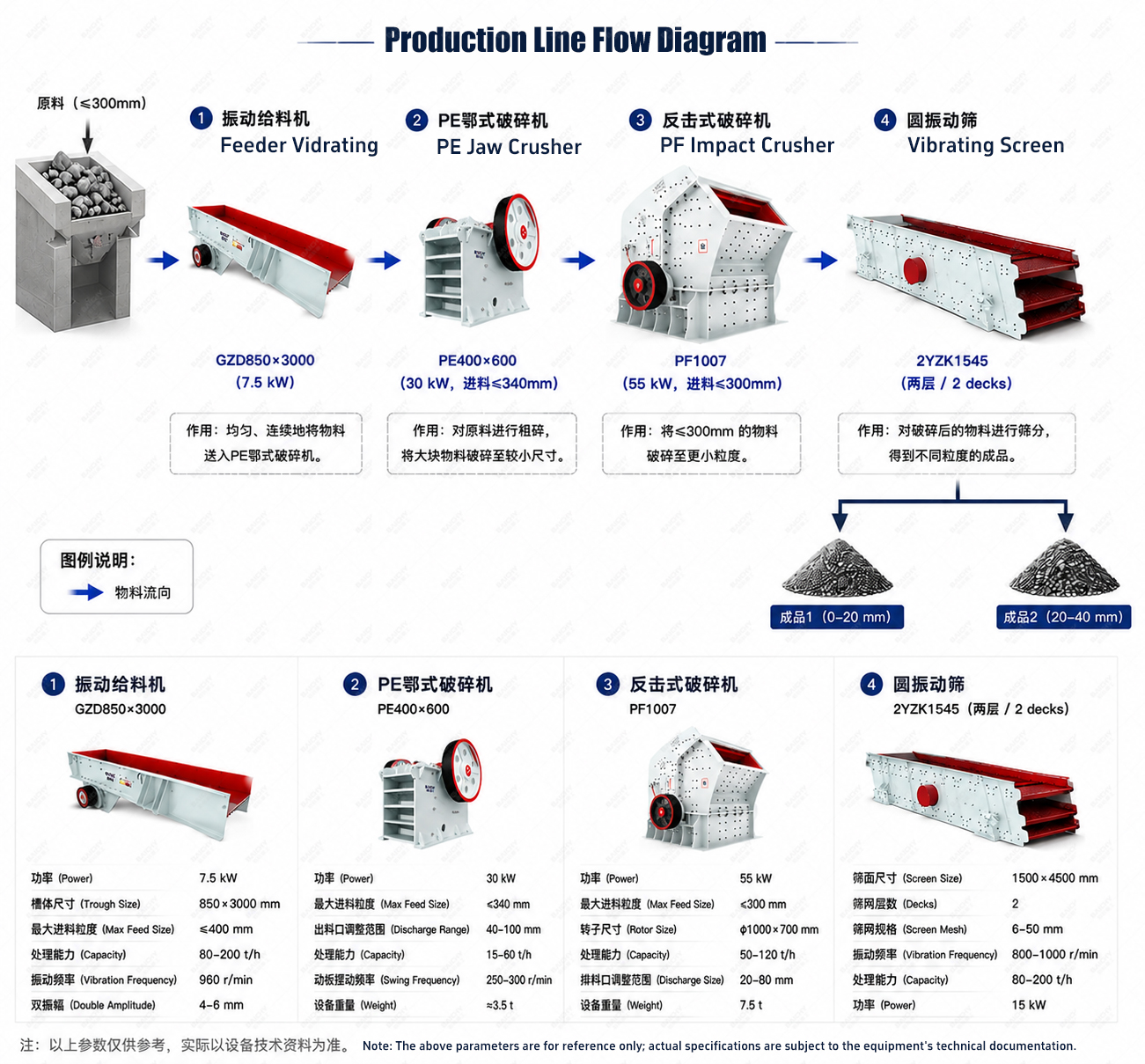

Process Flow Diagram: 30–50 t/h River Pebble Crushing and Screening Station
Note: The equipment models listed above are recommended values and may be fine-tuned based on the specific site voltage requirements (380V/50Hz or 440V/60Hz).
IV. Equipment Selection Conclusion
1. Key Equipment List
| Equipment Name | Recommended Model | Key Parameters | Selection Rationale |
| Vibrating Feeder | GZD960×3800 | Processing Capacity: 50–100 t/h | Pre-screening + Uniform Feeding |
| Jaw Crusher | PE500×750 | Max. Feed Size: 425 mm | Mature and reliable technology; globally available spare parts |
| Impact Crusher | PF-1210 Rotor | Ø1250×1050 mm | Excellent product shape; low investment cost |
| Cone Crusher (Alternative) | CS75 Moving Cone Diameter | 900 mm | High wear resistance; suitable for high-hardness materials |
| Vibrating Screen | 3YK1548 | Screen Surface Area 4.8×1.5 m | Separates four distinct product sizes in a single pass |
2. Selection Summary
For the South African market, the "Jaw Crusher + Impact Crusher" combination is the primary recommendation, offering the shortest investment payback period. However, if the client places a higher priority on the service life of wear parts, the system can be upgraded to a Cone Crusher configuration.
V. Authoritative Data and Standard References
• Capacity Calculation Basis: GB/T 17671-1999 "Test Method for Strength of Cement Mortar" (Applied by analogy to crusher capacity calibration methods)
• Safety Regulations: OSHA 29 CFR 1926 Subpart O (Widely referenced at construction sites in South Africa)
• Environmental Standards: South Africa's *National Environmental Management Act* (NEMA) — Dust Emission Limits
