Mobile Crushing & Screening

We offer a wide range of wheeled mobile crushers and screens to help you process rock in the toughest conditions. The range includes jaw crushers, impact crushers, cone crushers and screens for quarrying, construction and rock excavation projects.

≤500mm
Feed Size
60-300 kw
Motor Power
30-600 t/h
Capacity

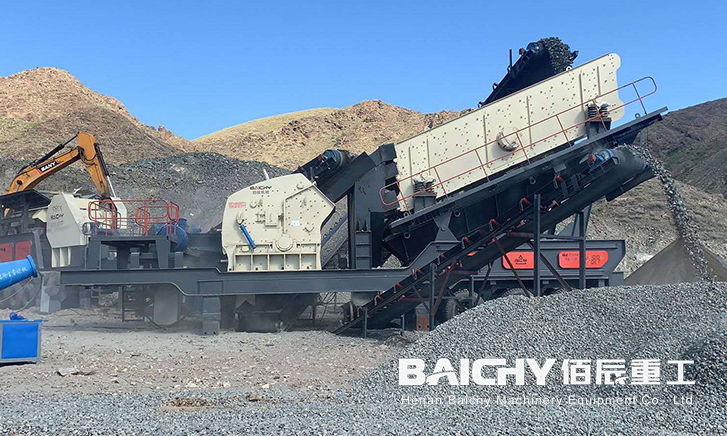

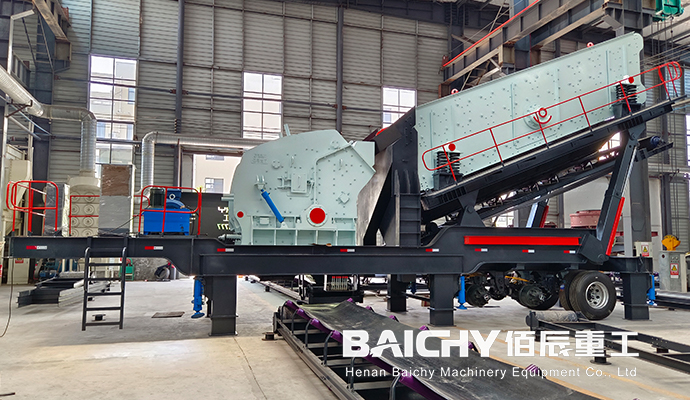

Mobile Crushers, Mobile Impact Crushers & Mobile Screens
≤500mm
Feed Size
60-300 kw
Moter Power
30-600 t/h
Capacity
*24 hours consultation
+86-150932226
60S Quick response
30 min Technical reply
24h design proposal
365 days to receive service needs

Advantages of Mobile Crushing & Screening

Baichy Machinery designs the latest developments in the mining, quarrying and construction industries. To bring the most powerful rock crushers and screens to the toughest jobs, we pioneered revolutionary machines with the highest levels of agility and maneuverability.

Application Of Mobile Crushing & Screening

1. Mountain rocks: including bluestone, granite, diabase, basalt, dolomite, marble, gneiss, tuff, limestone, cement limestone, peridotite, amphibolite, etc. These rocks are widely used in mining, construction, and road construction, and mobile crushing plants can handle these materials efficiently.

2. Ore: such as iron ore, copper ore, lead-zinc ore, phosphate ore, tin ore, vanadium-titanium magnetite, etc. During ore mining and processing, mobile crushing stations can provide flexible solutions to meet different crushing needs.

3. Construction waste and solid waste: including construction waste, demolition waste, etc. The mobile crushing station can carry out crushing processing directly on site, reducing transportation costs and realizing resource recycling at the same time.

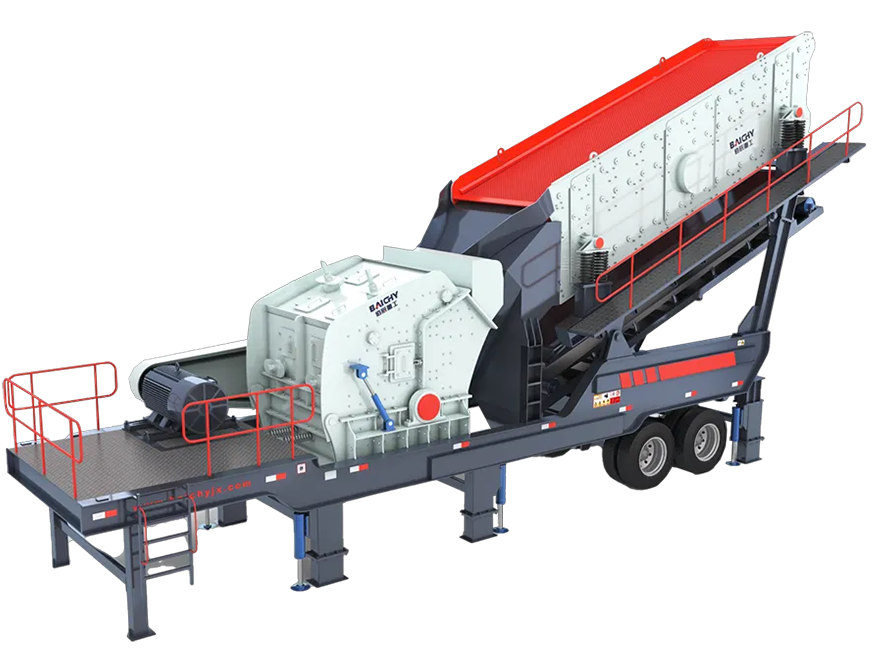

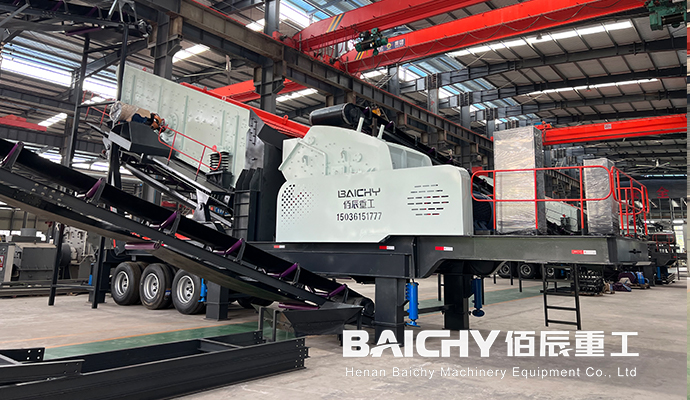

Mobile Crushers, Mobile Impact Crushers & Mobile Screens Mobile Crushers, Mobile Impact Crushers & Mobile Screens
Working principle


Working principle of Mobile Crushing & Screening

1. Crushing: After the material enters the crushing cavity, the crushing system starts to work. The crushing system usually includes a high-speed rotating breaker hammer (or other crushing tools, such as toothed rollers, ring hammers, etc.), which impact, impact and crush the materials. During the crushing process, materials are gradually broken into smaller particles.

2. Screening: The crushed materials enter the screening system, usually through a vibrating screening machine. The screening system separates materials into different particle sizes as needed to meet different application requirements. During the screening process, qualified material particles are discharged through the screen, while larger particles continue to remain on the screen for re-crushing.

3. Conveying: The screened finished particles that meet the requirements are transported to the next process link or storage area through conveyor belts or other conveying equipment. The conveying system ensures the continuous conveying and stacking of materials for subsequent processing or utilization.

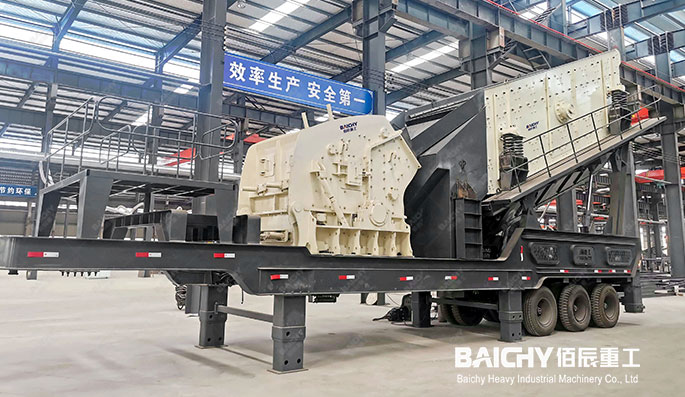

Mobile Crushers, Mobile Impact Crushers & Mobile Screens
Whatsapp:+86-15093222637


Specification

*The output will vary according to different materials, feed particle size and other factors
SMC Impact crusher SMC1010PFS SMC1210PFS SMC1214PFS
Transport size
Length(mm) 10800 12200 12500
Width(mm) 2480 2743 2900
Height(mm) 4170 4200 4200
Alex weight(kg) 15900 17200 22100
King pin weight(kg) 11300 14300 17500
Impact crusher
Model PF1010 PF1210 PF1214
Feed opening(mm) 400X1080 400X1080 400X1080
Vibrating screen Vibrating screen
Model 4YK1235 4YK1545 4YK1548

Crushed product size

Have Any Questions!

Don't Hesitate To Contact Us AnyTime.

Maybe you are interested in
More+

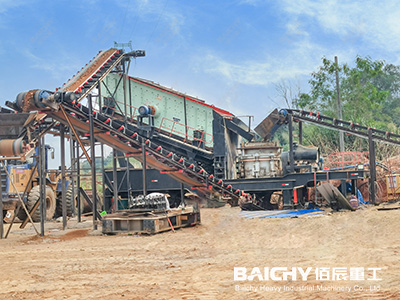

Mobile Cone Crusher
Mobile Cone Crusher
Mobile and semi-mobile stations (also known as combined units or skid-mounted units), which are easy to construct and relocate and cost-saving, are becoming more and more popular in mining operations.

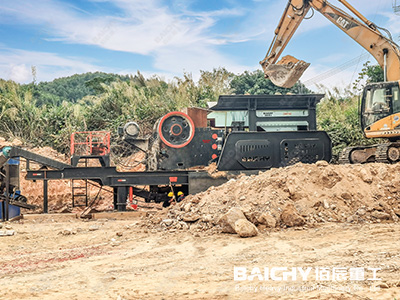

Mobile Impact Crusher
Mobile Impact Crusher
Mobile and semi-mobile stations (also known as combined units or skid-mounted units), which are easy to construct and relocate and cost-saving, are becoming more and more popular in mining operations. Baichy semi-mobile primary crushing plants offer a modular and intelligent solution for improved maintainability and safety for maximum productivity.

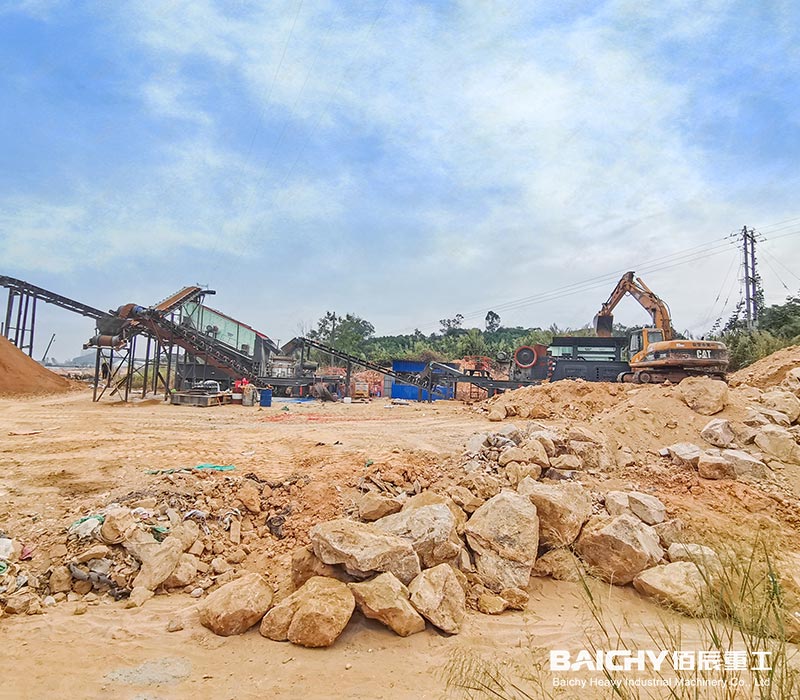

Mobile Crush and Screen
