How Can Our 3-in-1 Mobile Hammer Crusher Save Your Time and Cost?

3-in-1 Mobile Hammer Crusher

Does handling construction waste often leave you facing a dilemma? With scattered job sites and a complex mix of materials, traditional stationary production lines are simply inadequate; not only are they time-consuming to install and require massive capital investment, but they also fail to keep pace with the rapidly changing rhythm of modern construction projects. What you need isn't a massive, cumbersome factory, but a powerful workhorse a mobile unit that can follow your projects wherever they go, transforming waste materials into pure gold right there on-site.

This is precisely the vision behind our *3-in-1 Mobile Hammer Crusher*. We understand your pain points: site constraints, exorbitant transportation costs, and the complexities of coordinating multiple pieces of equipment. That is why we have ingeniously integrated the three core stages feeding, powerful crushing, and precision screening into a single, highly mobile unit. Acting as a mobile processing plant that drives directly onto your site, it allows you to bypass tedious procedures, crushing and screening construction waste right at the source, and transforming troublesome debris into valuable recycled aggregates in a single, seamless step.

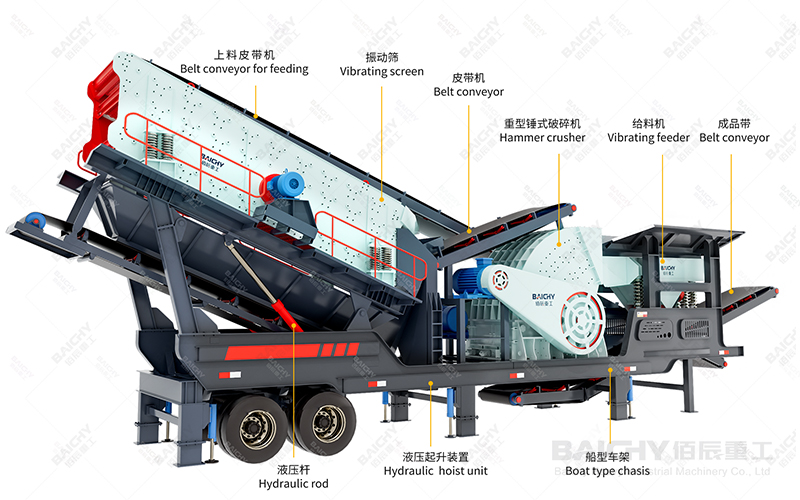

3-in-1 Mobile Hammer Crusher Structural Diagram

Core Advantages: How Does It Save You Money, Time, and Trouble?

We fully recognize that the greatest costs associated with construction waste management are not the equipment itself, but rather the time, site space, and transportation logistics involved. Our *3-in-1 Mobile Hammer Crusher* was engineered specifically to address these critical pain points serving as your ultimate Profit Converter.

1. Pain Point: Scattered project sites; slow equipment mobilization; time-consuming and labor-intensive installation and commissioning.

Our Solution: A Ready-on-Demand Mobile Factory.

Equipped with its own integrated axles, the unit can be towed directly to the site and put to work immediately no need for piling or constructing permanent foundations. You can handle demolition at Site A today, then tow it to Site B for road construction tomorrow, ensuring your investment never sits idle and allowing you to rapidly capitalize on every profit-generating opportunity.

2. Pain Point: Traditional production lines involve multiple machines, occupy vast amounts of space, require complex coordination and management, and carry a high investment threshold.

Our Solution: One Machine, One Complete Production Line.

We have consolidated the entire workflow from feeding, powerful crushing, and precision screening to final discharge onto a single mobile chassis. You no longer need to coordinate multiple separate machines or erect long-distance conveyor belts. You get the full output capacity of an entire production line with the investment cost of just a single machine resulting in massive savings on procurement expenses and precious site space.

3. Pain Point: Construction waste consists of a heterogeneous mix of materials; there are concerns regarding material clogging, uneven discharge, and finished product quality failing to meet standards.

Our Solution: Designed specifically to tackle the hardest nuts to crack and you dictate the finished particle size.

At its core lies a powerful hammer crusher. With its intense impact force, it is engineered to handle the toughest materials such as concrete, bricks, and asphalt chunks without being picky. Through simple adjustments, you can precisely control the output size, directly producing high-quality recycled aggregates that meet industry standards and command a premium price.

4. Pain Point: Construction sites often suffer from excessive dust, while the high costs associated with repeatedly transporting materials back and forth make the process neither eco-friendly nor economically viable.

Our Solution: Transform waste into wealth right on-site saving you money from the very source.

By performing crushing and screening operations directly adjacent to the waste piles, you eliminate massive external transportation costs. Furthermore, the equipment features excellent sealing and comes standard with a dust suppression system, ensuring your job site remains clean and fully compliant with environmental regulations. This isn't merely waste disposal; it is akin to mining a new quarry directly on-site generating maximum profit from recycled materials at the absolute lowest cost.

Typical Application Scenarios and Case Studies

The 3-in-1 Mobile Hammer Crusher is the ideal choice for processing a wide variety of construction waste materials.

1. Building Demolition and Renovation: Crushing concrete beams, columns, floor slabs, masonry blocks, and similar materials to produce recycled aggregates suitable for road base layers or low-grade concrete mixes.

2. Asphalt Road Renovation: Crushing and screening discarded asphalt pavement materials for use as feedstock in hot-mix or cold-mix asphalt recycling processes.

3. Renovation Waste Processing: Handling mixed renovation debris containing concrete, masonry, and wood (note: wood components typically require pre-sorting).

Success Story:

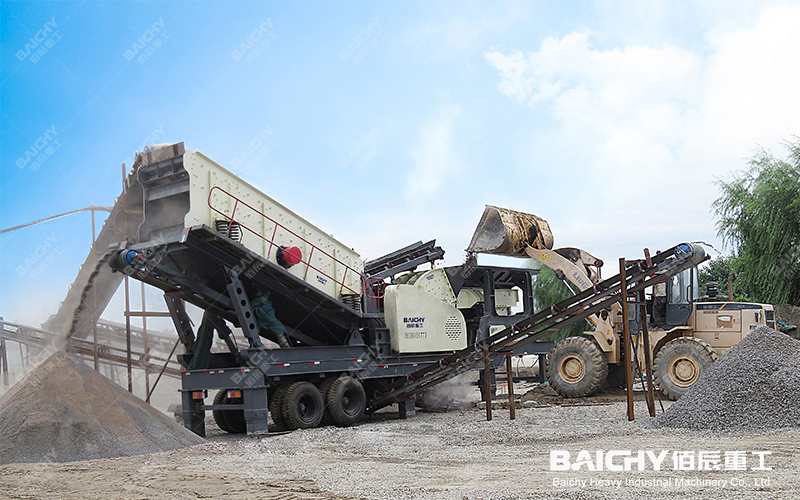

3-in-1 Mobile Hammer Crusher Client Site

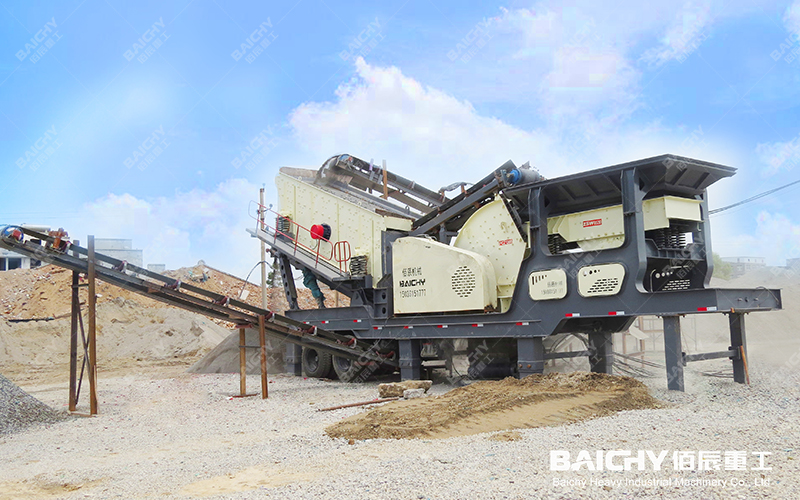

3-in-1 Mobile Hammer Crusher Client Site

In 2025, we supplied two 3-in-1 Mobile Hammer Crushers to a municipal construction waste recycling and disposal center in China. Operating at the center's temporary processing site, the equipment processes over 500,000 tons of construction waste annually. The resulting recycled aggregates produced in various specifications (e.g., 0–5mm, 5–10mm, 10–31.5mm) are widely utilized in local municipal engineering projects, delivering significant environmental and economic benefits. Core Parameters at a Glance

The table below presents the key parameters for one of our flagship models: the 3-in-1 Mobile Hammer Crusher.

Recommended Related Equipment

In addition to the core crushing and screening machinery, a complete construction waste processing line may involve the following stages; we provide a full suite of equipment to support these processes:

1. Mobile Jaw Crusher: Serving as the primary crushing unit, it processes oversized construction waste, providing appropriately sized feedstock for the subsequent 3-in-1 mobile hammer crusher. Together, they form a highly efficient two-stage mobile crushing and screening line.

2. Iron Remover (Magnetic Separator): Installed above the conveyor belt, this unit automatically separates metal objects such as rebar and wire from the crushed material, thereby enhancing the purity of the recycled aggregates.

3. Mobile Light Material Separator: Utilizing an air classification principle, this unit separates lightweight impurities such as wood, plastics, and paper further improving the overall quality of the aggregates.

Frequently Asked Questions (FAQ)

Q1: Can the 3-in-1 mobile hammer crusher process concrete containing rebar?

A1: Absolutely. The heavy-duty hammer crusher generates powerful impact forces capable of effectively crushing concrete components that contain embedded rebar. After crushing, the rebar separates from the concrete and can be easily recovered using subsequent magnetic separation equipment. This scenario represents a typical operating condition encountered during construction waste processing.

Q2: Is the discharge size of the equipment adjustable? What aggregate specifications can be produced?

A2: Yes, the discharge size is very easy to adjust. This is primarily achieved by replacing the grate bars located at the bottom of the crusher or by adjusting the spacing between the grate bars. Thanks to the configuration of the vibrating screen mesh located on the upper deck of the unit, a single 3-in-1 mobile hammer crusher can typically produce 3 to 4 different specifications of finished aggregates simultaneously such as fine aggregates (0–5 mm), medium aggregates (5–10 mm, 10–20 mm), and coarse aggregates (20–31.5 mm) thereby meeting a Perse range of recycling requirements.

Q3: How do the investment and operating costs of mobile equipment compare to those of a fixed production line?

A3: In terms of initial investment, a single high-end mobile unit may carry a higher price tag than a single fixed unit of equivalent capacity. However, when evaluated based on Total Cost of Ownership (TCO), mobile equipment offers significant savings by eliminating the need for steel-frame foundations, permanent plant structures, inter-equipment conveyor systems, and installation fees. Furthermore, its rapid site-relocation capability allows it to efficiently serve multiple dispersed work sites. For construction waste crushing projects characterized by high material transport costs or geographically scattered work sites, a mobile solution typically offers superior overall cost-effectiveness and a more favorable Return on Investment (ROI).

Summary and Interaction:

As we have seen, the 3-in-1 mobile hammer crusher is currently reshaping the landscape of construction waste recycling through its unparalleled flexibility and efficiency. It is not merely a piece of machinery; rather, it represents a comprehensive, plug-and-play solution.
