YMS20 Tracked Screening Station
The YMS20 Tracked Screening Station is a highly efficient and flexible mobile screening unit independently developed by our company. Integrating advanced vibrating screen technology with a robust tracked mobility system, it is specifically designed for a wide range of applications—including mining operations, construction waste processing, and aggregate production—enabling the precise classification of materials following the crushing stage. The core advantage of this equipment lies in its exceptional maneuverability and rapid deployment capabilities; requiring no complex civil engineering or foundation work, it can be driven directly into the heart of the job site. This facilitates a highly efficient production model characterized by "immediate operation upon arrival" and "instant relocation upon completion," thereby significantly enhancing the flexibility and overall operational efficiency of the production line.
Key Application Scenarios
The YMS20 Tracked Screening Station is suitable for a Perse array of complex material processing scenarios:
• Mining and Stone Production: Used in quarries or mines to screen materials following primary crushing, separating them into finished aggregates of various specifications (e.g., 0–5mm, 5–10mm, 10–20mm, etc.).
• Construction Waste Recycling: Deployed at demolition or construction sites to screen crushed construction debris, separating usable recycled aggregates, waste soil, and other miscellaneous materials to facilitate resource recovery and recycling.
• Sand and Aggregate Screening: Serves as a critical screening stage within natural sand and gravel or manufactured sand production lines, ensuring the precise particle size distribution and cleanliness of the finished aggregates.
• Soil Remediation and Screening: Utilized in environmental remediation projects to screen contaminated soil or to separate rocks and impurities from soil.
Technical Advantages and Features
The design of the YMS20 Tracked Screening Station fully addresses user requirements regarding efficiency, reliability, and cost control, offering the following distinct advantages:
1. Exceptional Maneuverability: Equipped with a heavy-duty tracked chassis, it boasts superior off-road capabilities, allowing it to move freely across rugged and uneven job sites. Its ease of relocation saves significant time typically spent on transportation and installation.
2. High Screening Efficiency: Features a multi-deck, high-efficiency vibrating screen system with a large screening area and robust processing capacity. This ensures high screening efficiency and enables the precise production of materials in a wide variety of specifications.
3. Intelligent Control and Stable Operation: Integrated with a PLC intelligent control system, the unit offers simple and intuitive operation, enabling remote monitoring and fault diagnosis. Key components are sourced from internationally renowned brands, ensuring the equipment's long-term stable operation and reducing maintenance costs.
4. Eco-friendly and Energy-Efficient Design: The equipment operates with low noise levels and is equipped with advanced dust extraction interfaces, effectively controlling dust pollution and complying with modern green manufacturing standards.

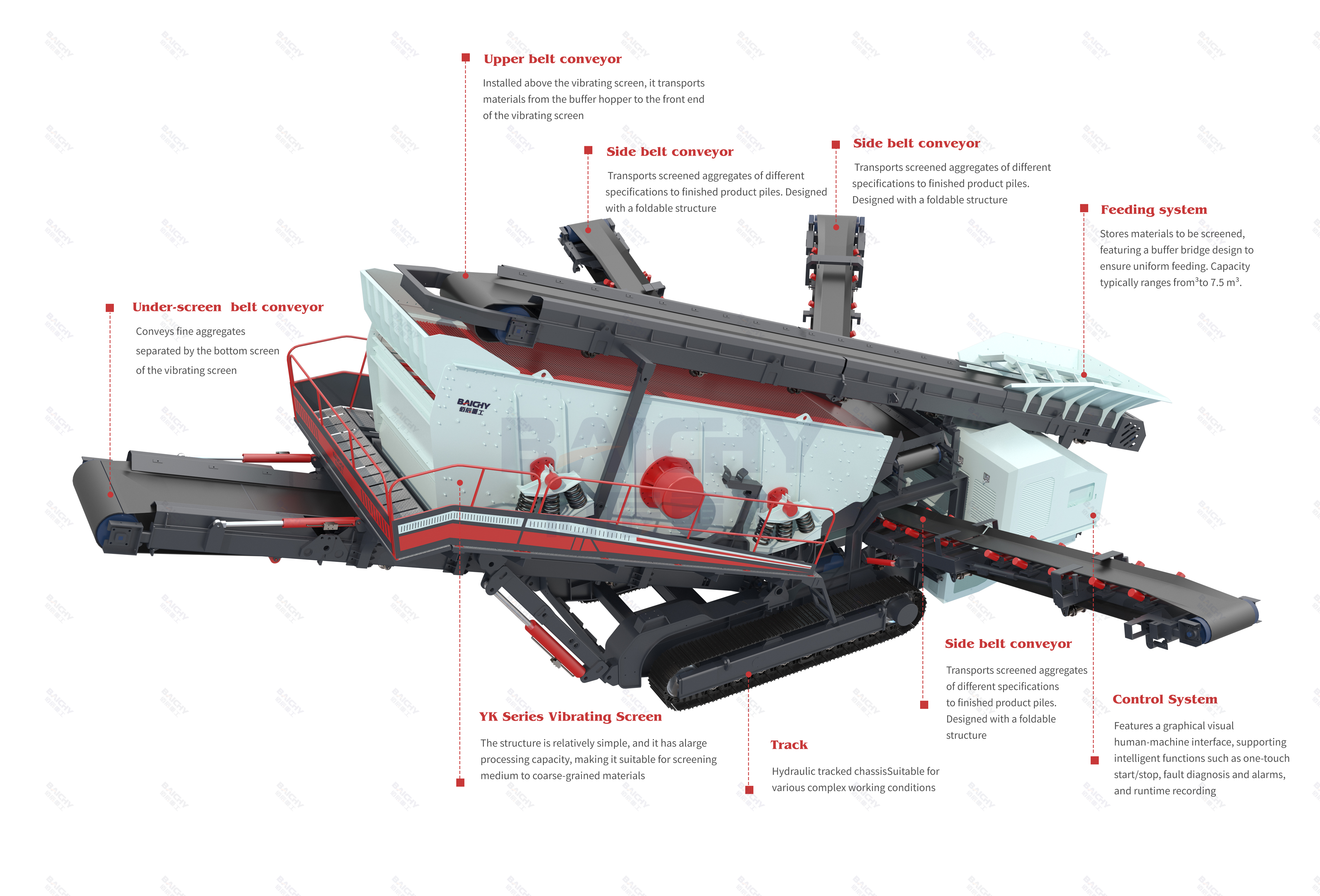

Track-Mounted Screening Station Structure Diagram
YMS20 Key Technical Parameters Table
| Parameter Item | Technical Specifications |
| Model | YMS20 |
| Number of Screen Decks | 2–3 (Optional) |
| Screening Area | Approx. 20 m² |
| Max. Processing Capacity | Up to 400 tons/hour (depending on material characteristics) |
| Vibrating Screen Type | Circular Vibrating Screen |
| Power System | Diesel Engine (Compliant with China Stage III / Stage IIIA emission standards) |
| Crawler Travel Speed | 0–1.2 km/h |
| Total Equipment Weight | Approx. 28–32 tons (depending on configuration) |
| Control Method | PLC Touchscreen Intelligent Control |
Relevant Success Stories
Our YMS20 crawler-mounted screening plant has demonstrated outstanding performance in numerous projects, both domestically and internationally. For instance, at a large-scale construction waste recycling center in East China, two YMS20 units worked in tandem with mobile crushing stations to achieve integrated on-site crushing and screening of demolition waste. This operation yielded an annual output of over 500,000 tons of high-quality recycled aggregates, earning high praise from the project owner. At a stone quarry in Southeast Asia, the YMS20—thanks to its exceptional adaptability and reliability—maintained stable screening operations even in muddy conditions during the rainy season, helping the client complete their production tasks on schedule.
Recommended Related Equipment
Based on the common applications of the YMS20 crawler-mounted screening plant, we recommend the following complementary or related equipment to form a more complete production line:
1. Mobile Jaw Crushing Plant: An ideal choice for primary crushing; when paired with the YMS20, it creates a mobile "crush-then-screen" production line.
2. Mobile Cone Crushing Plant: Suitable for the secondary medium-to-fine crushing of medium-hard and harder materials; when used in conjunction with the YMS20, it enables the production of high-quality manufactured sand and aggregates.
3. YPS Series Mobile Crushing and Screening Combined Units: Integrating both crushing and screening functions into a single unit, this series is ideal for environments with limited space or situations requiring a single machine to perform multi-stage operations; it serves as a powerful functional complement to the YMS20.

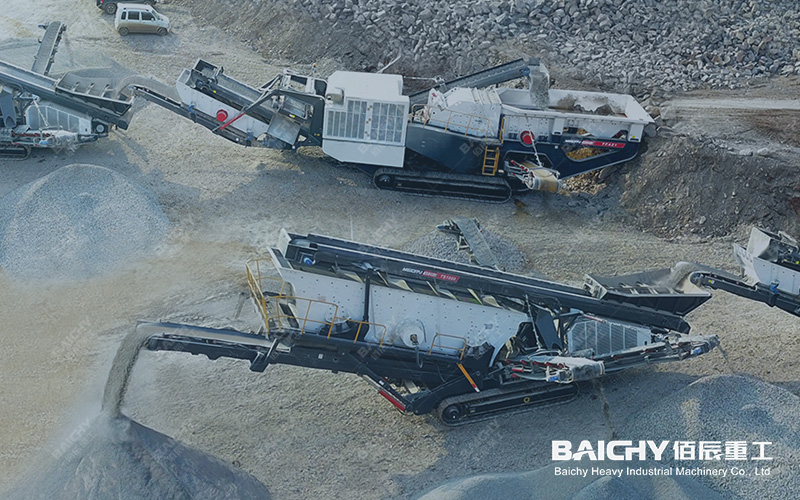

Track-Mounted Screening Plant — Customer Site
Frequently Asked Questions (FAQ)
Q1: Can the YMS20 crawler-mounted screening station process wet or sticky materials?
A: Yes, it can; however, efficiency may be affected. For materials with high moisture content or sticky properties, we recommend opting for a specialized configuration equipped with wear-resistant, anti-clogging screen media (such as polyurethane screen panels, heated screens, etc.), or implementing appropriate pre-drying measures prior to feeding to optimize screening performance.
Q2: Is the equipment's maintenance and upkeep complex? What are the key maintenance points?
A: The equipment is designed for simple and straightforward maintenance. Key daily maintenance tasks include: regularly checking the lubrication status of the vibrating screen bearings; inspecting the screen media for wear and proper tension; cleaning the screen deck and dust removal system; and checking the wear and tension of the crawler track mechanism. For a detailed maintenance schedule and intervals, please refer to the operation manual provided.
Q3: Can the number of screening decks and screen specifications be customized to suit our specific material properties and output requirements?
A: Absolutely. The YMS20 offers flexible configuration options. Based on the characteristics of the materials you are processing (such as particle size, moisture content, and hardness) and your target product specifications, we can customize the optimal number of screening decks, screen media types (e.g., woven wire mesh, perforated plates, polyurethane panels, etc.), and mesh sizes to ensure maximum screening efficiency and product quality.
