Trommel Screens
In industries such as mining, construction aggregates, and coal washing, the screening and classification of materials constitute a critical link in the production process. As a classic and highly efficient screening device, the trommel screen—thanks to its unique operating principles and stable performance—plays an indispensable role in the screening of a wide variety of materials, including coal, ores, sand, and gravel. This article provides an in-depth analysis of the trommel screen's equipment characteristics, core advantages, and future application prospects.
Equipment Overview and Operating Principles
What is a Trommel Screen?
A trommel screen—also known as a rotary screen or cylindrical screen—primarily consists of an inclined, cylindrical or prismatic drum (the screen cylinder) mounted on a frame. Driven by a power source, the screen cylinder rotates at a constant speed around its central axis. Materials are fed into one end of the cylinder; under the combined influence of the cylinder's rotation and gravity, the materials move axially forward along the length of the drum. During this process, material particles smaller than the screen mesh size pass through the perforations, thereby achieving classification; conversely, materials larger than the mesh size are discharged from the opposite end of the screen cylinder.
Analysis of the Operating Process
The operating process can be summarized as follows: Feeding -> Rotary Tumbling & Dispersion -> Layering & Screening -> Classified Discharge. The entire process is continuous and smooth, making it particularly well-suited for processing materials that possess a certain degree of moisture, are prone to adhesion, or consist of relatively large lumps.
Core Advantages of the Trommel Screen
Compared to other equipment such as linear vibrating screens or high-frequency screens, the trommel screen offers distinct advantages in specific application scenarios:
1. High Screening Efficiency and Large Processing Capacity: The unique rotary motion causes materials to tumble and disperse thoroughly, increasing the opportunities for particles to pass through the screen mesh. This results in particularly effective classification when processing moist or sticky materials.
2. Smooth Operation and Low Noise: Featuring a simple structure and a streamlined drive system, the device maintains excellent operational balance. Consequently, the levels of noise and vibration generated are significantly lower than those produced by vibrating screen equipment.
3. Strong Adaptability, Durability, and Reliability: The device can easily withstand the impact of large-lump materials and is resistant to screen clogging. It experiences minimal mechanical wear, requires low maintenance, and offers a long service life.
4. Excellent Sealing and Environmental Compliance: The entire screening process takes place within an enclosed drum, effectively preventing dust dispersion and ensuring compliance with environmental protection standards for industrial production.

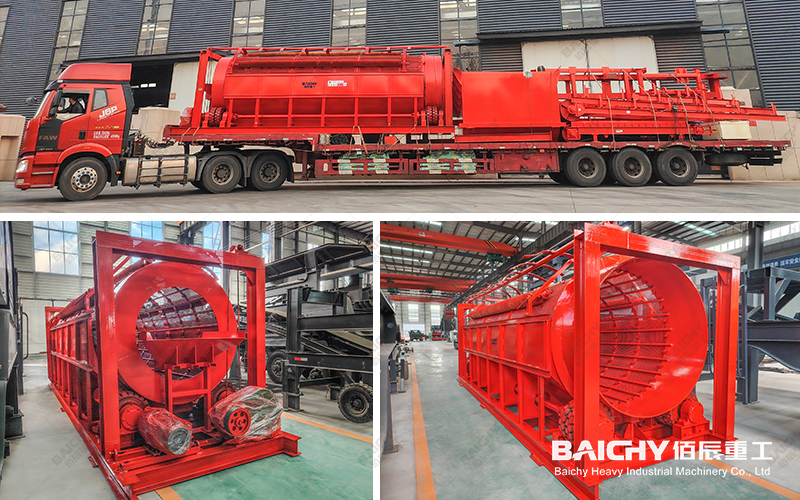

Rotary Screen Shipment
Showcase of Typical Application Cases
The versatility of the rotary trommel screen enables its successful application across numerous industries:
| Industry | Materials Processed | Screening Objective | Typical Screen Mesh Configuration |
| Coal Industry | Raw Coal, Clean Coal, Coal Gangue | Classification, Desliming, Demediuming | 6mm, 13mm, 25mm, 50mm |
| Mining Industry | Iron Ore, Limestone, Granite | Pre-screening (before/after crushing), Classification | 5mm, 10mm, 20mm, 31.5mm |
| Sand & Aggregate | Natural Sand, Manufactured Sand, Crushed Stone | Sand-Stone Separation, Grading Control | 3mm, 5mm, 10mm, 20mm |
| Other Fields | Construction Waste, Compost, Recycled Materials | Screening for Resource Recovery | Customized based on process requirements |
Case Brief: A major building materials company integrated our GS1230 model rotary trommel screen into their manufactured sand production line (rated at 500 tons per hour) for raw material pre-screening. This effectively removed soil and fine dust from the raw feed, protected downstream crushing equipment, and directly separated aggregates larger than 30mm, resulting in an overall efficiency increase of approximately 15% for the production line.
Equipment Selection and Related Recommendations
Selecting the appropriate rotary trommel screen is crucial for ensuring effective screening results. The following key factors should be considered during the selection process:
• Material Characteristics: Including particle size distribution, moisture content, stickiness/adhesiveness, bulk density, etc.
• Process Requirements: Required throughput, screening efficiency, mesh size, and the number of classification grades.
• Installation Environment: On-site space constraints, slope requirements, etc.
Recommended Companion Equipment:
To construct a complete material screening system, the rotary trommel screen is often operated in conjunction with the following equipment:
• Jaw Crusher: Used for the primary crushing of materials.
• Belt Conveyor: Responsible for transporting materials between different pieces of equipment.
• Sand Washer: Used to clean aggregates after screening, thereby enhancing product quality.
Frequently Asked Questions (FAQ)
Q1: How should I choose between a rotary trommel screen and a vibrating screen?
A1: Each type has its own specific strengths and areas of focus. Rotary screens are better suited for processing materials with high moisture content (>8%), high viscosity, or significant variations in lump size; they offer excellent resistance to clogging and ensure more stable operation. Vibrating screens, conversely, are ideal for the rapid and efficient screening of dry, fine-grained materials, offering a higher processing capacity per unit area. The choice between the two should be determined based on the specific material properties and processing requirements.
Q2: Are the screens on a rotary screen prone to clogging? How are they cleaned?
A2: The design of the rotary screen inherently incorporates effective anti-clogging features. The tumbling motion of the material inside the rotating drum helps to keep the screen apertures clean. For particularly viscous materials, we offer models equipped with built-in cleaning mechanisms (such as bouncing balls or rotating brushes) or specialized screen structures (such as anti-clogging slotted plates) to further prevent blockage.
Q3: Can the equipment be customized—for instance, in terms of dimensions, number of screening layers, or materials?
A3: Absolutely. As a professional manufacturer of mining equipment, we offer extensive customization capabilities. We can tailor the drum diameter and length to meet your specific throughput requirements; provide multi-layer designs (ranging from 1 to 4 layers) to accommodate multi-stage screening needs; and select appropriate materials for the screen mesh and drum—such as high-manganese steel, wear-resistant steel plates, or stainless steel—based on the abrasive and corrosive properties of your materials.
