Custom PE400×600 Jaw Crusher Solutions for Your Project

Customized Solutions for the PE400×600 Jaw Crusher

In the fields of mining, construction waste processing, or aggregate production, standardized equipment often struggles to fully align with the Perse and unique conditions found at various job sites. Every crushing project presents its own distinct characteristics regarding raw material properties, capacity requirements, site constraints, and final product specifications. Recognizing this, we offer deeply customized PE400×600 jaw crusher solutions designed to go far beyond "generic" configurations. From core motor selection to peripheral auxiliary systems, we provide comprehensive adaptation to ensure your investment yields maximum production efficiency and return.

As a classic piece of medium-to-small-scale primary crushing equipment, the PE400×600—defined by its fundamental parameters (a feed opening of 400x600mm)—boasts exceptional versatility. Our customization service builds upon this reliable platform to unlock its full potential, transforming it into an indestructible "first line of defense" within your production line.

Core Application Scenarios: Does Your Project Fit the Profile?

Our customized PE400×600 jaw crusher solutions are particularly well-suited for the following challenging scenarios:

•   Medium-to-Small Scale Mining Primary Crushing Operations: Processing high-hardness materials—such as granite, basalt, and river pebbles—that demand exceptional equipment wear resistance and reliability.

•   Urban Construction Waste Recycling: Operating in complex environments with heterogeneous material compositions (potentially containing unbreakable contaminants like steel rebar), requiring enhanced tramp iron protection and adaptability.

•   Mobile or Semi-Mobile Crushing Stations: Projects subject to strict constraints regarding equipment dimensions, weight, and integration requirements, necessitating a compact yet highly efficient crushing core.

•   Production Lines with Specific Product Granularity Requirements: Operations requiring precise control over the discharge opening adjustment range and output particle size distribution to meet the feed specifications for downstream sand-making or grinding processes.

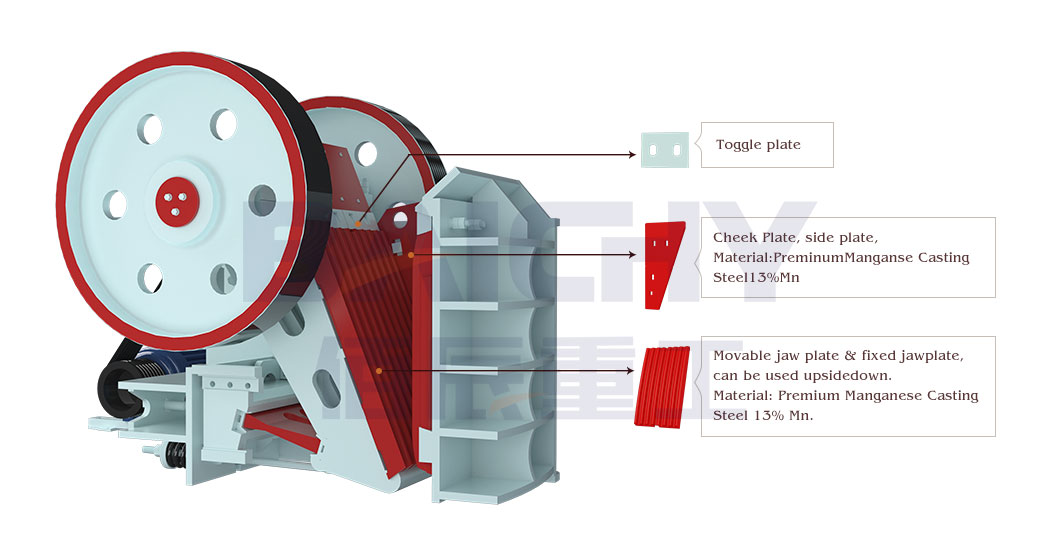

Structural-Diagram-of-the-PE400x600-Jaw-Crusher

Key Advantages of Our Customized Solutions

1.  Precise Power System Matching

Beyond offering standard electric motors, we can configure highly efficient, energy-saving motors—or even diesel engine drive solutions for off-grid locations—tailored specifically to your local power grid conditions (voltage, frequency) and energy efficiency objectives. This ensures that your PE400×600 jaw crusher is powered by a stable and cost-effective energy source, regardless of its operating location.

2. Discharge Control and Output Optimization

•   Adjustable Discharge Opening: Features a modular liner design and a dual-wedge adjustment mechanism, offering easier adjustment and a wider range (typically 40–100 mm), enabling rapid adaptation to varying product size requirements.

•   Perse Jaw Plate Options: Offers jaw plates with various tooth profiles and material compositions (e.g., high-manganese steel, composite metal-ceramics). These options are optimized to suit specific material characteristics (such as abrasiveness and hardness), significantly enhancing crushing efficiency and extending the service life of wear parts.

3. Integrated Feeding and Pre-processing

To prevent material blockages and the "ejection" phenomenon, we can integrate a compatible vibrating feeder—or even equip the unit with a pre-screening device—to separate fines and soil in advance. This enhances the processing efficiency of the main PE400×600 crusher unit and minimizes unnecessary wear.

4. Flexible Base and Mobility Solutions

•   Steel Frame Base: Provides stable support for stationary production lines, reducing the volume of on-site concrete foundation work and shortening the installation cycle.

•   Mobile Chassis: Can be integrated into wheeled or crawler-mounted mobile stations, enabling rapid site-to-site relocation—an ideal solution for projects involving multiple work points or short operational cycles.

PE400×600 Jaw Crusher: Basic Parameters and Customization Examples

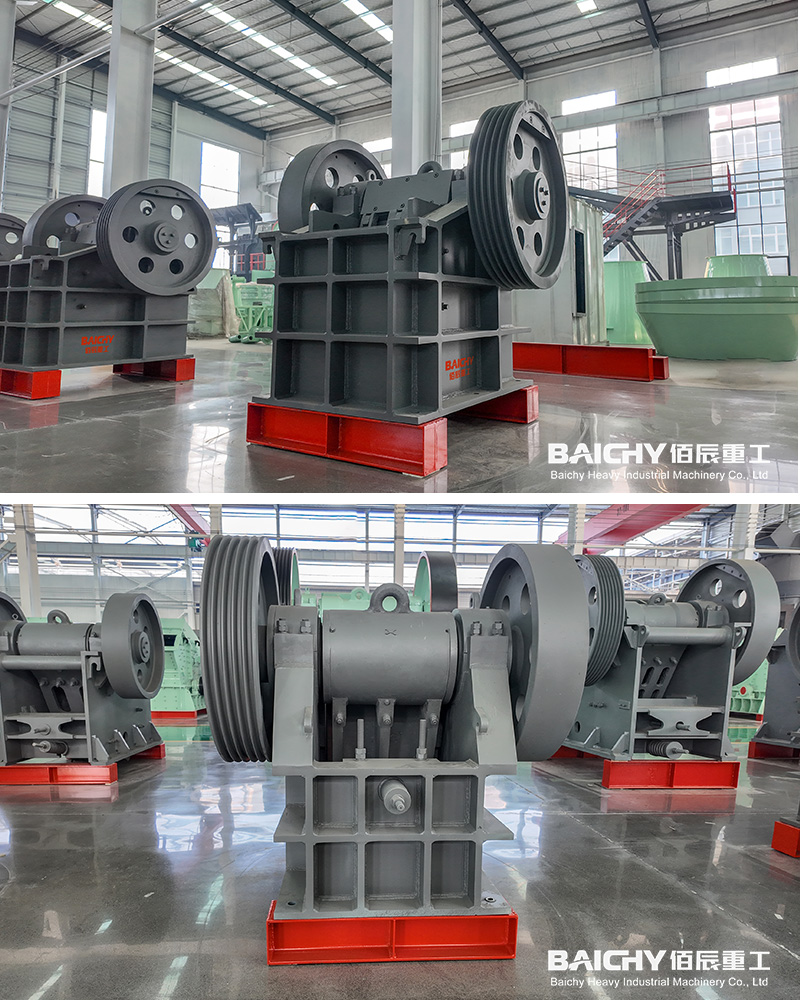

Customized Solutions for the PE400×600 Jaw Crusher

Success Story: How Customization Creates Value

Case Study 1: A Granite Quarry in Southeast Asia

•   Challenge: Remote site location with an unstable power grid; requirement for the final aggregate product to have a low flakiness content.

•   Solution: We equipped the PE400×600 Jaw Crusher with an integrated power package featuring a diesel generator set, and optimized the tooth profile angle of the jaw plates to enhance the laminating crushing effect. •   Results: The equipment achieved fully autonomous, self-powered operation. The produced coarse aggregates exhibited excellent particle shape, with the flakiness index reduced by 15%, thereby meeting the material standards required for high-end concrete applications.

Case Study 2: A Construction Waste Recycling Project in China

•   Challenge: The raw material was heavily contaminated with steel rebar and wood scraps, which frequently caused equipment jamming or damage.

•   Solution: The structure of the movable jaw and the machine frame was reinforced. Additionally, a magnetic separator and a manual sorting platform were installed downstream of the feeder. The discharge opening was equipped with a hydraulic adjustment system to facilitate the rapid clearing of chamber blockages.

•   Results: Equipment downtime due to faults was reduced by 60%, and the overall processing capacity stabilized at over 50 tons per hour, achieving the efficient resource utilization of construction waste.

Recommended Ancillary Equipment for the PE400×600 Jaw Crusher

An efficient crushing production line relies on the synergistic operation of its various components. In addition to the core PE400×600 Jaw Crusher, we typically recommend the following equipment to create a complete, closed-loop production system:

1.  Feeding Equipment: ZG Series Vibrating Feeders, designed to ensure a uniform and continuous supply of raw materials, thereby maximizing the throughput of the primary crusher.

2.  Secondary & Tertiary Crushing Equipment:

◦   Cone Crusher: Suitable for crushing high-hardness, abrasive materials—such as granite and basalt—to produce high-quality aggregates.

◦   Impact Crusher: Suitable for crushing medium-to-low hardness materials—such as limestone and construction waste—producing finished products with excellent particle shape, which is ideal for sand-making applications.

3.  Screening Equipment: 3YK/4YK Series Circular Vibrating Screens, designed for multi-stage screening to precisely classify and separate finished products into various size specifications.

4.  Conveying Equipment: TD Series Belt Conveyors, responsible for material transfer between different processing stages, thereby linking the entire production line into a cohesive system.

Frequently Asked Questions (FAQ)

Q1: If I order a customized version of the PE400×600 Jaw Crusher, how much longer will the delivery lead time be compared to the standard model?

A1: This depends on the complexity of the requested customizations. Typically, for standard customizations (such as specific motor models or jaw plate configurations), the delivery lead time will increase by approximately 1 to 2 weeks. If the integration of specialized feeding devices or a mobile chassis is required, an additional 2–4 weeks may be needed. Our sales engineers will provide a precise delivery schedule once you have confirmed the proposed solution.

Q2: Does customized equipment increase maintenance complexity or spare parts costs?

A2: No, it does not. Our customization process adheres to principles of modularity and standardization. All custom components are accompanied by clear technical drawings and specific spare part numbers; furthermore, the replacement procedures for wear parts (such as jaw plates) remain identical to those of our standard machinery. We provide global network support for spare parts, ensuring that you can quickly obtain the components you need.

Q3: How can I determine whether my project requires customization, and where should I begin the customization process?

A3: You can prepare the following information and contact our technical team for a free assessment:

1) The type, hardness, and feed size of the material to be crushed;

2) Your desired final product specifications and hourly output capacity;

3) On-site power supply details, site dimensions, and frequency of equipment relocation. Based on this information, we will determine whether a standard machine meets your requirements and provide a tailored list of customization recommendations.
