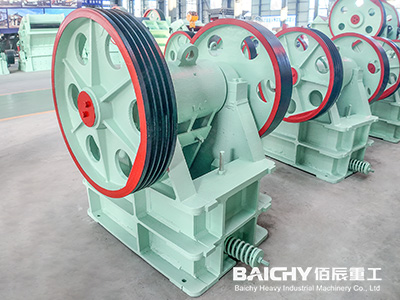

PE250×400 jaw crusher is a high-efficiency equipment designed for small-scale crushing needs. It is suitable for coarse and medium crushing of materials such as ore, construction waste, rock, etc. Its compact structure, stable performance, and low maintenance cost make it an ideal choice for small and medium-sized mines, building materials factories, laboratorie, and construction sites.
✔ Efficient crushing: The feed opening size is 250×400mm, the maximum feed particle size is 210mm, and the production capacity is 5-20 t/h, which meets the needs of small and medium-sized production.
✔ Sturdy and durable: It adopts a high-strength manganese steel jaw plate, which has strong wear resistance and a long service life.
✔ Energy saving and environmental protection: The motor power is 15kW, the energy consumption is low, and it meets modern environmental protection requirements.
✔ Easy to operate: Simple structure, easy maintenance, adjustable discharge opening (25-60mm), to meet different discharge needs.
1. Small-scale mining: suitable for primary crushing of gold, iron, copper and other ores.
2. Small-scale construction waste treatment: can crush construction waste such as concrete and bricks to achieve resource recycling.
3. Sand and gravel aggregate production: used in small sand and gravel plants to produce sand and gravel aggregates for construction.
Yes! Some manufacturers provide mobile configurations with tires or tracks for easy site transfer.
| Model | PE250x400 |
|---|---|
| Feeder mouth Size(mm) | 250x400 |
| Max. Feeding Size(mm) | 210 |
| Outlet adjusting Size(mm) | 25-60 |
| Motor Power | 15kw/22HP |
| Capacity(t/h) | 5-20 |
| Model | PE250x400 |
|---|---|
| Feeder mouth Size(mm) | 250x400 |
| Max. Feeding Size(mm) | 210 |
| Outlet adjusting Size(mm) | 25-60 |
| Motor Power | 15kw/22HP |
| Capacity(t/h) | 5-20 |

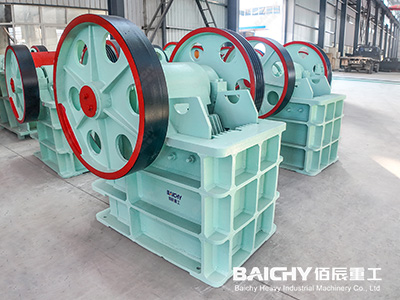

The PE250×400 jaw crusher adopts a high-quality steel fixed frame, which has a stable structure and can withstand high-strength crushing pressure, ensuring that the equipment remains stable during long-term operation. This design not only improves the durability of the whole machine but also effectively reduces vibration, making the crushing operation more efficient and reliable.
• High manganese steel material: The key components, such as the movable jaw, jaw plate, and eccentric shaft, are made of high manganese steel, which has high hardness and strong wear resistance, extending the service life of the equipment.
• Stable operation: The fixed frame structure reduces vibration, reduces equipment wear, and improves production efficiency.
• Strong adaptability: Suitable for crushing materials such as ores and construction waste of various hardness.
Compared with ordinary crushing equipment, the biggest advantage of the PE250×400 jaw crusher is its high-efficiency crushing ratio, whether it is small pieces of material or larger-sized raw materials, it can achieve a stable and efficient crushing effect.
Some crushing equipment performs well when processing small pieces of material, but when encountering larger-sized raw materials, they are prone to problems such as material jamming and reduced efficiency. The PE250×400 jaw crusher can flexibly adapt to materials of different sizes through an adjustable discharge opening (25-60mm) to ensure efficient crushing.
