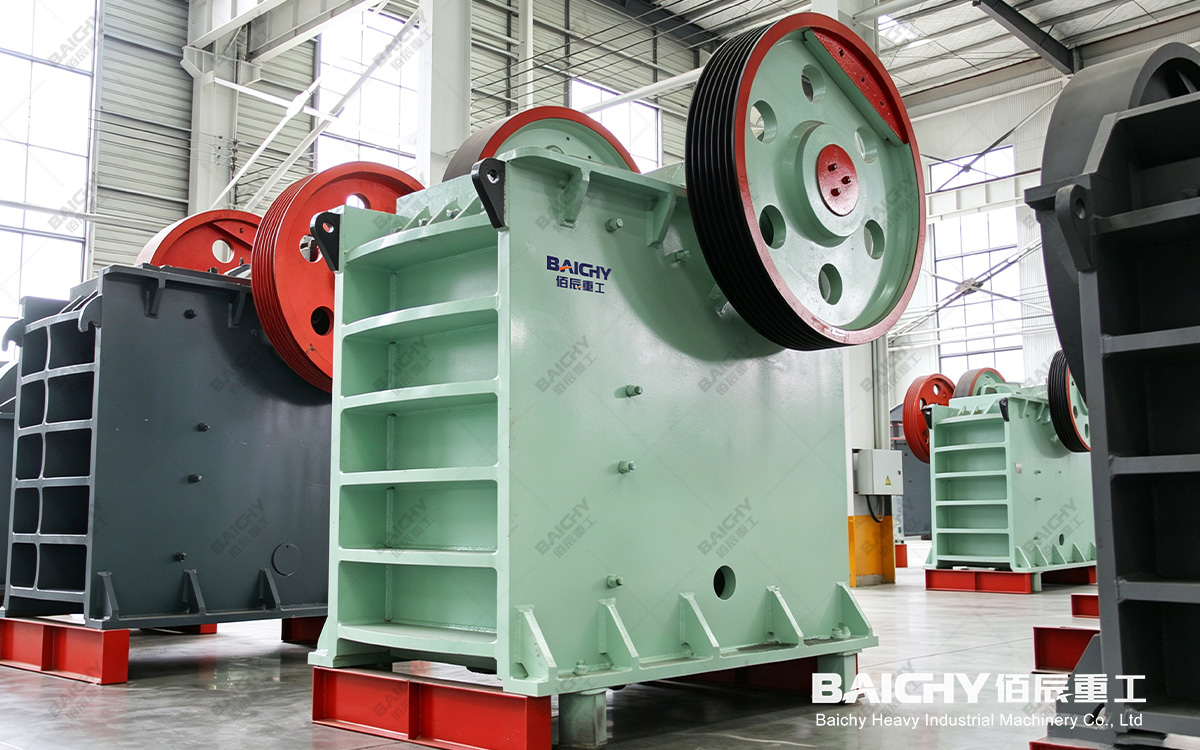

PE750x1060 Jaw Crusher
Introduction: Why the PE750x1060 Jaw Crusher Dominates Aggregate Production
In modern aggregate and hard-rock processing lines, the primary crushing stage decides the efficiency, cost, and final quality of everything that follows. Among the most trusted machines for this duty is the PE750x1060 jaw crusher, a medium-large primary crusher engineered for 110–350 t/h throughput. Produced by Baichy Heavy Industry, a professional manufacturer of mine crushing, ore grinding, and beneficiation equipment, this aggregate jaw crusher combines proven crushing geometry with robust metallurgy to handle granite, basalt, limestone, river pebble, and quarry rock with ease.
If you are planning a new quarry, upgrading an existing crushing plant, or expanding aggregate capacity, this guide walks through every factor you need: specifications, working principle, application scenarios, cost economics, and buying tips.
PE750x1060 Jaw Crusher Specifications – Complete Parameter Table
Before evaluating any rock crushing equipment, you must match the machine parameters to your feed material and target output. Below is the full technical specification table of the Baichy PE750x1060 jaw crusher:
| Parameter | Specification |
|---|---|
| Feed Opening (W×L) | 750 × 1060 mm |
| Max Feed Size | ≤630 mm |
| Discharge Opening Range | 80–150 mm (adjustable) |
| Processing Capacity | 110–350 t/h |
| Eccentric Shaft Speed | 250 r/min |
| Motor Power | 110–132 kW |
| Overall Dimensions | 3180 × 3500 × 3180 mm (reference) |
| Machine Weight | ≈32 t |
Note: The above specifications apply to Baichy's standard configuration; actual production capacity is influenced by material hardness, moisture content, and the feeding method. Please refer to the official quotation for equipment selection.

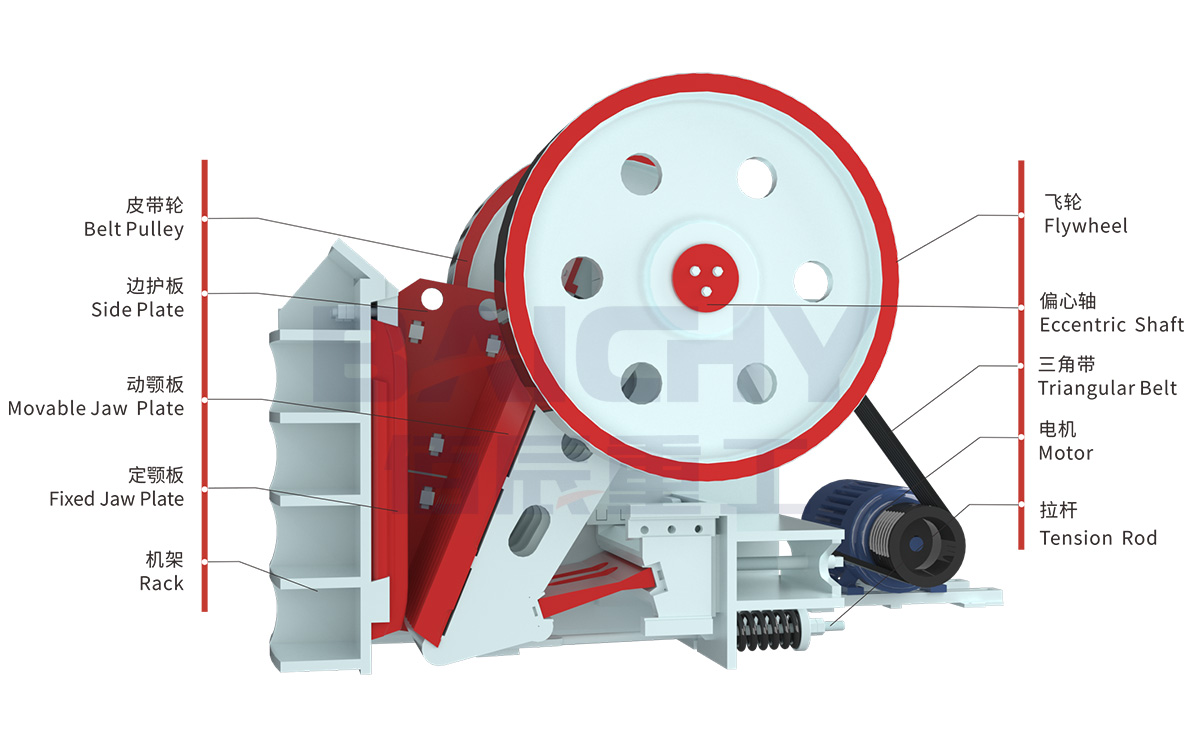

Structural Diagram of PE Series Jaw Crusher
How the PE750x1060 Jaw Crusher Works
The Crushing Principle Behind High Throughput
The PE750x1060 jaw crusher operates on the time-tested movable-jaw compression principle. A large eccentric shaft drives the movable jaw plate in a periodic reciprocating motion against a fixed jaw plate. Rock fed from the top is repeatedly compressed, split, and crushed between the two plates until fragments fall through the adjustable discharge opening at the bottom.
Why a 750×1060 Feed Opening Matters
With a 630 mm maximum feed size, this aggregate jaw crusher accepts large quarry-run boulders directly, eliminating the need for an upstream primary grizzly in many circuits. This reduces layout complexity and lowers pre-processing cost.
The V-belt Driven, Flywheel-Stabilized Drive Train
Power from the 110–132 kW motor is transmitted through V-belts to the eccentric shaft. Twin heavy flywheels store kinetic energy, smoothing the load peaks of hard rock crushing equipment and boosting energy efficiency across the full shift.
Key Applications of the PE750x1060 Jaw Crusher
Aggregate & Quarry Production
The primary use is crushing limestone, granite, and river pebble into 0–100 mm coarse aggregate, feeding downstream cone or impact crushers to produce ASTM/CNS graded concrete and asphalt aggregates.
Hard Rock Mining & Beneficiation
In mining plants, the PE750x1060 jaw crusher reduces run-of-mine ore to a size suitable for grinding mills, supporting iron ore, copper, gold, and non-metallic mineral dressing circuits.
Construction Waste & Recycling
With proper feeding control, it also processes recycled concrete and demolition rock into reusable base material, making it a versatile addition to a jaw crusher for sale comparison list.

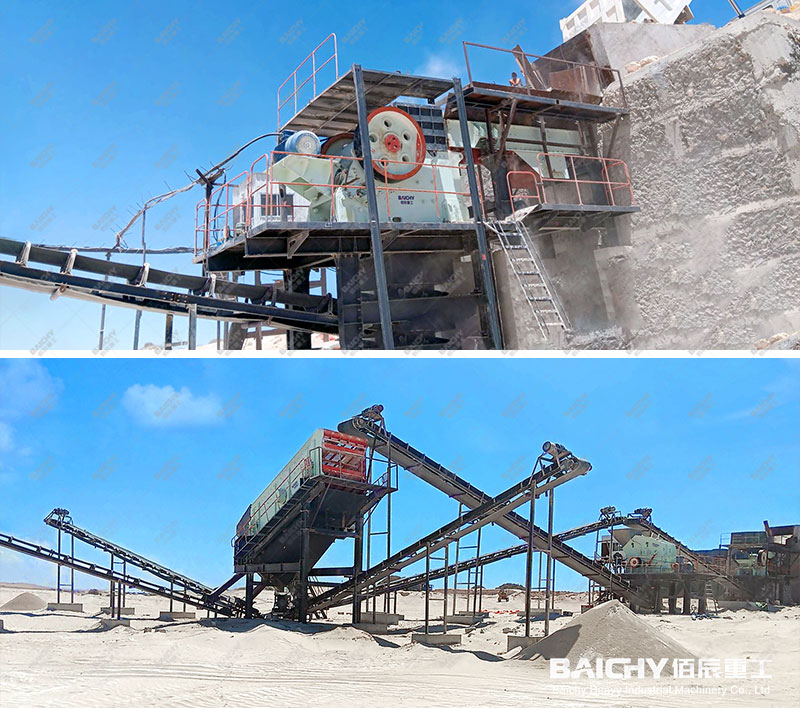

PE750x1060 Jaw Crusher for Aggregate & Rock Crushing
Advantages of Choosing a Baichy PE750x1060 Jaw Crusher
1. High Capacity with Low Power Consumption
At 110–350 t/h capacity against 110–132 kW power, the energy intensity is among the most favorable in its class, directly lowering per-ton production cost.
2. Robust, Wear-Resistant Construction
The frame is built from high-strength cast steel and the jaw plates from manganese steel (Mn13/Mn18), delivering long service life in abrasive aggregate crushing duties.
3. Simple Structure, Low Maintenance
The PE750x1060 jaw crusher features few moving parts, easy jaw-plate replacement, and low spare-parts cost, keeping downtime and maintenance budget under control.
4. Safe and Easy Operation
Built-in safety flywheel guards, an overload-protection toggle plate, and a simple hydraulic or manual wedge adjustment make operation safe and setup quick.
Cost Economics: Why Total Cost of Ownership Matters
When comparing a jaw crusher for sale, do not judge on purchase price alone. The PE750x1060 jaw crusher wins on three lifetime-cost dimensions:
| Cost Dimension | Relative Advantage |
|---|---|
| Energy cost | Efficient drive train, lower power consumption per ton |
| Spare parts cost | Long-life manganese jaw plates, quick and easy replacement |
| Downtime cost | Simple structure, low failure rate, fast maintenance |
Lower energy draw, longer-wearing parts, and high uptime together reduce the cost per ton of produced aggregate by 15–25% compared to lower-tier machines over a 5-year horizon.
PE750x1060 Jaw Crusher vs. Other Crusher Types
vs. Impact Crusher
The PE750x1060 jaw crusher is the correct primary choice for hard, abrasive rock. Impact crushers crush faster and yield better cubicity on soft to medium stone, but wear fast on granite and basalt.
vs. Cone Crusher
Cone crushers are secondary machines. The jaw crusher handles larger feed sizes and higher initial reduction, making the two complementary in a complete crushing plant rather than competitors.
vs. Smaller Jaw Crushers (e.g., PE600×900)
Stepping up to the 750×1060 model raises feed capacity and throughput substantially, justifying the higher investment when your quarry feed size exceeds 500 mm.
How to Select the Right PE750x1060 Jaw Crusher
Step 1 – Define Your Feed Material
Test or identify rock hardness (Mohs scale), abrasiveness, moisture, and max boulder size.
Step 2 – Match Capacity to Plant Demand
Calculate required tons per hour from your downstream equipment and market demand, then confirm the PE750x1060 jaw crusher capacity curve.
Step 3 – Verify Discharge Size Requirements
Choose the correct discharge opening setting so the output matches your secondary crusher's feed size.
Step 4 – Check After-Sales Support
Confirm spare-parts availability, technical support, and delivery lead time with the manufacturer before purchase.
Service, Spare Parts, and Global Support from Baichy
As a professional manufacturer of crushing, grinding, and beneficiation equipment, Baichy Heavy Industry provides complete lifecycle support: engineer-assisted plant design, installation supervision, operator training, and a full inventory of manganese jaw plates, toggle plates, bearings, and bolts. This ensures your PE750x1060 jaw crusher stays productive for decades.
Conclusion – Choose the PE750x1060 Jaw Crusher for Reliable Aggregate Production
The PE750x1060 jaw crusher is a proven, cost-effective primary crushing solution for aggregate plants, hard-rock mining, and recycling operations. Its 750×1060 mm feed opening, 110–350 t/h capacity, robust build, and low operating cost make it a smart long-term investment. Contact Baichy Heavy Industry today for a tailored quotation and plant layout.
3. FAQ
Q1: What is the processing capacity of the PE750x1060 jaw crusher?
The Baichy PE750x1060 jaw crusher delivers 110–350 t/h, depending on discharge opening setting (80–150 mm) and feed material hardness.
Q2: What is the maximum feed size the PE750x1060 can handle?
It accepts quarry-run rock up to 630 mm, thanks to its 750×1060 mm feed opening, reducing the need for pre-screening.
Q3: What materials can the PE750x1060 jaw crusher crush?
It crushes granite, basalt, limestone, river pebble, quartz, iron ore, and recycled concrete—suitable for aggregate, mining, and construction waste applications.
Q4: How much motor power does the PE750x1060 jaw crusher need?
The standard motor rating is 110–132 kW, transmitted via V-belts to the eccentric shaft for efficient, stable operation.
Q5: Does Baichy provide installation and after-sales support?
Yes. Baichy offers plant design, installation supervision, operator training, and a full spare-parts inventory to keep your PE750x1060 jaw crusher running reliably.
