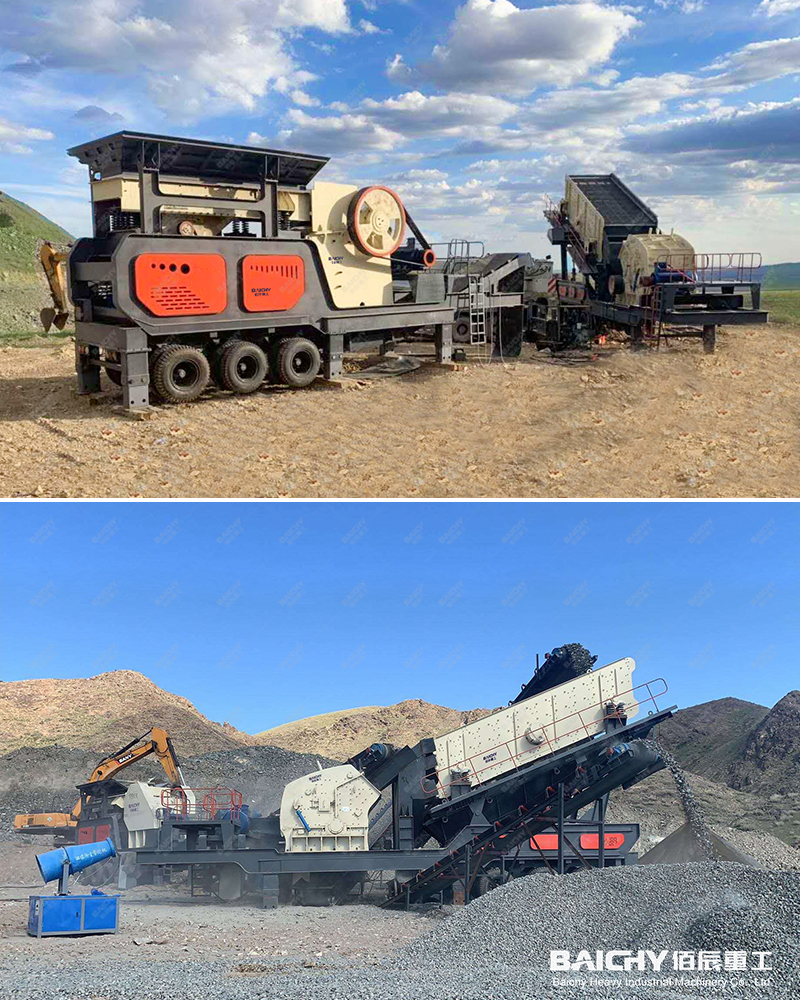

mobile stone crusher
By integrating feeding, crushing, screening, and conveying systems onto a single chassis, mobile crushers enable a "ready-to-work, ready-to-move" operational mode. This article provides a structured framework for decision-making, analyzing the subject across five key dimensions: core advantages, type comparisons, pricing structures, leading brands (specifically Baichen Heavy Industry), and common pitfalls to avoid during the purchasing process.
I. What is a Mobile Crusher?
A mobile crusher (also known in the industry as a "mobile crushing station") is a modular piece of equipment that integrates four major processes—feeding, crushing, screening, and conveying—into a single unit. It eliminates the need for the cumbersome foundation construction typically associated with traditional stationary production lines, allowing the unit to be driven directly to the job site to perform on-site processing where "materials never touch the ground."
II. Core Advantages and Applicable Scenarios
1. Core Advantages
• Cost Reduction and Efficiency Gains: Eliminates the need for civil engineering works and steel structure installation, shortens material transport distances, and reduces overall operating costs by over 30%.
• High Mobility and Flexibility: Wheel-mounted models allow for rapid site-to-site transfers, while crawler-mounted models can navigate rugged terrain, effectively supporting an agile "move-and-crush" operational strategy.
• Environmental Compliance: Comes standard with water-spray dust suppression and noise reduction systems, making it particularly well-suited for urban construction waste processing projects subject to strict environmental regulations.
• perse Configuration Options: Allows for flexible customization of the main crushing unit—choosing between jaw, impact, or cone crushers—based on the hardness of the processed material (ranging from soft rock to hard rock).
2. Comparison of Common Types
| Dimension | Wheel-Mounted Mobile Crushing Station | Track-Mounted Mobile Crushing Station |
| Drive Method | Requires tractor towing (semi-trailer style) | Fully hydraulic self-propelled (wireless remote control) |
| Applicable Terrain | Flat, paved surfaces; within factory premises | Mountainous areas, wetlands, muddy construction sites |
| Relocation Efficiency | Requires disassembly; road permits required | Turns in place; no disassembly required; strong climbing capability |
| Price Range | Relatively economical (for equivalent capacity) | Higher (approx. 1.5–2 times the cost of wheel-mounted units) |
| Recommended Scenarios | Construction waste recycling, road construction | Large-scale mining operations, harsh working conditions |
III. 2026 Market Pricing Structure and Configurations
The price range for mobile stone crushers varies significantly, ranging from tens of thousands to tens of millions of RMB. Pricing is primarily determined by crushing capacity (t/h), chassis type, and the configuration of the main crushing unit.
1. Price Classification Reference Table (2024–2026 Market Trends)
| Equipment Class | Reference Price (RMB) | Capacity Range | Typical Configuration | Target Users |
| Simple/Mini | 30,000 – 150,000 | 5–30 t/h | Single small jaw crusher + conveyor belt | Sole proprietors, farms, laboratory/experimental use |
| Medium/Standard | 300,000 – 1,000,000 | 50–150 t/h | Feeder + Jaw Crusher + Screening Unit | Small-to-medium-sized quarries, demolition companies |
| Large/Integrated | 1,500,000 – 6,000,000 | 200–500 t/h | Jaw Crusher + Cone/Impact Crusher + Multi-layer Screen | Large-scale mines, highway construction projects |
| Premium/Track-Mounted | 5,000,000 – 15,000,000+ | 300–800 t/h | Fully hydraulic, intelligent control, imported components | State-owned enterprises, large-scale general contractors |
2. 4 Key Factors Influencing Quotations
1. Chassis Cost: The manufacturing cost of a track-mounted chassis is significantly higher than that of a wheel-mounted chassis.
2. Main Unit Technology: Cone Crusher (for hard rock processing) > Impact Crusher (for soft rock/construction materials) > Jaw Crusher (for primary crushing).
3. Power Mode: Dual Diesel-Electric (for field operations) is approximately 15%–20% more expensive than purely electric models.
4. Intelligent Features: PLC touchscreen controls and remote fault diagnostics will result in a price premium.
IV. In-Depth Brand Analysis: Baichy Machinery
As a top-tier domestic brand, Baichy Machinery focuses on "high cost-effectiveness" and "customized turnkey solutions," holding a significant market share in the construction waste processing and small-to-medium-scale mining sectors.
1. Core Product Matrix
• Mobile Jaw Crushing Station: Primarily designed for primary crushing; models range from PE400×600 to PE1200×1500, specifically engineered to tackle large, hard rocks.
• Mobile Impact Crushing Station: Targets construction waste and limestone; produces cubical-shaped finished aggregates, making it ideal for commercial concrete mixing plants.
• Mobile Cone Crushing Station: Designed for highly abrasive materials such as granite and basalt, featuring an advanced hydraulic protection system.
• Mobile Screening Station: Operates either independently or in conjunction with other units to classify materials into 3–4 different finished product specifications.
2. Technical Highlights (Why Choose Baichy?)
• Integrated Folding Design: Transport width is less than 3 meters, allowing for road travel without the need for oversized load permits; the unit unfolds smoothly during operation with minimal vibration.
• Dual Power Redundancy: Comes standard with a diesel generator interface, effectively resolving power supply issues in remote field locations or during power outages.
• Superior Wear Parts: Utilizes high-manganese steel (Mn18Cr2) material, extending service life by over 30% compared to standard materials.

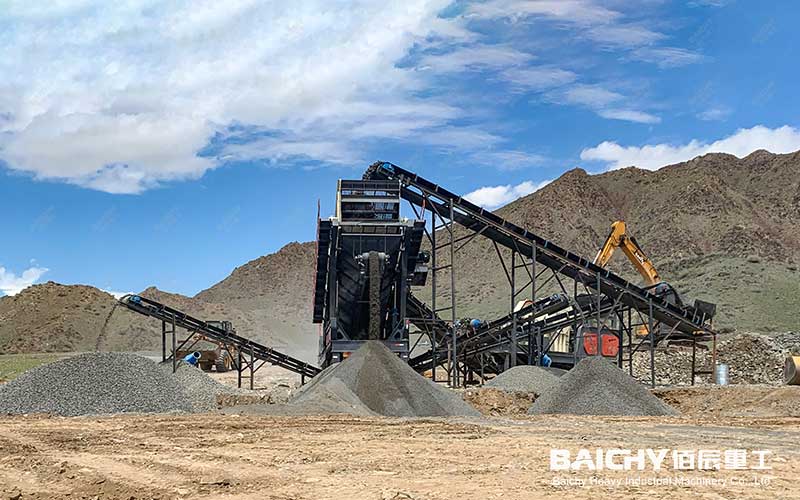

granite crushing plant
V. Purchasing Pitfalls to Avoid & FAQ
1. Guide to Avoiding Purchasing Pitfalls
• Beware of Low-Price Traps: Equipment priced 30% or more below the market average often utilizes refurbished motors or substitutes standard Q235 steel for high-strength alloy steel plates.
• Clarify the "Landed Price": Logistics costs for heavy machinery are substantial (sometimes reaching tens of thousands of RMB); therefore, before signing a contract, you must confirm whether the quoted price includes shipping, installation, and commissioning fees.
• On-site Equipment Testing: Request that the manufacturer arrange a video demonstration of the specific equipment model operating at a nearby job site, or visit the factory premises in person to conduct a test run.
2. FAQ
Q1: I need to process demolition waste (concrete blocks); which equipment option is the most cost-effective?
A: We recommend a tire-mounted mobile impact crushing station. Impact crushers offer high efficiency when crushing concrete blocks, and the resulting aggregate features an excellent particle shape, making it ideal for producing recycled aggregate.
Q2: What should I do if I don't have access to three-phase electricity and only have diesel fuel available?
A: Choose a dual-power (diesel-electric) mobile crushing station. In areas without grid power, the unit can be driven by a diesel engine; when electricity is available, you can switch to the electric motor to reduce fuel consumption.
Q3: Approximately how much investment is required for a granite processing line with a capacity of 100 tons per hour (t/h)?
A: We recommend a two-stage crushing configuration consisting of a jaw crusher followed by a cone crusher. If you opt for a leading domestic brand (such as Baichen), the reference price for the complete set of equipment is approximately 800,000 to 1.2 million RMB.
Q4: Do mobile crushing stations require special permits for road transport?
A: Tire-mounted units are classified as specialized vehicles; when relocating, they must be towed by a tractor unit, and an oversize transport permit is required if the vehicle width exceeds 3 meters. Crawler-mounted units are typically classified as construction machinery and require transport via a flatbed trailer when relocating.
Q5: If the equipment breaks down, is the supply of spare parts reliable?
A: By choosing a reputable manufacturer like Baichen, you benefit from a service network spanning major mining regions nationwide. Commonly worn parts (such as jaw plates and side liners) are typically kept in stock and available for immediate delivery.
VI. Conclusion and Recommended Next Steps
If you have already identified your specific material type (e.g., granite, construction waste) and your projected output capacity (e.g., 100 t/h), we recommend requesting a customized equipment configuration proposal directly. Next Steps:
To generate a precise quotation tailored to your specific requirements, please provide the following information:
1. Material Hardness (Hard Rock / Soft Rock / Waste Materials);
2. Required Hourly Output (50 t/h / 100 t/h / 200 t/h);
3. Finished Product Specifications (e.g., 0–5 mm manufactured sand, 10–20 mm gravel).
Disclaimer: The price data provided above is based on market research conducted between 2024 and 2026 and is for reference purposes only; actual transaction prices are subject to real-time quotations provided by the manufacturer.
