YGM Series Grinding Mill
Baichy Heavy Industry — manufacturer of mining crushing, ore grinding and mineral processing equipment, exported to 150+ countries.
Planning a fine powder line for limestone, barite, gypsum, calcite or talc? The YGM series grinding mill is the machine your project should be built around. This guide shows how the YGM series grinding mill works, how to read its parameter table, how to select the right model and what it costs to run — so you can specify a mill with confidence.
What Is the YGM Series Grinding Mill?
The YGM series grinding mill is a high-pressure suspension roller mill (a YGM Raymond mill) developed from the classic R-series Raymond mill. Its defining feature is a set of 1,000–1,500 kg high-pressure springs on the roller suspender. Combined with centrifugal force, they raise rolling pressure to about 1.2 times that of a conventional Raymond mill at equal installed power — which is why this mill delivers more throughput and finer powder from the same motor.
Specification window: feed ≤15–40 mm, finished fineness 0.613–0.033 mm (30–425 mesh, up to 1000 mesh on selected materials), capacity 0.4–36 t/h, main motor 15–250 kW. It handles 280+ non-flammable minerals with Mohs hardness below 9.3 and moisture below 6%.

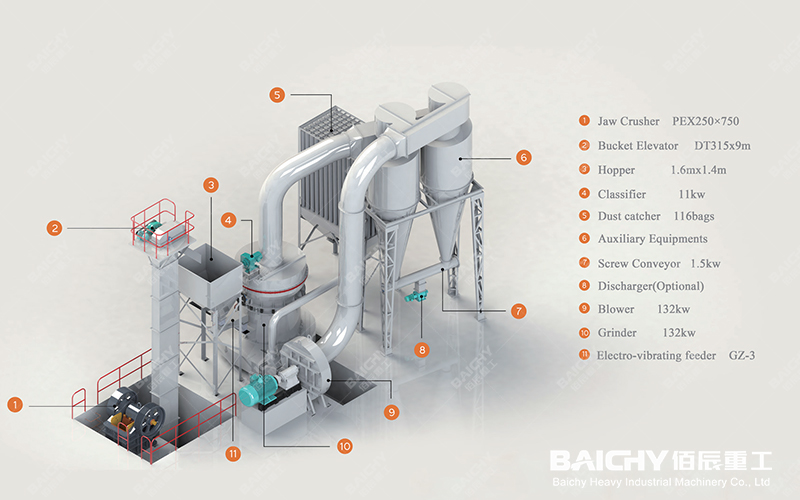

Schematic diagram of the grinding production line process flow
How It Beats a Classic R-Series Raymond Mill
• Feed size: the YGM series grinding mill accepts 15–40 mm, while the R-series prefers finer feed for stable output.
• Fineness: 30–425 mesh (0.613–0.033 mm) versus 30–325 mesh on the classic design.
• Capacity: 10–30% higher at the same power, with a screening rate up to 99%.
• Wear parts: spring length is re-adjusted as rollers and rings wear, so parts are used to their limit before replacement.
How Does the YGM Series Grinding Mill Work?
Each unit is a closed-circuit system: main grinding unit, classifier (analyzer), blower, cyclone collector, pulse bag dust collector and ducting, plus optional jaw crusher, bucket elevator, vibrating feeder and PLC cabinet.
1. Feeding
Crushed material (≤15–40 mm by model) is lifted to the hopper and fed evenly into the grinding chamber by an electromagnetic vibrating feeder. Uniform feeding is the biggest lever on stable output.
2. High-Pressure Grinding
Rollers swing outward under centrifugal force and press tightly against the stationary ring. Blades scoop material into the gap, where it is repeatedly squeezed, sheared and pulverised.
3. Airflow Classification
The blower carries powder to the classifier; impeller speed sets the cut point — higher speed, finer product. Oversize particles fall back for regrinding, so there is no screen to clog and fineness changes without stopping the mill.
4. Collection and Dust Removal
Qualified powder enters the cyclone collector and discharges as finished product. Residual air is cleaned in the bag filter (dust <20 mg/m³). The mill runs under negative pressure in a closed loop, keeping the workshop clean and material loss low.
Key Technical Parameters of the YGM Series Grinding Mill
| Model | Rollers | Roller size (mm) | Ring ID × H (mm) | Max feed (mm) | Output size (mm) | Capacity (t/h) | Motor (kW) | Dimensions (mm) |
|---|---|---|---|---|---|---|---|---|
| YGM65 | 3 | 210 × 150 | 650 × 150 | ≤15 | 0.613–0.033 | 0.4–1.8 | 15 | 4100 × 3300 × 4500 |
| YGM75 | 3 | 260 × 150 | 780 × 150 | ≤15 | 0.613–0.033 | 1.0–3.0 | 18.5 | 4300 × 3500 × 5100 |
| YGM85 | 3 | 270 × 150 | 830 × 150 | ≤20 | 0.613–0.033 | 1.2–4.0 | 22 | 5300 × 4100 × 5200 |
| YGM85B | 3 | 270 × 150 | 830 × 150 | ≤20 | 0.613–0.030 | 1.2–3.5 | 22 | 5300 × 4100 × 5200 |
| YGM95 | 4 | 310 × 190 | 950 × 190 | ≤25 | 0.613–0.033 | 2.1–5.6 | 45 | 7100 × 5900 × 7900 |
| YGM130 | 5 | 410 × 230 | 1280 × 230 | ≤30 | 0.613–0.033 | 2.5–9.5 | 90 | 7900 × 8000 × 9700 |
| YGM160 | 6 | 450 × 300 | 1600 × 300 | ≤35 | 0.613–0.033 | 8.0–16.0 | 132 | 12550 × 5700 × 8355 |
| YGM190 | 6 | 500 × 330 | 1900 × 330 | ≤40 | 0.613–0.033 | 18.0–36.0 | 250 | 11200 × 8530 × 9685 |
Capacity is referenced on medium-hard material (limestone, Mohs ≈3–4) at 80–325 mesh. Harder material, higher fineness or moisture above 6% reduces output.
Core Advantages
• Higher yield per kilowatt: springs add 800–1,500 kgf of grinding force, giving 10–30% more capacity than an equal-power Raymond mill.
• One machine, many products: fineness adjusts from 30 to 425 mesh by classifier speed alone.
• 99% screening rate: air classification replaces mechanical screening, so particle size stays uniform.
• Longer wear-part life: spring length is re-set as parts wear, extracting 10,000–15,000 h per set.
• Clean and quiet: sealed negative-pressure circuit plus pulse bag filter meets national and EU emission limits; spring-connected components damp vibration.

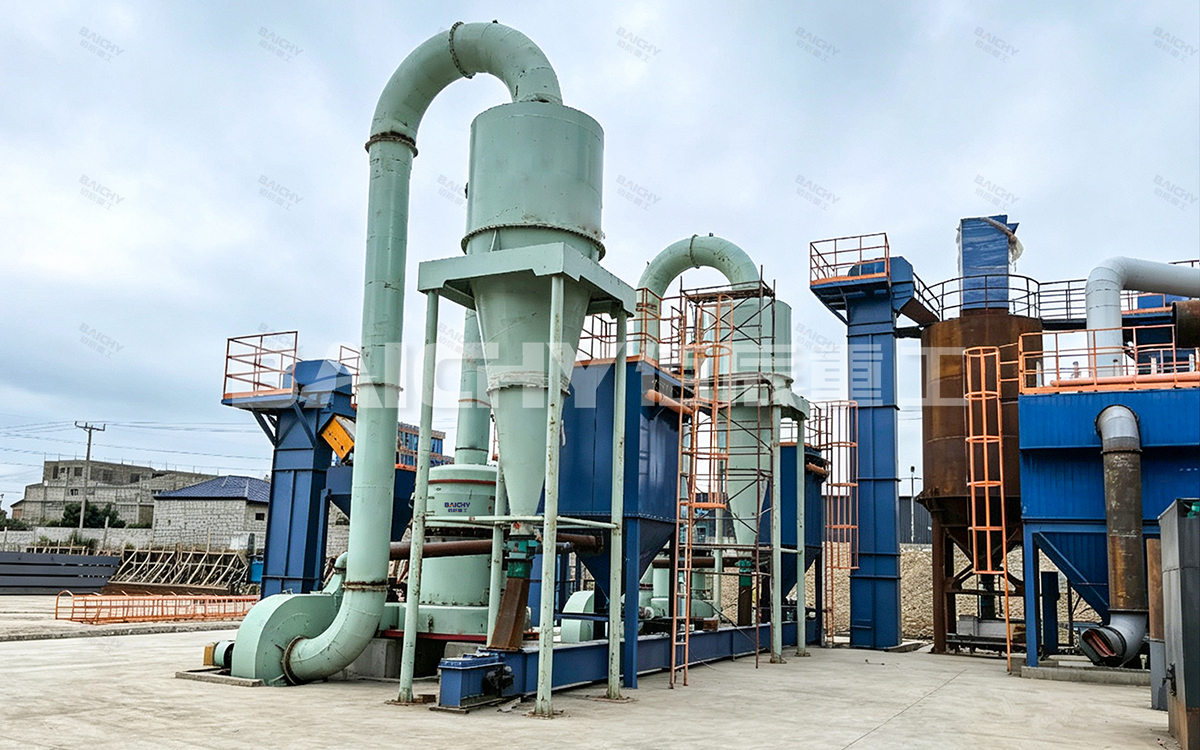

On-site view of a gypsum grinding line in South Africa.
Applications
The YGM series grinding mill grinds limestone, calcite, barite, gypsum, dolomite, talc, kaolin, bentonite, marble, feldspar, quartz, fluorite, phosphate rock, manganese and iron ore, coal, slag, cement clinker and activated carbon. Typical markets: construction filler and putty powder, paints and coatings, plastics and rubber, drilling-mud weighting (barite 200–325 mesh), power-plant desulfurisation powder, metallurgy, chemicals and soil conditioners.
How to Select the Right Model
Three questions define the choice: target capacity (t/h), required fineness (mesh or D97) and material hardness plus moisture. Fineness is rarely the limit — every model covers 30–425 mesh — so throughput drives selection: YGM65/75 for 1–2 t/h pilot lines, YGM85 for 2–4 t/h filler plants, YGM95 for 4–6 t/h commercial plants, YGM130 for 6–10 t/h, and YGM160/190 for 8–36 t/h single-line output at the lowest kWh per ton.
Operating and Maintenance Tips
• Keep feed uniform — starving or overfeeding is the top cause of output swings.
• Hold moisture below 6%; wet material blinds the classifier.
• Check roller and ring wear monthly and re-adjust spring length.
• Inspect filter bags and duct seals; pressure loss in the air circuit directly cuts capacity.
Why Buy from Baichy Heavy Industry?
Baichy is a manufacturer, not a trader: a 200,000 m² production base, in-house casting and machining of rollers and rings, CE and ISO certification, and equipment in 150+ countries. Every mill ships with installation guidance, commissioning, operator training and long-term spare parts supply. Send us your material, capacity and fineness, and our engineers return a complete plant configuration within 24 hours.
FAQ: YGM Series Grinding Mill
1. What fineness can it achieve?
Standard finished size is 0.613–0.033 mm (30–425 mesh). With optimisation some materials reach 600 mesh and a few reach 1000 mesh; coarse 30–80 mesh powder is possible with an optional coarse-powder device.
2. Which model suits 5 t/h of limestone at 325 mesh?
YGM95 (2.1–5.6 t/h) sits at the top of that range, but for continuous 5 t/h we recommend YGM130 (2.5–9.5 t/h). Running at 70–80% of rated capacity keeps fineness stable and extends wear-part life.
3. How much more output than a conventional Raymond mill?
At equal power, grinding pressure is about 1.2 times higher, giving 10–30% more capacity depending on hardness and fineness — the gain is largest on medium-hard minerals at 200–325 mesh.
4. Why does output suddenly drop?
Four usual causes: uneven or excessive feeding; worn rollers and rings; wrong classifier speed; and air leakage or blocked filter bags. Check feeding first, then wear parts, classifier settings and finally the air circuit.
5. Does Baichy supply the complete plant, not just the mill?
Yes. Delivery normally includes jaw crusher, bucket elevator, vibrating feeder, main mill, classifier, blower, cyclone collector, pulse bag dust collector, ducting and PLC cabinet, with overseas installation, commissioning and training available.
Final Summary
YGM Series Grinding Mill — High-Pressure Raymond Mill for Fine Mineral Powder
| Item | Summary |
|---|---|
| Product | YGM series grinding mill (high-pressure Raymond mill), Baichy Heavy Industry |
| Models | YGM65, YGM75, YGM85, YGM85B, YGM95, YGM130, YGM160, YGM190 |
| Feed / output | ≤15–40 mm feed; 0.613–0.033 mm (30–425 mesh) powder |
| Capacity | 0.4–36 t/h |
| Main motor | 15–250 kW |
| Key advantage | 1,000–1,500 kg spring pressure → 1.2× force, 10–30% higher output, 99% screening rate |
| Best for | Limestone, barite, gypsum, calcite, talc, kaolin and 280+ minerals, Mohs <9.3, moisture <6% |
| Service | Factory-direct, CE/ISO, installation, commissioning, training, spare parts in 150+ countries |
The YGM series grinding mill is the pragmatic choice for 30–425 mesh powder at 0.4–36 t/h: it out-produces a classic Raymond mill on the same motor, holds fineness without mechanical screens, and compensates for wear before you buy new parts. Contact Baichy Heavy Industry with your material, capacity and target mesh for a plant-specific configuration and quotation.
