Looking for the Most Durable Cone Crusher for Your Hard Rock (Granite/Basalt) Crushing Plant?

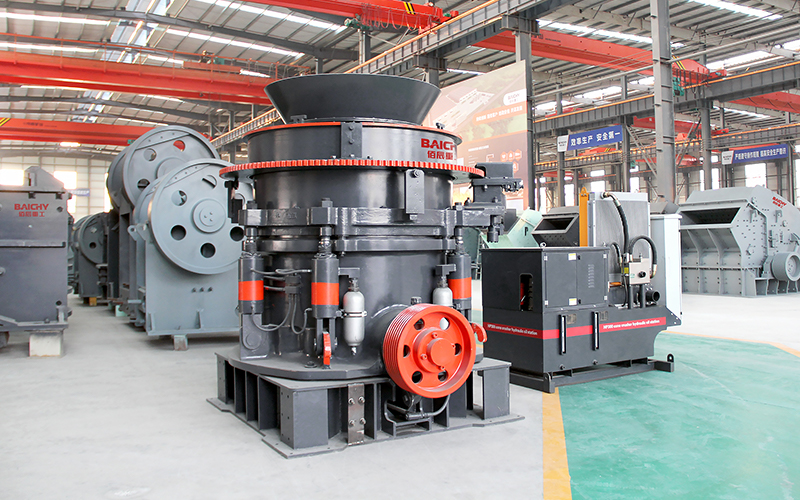

Hydraulic Cone Crusher

In the field of mining crushing, when dealing with high-hardness, highly abrasive materials such as granite, basalt, and iron ore, selecting an efficient and reliable crushing equipment is crucial to ensuring the continuous and stable operation of the production line and reducing overall costs. The cone crusher, as the "backbone" of the medium and fine crushing stage, has become the preferred solution for hard rock crushing operations due to its unique working principle and structural advantages. This article will delve into the application of cone crushers in hard rock crushing to help you make informed equipment selection decisions.

I. Cone Crusher: The Core Equipment for Hard Rock Crushing

The cone crusher uses an electric motor to drive a horizontal shaft to rotate. The horizontal shaft drives an eccentric sleeve through gears or belts, causing the moving cone to oscillate, periodically approaching and moving away from the fixed cone liner, achieving continuous compression, bending, and shearing crushing of the material. Its layered crushing principle significantly improves product quality and reduces the content of needle-like and flaky particles.

Why is the cone crusher particularly adept at hard rock crushing?

Compared to other crushing equipment, the cone crusher exhibits irreplaceable advantages when dealing with hard rock. Its robust main structure, optimized crushing chamber shape, and efficient overload protection device together form a strong barrier against high stress and high wear challenges. For materials with high hardness and strong abrasiveness, the cone crusher can provide higher production efficiency and longer wear part life.

II. Core Advantages of Cone Crusher in Hard Rock Processing

1. High Crushing Ratio and Excellent Particle Shape: Utilizing the principle of layered crushing, the produced finished material has a better particle shape, higher cubic content, and more internal cracks, making it very suitable as high-grade aggregate or feed for subsequent grinding operations.

2. Stable Operation and Excellent Efficiency: Hydraulic adjustment of the discharge port and clearing function enable the equipment to start and run under full load conditions, with a high degree of automation and outstanding processing capacity per unit of energy consumption.

3. High Durability and Easy Maintenance: Key components are manufactured using high-strength materials and special processes, resulting in excellent wear resistance. The hydraulic system makes the replacement and maintenance of core components safer and more convenient, significantly reducing downtime.

4. High level of intelligent control: Modern cone crushers are generally equipped with automatic control systems that can monitor parameters such as spindle position, lubricating oil pressure, temperature, and power in real time, enabling optimized operation and fault early warning.

III. Selection Reference for Cone Crusher for Hard Rock Crushing

Different types of cone crushers are required depending on the characteristics of hard rock and product requirements. Here is a brief comparison of common crusher models:

Note: Specific model selection needs to be determined comprehensively based on the material's compressive strength, feed particle size, required product particle size, capacity requirements, and production line layout.

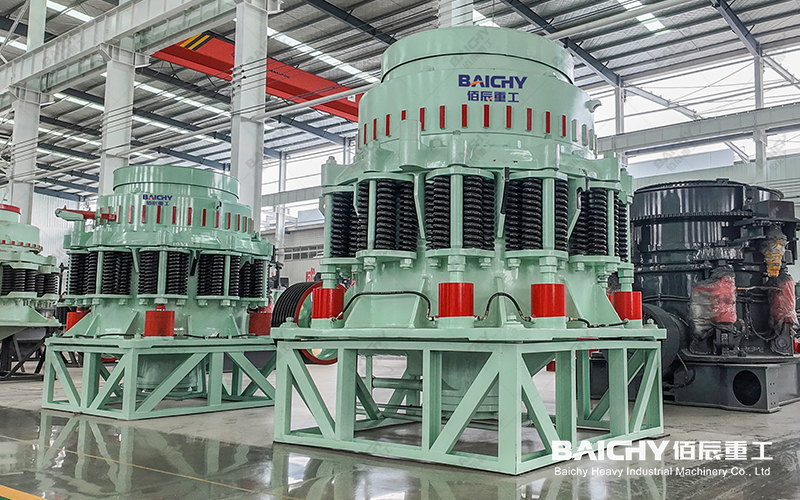

Spring Cone Crusher

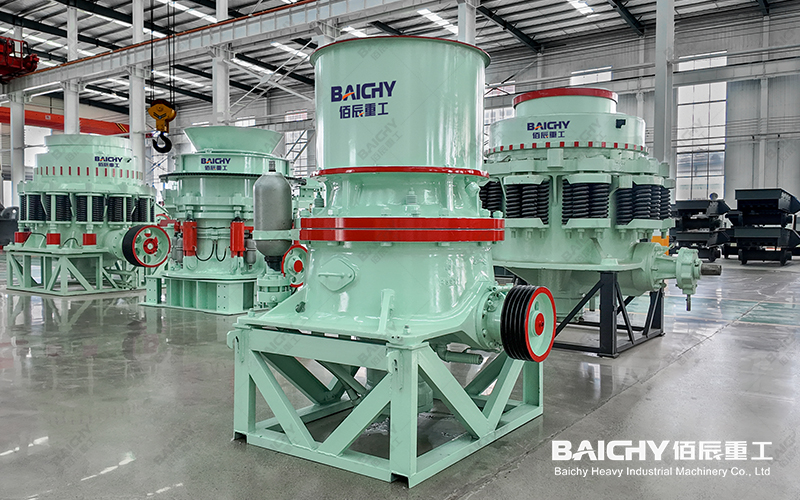

CH Cone Crusher

IV. Successful Case Sharing: Granite Sand Making Production Line

Project Overview: A large building materials base in Indonesia, using high-quality granite with a compressive strength exceeding 200MPa as raw material. The original production line suffered from poor finished product particle shape, severe impeller wear, and high costs.

Solution: We designed a three-stage crushing process: jaw crusher (coarse crushing) + single-cylinder hydraulic cone crusher (medium crushing) + multi-cylinder hydraulic cone crusher (fine crushing). The core medium and fine crushing stages utilize our high-performance hydraulic cone crushers.

Application Results:

• Capacity: 550 tons of high-quality manufactured sand per hour.

• Finished Product Quality: The finished sand particles are rounded, with continuous gradation and controllable fineness modulus, fully meeting the standards for high-performance concrete sand.

• Wear Part Life: Under such high-hardness material conditions, the average service life of the cone crusher wall exceeds 800 hours, significantly reducing the cost per ton.

V. Equipment Matching and Process Optimization Recommendations

To fully utilize the efficiency of the cone crusher in hard rock crushing lines, we recommend the following matching and optimization solutions:

• Front-end Feeding Guarantee: Equip with a heavy-duty feeder and pre-screening equipment to ensure uniform and continuous feeding, avoiding excessive iron and overload.

• Closed-loop screening at the back end: A high-efficiency vibrating screen and cone crusher form a closed-loop circulation, improving overall efficiency and precisely controlling product particle size.

• Dust and noise reduction: A systematically designed dust removal system and soundproof enclosure meet environmental protection requirements, creating a green mine.

VI. Frequently Asked Questions (FAQ)

Q1: What are the main differences between cone crushers and impact crushers when crushing hard rock?

A1: The principles are different. Cone crushers use layered compression crushing, which is more suitable for crushing high-hardness abrasive materials (such as granite and basalt). They have longer wear parts life and relatively lower operating costs, but higher equipment investment. Impact crushers use impact crushing, producing better particle shape, but the impact parts wear extremely quickly in hard rock conditions, making them more suitable for medium- and low-hardness materials.

Q2: How to select the cone crusher liner material based on the rock's abrasiveness index (such as the Ai index)?

A2: For highly abrasive materials (high Ai index), ultra-high manganese steel or high-wear-resistant alloy liners inlaid with composite ceramics should be selected. We offer a variety of material options and can conduct wear tests based on customer material samples to recommend the most cost-effective wear-resistant solution.

Q3: What could be causing excessively high oil temperature during cone crusher operation? How should it be handled?

A3: Common causes include: cooler malfunction or blockage, insufficient lubricating oil or deteriorated oil quality, bearing wear, or prolonged overload operation. The cooling system, oil level, and oil cleanliness should be checked immediately, and the operating current should be monitored. If the problem persists, the machine must be stopped and the internal bearings inspected. Good preventative maintenance and regular oil testing are crucial.
