85 TPH River Gravel Crushing Plant for Peru
For the extreme working conditions of Peruvian river pebbles with high quartz content and high abrasion (Wi=14-18), Baichy Heavy Industries recommends abandoning the conventional Mn13 solution and forcibly upgrading to Mn22Cr2 high-chromium manganese steel wear-resistant parts. To meet the high cubicity requirements of 13mm/19mm finished products, Option 2 (multi-cylinder hydraulic HP series) is the optimal solution to ensure continuous output of 85TPH and low needle-like fragmentation rate.
I. Core Challenge: Why do "ordinary" cone crushers fail with Peruvian river gravel?
The river pebbles in the Peruvian mountains are not ordinary stone. Their Bond Work Index (Wi) is as high as 18 kWh/t, and their silicon content is extremely high. This means:
1. Extremely high crushing resistance: The equipment needs to withstand higher crushing forces. When processing 100mm feed to 13mm finished products, the Symons 3ft easily reaches its load limit.
2. Rapid Wear of Wear-Resistant Parts: Using conventional Mn13 material could shorten the liner replacement cycle by 40%, directly increasing operating costs (OPEX).

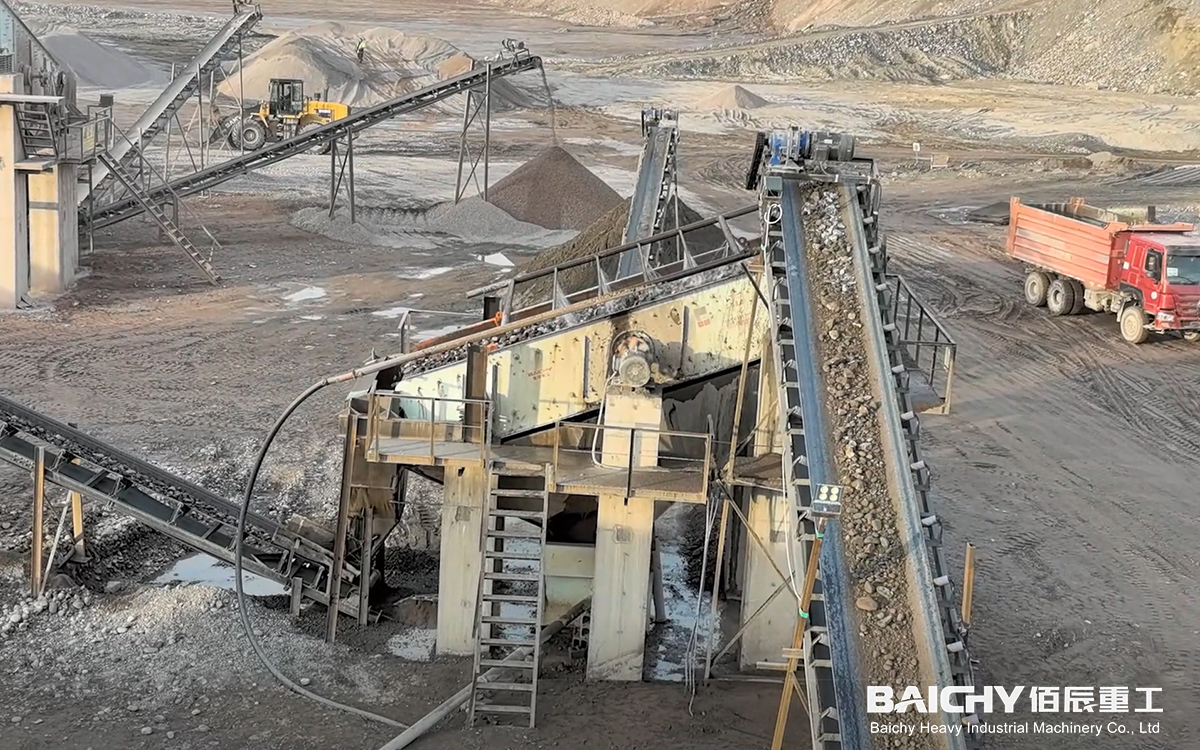

High-Quartz-&-Abrasive-Stone-Solution
II. Technology Selection: A Deep Game Between Option 1 (Classic) and Option 2 (Modern)
We break down the two solutions proposed by the Isabel Vela distributor from a technical logic perspective:
Solution A: Symons 3ft Shorthead (Classic) – “Guardian of Remote Areas”
• Applicable Scenarios: Inland mountainous areas with unstable power supply and limited maintenance personnel technical skills.
• Core Advantages: Purely mechanical structure, no complex electronic components, durable and easy to repair.
• Limitations: Inefficient manual adjustment of the discharge port (CSS); difficult to control particle shape (cubicity) under Wi=18 operating conditions.
Option B: HP Series Multi-Cylinder Hydraulic Cone Crusher (Modern) – “King of Ultimate Output and Particle Shape”
• Applicable Scenarios: Projects with strict limitations on the needle-like particle rate of 1/2" and 3/4" finished products.
Technical Highlights:
• Laminar Blending Principle: Achieving a “stone-on-stone” effect through a combination of high oscillation frequency and stroke, significantly improving cubicity.
• Automatic Hydraulic Adjustment: Automatic discharge port compensation ensures precise and controllable closed-loop circulation volume of 110-115 TPH.
• Protection Mechanism: Over-iron protection for uncrushable materials (such as iron blocks) to avoid the risk of spindle breakage.

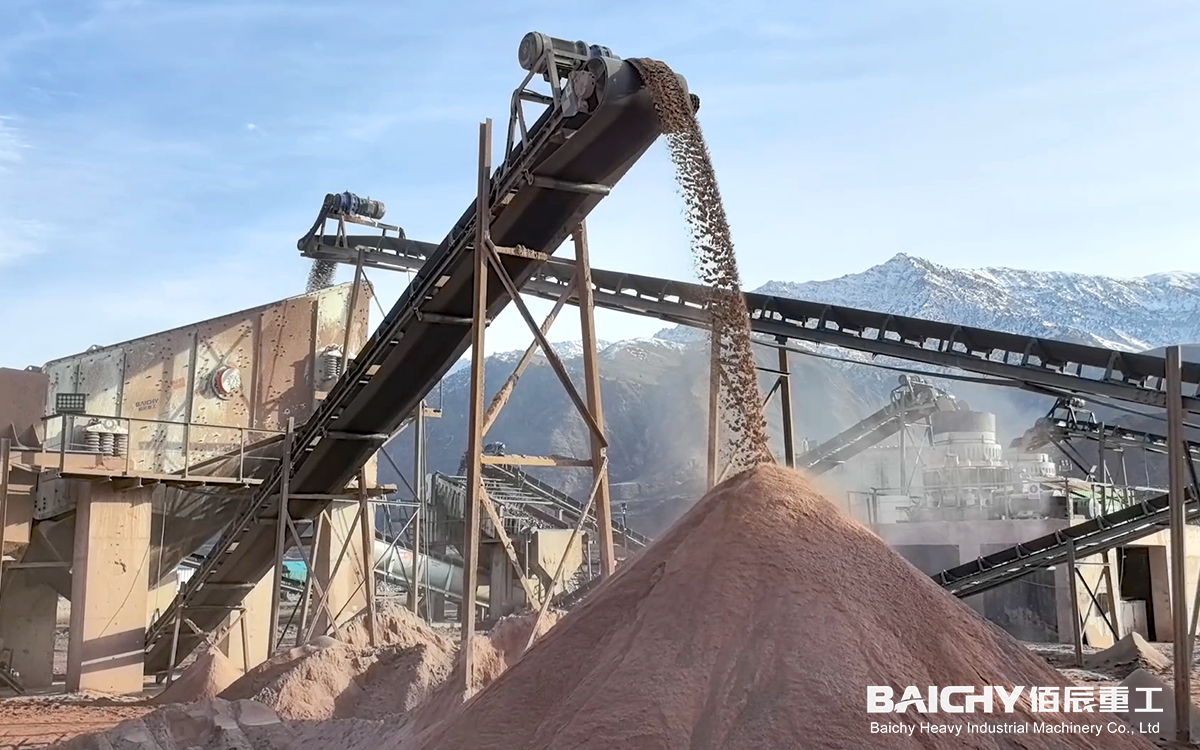

river-gravel-crushing-plant
III. Baichy's Mandatory Technical Guidelines (Hardcore Standards)
We do not accept downgrades because every kilometer of transportation after unloading at the port of Callao is extremely expensive:
• Wear-resistant component manufacturing: Both moving and fixed cone bearings are uniformly configured with Mn22Cr2 (containing over 2% chromium), which extends service life by 30%-50% compared to ordinary manganese steel for highly abrasive materials.
Powertrain:
• Bearings: SKF or FAG bearings are standard across the entire series. In environments with high quartz dust, the sealing and load-bearing capacity of the bearings are the "heart" of the system.
• Electrical control: Schneider/Siemens VFD (variable frequency drive) + soft start, to cope with power grid fluctuations in remote areas and protect the motor from surge impacts.
• Independent oil cooling station: A large-capacity cooler combined with Parker/NOK sealing packages ensures that the lubricating oil temperature remains below 45°C even under high-altitude or high-temperature conditions in South America.
IV. Closed-Circuit System Layout Logic: Precise Balancing of 50 m³/h
The core of this system is not only the cone crusher, but also the efficiency of the closed-circuit system:
• Screening and persion: We recommend a 5'×14' double-layer inclined screen, with an upper layer of 19mm and a lower layer of 13mm. Materials larger than 3/4" are precisely returned to the cone feed hopper via a 24" return conveyor belt, forming a stable closed loop.
• Skid-mounted Steel Structure: For the Peru project, we provide heavy-duty skid supports. All equipment is pre-assembled in the factory, reducing on-site infrastructure costs and installation time.
V. Business Protection and Delivery Guarantee
• Distributor Protection: We fully understand the value of Isabel Vela's expertise. All FOB quotations include a built-in distributor commission and strictly adhere to NCNDA terms, ensuring the distributor's authoritative position with the end user.
• Spare Parts Package Strategy: A "two-year critical spare parts list" is provided, including two sets of Mn22 liners, hydraulic filter sets, and vulnerable belt conveyor parts, ensuring equipment operation is not disrupted due to missing parts upon arrival in Peru.
Frequently Asked Questions
Q1: Why is it not recommended to use ordinary Mn13 liners under these conditions?
A: Under high-quartz river pebble conditions, ordinary manganese steel will experience severe work hardening failure and extremely rapid wear. The addition of Mn22Cr2 significantly enhances the initial hardness and wear resistance of the liner.
Q2: What are the advantages of a closed-circuit system compared to an open-circuit system?
A: A closed-circuit system ensures that 100% of the finished product falls within the 13mm and 19mm range, and due to the repeated compression of the material within the cone (laminarization effect), the finished particle shape is closer to a cube, meeting high-standard building aggregate requirements.
Q3: How to solve after-sales support issues in remote areas of Peru?
A: We enable remote monitoring via Schneider VFD (optional) and provide a complete technical data sheet and QR code maintenance videos to ensure that local technicians can follow the instructions to complete routine maintenance.
