3YK2460 Vibrating Screen
In the processes of gold mining and mineral processing, efficient screening is a pivotal stage for maximizing resource utilization and enhancing economic returns. As a classification device utilized after crushing and grinding operations, the performance of a vibrating screen directly impacts the final grade and recovery rate of the gold concentrate. This article provides an in-depth analysis of the exceptional performance of the 3YK2460 vibrating screen in gold mining applications, exploring how it has emerged as a reliable choice for modern gold processing plants seeking to boost both production capacity and product quality.
3YK2460 Vibrating Screen: Technical Specifications and Overview
The 3YK2460 vibrating screen is a large-scale, high-efficiency circular vibrating screen. The designation "3YK" signifies a three-deck screen configuration, while "2460" indicates a screen surface measuring 2.4 meters in width and 6.0 meters in length. Its design is specifically engineered for heavy-duty, continuous screening operations, making it particularly well-suited for classifying medium-to-fine-grained materials following gold ore crushing, as well as for ore washing, dewatering, or the preliminary screening of tailings.
This model features a dual-eccentric-shaft exciter structure that generates a powerful excitation force, inducing a throwing motion in the material across the screen surface. This mechanism effectively resolves screen-blinding issues, thereby ensuring high screening efficiency. The three-deck screen configuration allows for the simultaneous classification of material into four distinct particle size fractions, significantly boosting the unit's processing capacity and meeting the rigorous demands of gold processing plants for high-precision, high-throughput screening operations.

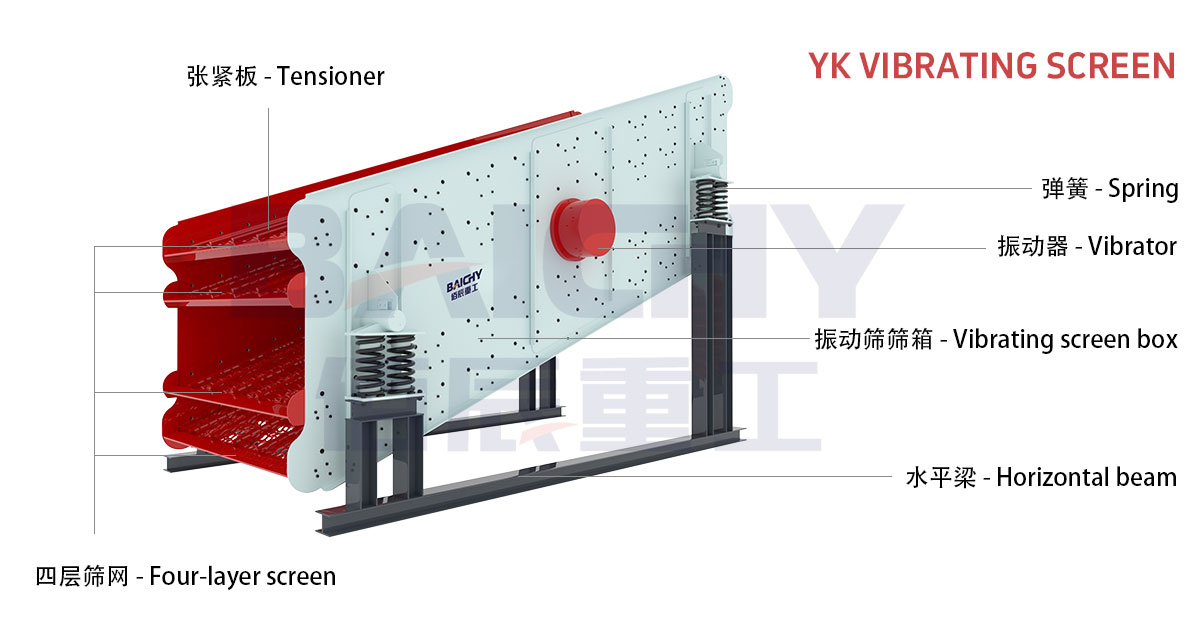

Vibrating Screen Structure Diagram
Why is the 3YK2460 Vibrating Screen the Ideal Choice for Gold Ore Screening?
1. Robust Structure: Adapted to Harsh Operating Conditions
Gold mining environments are typically characterized by high dust levels and intense vibration. The 3YK2460 vibrating screen features a high-strength box-beam frame and robust side plates; its sturdy and durable structure is capable of withstanding the impact of large-sized materials and enduring prolonged periods of continuous operation, thereby ensuring stable and reliable performance within the demanding environment of a gold mine site.
2. High-Efficiency Screening: Boosting Gold Recovery Rates
The combination of a multi-deck screen design and adjustable excitation force enables the achievement of exceptionally high screening precision and efficiency. This means that gold ore particles of the target size fraction can be separated with greater precision and directed to the subsequent beneficiation stage (such as jigging, shaking tables, or cyanidation). This effectively minimizes the loss of gold metal within fine slimes or coarse tailings, thereby directly boosting the overall gold recovery rate.
3. Easy Maintenance and Low Operating Costs
The vibrator unit features an externally mounted, grease-lubricated design; consequently, the main frame does not need to be dismantled during maintenance, making routine upkeep simple and convenient. The screen mesh utilizes a modular, tension-mounted installation system; in the event of localized damage, inpidual sections can be replaced independently, thereby reducing both the financial and time costs associated with long-term operation and maintenance.
Real-World Application Case: Screening System Upgrade at a Large-Scale Gold Mine
Background: A large-scale hard rock gold beneficiation plant in China was experiencing significant inefficiencies with its original screening equipment following the primary crushing stage. Issues such as material clogging, rapid screen wear, and poor classification accuracy were frequent occurrences, negatively impacting the feeding stability of downstream ball mills as well as overall flotation performance metrics.
Solution: A single Model 3YK2460 vibrating screen was installed to replace the outdated equipment. This unit was deployed for the preliminary screening of ore following the secondary (medium) crushing stage, utilizing a screen aperture size of 12 mm. Material larger than 12 mm is now recirculated to the cone crusher, while the undersize material (the "qualified product")—measuring less than 12 mm—is directed to the fine ore bin.
Results:
• Screening efficiency improved significantly, rising from less than 75% to over 92%.
• The issue of material clogging was completely eliminated, ensuring a continuous and stable feed flow throughout the entire process.
• The particle size distribution of the qualified product became more uniform, creating favorable conditions for downstream grinding and beneficiation processes. It is estimated that this improvement has led to a significant increase in the annual recovery volume of gold metal.
Recommended Ancillary Equipment for Gold Mine Screening Systems
An efficient screening section relies heavily on the close coordination and seamless integration of the preceding and succeeding process stages. The following is a list of recommended ancillary equipment designed to complement the 3YK2460 vibrating screen:
| Equipment Type | Recommended Model/Type | Role in the Process |
| Feeding Equipment | Grizzly Feeder, Heavy-Duty Apron Feeder | Provides a uniform and controllable feed to the vibrating screen; prevents direct material impact, thereby protecting the screen mesh. |
| Crushing Equipment | Jaw Crusher, Cone Crusher | Crushes raw ore down to a particle size suitable for screening; serves as a critical upstream stage preceding the screening process. |
| Grinding Equipment | Ball Mill, Rod Mill | Grinds qualified fine particles after screening to fully liberate gold minerals and facilitate separation. |
| Separation Equipment | Centrifugal Concentrator, Shaking Table, Flotation Machine | Further recovers gold minerals from screened and classified materials. |
Frequently Asked Questions (FAQ)
Q1: Is the 3YK2460 vibrating screen suitable for processing gold ores with high mud content?
A1: Yes, but adjustments need to be made based on the situation. For oxide or placer gold ores with high mud content, it is recommended to use a "washing screen" configuration with pressure spray pipes added to the screen surface. Using high-pressure water jets to wash the screen effectively breaks down mud clumps, prevents screen clogging, and completes preliminary desliming, creating better conditions for subsequent gravity separation or cyanidation.
Q2: How to choose the material and type of screen mesh to extend its service life?
A2: Considering the high hardness and abrasiveness of gold ore, the following is recommended:
• Material: High-strength wear-resistant manganese steel wire, or polyurethane (PU) screen mesh. Polyurethane screens are wear-resistant, corrosion-resistant, low-noise, and less prone to clogging, offering significant advantages in fine particle screening.
• Type: Depending on the particle size and shape, woven screens, perforated screens, or rubber screens can be selected. For fine screening (e.g., -2mm), anti-clogging bouncing balls or ultrasonic screen cleaning systems can be considered.
Q3: What are the special requirements for the equipment's installation foundation?
A3: As the 3YK2460 is a large vibrating device, the foundation requirements are high. The foundation must be made of sufficient concrete with enough weight and rigidity to absorb and isolate vibrations, preventing the transmission of vibration forces to the plant structure. Typically, the foundation weight should be 5-10 times the equipment's own weight, and damping springs or rubber vibration dampers should be installed. We will include a foundation load and installation requirements diagram when providing the equipment drawings.
