Cement Clinker Selection
In the vast cement production chain, clinker, as a core semi-finished product, is crucially dependent on its cooling and processing. A high-performance cement clinker cooler (usually referring to a grate cooler) directly impacts the final cement quality, energy consumption, and overall production costs. As a professional manufacturer of mining crushing and grinding equipment, we understand the varying capacity requirements of production lines of different sizes. This article will delve into how cement clinker coolers with capacities of 50 tons, 150 tons, and higher can become the cornerstone of your project's success.
Cement Clinker Cooler: The "Heart Cooler" of the Cement Production Line
In the cement production process, the high-temperature clinker (approximately 1200-1400℃) exiting the rotary kiln must undergo rapid cooling. The cement clinker cooler (grate cooler) undertakes this crucial task. Its core function is not only cooling but also improving clinker quality through rapid cooling (enhancing grindability and activity), and efficiently recovering waste heat for power generation or drying. It is a key piece of equipment for modern cement plants to achieve energy conservation and emission reduction.
How Does a Clinker Cooler Work?
High-temperature clinker falls onto the grate, and a cooling fan blows cold air from under the grate, allowing the cold air to exchange heat with the clinker. The movement of the grate transports the clinker to the outlet, while the cooled clinker becomes easier to crush and grind. The entire process achieves efficient heat recovery and optimized clinker quality.
Core Selection: Matching Capacity, Driving Efficiency
When selecting a cement clinker mill, capacity is the primary consideration; it must be precisely matched to the rotary kiln's output. Selecting an undersized mill will cause "indigestion," affecting overall production; selecting an oversized mill will lead to wasted investment and low operating efficiency. We offer a full range of solutions from 50 tons to 150 tons per day and even larger.
Comparison of Advantages of Clinker Mills with Different Capacities
Cement clinker mills with different capacities have different focuses in design, energy consumption, and application scope. The table below clearly illustrates the core features of the three mainstream specifications:
| Capacity Specification (tons/day) | Core Features and Advantages | Applicable Production Line Scale | Energy Saving and Efficiency Highlights |
| 50 tons | Compact structure, low investment cost, suitable for small or special cement production lines; automated control, easy operation. | Small cement grinding stations, vertical kiln renovation projects, special cement pilot lines. | High waste heat recovery efficiency, suitable for configuring small waste heat utilization systems, quickly recovering investment. |
| 100 tons | The golden balance between performance and economy; modular design, convenient maintenance; optimized grate structure, uniform cooling. | The mainstream choice for medium-sized cement production lines, often used in conjunction with production lines of 2500t/d and below. | High heat recovery rate, can stably support waste heat power generation systems, significantly reducing the overall power consumption of clinker. |
| 150 tons and above | Representative of large-scale and intelligent production; multi-stage composite grate, extremely high cooling efficiency; extremely stable operation, suitable for continuous large-scale production. | Standard configuration for large-scale modern cement production lines (3000t/d and above), ensuring high and stable output. | Equipped with an advanced intelligent control system, it optimizes airflow in real time, achieving industry-leading energy consumption per unit of clinker cooling. |

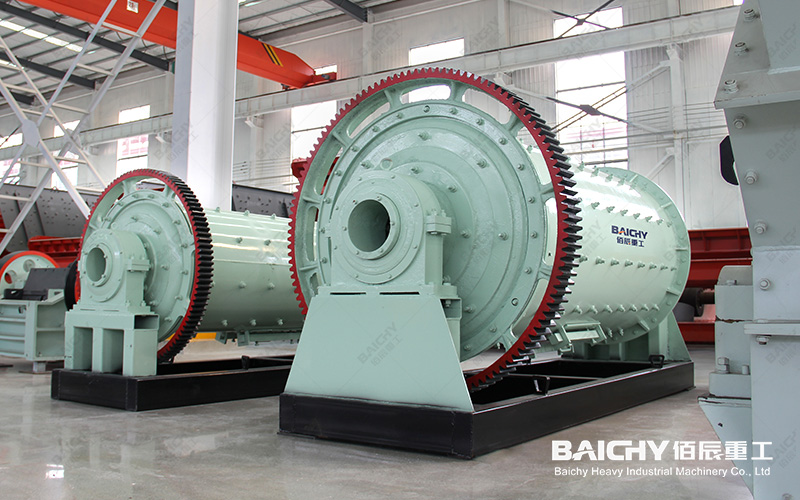

Cement Clinker Selection - Ball Mill
Why Choose Our Cement Clinker Mill?
We are not only an equipment manufacturer, but also provide you with high-performance cement clinker mills based on decades of experience in mechanics and materials science accumulated in the field of mining crushing and grinding.
1. High-Efficiency Cooling and High Heat Recovery Rate: Unique grate structure and air chamber sealing technology ensure no short-circuiting of cold air, allowing for full heat exchange with the clinker. Heat recovery efficiency is 5%-10% higher than industry standards, directly creating economic benefits for you.
2. Superior Reliability and Long Service Life: Key components such as grate plates and beams are made of special heat-resistant and wear-resistant alloy steel, with strong resistance to high-temperature deformation and wear. Equipment operating rate reaches over 90%, significantly reducing downtime maintenance costs.
3. Intelligent Control System: Integrated with a PLC/DCS automatic control system, it automatically adjusts the airflow of each section of the blower and the grate speed based on clinker temperature and bed thickness, achieving intelligent operation, reducing manual intervention, and stabilizing product quality.
Successful Cases: Helping Clients Improve Quality and Efficiency
• Case 1 (Southeast Asian Market): We upgraded a 1000t/d cement production line in Indonesia by replacing its clinker cooler with one with a capacity of 100 tons. After the upgrade, the clinker outlet temperature stabilized at 65℃+ ambient temperature, grindability was significantly improved, and downstream ball mill production increased by 8%. Simultaneously, the recovered waste heat saved the company approximately US$150,000 in electricity costs annually.
• Case 2 (Domestic Market): We provided a 150-ton capacity fourth-generation grate cooler for a large cement group in Shanxi's 5000t/d production line. The equipment has operated without major malfunctions for three years, with a grate life exceeding 18 months. Its high stability and low maintenance costs have earned high praise from the client, leading to subsequent cooperation on multiple production lines.
Recommended Equipment
A complete cement production line is a systems engineering project. In addition to the core cement clinker mill, we can also provide you with high-performance supporting equipment for both upstream and downstream processes:
• Clinker Crusher: Processes large pieces of cooled clinker, preparing them for grinding. We recommend our high-efficiency heavy-duty hammer crusher, which has strong impact resistance and produces uniform particle size.
• Raw Material/Cement Vertical Mill: Used for grinding raw meal and cement. Our vertical mills have advantages such as high grinding efficiency, low power consumption, and low noise, making them the preferred choice for large-scale modern production lines.
• High-Efficiency Pulse Dust Collector: Used to treat dust generated during clinker cooling, crushing, and conveying, ensuring emissions meet standards and achieving green production.
Frequently Asked Questions (FAQ)
Q1: How do I determine the capacity of the cement clinker mill I need?
A: It mainly depends on the design output of your rotary kiln. Generally, the design capacity of the clinker mill should be slightly higher than the rated output of the rotary kiln by 1.1-1.2 times to cope with short-term output fluctuations and allow for a certain margin. Our engineers can provide free technical consultation and selection services.
Q2: Where exactly are the energy-saving effects of your cement clinker machine manifested?
A: Energy saving is mainly reflected in two aspects: First, direct power saving, by optimizing fan configuration and intelligent airflow control to reduce the power consumption of the cooling fans themselves; second, indirect revenue generation, by increasing the temperature of secondary and tertiary air (improving kiln efficiency) and producing exhaust gas with higher parameters for waste heat power generation, creating additional revenue.
Q3: What is the delivery and installation cycle of the equipment?
A: The delivery cycle for standard models (such as 100-ton class) is usually 4-6 months. The installation and commissioning cycle depends on the scale of the production line and the condition of the new or old line, generally 1-2 months. We provide a turnkey service from basic guidance and installation supervision to commissioning training to ensure smooth project commissioning.
