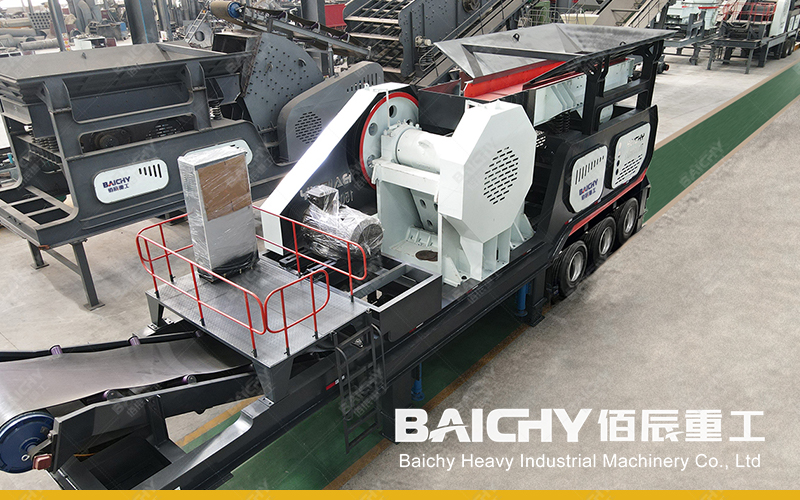

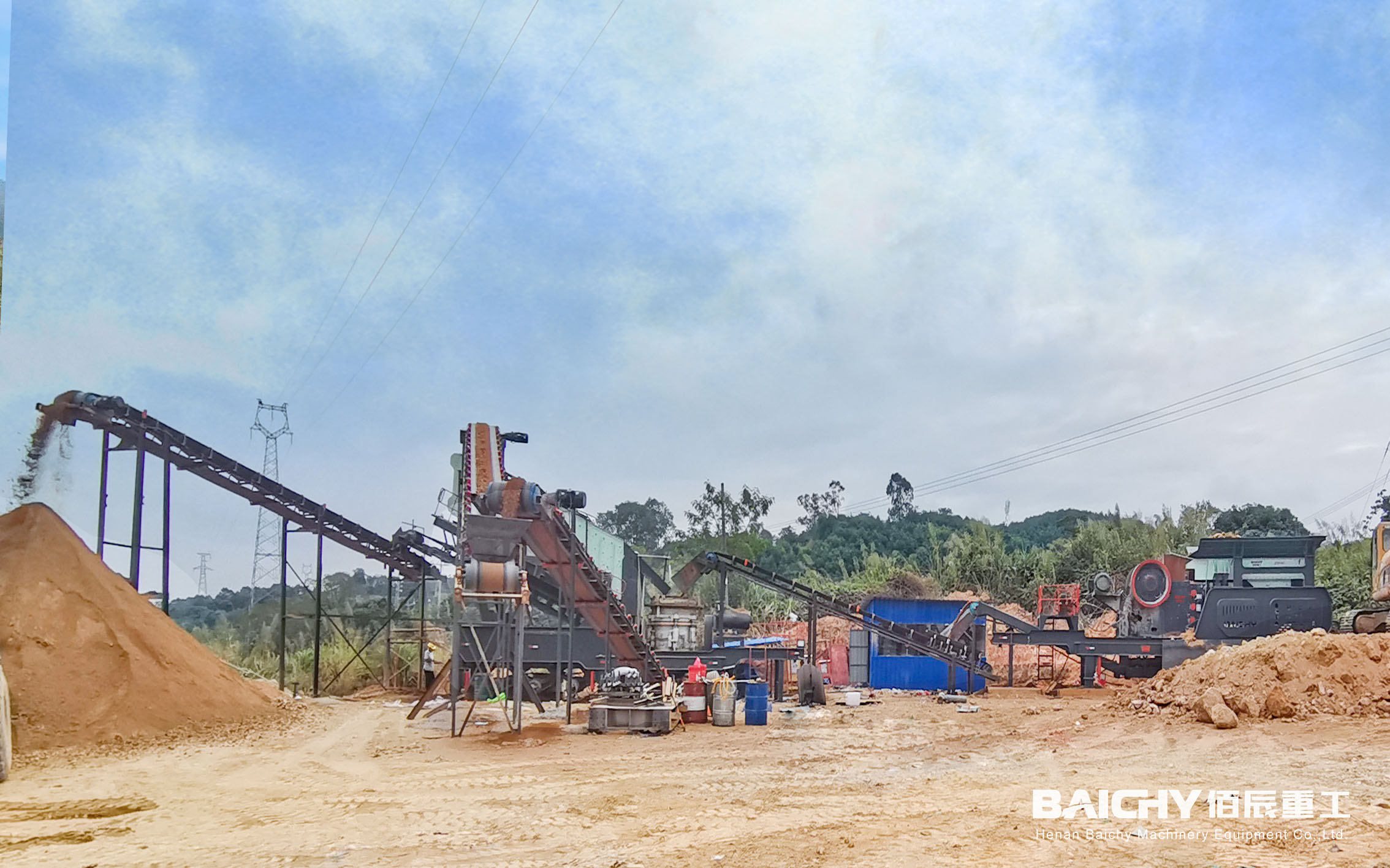

200 TPH Mobile Crushing Plant with PE750×1060 Jaw Crusher
In the rapidly evolving landscape of mining and infrastructure construction, the demand for flexible, high-efficiency crushing solutions has never been higher. The 200 TPH Mobile Crushing Plant, specifically configured with the robust PE750×1060 Jaw Crusher and a high-performance Vibrating Feeder, stands as a pinnacle of engineering designed to meet these modern challenges. Whether you are dealing with basalt, granite, or recycled construction waste, this medium-capacity powerhouse offers the perfect balance between throughput and portability.
Understanding the PE750×1060 Jaw Crusher
The heart of any primary crushing station is the crusher itself. The PE750×1060 Jaw Crusher is a legendary component in the stone crushing industry, known for its deep crushing cavity and high crushing ratio.

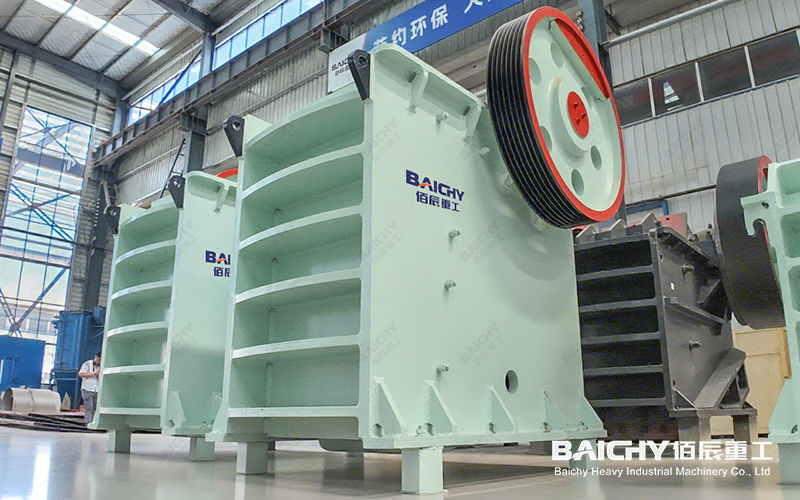

PE750x1060 Jaw Crusher
Technical Specifications and Capabilities
The "750×1060" refers to the feed opening dimensions—750mm in width and 1060mm in length. This allows the machine to accept raw materials with a maximum feeding size of up to 630mm. For a 200 TPH production line, this capability is critical as it reduces the need for extensive pre-blasting or manual size reduction of rocks.
Driven by a 90-110 kW motor, the PE750×1060 jaw crusher utilizes high-manganese steel jaws to pulverize hard materials. Its adjustable discharge opening (typically ranging from 80mm to 160mm) gives operators the flexibility to control the output size based on the requirements of the secondary crushing stage or final product specs.
| Technical Parameter | Specification Details |
|---|---|
| Plant Capacity | 150–200 TPH (Tons Per Hour) |
| Jaw Crusher Model | PE-750×1060 |
| Feed Opening Size | 750 × 1060 mm |
| Max Feeding Size | 630 mm |
| Discharge Opening Range | 80–160 mm |
| Primary Motor Power | 90–110 kW |
| Vibrating Feeder Model | ZSW490 × 110 (Standard Config) |
| Eccentric Shaft Speed | 250 r/min |
| Chassis Configuration | Wheel-mounted (Tri-axle) / Track-mounted |
| Control System | Centralized Electrical Cabinet / Optional PLC |
Why It’s Ideal for 200 TPH Lines
Achieving a steady 200 tons per hour requires a machine that doesn't choke under pressure. The eccentric shaft speed and the optimized stroke of the PE750×1060 ensure that material flows through the cavity smoothly, maintaining a high throughput even when processing exceptionally hard ores.
Role of the Vibrating Feeder in Production Flow
A crushing plant is only as efficient as its feeding system. The Vibrating Feeder (typically a ZSW490x110 or similar model for this capacity) acts as the guardian of the production line.
Ensuring Continuous and Uniform Feeding
The primary function of the vibrating feeder is to transfer large chunks of raw material from the hopper to the jaw crusher at a constant rate. In a 200 TPH setup, irregular feeding—either too fast or too slow—can lead to "slugging" the crusher or running it dry, both of which waste energy and increase wear. The adjustable vibration frequency allows for precision control over the material flow.
Pre-Screening Benefits
Modern vibrating feeders come equipped with "grizzly" bars. As the material moves across these bars, smaller particles and soil fall through before reaching the jaw crusher. This bypasses the crusher, preventing unnecessary wear on the jaw plates and ensuring that only the material requiring reduction enters the crushing cavity. This simple pre-screening step can increase the overall efficiency of the 200 TPH plant by as much as 15-20%.

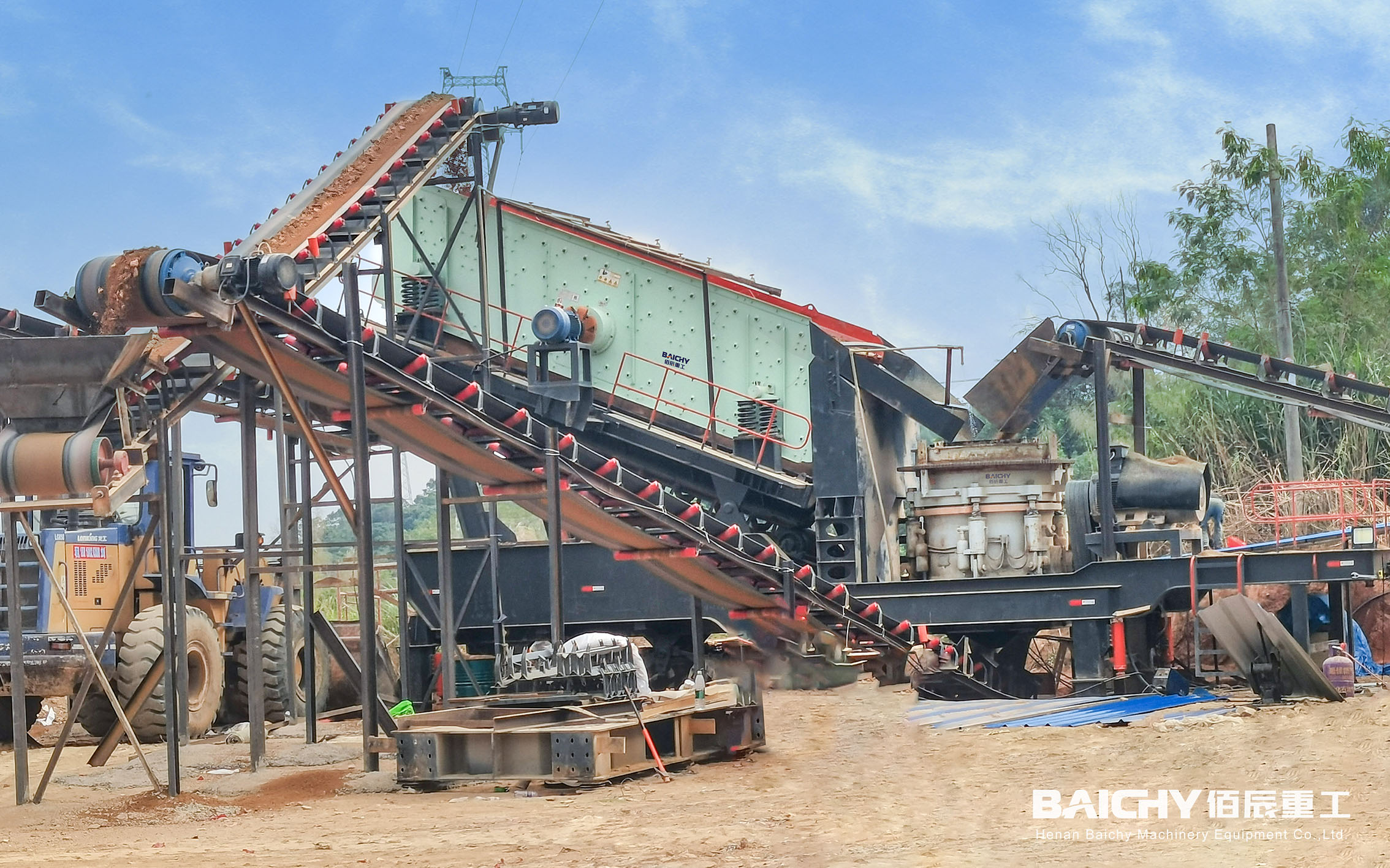

200 TPH Mobile Crushing Plant
Mobility: Advantages of the Portable Crushing Station
What separates a mobile plant from a traditional stationary line is its structural integration. The 200 TPH mobile crushing station is built on a heavy-duty chassis, usually wheel-mounted (trailer) or track-mounted.
Reduced Transportation Costs
In traditional setups, raw materials must be hauled from the mining face to a fixed crushing site, often kilometers away. A mobile crushing plant flips the script: it brings the crusher to the material. This eliminates the need for a large fleet of haul trucks, drastically cutting down on fuel costs and carbon emissions.
Fast Deployment and Flexibility
Time is money in the construction industry. A stationary plant can take months to design, permit, and build with concrete foundations. In contrast, a 200 TPH mobile plant can be moved to a site, unfolded into its working position, and start production within a few days. Once the project is complete, it is easily transported to the next job site.
Structural Design and Component Integration
A 200 TPH mobile crushing plant is more than just a crusher on wheels. It is a highly integrated ecosystem.
Integrated Hopper and Chassis
The hopper is designed with high-strength plates to withstand the impact of large rocks being dumped by excavators or wheel loaders. The chassis is engineered to absorb the intense vibrations generated by the PE750×1060 jaw crusher, ensuring structural integrity over years of operation.
Onboard Conveyors and Control Systems
The plant features primary discharge conveyors that transport the crushed stone to the next stage. Advanced models include centralized electrical control cabinets with PLC systems, allowing operators to monitor motor load, temperature, and throughput from a single touch-screen interface.
Applications: Where the 200 TPH Plant Excels
The versatility of the PE750×1060 mobile plant makes it a favorite across several industries.
Mining and Quarrying: It serves as the primary crushing unit for gold, iron, and copper ore mines, as well as limestone and granite quarries.
Infrastructure Construction: Perfect for producing high-quality aggregates for highways, high-speed railways, and dam construction.
Urban Recycling: Increasingly used to crush concrete and brick waste from demolished buildings, turning "waste" into recycled road base material.
Maximizing ROI: Maintenance and Operational Efficiency
Investing in a 200 TPH mobile plant is a significant capital expenditure. To ensure a fast Return on Investment (ROI), focus on these three areas:
Lubrication Management: The toggle plate and eccentric shaft of the jaw crusher require regular lubrication. Automated lubrication systems are highly recommended for mobile units.
Wear Part Rotation: Don't wait for a jaw plate to fail. Regularly checking and flipping the jaw plates can extend their service life significantly.
Optimal Feeding: Utilize the vibrating feeder’s settings to match the material’s moisture and hardness. A "full" crushing cavity is an efficient cavity.
Conclusion: Is the 200 TPH Mobile Plant Right for You?
The configuration of a PE750×1060 Jaw Crusher and a Vibrating Feeder on a mobile chassis provides a robust, 200 TPH solution that satisfies both capacity demands and operational flexibility. It is the "sweet spot" for many medium-to-large-scale contractors who need reliable performance without the massive footprint of a stationary factory.
Frequently Asked Questions (FAQ)
Q1: What is the maximum feed size for this plant?
A: The PE750×1060 jaw crusher can accept raw materials up to 630mm.
Q2: Can this plant be powered by a generator?
A: Yes, many mobile crushing stations are designed to be powered either by an external electrical grid or a dedicated diesel generator set for remote locations.
Q3: How many operators are needed?
A: Thanks to integrated control systems, a 200 TPH mobile plant can typically be operated by one skilled technician, with 1-2 additional personnel for loading and site management.
Q4: What is the lead time for delivery?
A: Standard wheel-mounted units usually have a lead time of 4-6 weeks, depending on customization.
