PE900x1200 Jaw Crusher Shipped to Indonesia
Another Baichy PE900x1200 jaw crusher has left our Zhengzhou, Henan manufacturing base and is now on the water to Indonesia. The machine was built for a customer operating an andesite and hard-rock quarrying project supplying aggregates to road and infrastructure works — a use case that has become one of the strongest demand drivers for primary crushing equipment across the archipelago.
As a manufacturer specializing in mining crushing, ore grinding and beneficiation equipment, Baichy Heavy Industry supplies complete solutions rather than single machines. This shipment once again confirms why the PE900x1200 jaw crusher has become the "workhorse size" for medium and large quarries: it is big enough to swallow 750 mm run-of-quarry rock, yet it still fits the budget, transport envelope and power supply of a typical Indonesian site.
Shipment Snapshot: What Just Left for Indonesia
Before we get into engineering detail, here is the quick profile of this delivery. Buyers comparing quotes usually want to see the commercial and technical facts side by side, so we publish them openly.
| Item | Detail |
|---|---|
| Equipment | PE900×1200 jaw crusher (primary / coarse crushing) |
| Feed opening | 900 × 1200 mm |
| Max. feeding size | ≤750 mm |
| Designed capacity | 220–450 t/h (material dependent) |
| Motor power | 110–132 kW (8-pole, 380 V / 50 Hz, 3-phase) |
| Target material | Andesite, basalt, granite, limestone, river pebble |
| Destination | Indonesia (quarry / mining site) |
| Downstream configuration | Vibrating feeder + jaw crusher + cone crusher + vibrating screen + belt conveyors |
| Surface treatment | Anti-corrosion priming + finish coat for tropical, high-humidity climate |
| Warranty | 12 months (excluding wear parts), lifetime technical support |

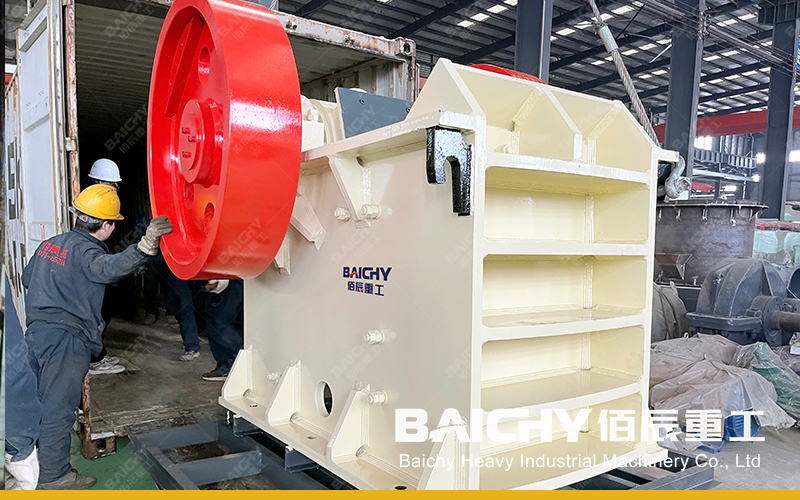

Every unit is assembled, no-load tested and inspected before dismantling for export packing, and the crusher ships with a full documentation pack: foundation drawing, electrical schematic, parts manual and a recommended spare-parts list for the first 12 months.
Why the PE900x1200 Jaw Crusher Fits Indonesian Quarries and Mines
Large intake: 750 mm feed means fewer secondary blasting costs
Indonesian hard rock — andesite and basalt in Java, Sulawesi and Kalimantan — is volcanic, abrasive and usually has a compressive strength above 150 MPa. With a 900 × 1200 mm feed opening, the PE900x1200 jaw crusher accepts blasted rock up to 750 mm without bridging, which reduces the amount of secondary breaking at the quarry face. Less pre-breaking means lower explosives cost, fewer loader hours and a smoother feed to the plant.
Output that matches real production targets: 220–450 t/h
Rated capacity is measured on medium-hard material at roughly 1.6 t/m³ bulk density. In practice, when crushing high-hardness andesite or granite, plan on 75–85% of the rated figure, and always keep a 20% selection margin. A 300–400 t/h plant built around the PE900x1200 jaw crusher is the sweet spot for contractors supplying highway base material, ready-mix concrete plants and new-capital-city (IKN Nusantara) projects in East Kalimantan.
Lowest cost per ton in its class
A too-small primary crusher forces the secondary stage to do work it was never designed for, multiplying wear-part cost. Right-sizing the primary stage with a PE900x1200 jaw crusher typically cuts total wear cost per ton by a double-digit percentage, because jaw plates are far cheaper than cone crusher liners and are replaced in a fraction of the downtime.

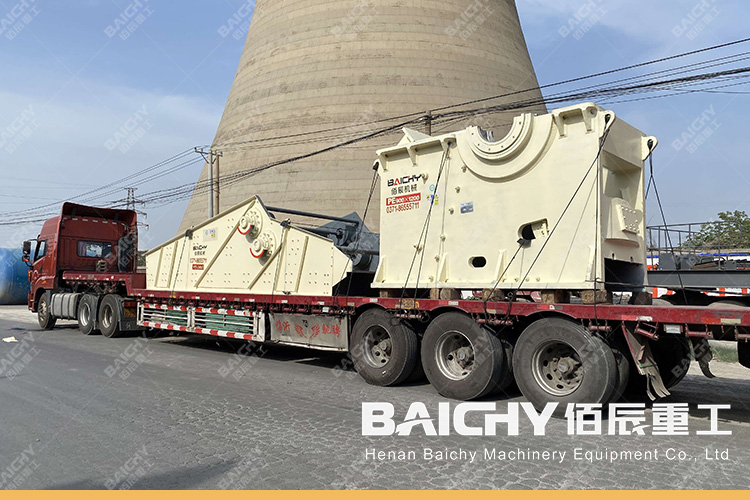

PE900x1200 Jaw Crusher Shipped to Indonesia
PE900x1200 Jaw Crusher Technical Parameters
The table below is the official Baichy specification for this model and the data our engineers use when designing a complete crushing circuit.
| Parameter | Value |
|---|---|
| Model | PE900×1200 (also written PE 900×1200, PE-900×1200) |
| Feed opening size | 900 × 1200 mm |
| Max. feeding size | 750 mm |
| Discharge opening adjustment range | 95–165 mm (shim or hydraulic adjustment) |
| Capacity | 220–450 t/h |
| Motor power | 110–132 kW |
| Eccentric shaft speed | ≈225 r/min |
| Crushing chamber type | Deep, non-choking "V" cavity |
| Jaw plate material | High-manganese steel (Mn13Cr2 / Mn18Cr2 optional) |
| Frame | Heavy-duty welded steel plate with reinforced ribs |
| Machine weight | ≈52 t (main unit) |
| Overall dimensions (L × W × H) | 3800 × 3166 × 3045 mm |
| Lubrication | Manual / optional centralized grease lubrication |
| Typical application | — |
Primary crushing in mining, aggregates, cement raw material, construction waste recycling
Capacities assume a feed material of about 2.7 t/m³ specific gravity, with fines below the closed-side setting removed and a controlled, choke-free feed rate. Actual output varies with feed gradation, moisture, clay content and crushability.
Model Comparison: PE750x1060 vs PE900x1200 vs PE1200x1500
Choosing a primary crusher is mostly a question of feed size and required tonnage. This side-by-side view helps buyers avoid both under-sizing and over-spending.
| Model | Feed opening (mm) | Max. feed (mm) | Capacity (t/h) | Motor (kW) | Best for |
|---|---|---|---|---|---|
| PE750×1060 | 750 × 1060 | 630 | 110–320 | 110 | Medium plants, 150–250 t/h lines, mobile stations |
| PE900×1200 | 900 × 1200 | 750 | 220–450 | 110–132 | Large quarries and mines, 300–400 t/h lines |
| PE1000×1200 | 1000 × 1200 | 850 | 280–560 | 160 | High-tonnage hard-rock lines |
| PE1200×1500 | 1200 × 1500 | 1020 | 400–800 | 200–220 | Very large mining operations, 5 Mt+/yr |
If your daily target is 3,000–5,000 tonnes and your blasted rock tops out near 700 mm, the PE900x1200 jaw crusher is almost always the most economical answer. Below 200 t/h, look at the PE750x1060; above 600 t/h, step up to the PE1200x1500.

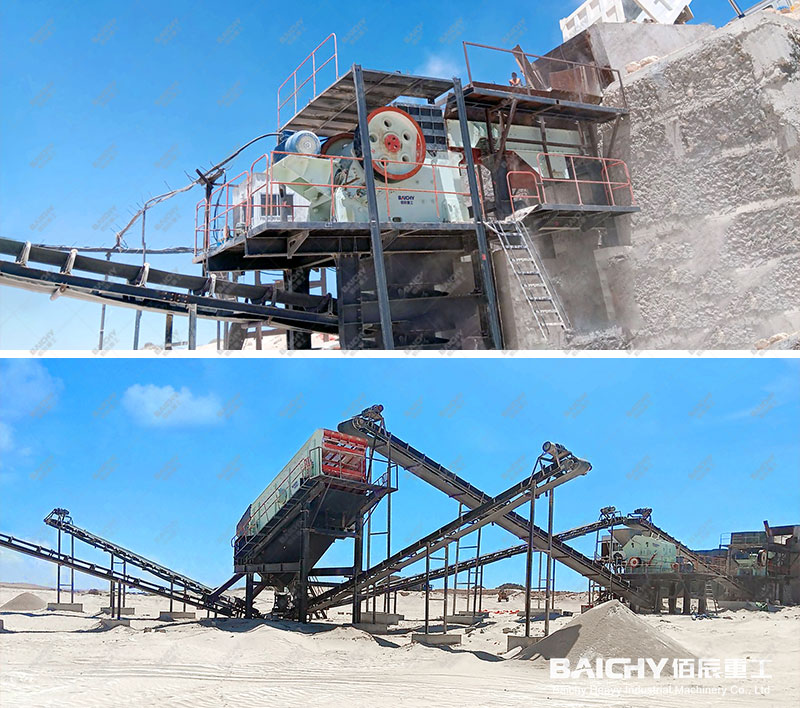

Building a Complete 300–400 t/h Line Around the PE900x1200 Jaw Crusher
A jaw crusher only performs as well as the circuit around it. Here is the configuration Baichy most often recommends for Indonesian andesite and basalt projects:
13546
Helps meet Indonesian emission and K3 (occupational safety) requirements
This "jaw + cone" combination is preferred over "jaw + impact" for hard volcanic rock: impact crushers wear out quickly on abrasive andesite, while a cone crusher keeps wear cost per ton predictable and delivers better shaped aggregate.
Engineered for Indonesian Conditions
Tropical climate protection
Indonesian sites combine high humidity, heavy rainfall and, near the coast, salt-laden air. For this shipment all structural steel is shot-blasted, primed with anti-rust paint and finished with marine-grade topcoat; the electrical cabinet is sealed against moisture and the motor uses tropical-grade insulation.
Power, compliance and local reality
The crusher is supplied for 380 V / 50 Hz three-phase supply, and where grid power is unreliable we offer a diesel-electric hybrid or a fully mobile crawler-mounted version of the same jaw crusher class. Importing into Indonesia normally falls under HS code 8474.20 (single-digit duty range) plus 11% PPN (VAT); Baichy provides the commercial invoice, packing list, certificate of origin and test reports needed for smooth clearance at Tanjung Priok or Tanjung Perak.
Market outlook
Indonesia remains one of the world's largest importers of jaw crushers, alongside continued quota management in coal (roughly 600 Mt of production planned for 2026) and nickel ore (roughly 260–270 Mt of quotas). Downstream processing, new smelter capacity and the IKN Nusantara build-out all keep demand for reliable primary crushing and screening capacity high — and they reward equipment that runs, not equipment that waits for parts.
From Our Factory to Your Site
Baichy Heavy Industry has more than 20 years of jaw crusher manufacturing experience and holds ISO 9001:2015 certification. Our service scope covers free flowsheet design, foundation drawings, dispatch of engineers for installation guidance and commissioning, operator training, and stocked wear parts — jaw plates, toggle plates, bearings, eccentric shaft assemblies — ready to ship when you need them.
PE900x1200 jaw crusher,
Frequently Asked Questions
1. What is the real capacity of a PE900x1200 jaw crusher on Indonesian andesite?
Rated capacity is 220–450 t/h on medium-hard material. On high-hardness andesite or basalt (compressive strength ≥ 150 MPa), expect roughly 75–85% of that figure, i.e. about 180–380 t/h depending on the closed-side setting and feed gradation.
2. What is the difference between PE900x1200 and PE750x1060?
The PE900x1200 has a larger feed opening (900 × 1200 mm vs 750 × 1060 mm), accepts 750 mm vs 630 mm rock, and delivers roughly double the throughput of the smaller model. It suits 300–400 t/h plants, while the PE750x1060 is right for 150–250 t/h operations and mobile plants.
3. Can the discharge opening be adjusted easily?
Yes. The standard machine uses shim (gasket) adjustment across a 95–165 mm range, and a hydraulic adjustment device is available as an option — strongly recommended if you change product size frequently or run more than one shift per day.
4. Which downstream crusher should I pair with a PE900x1200 jaw crusher?
For abrasive volcanic rock, pair it with a single-cylinder hydraulic cone crusher for secondary crushing, then a multi-deck vibrating screen. An impact crusher is only advisable for limestone and other soft-to-medium materials.
5. How long does delivery to Indonesia take, and what support is included?
Manufacturing lead time is typically 25–40 working days depending on configuration, plus sea freight to Jakarta, Surabaya or Balikpapan. Baichy supplies installation drawings, remote commissioning support, on-site engineer service on request, a 12-month warranty (excluding wear parts) and lifetime spare-parts supply.
