Display of Finished Crushed Granite Products
Granite crushing equipment runs as a jaw, cone and screen circuit, with a VSI machine added where the market buys manufactured sand. Baichy publishes fixed granite crushing plants in bands from 30-50 tph to 500-600 tph.
Ⅰ. Which Granite Crushing Equipment Fits Each Crushing Stage?

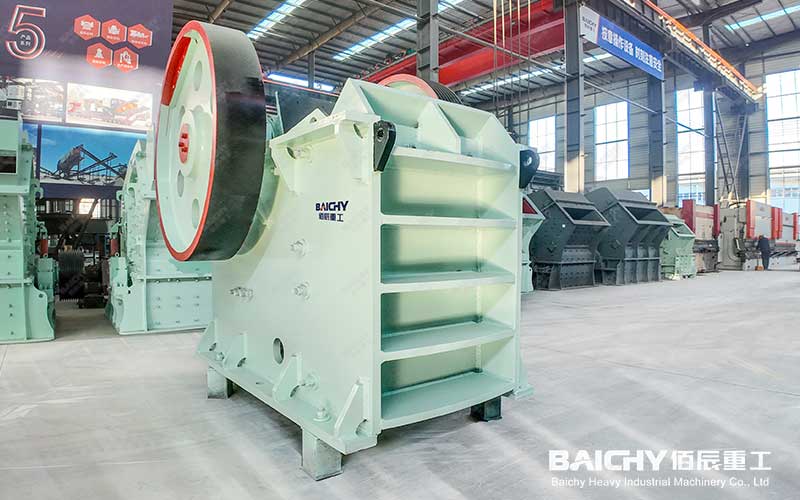

PE600x900 Jaw Crusher
Stage selection follows the top size the loader delivers: Baichy publishes 500 mm maximum feed for the PE600x900 jaw crusher and 630 mm for the PE750x1060.
| Machine | Model and cavity | Max feed (mm) | Capacity (t/h) | Motor (kW) |
|---|---|---|---|---|
| Jaw crusher | PE600×900 | 500 | 90–180 | 55 |
| Jaw crusher | PE750×1060 | 630 | 110–380 | 110 |
| Symons cone crusher | CS160, coarse cavity | 205 | 172–349 | 132 |
| Multi-cylinder hydraulic cone crusher | HP300, extra coarse | 190 | 220–445 | 220 |
| Single-cylinder hydraulic cone crusher | CH430 (DG200) | 185 | 69–208 | 160 |
| VSI | VSI-9526 | Below 40, hard material | 150–190 centre feeding | 264–320, twin motors |
| YK vibrating screen | 3YK2160, 3 decks | 200 | 81–720 | 30 |
Cell values and range separators are as published on the Baichy English product pages (read 2026-09-17); headings are re-typeset. The CS160 motor is published at 132 kW on baichychina.com and 160 kW on baichy.com.

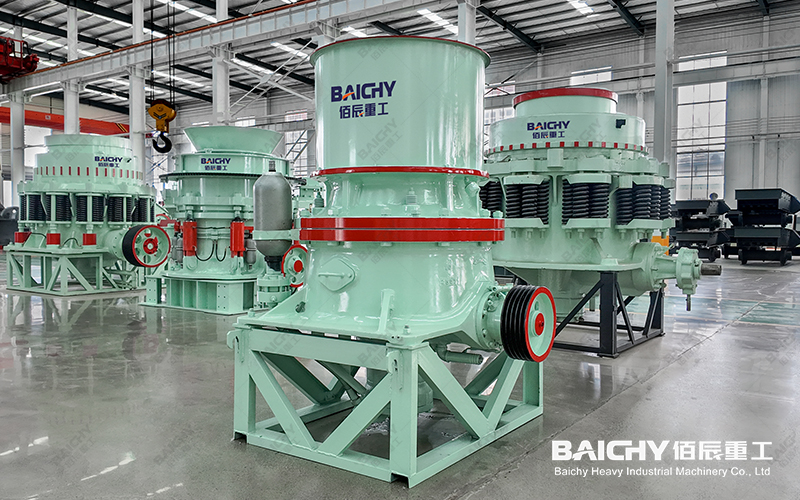

Single-cylinder hydraulic cone crusher

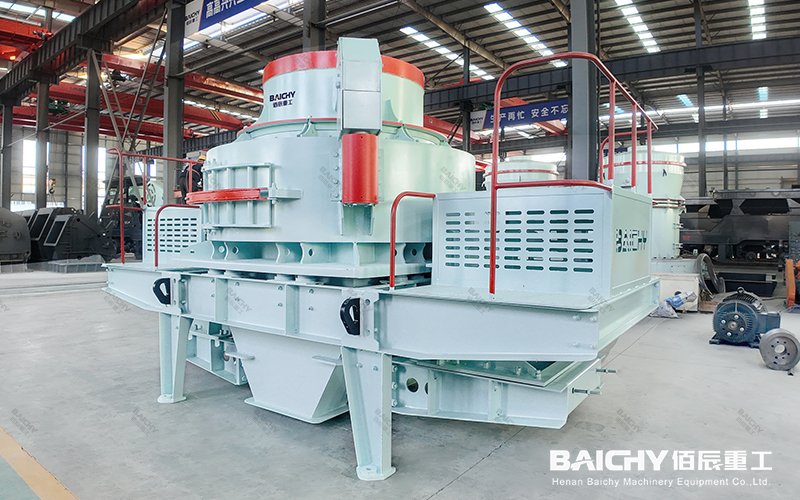

VSI Sand Making Machine
Ⅱ. What Does Granite Change in the Crusher Specification?
Granite changes three published figures at once: the crusher family, the wear-part budget and the maintenance clearance.
Baichy publishes granite as a 6-7 Mohs rock at 150-300 MPa and names granite, basalt and diabase as the duty of the multi-cylinder hydraulic cone crusher. Its granite configuration guide puts granite line wear at 3-5 times a limestone line and lists needle-like particles as the shape risk created by granite's irregular crystal structure. The same guide publishes lamination crushing as the answer, with needle-and-flake content below 10%, and gives the maintenance allowance as about 30% more clearance than a limestone line, marked there as an experience value.
Ⅲ.Published Granite Crushing Line Configurations
Baichy publishes granite lines as equipment pairs, not as single machines.
The 120-150 tph band pairs a PE 600x900 jaw with a CS160 cone at up to 500 mm feed; 150-200 tph moves the primary stage to a PE 750x1060 jaw and adds a CS75 cone on feed up to 630 mm; 250-300 tph uses a C110 jaw with an HP300 cone; 500-600 tph a C160 jaw with an HP300 cone at up to 1000 mm feed. A 30-50 tph line on a PE 400X600 jaw and a PF1007 impact crusher is published on Baichy's fixed crushing plant page.
Ⅳ. FAQ: Granite Crushing Equipment
1. What equipment is used to crush granite?
A jaw crusher for primary reduction, a cone crusher for secondary crushing and a vibrating screen for sizing. Baichy pairs PE600x900 and PE750x1060 jaw crushers with CS160, HP300 or CH430 cone crushers at 132 kW, 220 kW and 160 kW.
2. Why is a cone crusher used instead of an impact crusher for granite?
Granite is abrasive, so the wear bill decides. The PF series is published for materials not higher than 320 MPa, while the multi-cylinder hydraulic cone crusher is published for granite at 150-300 MPa.
3. How much granite can a PE750x1060 jaw crusher process per hour?
110-380 t/h, at a 630 mm maximum feed size, a 60-150 mm discharge setting and a 110 kW motor. Actual tonnage follows the crushability of the deposit and the setting.
4. What information do I need for a granite crushing equipment quotation?
Maximum feed size in mm, target capacity in t/h, finished sizes in mm and the site power supply in V and Hz. Baichy prices granite crushing equipment by configuration, because the cavity type, screen decks and wear-part grade each move the figure.
