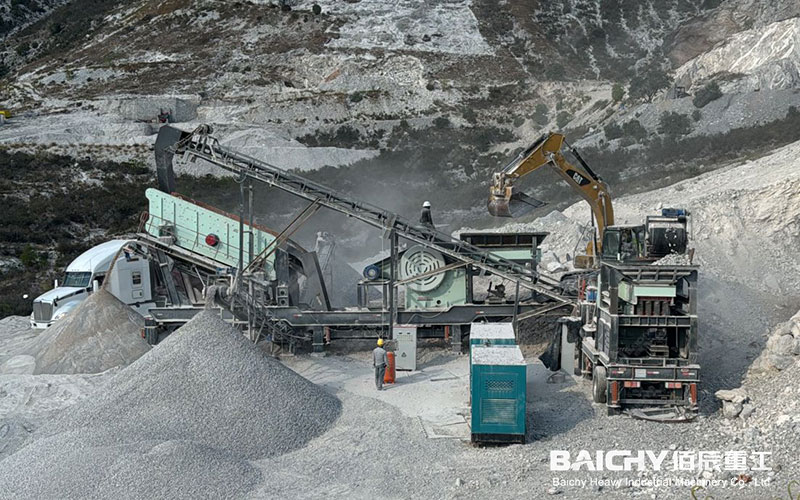

Colombia 200 t/h Mobile Crushing Station Configuration Plan
For the Colombian market, a mobile crushing production line with a capacity of 200 tons per hour (TPH) is typically configured based on the hardness of the material being processed—whether it involves hard rocks (such as granite, basalt, etc.) or medium-to-soft materials (such as limestone, construction waste, etc.). Outlined below are our recommended technical solutions, key advantages, and application references relevant to the Colombian context:
Mobile Jaw Crusher PDF, Download ↓↓↓
1. Typical Configuration Schemes (200 TPH)
To achieve a stable production capacity of 200 tons per hour, a "two-stage combination" or "three-stage combination" setup is typically employed:
Scheme A: Hard Rock Crushing (Granite, Basalt, River Pebbles, etc.)

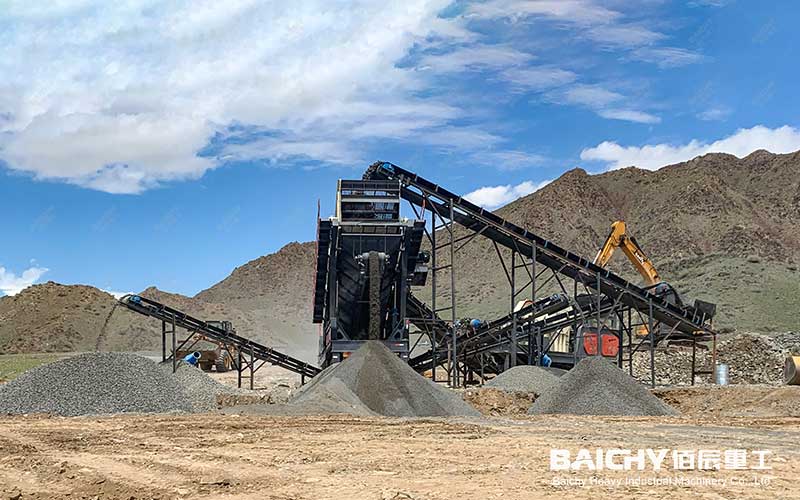

Mobile Hard Rock Crushing Station
Primary Crushing (Mobile Jaw Crushing Station): Configured with a feeder and a high-performance jaw crusher (e.g., model PE750×1060 or equivalent). This stage is responsible for the initial reduction of large raw stones to a size of less than 150 mm.
Secondary Crushing + Screening (Mobile Cone Crushing Station): Configured with a medium-crushing cone crusher and a circular vibrating screen. Cone crushers are well-suited for processing high-hardness materials, offering extended service life for wear parts and producing finished products with excellent particle shape.
Scheme B: Crushing of Medium-to-Soft Rocks or Construction Waste (Limestone, Concrete, etc.)

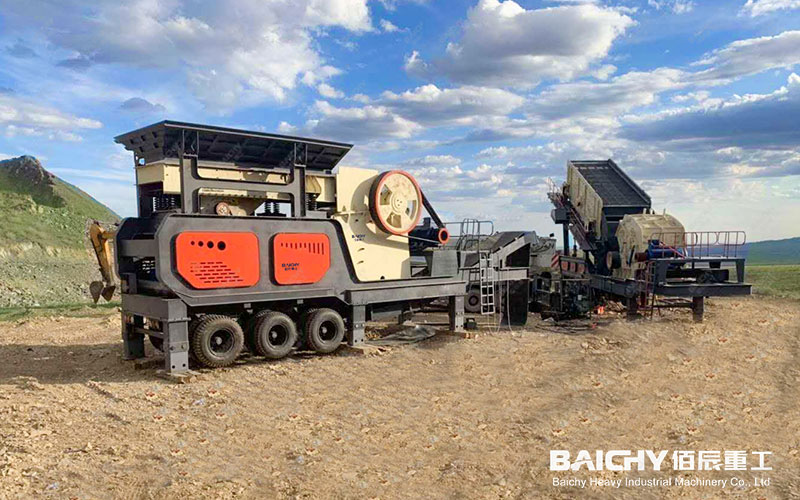

Mobile Soft Rock Crushing Station
Primary Crushing (Mobile Jaw Crushing Station): Same as above; performs the initial coarse crushing.
Secondary Crushing + Screening (Mobile Impact Crushing Station): Configured with an impact crusher and a circular vibrating screen. Impact crushers produce finished products with superior particle shape (characterized by angularity and an absence of internal cracks), making them highly suitable for use as road and railway sub-base materials, as well as general construction aggregates.
Comparison of Mobile Crushing Station Configuration Schemes for Colombia (200 t/h Capacity)
| Parameters / Scheme | Scheme A: Hard Rock / High Wear-Resistance Type | Scheme B: Medium-Hard Rock / High Product Shape Quality Type |
| Applicable Materials | Granite, Basalt, River Pebbles, Andesite | Limestone, Sandstone, Construction Waste, Concrete |
| Primary Crushing Equipment | Mobile Jaw Crushing Station (Configured with PE750×1060) | Mobile Jaw Crushing Station (Configured with PE750×1060) |
| Secondary Crushing Equipment | Mobile Cone Crushing Station (e.g., Multi-cylinder Cone Crusher) | Mobile Impact Crushing Station (e.g., Model 1315 Impact Crusher) |
| Crushing Characteristics | Designed for high-hardness, highly abrasive materials; features long service life for wear parts | High crushing ratio; finished products are cubical in shape with minimal needle-like or flaky particles |
| Feed Size | ≤600 mm | ≤500 mm |
| Finished Product Specifications | 0-5, 5-10, 10-20, 20-31.5 mm (Adjustable) | 0-5, 5-13, 13-25, 25-31.5 mm (Adjustable) |
| Power Mode | Dual Diesel-Electric / Full Electric Drive | Dual Diesel-Electric / Full Electric Drive |
| Advantages | Suitable for gold mines and hard rock quarries; low maintenance costs (due to long replacement cycles for wear parts) | Suitable for road and bridge aggregate production; finished products command higher market prices |
| Applications in Colombia | Hard rock quarries in the Andes region; large-scale mining operations | Urban road construction projects; demolition waste recycling in urban redevelopment areas |
2. Technical Parameter Reference
Processing Capacity: 180–220 tons/hour
Feed Size: Up to a maximum of 500–700 mm
Finished Product Specifications: Typically 0–5 mm, 5–10 mm, 10–20 mm, 20–30 mm (Screen mesh sizes can be adjusted according to specific requirements)
Power System: Optional Dual Diesel-Electric mode (allows switching to diesel generator power supply in remote mining areas within Colombia).
3. Why Choose a Mobile Production Line in Colombia?
1. Strong Terrain Adaptability: The Andean region of Colombia features complex terrain; mobile stations, equipped with crawler or wheeled chassis, can easily access narrow or steeply sloped work sites.
2. Reduced Transport Costs: Capable of driving directly to blasting sites or raw material stockpiles, they eliminate the significant trucking costs associated with transporting raw ore.
3. Rapid Deployment: Compared to stationary production lines, mobile stations require no complex concrete foundation work; equipment can be commissioned and put into production within just a few hours of arriving on-site.
4. Flexible Relocation: When a mining site is depleted or a project concludes, the unit can be quickly relocated to the next job site—making it ideal for road construction and contract-based engineering projects.
4. Case Studies in the Colombian Market
Currently, numerous leading Chinese brands (such as Liming Heavy Industry, Hongxing Machinery, Shanmei, AIMIX, etc.) have established successful operational track records in Colombia:
Medellín Region: Used for the recycling of construction waste during urban renewal projects.
Cartagena Surroundings: Used for crushing limestone to supply cement plants or for road construction aggregates.
Remote Gold Mining Areas: Used for the primary crushing of raw gold ore, thereby reducing the processing load on subsequent grinding stages.
Recommendations and Next Steps
If you require a specific price quotation or a detailed process flow diagram, we recommend providing the following information:
1. Material to be Processed: Is it hard rock (e.g., granite) or medium-to-soft rock (e.g., limestone)?
2. End-Product Application: Is the output intended for concrete mixing plants, road construction aggregates, or mineral beneficiation?
3. Power Source: Is there a stable electricity supply available at the project site?
About of Baichy Heavy Industry
Baichy Heavy Industry is a high-tech mining equipment company integrating R&D, manufacturing, sales, and after-sales service. Focusing on crushing, grinding, and mineral processing equipment, we provide professional solutions to our customers. We are ISO9001:2015 、certified, and our products include mobile crushing palnts, crawler crushing plant, construction waste crushing plants, jaw crushers, sand making machines, cone crushers, fine crushers, grinding mills, ball mills, etc., all with reliable performance to meet diverse project needs.
Our advantages:
• Professional pre-sales support: Free project design and comprehensive solutions to help you accurately select the right equipment;
• Comprehensive on-site service: Providing installation guidance and worker training to ensure smooth equipment commissioning;
• Reliable after-sales guarantee: A complete after-sales system, timely response to technical inquiries and equipment maintenance, ensuring long-term stable operation.
To protect your rights, please contact us through the following official channels for professional service:
Official Website Customer Service
https://wa.me/+8615093222637
Email: [email protected]
We are committed to providing high-quality equipment and full-cycle services to deliver comprehensive intelligent solutions for the global mining industry!
Frequently Asked Questions (FAQ)
Q1: In the Andean region of Colombia, why is a "Jaw Crusher + Cone Crusher" combination recommended for processing hard rock (such as granite), rather than an Impact Crusher?
A1: This choice is dictated by both equipment operating principles and operational costs. The granite and basalt found in Colombia possess high hardness (Mohs hardness 6–7) and are extremely abrasive. Cone crushers utilize the principle of inter-particle crushing (lamination), resulting in a long service life for wear parts (liners). Although the initial investment is higher, this significantly reduces the frequency of downtime for replacements and lowers spare parts costs over the long term. Conversely, if an impact crusher were used to process hard rock, the wear rate of the hammerheads and liners would be extremely rapid, leading to skyrocketing maintenance costs and making it difficult to maintain a stable output of 200 t/h.
Q2: For construction waste recycling projects in cities such as Medellín and Bogotá, which 200 t/h configuration is the most economical?
A2: We recommend Option B (Mobile Jaw Crusher + Mobile Impact Crusher). Construction waste (concrete, bricks) consists of materials with low-to-medium hardness; impact crushers are capable of producing cubic aggregates with excellent particle shape, making them highly suitable for use as road base materials or recycled construction materials—products that command a higher market price. Furthermore, impact crushers typically feature an integrated iron removal function, allowing for the automatic separation of steel rebar from concrete—a critical requirement in urban demolition projects.
Q3: Given the unstable power supply in certain mining regions of Colombia, can a 200 t/h mobile crushing line operate using a "dual-power" (diesel-electric) mode?
A3: Yes, it can. This serves as a standard solution tailored to the current state of infrastructure in Colombia. The equipment can be configured with an integrated diesel generator set. When grid power is available, it utilizes mains electricity to reduce fuel consumption costs; in remote mining areas (such as gold exploration sites) or regions lacking grid access, it can switch to self-generated diesel power. This ensures that the production capacity of 180–220 t/h remains unhindered by infrastructure limitations, enabling "immediate production upon arrival."
