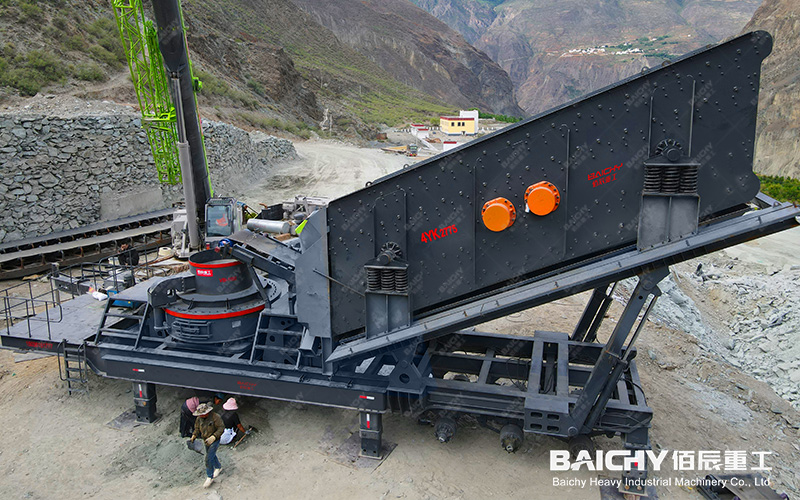

In modern construction and infrastructure development, the demand for high-quality sand and gravel aggregates is growing. As advanced equipment in the sand making industry, the wheeled vertical shaft impact sand making machine, with its unique "stone-on-stone" operating principle and superior crushing performance, is becoming an indispensable key piece of equipment in manufactured sand production lines. This article will provide an in-depth analysis of the structural features, operating principles, and industry applications of this sand making equipment, providing a professional selection guide.
1. Equipment Structure and Design Features
The wheeled vertical shaft impact crusher utilizes an advanced vertical shaft impact crushing principle and consists of the following core components:
• The feed system features an innovative dual-channel design, offering both center-feed and waterfall-feed methods, ensuring even material distribution and fully utilizing the crushing chamber space.
• The rotating impeller is constructed of high-strength alloy and adopts either a closed or open design, capable of accelerating materials to high speeds of 60-75 m/s.
• The crushing chamber utilizes a circular, multi-zone design. Through optimized internal structure, a continuous material impact crushing chain is achieved.
• The drive system utilizes a dual-motor belt drive mechanism, ensuring smooth and reliable operation.
• The lubrication system utilizes an automatic centralized lubrication system, significantly reducing maintenance costs and operational complexity.
2. Working Principle and Crushing Mechanism
The wheeled vertical shaft impact crusher operates based on advanced "stone-on-stone" and "stone-on-iron" techniques. The material is pided into two streams by a distributor: one stream enters the high-speed impeller from the center, while the other stream cascades down the periphery into the crushing chamber.
Inside the impeller, the material is accelerated to a high speed of 60-75 m/s before being ejected. It collides strongly with the cascading material, forming a continuous chain of impact crushing. This unique crushing method not only produces a large number of cubic particles, but also effectively reduces the content of needle-like and flake-like particles, significantly improving the quality of the finished product.
3. Performance Advantages and Technical Features
1. Excellent Finished Product Shape: Vertical shaft impact crushing produces over 90% cubic particles, far exceeding national standards.
2. Adjustable Fineness Modulus: By adjusting the rotational speed, feed rate, and equipment parameters, sand of varying specifications can be produced to meet various project requirements.
3. High Energy Efficiency: Optimized design saves 30-50% energy compared to traditional sand making equipment, significantly reducing production costs.
4. Low Maintenance Cost: Key components feature a wear-resistant design, ensuring a long service life and easy replacement.
5. Environmentally Friendly: Equipped with advanced dust removal and noise control technology, they fully comply with environmental requirements.
4. Applications and Scope
Wheel-mounted vertical shaft impact sand making machines are widely used in a variety of applications:
• Construction Sand Production: Produces construction-grade sand that meets national standards and meets the high standards of concrete mixing plants.
• Highway Construction: Provides angular aggregate for skid and rutting resistance, ensuring high-quality pavement construction.
• Water Conservancy Project Construction: Preparation of concrete aggregate and filter layer materials to meet the special requirements of water conservancy projects.
• Mining Industry Applications: Reuse and treatment of metal mine tailings to achieve comprehensive resource utilization.
• Building Materials Production Process: Preparation of artificial quartz stone and prefabricated component raw materials to improve product quality.
5. Professional Selection Guide and Recommendations
When selecting a wheeled vertical shaft impact sand making machine, consider several factors:
• Raw Material Property Analysis: This includes physical properties such as material hardness, soil content, and moisture content.
• Capacity Requirements Assessment: Select appropriate specifications based on hourly production requirements (ranging from 50 to 500 tons).
• Finished Product Specification Requirements: Define the requirements for different specifications, such as coarse sand, medium sand, and fine sand.
• Equipment Layout: Select fixed or mobile installation.
• Environmental Standard Requirements: Select the appropriate dust removal level and noise control standards based on local environmental requirements.
6. Key Operation and Maintenance Points and Maintenance Recommendations
To ensure the long-term and stable operation of a wheeled vertical shaft impact sand making machine, the following key operation and maintenance points should be noted:
• Regularly inspect wear on wear-resistant parts and promptly replace damaged parts.
• Maintain appropriate feed size and feed rate to avoid equipment overload.
• Monitor the operating status of the lubrication system to ensure proper functioning of all lubrication points.
• Pay attention to changes in vibration and noise during operation to detect any abnormalities promptly.
• Regularly clean accumulated material from the crushing chamber to maintain internal cleanliness.
7. Industry Development and Future Trends
With the continuous expansion of infrastructure construction and increasingly stringent environmental protection requirements, wheeled vertical shaft impact sand making machines are developing towards intelligent, large-scale, and environmentally friendly features. The new generation of sand making equipment will integrate IoT technology to enable remote monitoring and intelligent operation and maintenance, while further improving energy efficiency and environmental performance.
With its advanced design and outstanding performance, wheeled vertical shaft impact sand making machines are reshaping the technical standards of the modern sand making industry. With the continuous development of intelligent control technology and wear-resistant materials, this equipment will continue to provide better sand and gravel aggregate solutions for infrastructure construction.
