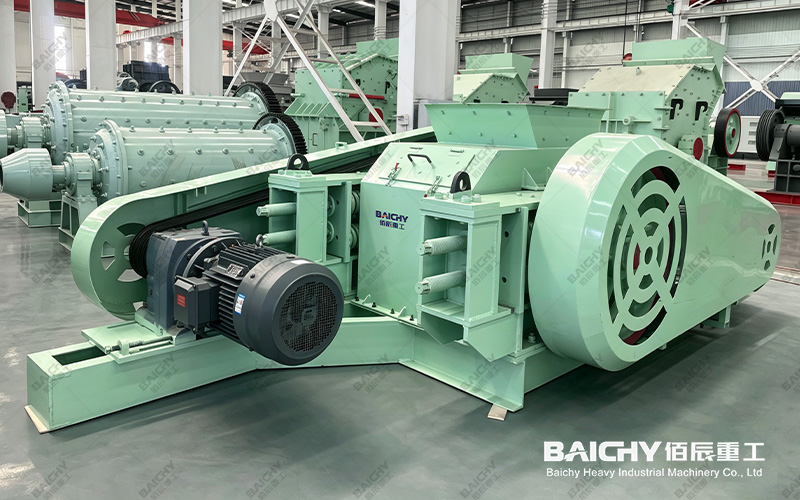

Roll Crusher for Coal & Slag
For coal, coke, slag, clay or clinker (medium-hard, below 150 MPa), a roll crusher beats hammer and impact crushers on three points: fines under 10%, no clogging at 10–15% moisture, and discharge adjustable from 2 to 50 mm.
What Is a Roll Crusher and How Does It Work?

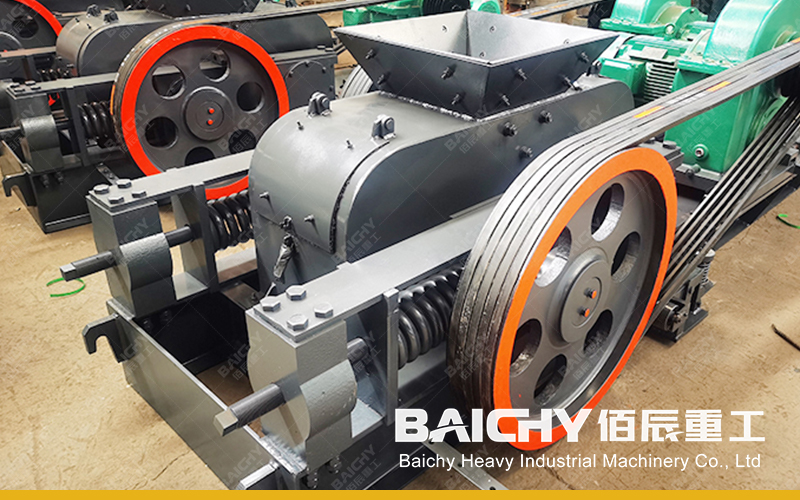

A roll crusher reduces material by compression and shear between two counter-rotating rolls — no high-speed impact — so particles break along natural fracture lines, fines stay low, wet feed does not clog, and output stays controllable.
• Smooth roll crusher (2PG) — coal, coke, clinker; output 2–50 mm.
• Toothed roll crusher (2PGC) — block coal up to 300 mm, sheared in one pass.
• Four-roll crusher — two stages in one machine, producing 0–3 mm fine sand.
Where Is a Roll Crusher Used? Key Applications
| Application | Feed | Output | Why It Wins |
|---|---|---|---|
| Coal preparation | Run-of-mine coal ≤300 mm | 0–50 mm | Fines below 10%; no dust-explosion risk |
| Coke crushing | Lumps ≤200 mm | 0–25 mm | Minimal powder protects sinter value |
| Slag & clinker recycling | Blast furnace slag | 0–10 mm | Smooth rolls resist abrasion |
| Clay & wet ore | 10–15% moisture | 0–30 mm | Scraper rolls never clog |
| Fine sand making | 0–30 mm limestone | 0–3 mm | Four-roll setup cuts a grinding stage |
6 Advantages That Make a Roll Crusher Stand Out
Low over-crushing, higher yield. Impact crushers make 18–25% fines; a roll crusher stays under 10% — 4–7 more saleable tons per hour on a 50 t/h line.
Wet, sticky feed is no problem. At 10–15% moisture, scraper rolls keep running while hammer crushers stop for cleaning.
Discharge set by the roll gap — adjustable. Hydraulic control holds ±1 mm; change spec in ~10 minutes.
Lower energy cost. Low-speed compression uses about 30% less electricity than impact crushing.
Shells last and are repairable. Mn18Cr2 shells run 6–8 months; weld build-up costs 20–30% of new.
Tramp iron protection. Hydraulic retraction reacts in 0.2 s, protecting rolls and uptime.

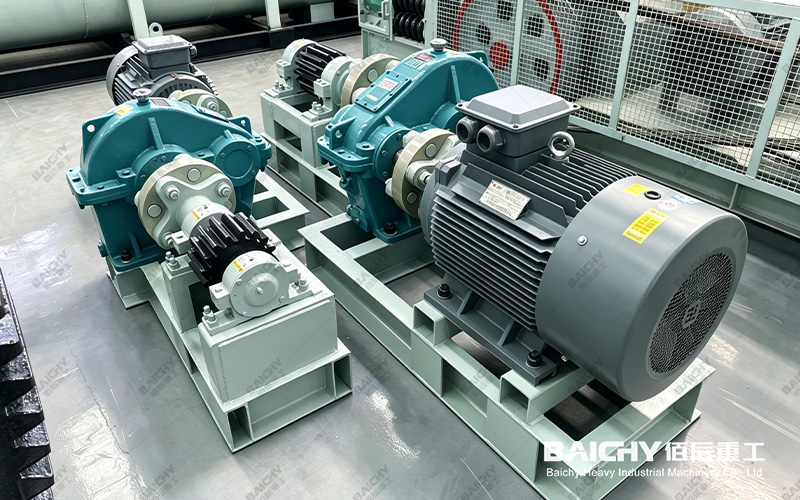

2PG roll crusher, coal crusher, coke crusher
Roll Crusher Specification Table (2PG / 2PGC Series)
| Model | Roll Diameter × Length (mm) | Max. Feed Size (mm) | Discharge Size (mm) | Capacity (t/h) | Motor Power (kW) |
|---|---|---|---|---|---|
| 2PG400×250 | 400×250 | ≤25 | 2–8 | 5–10 | 11 |
| 2PG610×400 | 610×400 | ≤40 | 10–30 | 15–40 | 30 |
| 2PG750×500 | 750×500 | ≤45 | 10–40 | 30–60 | 37 |
| 2PG900×700 | 900×700 | ≤60 | 10–50 | 50–120 | 45–55 |
| 2PGC600×750 (Toothed Roll) | 600×750 | ≤200 | ≤50 | 40–80 | 2×22 |
| 2PGC900×900 (Toothed Roll) | 900×900 | ≤300 | ≤50 | 80–160 | 2×37 |
Real-World Case: 40 t/h Coal Preparation Line in Southeast Asia
A coal trader replaced an impact crusher losing 18% of output to fines and jamming weekly in the rainy season. Baichy supplied a 2PG750×500 double roll crusher (37 kW, gap 10–30 mm). After 3 months: fines (<3 mm) fell from 18% to under 8%; zero blockages at 12% moisture; electricity per ton down ~28%; shell wear 7 mm after 4,000 hours.
Typical configuration — actual figures vary with feed quality.
Recommended Equipment to Pair With Your Roll Crusher
| Stage | Recommended Machine | Why |
|---|---|---|
| Primary crushing | PE jaw crusher | Reduces 500 mm rock to ≤60 mm for the roll crusher feed limit |
| Coarse block coal | 2PGC toothed roll crusher | Shears 300 mm lumps in one pass |
| Screening | YK vibrating screen | Splits output by size; protects roll surfaces |
| Iron removal | Magnetic separator | Keeps tramp metal off the rolls |
| Downstream grinding | Ball mill / Raymond mill | Turns 0–10 mm product into powder |
Roll Crusher FAQ
Q1: What is the difference between a roll crusher and an impact crusher?
An impact crusher strikes material at high speed, generating 18–25% fines and struggling above 8% moisture. A roll crusher compresses feed slowly: fines stay under 10%, wet feed does not clog, and discharge size is set by the roll gap.
Q2: Can a roll crusher handle hard rock like granite or basalt?
No. Roll crushers suit medium-hard material below about 150 MPa — coal, coke, slag, clay, limestone, clinker. For granite, basalt or quartzite, use a jaw crusher or cone crusher.
Q3: How do I choose the right roll crusher model?
Match tonnage: 5–10 t/h → 2PG400×250; 15–40 t/h → 2PG610×400; 30–60 t/h → 2PG750×500; 50–120 t/h → 2PG900×700. Keep feed within 1/10–1/15 of roll diameter. Unsure? Send Baichy your material hardness, feed size and target output for a free sizing calculation.
