We are a professional manufacturer of drying equipment in the mining machinery field, with years of research and development, production, and global service experience in industrial drying systems. We focus on providing high-efficiency, energy-saving, and reliable drying solutions for sand, ore, slag, and other bulk materials. Today we will introduce our core product: river sand dryer, and clearly explain the difference between single-cylinder and triple-cylinder models to help you choose the most suitable drying equipment for your project.
A river sand dryer is a special industrial rotary drum dryer designed for drying wet river sand, quartz sand, silica sand, foundry sand, and other granular materials. It uses high-temperature hot air to fully exchange heat with wet sand, quickly evaporating moisture to meet the production requirements of construction, mining, metallurgy, and foundry industries. As a professional drying equipment manufacturer, we provide two mainstream structures: single-cylinder river sand dryer and triple-cylinder river sand dryer, each with unique advantages for different working conditions.
Single-Cylinder vs Triple-Cylinder River Sand Dryer — Clear Comparison

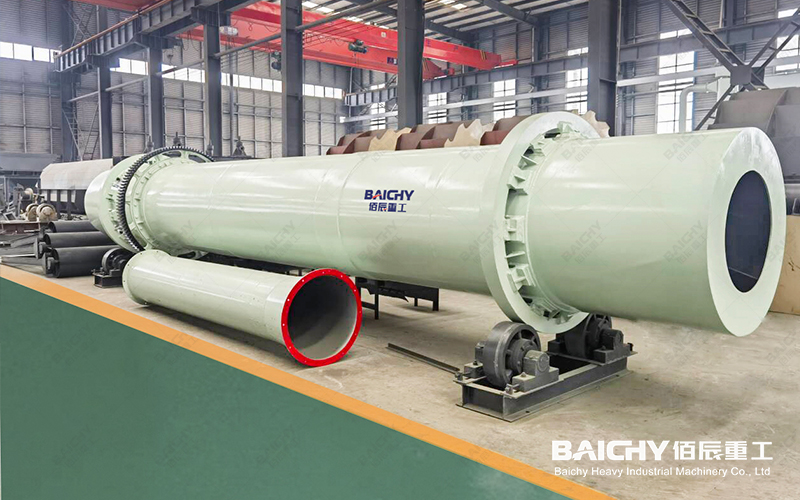

Single-Cylinder River Sand Dryer
The single-cylinder river sand dryer adopts a traditional single-layer drum structure, with a simple structure, small investment, and convenient installation and maintenance. It is suitable for small and medium-capacity production lines and projects with limited initial budget.
Advantages:
1. Lower initial investment and cost-effective, which is more friendly to small-scale production users and enterprises with limited budget.
2. Simple and reliable structure, easy to operate, install and maintain, without high professional technical requirements for workers.
3. Flexible site layout and low requirements for foundation, very suitable for small projects, temporary stations and remote areas.

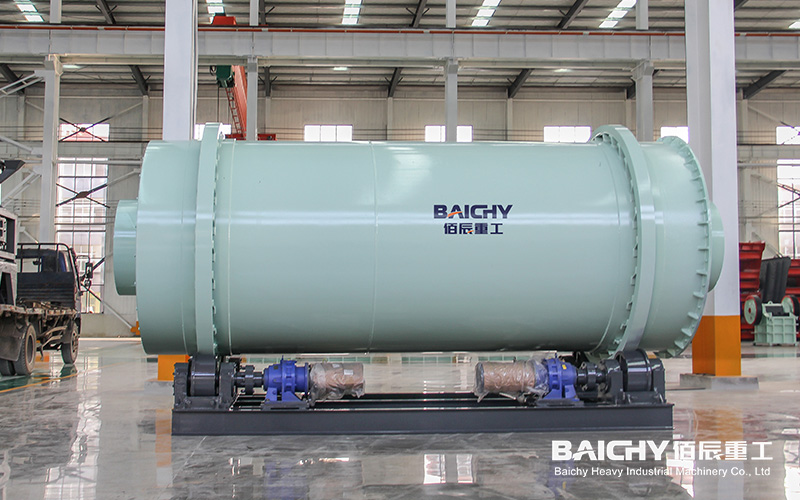

Triple-Cylinder River Sand Dryer
The triple-cylinder river sand dryer adopts a three-layer nested drum design, which is the upgraded energy-saving model of the traditional single-cylinder dryer. It has a compact structure, high thermal efficiency, and significant energy-saving effects, making it the preferred choice for large-scale and high-efficiency production lines.
Advantages:
1. Higher thermal efficiency and obvious energy-saving effect, which can reduce fuel consumption by 30%–50% and greatly save long-term operating costs.
2. Compact three-layer nested structure, occupying about 50% less space than single-cylinder dryer under the same output capacity.
3. Longer heat exchange process and more sufficient contact between material and hot air, ensuring uniform moisture and stable high-quality drying effect.
Technical Parameter Table of River Sand Dryer (Single & Triple Cylinder)
| Parameter Item | Single-Cylinder Φ1.5×15m | Triple-Cylinder Φ2.0×6m | Triple-Cylinder Φ3.0×7m |
|---|---|---|---|
| Model Type | Single-Cylinder | Triple-Cylinder | Triple-Cylinder |
| Capacity (t/h) | 5–10 | 15–25 | 30–50 |
| Initial Moisture | ≤15% | ≤15% | ≤15% |
| Final Moisture | 0.5%–1% | 0.5%–1% | 0.5%–1% |
| Thermal Efficiency | ~60% | ~85% | ~85% |
| Motor Power (kW) | 18.5 | 22 | 37 |
| Fuel Type | Coal, Gas, Oil, Biomass | Coal, Gas, Oil, Biomass | Coal, Gas, Oil, Biomass |
| Applicable Scale | Small & Medium | Medium & Large | Large Scale |
Main Application Scenarios of River Sand Dryer
Construction & Aggregate Industry
Both single-cylinder and triple-cylinder river sand dryers are widely used in the construction aggregate industry. For small and medium-sized mixing stations, the single-cylinder model is more cost-effective; for large-scale commercial concrete and infrastructure projects, the triple-cylinder river sand dryer is more suitable due to its high efficiency and energy saving.
Foundry Industry
Foundry molding sand has extremely high requirements for moisture content. The triple-cylinder river sand dryer is preferred because of its stable drying effect and uniform moisture, which can effectively improve casting qualification rates and reduce defective products.
Mining & Metallurgy Industry
In mineral processing and metallurgical production lines, large-output triple-cylinder river sand dryers are often used to dry quartz sand, tailings sand, and mineral powder, improving material transportation and storage efficiency and reducing overall production costs.
Key Advantages of Our River Sand Dryer
High Thermal Efficiency & Significant Energy Saving
Our triple-cylinder river sand dryer adopts a nested structure and optimized lifting plate design, which greatly improves heat exchange efficiency and reduces fuel consumption by 40% compared with traditional single-cylinder dryers.
Stable Performance & Long Service Life
The drum is made of high-strength wear-resistant steel plate, with a sturdy frame and reliable transmission system. The sealing system adopts a labyrinth and felt dual sealing structure to completely prevent dust leakage and hot air loss.
Wide Adaptability & Flexible Configuration
We provide both single-cylinder and triple-cylinder models, which can be matched with different heat sources such as coal, gas, oil, and biomass burners to meet the energy conditions of different countries and regions.
Successful Project Cases of River Sand Dryer
Case 1: Small-Scale Sand Drying Project in Kenya (Single-Cylinder)
Customer demand: 8 t/h river sand drying for small concrete mixing stations.
Equipment configured: Single-cylinder Φ1.5×15m river sand dryer.
Result: Low investment, simple operation, stable operation, fully meeting the customer's small-scale production needs.
Case 2: Large Foundry Sand Drying Line in Mexico (Triple-Cylinder)
Customer demand: 20 t/h molding sand drying, final moisture ≤0.8%.
Equipment configured: Triple-cylinder Φ2.0×6m river sand dryer.
Result: High thermal efficiency, uniform drying, casting qualification rate increased by 8%, and significant energy-saving benefits.
Recommended Related Equipment
1. Sand Washing Machine — For cleaning impurities before sand drying
2. Vibrating Screen — For particle classification of dried sand
3. Bag Dust Collector — Supporting environmental protection dust removal system
Frequently Asked Questions (FAQ)
1. Should I choose single-cylinder or triple-cylinder river sand dryer?
If your output is below 10 t/h and the budget is limited, the single-cylinder river sand dryer is more suitable. If the output is above 15 t/h and you pursue high efficiency, energy saving, and long-term benefits, the triple-cylinder river sand dryer is the best choice.
2. What fuel can your river sand dryer use?
Our single-cylinder and triple-cylinder river sand dryers can adapt to coal, natural gas, diesel, heavy oil, biomass particles, and other fuels. We can customize the combustion system according to your local energy conditions.
3. How long is the warranty and after-sales service?
We provide a 12-month whole-machine warranty and lifelong technical support. Our global after-sales team can provide on-site installation, commissioning, operator training, and original spare parts supply services.
