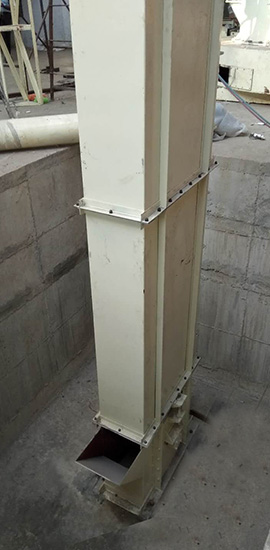

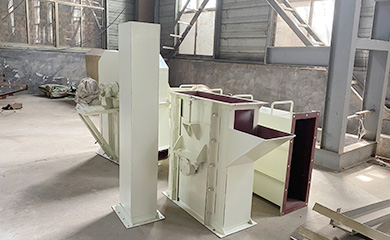

Bucket elevator

The bucket elevator is often used in conjunction with the pulverizer, and it is a continuous conveying equipment for conveying fine particles (powder) from a low place to a high place. After the material enters the hopper, the machine automatically and continuously runs upwards for conveying. The user can adjust the conveying speed according to the conveying volume, and can also choose the lifting height according to their needs.

≤55mm
Feed Size
≤50m
Motor Power
34-1112m³/h
Capacity
Bucket elevator
60S Quick response
30 min Technical reply
24h design proposal
365 days to receive service needs
PRODUCT FEATURES
Bucket elevator Product features

Low maintenance cost

The bucket elevator adopts the inflow feeding method, and there will be no extrusion and collision between the materials, which reduces the wear and tear of the machine.

High working efficiency

With a capacity of 34-1112 m³/h, our bucket elevators can convey large quantities of free-flowing materials as well as many materials with poor fluidity with high conveying efficiency.

Save space

The bucket elevator transports materials in the vertical direction and has a compact and simple structure, so it occupies a small area and greatly saves the area occupied.

Less pollution

The bucket elevator has good sealing performance, and the conveying work is carried out in a fully enclosed body without dust leakage, clean and environmentally friendly.

Working principle

Working principle

A bucket elevator consists of a hopper, a drive, top and bottom rollers (or sprockets), belts (or traction chains), tensioning devices, and a casing.

Driven by the driving device, the material reaches the top with the conveyor belt, bypasses the top wheel, and turns downwards, and then the material is discharged from the discharge port under the action of centrifugal force or gravity and sent to the next process.

Messages
Leave Message

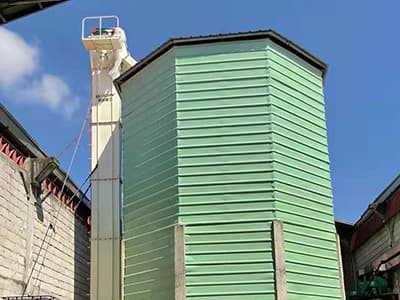

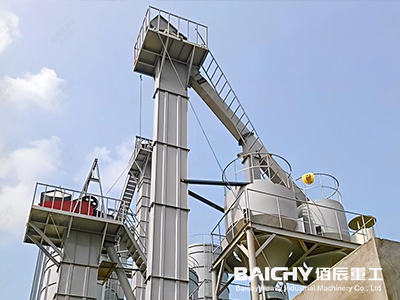

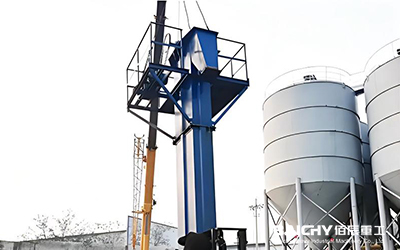

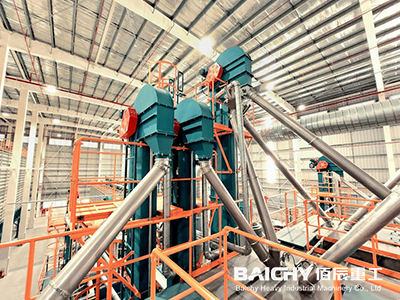

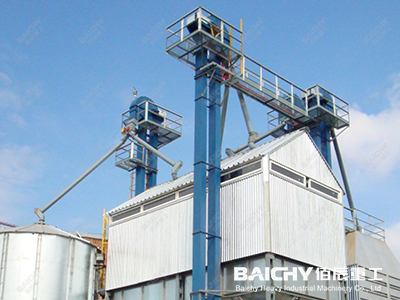

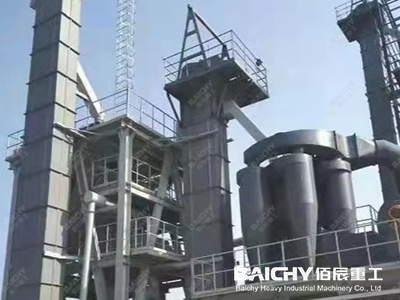

the working site of bucket elevator

Specification

*The output will vary according to different materials, feed particle size and other factors
Model T160 T250 T315 T400 T500
Bucket Width(mm) 160 250 315 400 500
Bucket Distance(mm) 300 420 500 560 625
Speed(m/s) 1.4 1.6 1.6 1.8 1.8
Max Granule size(mm) 25 35 45 55 60
Height(m) H+0.9 H+1.2 H+1.2 H+1.5 H+1.5
