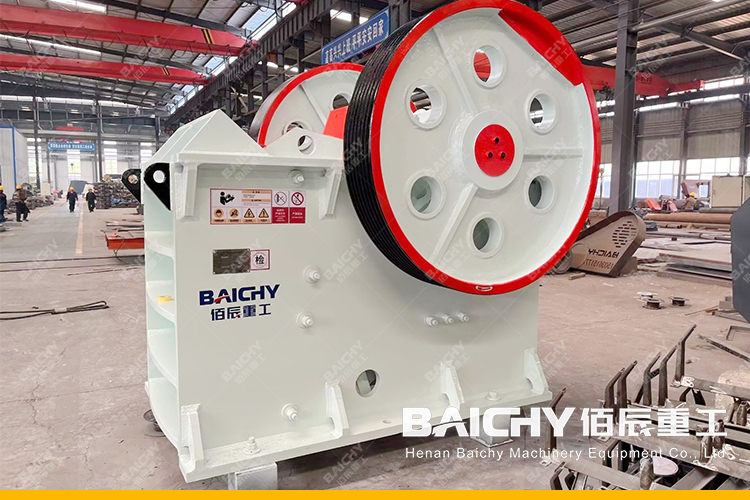

PE600×900 Jaw Crusher
If inefficient equipment is selected for the primary crushing stage of a stone production line, it will result in limited throughput for subsequent sand-making and screening processes. Based on an estimated daily loss of 50 tons of aggregate, the direct annual economic loss could reach 1.8 million RMB (assuming 360 production days per year and an average aggregate price of 100 RMB per ton). Addressing this critical pain point, Baichy Heavy Industry’s PE600×900 Jaw Crusher optimizes the crushing chamber structure and moving jaw stroke to ensure stable, high-capacity output specifically for the crushing of hard stone materials.
PE Jaw Crusher PDF,Download ↓↓↓
1. Core Performance Parameters Translate Directly into Customer Throughput and Cost Advantages
The core parameters of the PE600×900 Jaw Crusher have undergone rigorous engineering validation and translate directly into tangible production benefits for the customer:
| Technical Parameters (ISO 9001 Certified) | Customer Benefit Translation |
| Feed Opening Size: 600×900mm | Capable of processing hard stone materials (e.g., granite, basalt) up to 500mm in size, eliminating the need for a pre-crushing stage. |
| Rated Capacity: 100–150 t/h | Average daily capacity of 1,200–1,800 tons (based on 12 hours of operation), meeting the primary crushing demands of medium-to-large-scale aggregate production lines. |
| Moving Jaw Stroke: 100mm | Crushing efficiency is 15% higher than competing products of the same specification, reducing material dwell time within the chamber. |
| Motor Power: 75kW | Energy consumption per unit of output is ≤0.5 kWh/ton—10% lower than the industry average. |
| Wear Part Lifespan: 6–8 months | Reduces annual downtime for wear part replacement by 10–15 days, resulting in a 20% reduction in annual maintenance costs. |
2. Specialized Optimization for Hard Material Crushing: Deep Chamber Crushing + Symmetrical V-Shaped Chamber Design

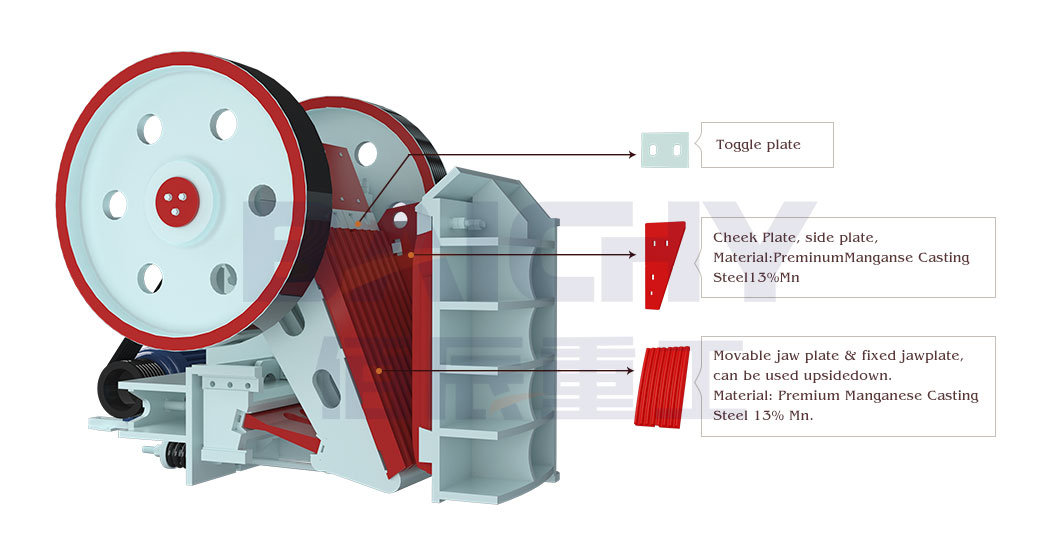

Structural-Diagram-of-the-PE600x900-Jaw-Crusher
Specifically engineered for hard stone materials with a Mohs hardness of 6–7, the Baichy Heavy Industry PE600×900 Jaw Crusher employs a combination of deep chamber crushing and a symmetrical V-shaped chamber design. This configuration minimizes the likelihood of material slippage and boosts the crushing ratio to an impressive 6–8:1. Furthermore, the equipment features a heavy-duty eccentric shaft and imported SKF bearings, ensuring a continuous, trouble-free operating time of ≥3,000 hours—making it ideally suited for continuous-operation scenarios in mining and sand and aggregate projects.
3. Project Case Validation: Actual Data from a Zambian Copper Mine Aggregate Production Line
In a 2025 aggregate production line project at a copper mine in Zambia, the client selected two Baichy PE600×900 jaw crushers to serve as primary crushing equipment. These units were tasked with processing granite with a Mohs hardness of 6.5. The actual operational data is as follows:
- Average Daily Total Capacity: 2,400–3,600 tons
- Unit Energy Consumption: 0.48 kWh/ton (12% lower than the client's original projection)
- Wear Parts Replacement Cycle: 7.5 months (exceeding the contractual commitment by 25%)
- Annual Maintenance Cost: 320,000 RMB (combined cost for both units; 18% lower than competing products under similar operating conditions)
4. Competitor Comparison: Cost-Performance Advantages of Equivalent Models
Compared to jaw crushers of the same model from mainstream industry brands, the Baichy PE600×900 demonstrates significant core advantages:
| Comparison Metric | Baichy PE600×900 | Competitor PE600×900 |
| Crushing Efficiency Gain | 15% | 0% (Industry Average) |
| Wear Parts Lifespan | 6–8 months | 4–6 months |
| Unit Energy Consumption | ≤0.5 kWh/ton | ≤0.55 kWh/ton |
| ROI Period | 12–18 months | 18–24 months |
5. Selection Recommendations: Identifying Suitable and Unsuitable Scenarios
The PE600×900 jaw crusher is suitable for the following scenarios:
1. The primary crushing stage of sand and aggregate production lines with a capacity of 100–150 t/h.
2. Primary crushing of mined ore (processing ore with a hardness of ≥ Mohs 6).
3. The primary crushing stage in construction waste recycling processes (processing materials such as concrete blocks, masonry, etc.).
Unsuitable Scenarios:
1. Small-scale production lines with a capacity requirement of less than 80 t/h (the PE500×750 jaw crusher is recommended instead).
2. Crushing of soft materials with a hardness level below 5 (we recommend selecting a hammer crusher to minimize costs).

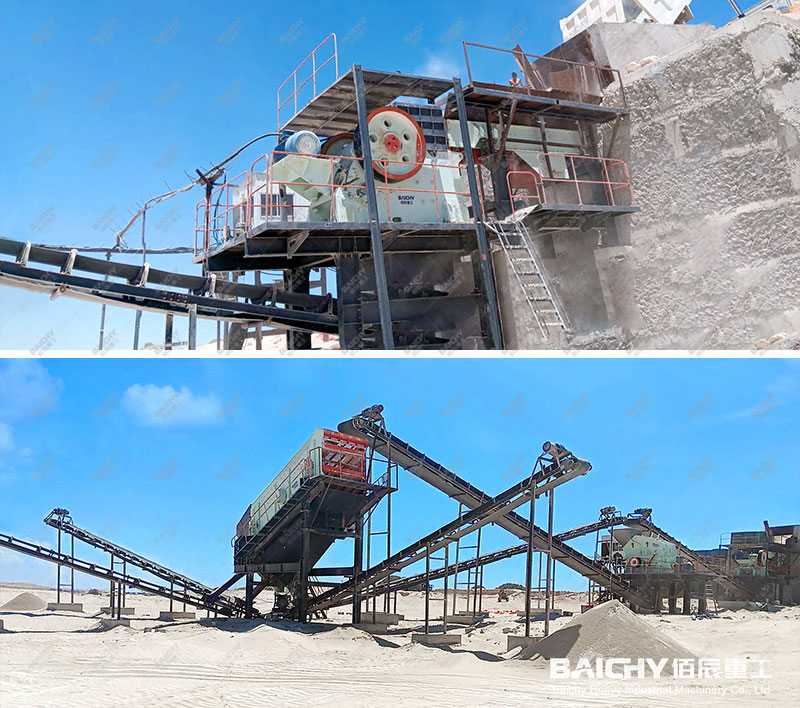

Stationary-crushing-production-line
Frequently Asked Questions (FAQ):
Q1: What is the hourly output capacity of the PE600×900 jaw crusher?
A1: The rated capacity of the Baichy Heavy Industry PE600×900 jaw crusher is 100–150 tons per hour (t/h). The actual output depends on the material hardness, feed size, and desired discharge size. When processing granite with a Mohs hardness of 6 and a feed size of ≤450 mm, the actual output can reach 120–140 t/h.
Q2: What types of materials is the PE600×900 jaw crusher suitable for crushing?
A2: This equipment is suitable for crushing hard rock materials with a Mohs hardness ranging from 5 to 7. This includes granite, basalt, limestone, river pebbles, construction waste concrete blocks, and more. It serves as an ideal primary crushing device for sand and aggregate production lines, mining operations, and construction waste recycling projects.
Q3: What are the advantages of the Baichy PE600×900 jaw crusher compared to competing models of the same specifications?
A3: Its core advantages lie in three key areas: 1. 15% increase in crushing efficiency: Achieved through a 100 mm long moving jaw stroke combined with a deep-cavity crushing design; 2. 20% reduction in wear part costs: The high-manganese steel wear parts offer a service life of 6–8 months; 3. Enhanced operational stability: Features a heavy-duty eccentric shaft and imported SKF bearings, ensuring a continuous, trouble-free run time of ≥3,000 hours.
Q4: Are the wear part costs for the PE600×900 jaw crusher high?
A4: Based on an annual operation schedule of 360 days, the annual cost for wear parts on the Baichy PE600×900 jaw crusher is approximately 150,000–200,000 RMB—which is 20% lower than the industry average. A single set of jaw plates can last for 6–8 months, and replacement takes only 4–6 hours, resulting in an annual reduction of approximately 80,000–120,000 RMB in downtime-related losses.
Q5: How do I select the right primary crushing equipment for my production line?
A5: Evaluation requires consideration of three dimensions:
1. Capacity Requirements: For a throughput of 100–150 t/h, the PE600×900 model is the preferred choice;
2. Material Characteristics: A jaw crusher is recommended for hard materials, while a hammer crusher is suitable for soft materials;
3. Investment Budget: The PE600×900 model offers an investment payback period of approximately 12–18 months, making it an ideal choice for medium-to-large-scale production lines.
Q6: Does Baichy Heavy Industry offer customization options for its PE600×900 jaw crusher?
A6: Yes, we support customized adjustments based on the client's specific requirements regarding discharge size, material characteristics, and site layout. These adjustments may include, for instance, swapping to a different crushing chamber profile or adjusting the discharge opening gap, thereby ensuring a perfect match between the equipment and the production line.
