Portable Crusher Machine | Mobile Crusher
The title "Portable Crusher Tracked Station" aptly summarizes the core trend in modern mining crushing equipment development: mobility and integrated design. It's not a single piece of equipment, but a complete mobile production line integrating feeding, crushing, screening, and conveying modules onto a self-propelled tracked chassis. In the mining industry in 2026 (Year of the Horse), this equipment, with its superior flexibility and high efficiency, is profoundly changing the operational modes of stone mining and construction waste treatment, becoming key equipment for improving project economic benefits and environmental standards.
1. What is a Tracked Mobile Crushing Station?
A tracked mobile crushing station is a highly integrated rock crushing and screening unit. Driven by self-propelled tracks, it can move freely within the work site without tractor-trailer towing, even crushing while moving. The core system typically includes a feeder, crusher (jaw crusher, impact crusher, cone crusher, etc.), vibrating screen, and belt conveyor. All components are mounted on the same heavy-duty tracked chassis and powered by an onboard diesel engine or an external power source.
Main Workflow
1. Feeding: Raw materials are evenly fed into the crusher using a vibrating feeder.
2. Crushing: The main crusher (such as a jaw crusher) performs primary crushing, followed by secondary or fine crushing equipment.
3. Screening and Conveying: The crushed material is graded by a vibrating screen. Qualified material is output and stacked by a belt conveyor, while larger particles are returned to the crusher for further processing.

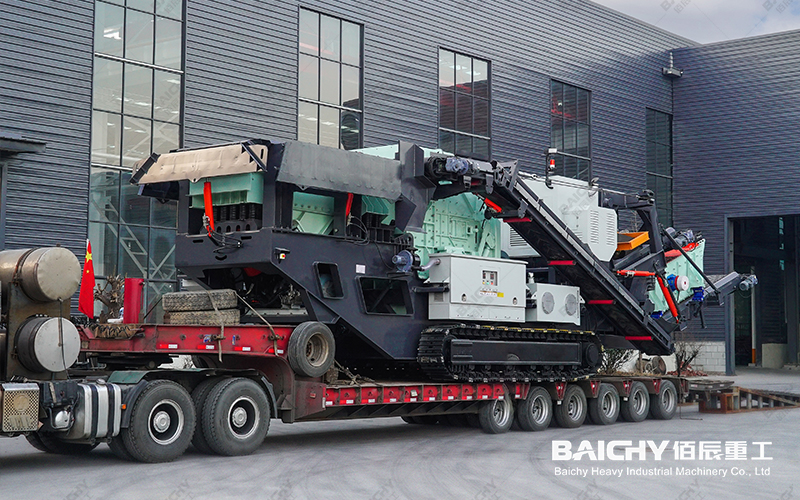

Tracked mobile station delivery
2. Why Choose Our Tracked Mobile Crushing Station?
In the competitive market of 2026, our portable tracked crushing station possesses the following irreplaceable advantages:
Unparalleled Flexibility and Convenience
The equipment boasts excellent mobility, allowing for rapid relocation to different work sites and even between different projects. This eliminates the complex infrastructure construction and equipment dismantling and installation time required for fixed production lines, truly realizing "where the raw materials are, the production line is."
Significantly Reduced Overall Operating Costs
• Reduced Transportation Costs: Crushing is performed directly at the material source or construction site, greatly reducing the transportation distance and costs.
• Reduced Installation Costs: No piling or concrete foundation construction required; production can begin immediately upon arrival.
• Optimized Labor Costs: High degree of automation and integrated control system reduce the number of operators needed.
Adaptable to Complex Terrain and Environmental Requirements
A robust tracked chassis enables it to adapt to rugged and soft mining terrain. The enclosed design can be equipped with dust and noise reduction systems, making it easier to meet increasingly stringent environmental regulations and achieve green production.
Rapid Start-up and High Return on Investment
Once the equipment arrives on site and is powered on, production can begin in a short time, resulting in rapid capital recovery. Its versatility (handling multiple materials) and reliability ensure long-term stable high output, bringing substantial returns to investors.
3. Application Case: Successful Practices Demonstrate Strength
Case Study: A Construction Waste Resource Utilization Project in East China
The client faced a large amount of construction waste requiring on-site resource utilization, with limited space and stringent environmental requirements. We configured a two-stage tracked mobile crushing station combining a jaw crusher and an impact crusher for them. After the equipment arrived on site, it quickly commenced operations, crushing and screening construction waste such as concrete blocks and bricks into recycled aggregates of different specifications, which were directly used for the subbase of on-site roads. The project achieved "zero external transportation," low noise, and low dust, yielding significant economic and social benefits and perfectly aligning with the development theme of the circular economy by 2026.
4. Recommended Equipment
Based on your specific needs, we recommend the following combinations:
1. Tracked Mobile Jaw Crusher: Suitable for primary coarse crushing of various rocks, with large feed size and strong crushing force.
2. Tracked Mobile Impact Crusher: Suitable for medium-fine crushing of medium-hard materials, producing good finished particle shape, commonly used in building stone and building material recycling.
3. Tracked Mobile Cone Crusher: Suitable for fine crushing of high-hardness materials, with high production efficiency and long wear part life.
4. Tracked Mobile Screening Station: Can be integrated with various crushing stations to achieve precise material grading.
5. Frequently Asked Questions (FAQ)
Q1: What is the difference between a tracked mobile crushing plant and a wheeled mobile crushing plant?
A1: Tracked mobile crushing plants use a tracked chassis, providing strong driving force and low ground pressure, making them adaptable to more complex, rugged, and even soft terrain. While their movement speed is slower, their site adaptability is unparalleled. Wheeled mobile crushing plants require trailer towing for relocation. They move more quickly on flat ground, but require a high degree of site flatness.
Q2: What is the power source for the equipment? Can it be purely electric?
A2: The standard configuration typically uses a high-performance diesel engine, providing stable independent power. With technological advancements, we can also provide "diesel-electric dual-power" or "direct mains power" solutions. In fixed or semi-fixed operation environments with a stable industrial power supply, external mains power can be used for drive, achieving zero emissions, low noise, and low-cost operation—a major technological highlight for 2026.
Q3: What is the production capacity of a tracked mobile crushing plant?
A3: Production capacity depends on the model of the core crusher and the characteristics of the materials being processed. Our product line is extensive, with hourly output ranging from tens to hundreds of tons. Our engineers can recommend the most suitable model and provide precise capacity assessments based on your specific material hardness, feed particle size, and target finished product specifications.
