60 T/H Crushing Production Line Solution
The Core Combination of a High-Efficiency Medium-Sized Crushing Production Line
In the mining crushing industry, building a stable, efficient, and high-return production line is the core objective of every owner. For a medium-sized project with a capacity of 60 tons per hour, choosing the PE500×750 jaw crusher as the primary crushing equipment is a reliable solution proven by the market over a long period. However, to fully realize the potential of the entire production line, the selection of secondary crushing equipment is crucial. This article will analyze in depth why the PF1010 impact crusher (or a similar model) is the perfect partner for the PE500×750 to achieve a capacity of 60 tons/hour.

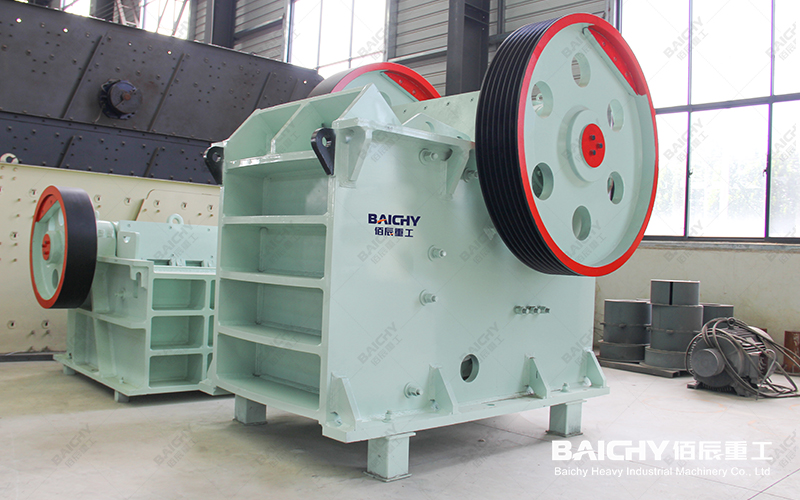

PE500x750 Jaw Crusher
I. Why Choose the PF1010 Impact Crusher as the Secondary Crushing Equipment?
1. Perfect Capacity and Particle Size Matching
The maximum feed particle size of the PE500×750 jaw crusher is approximately 425mm, and the discharge port adjustment range is 50-100mm. Its output is perfectly suited as the feed material for the PF1010 impact crusher. 1. **Flat Processing Capacity:** The PF1010 impact crusher is designed to process 50-80 tons/hour, perfectly matching the 60-ton/hour supply from the upstream unit, avoiding uneven equipment operation and ensuring smooth and stable production.
2. Superior Product Particle Shape and Versatile Finished Product
The impact crusher utilizes a combination of "stone-on-stone" and "stone-on-iron" crushing principles. The high-speed rotating rotor impacts the material, causing it to repeatedly collide and crush within the crushing chamber. This working principle results in excellent particle shape in the finished product, predominantly cubic with low needle-like and flaky content. This is a significant quality advantage for commercial concrete plants, highways, railways, and other construction projects requiring high-standard aggregates, significantly enhancing the market value and competitiveness of the finished product.
PF1010 Impact Crusher
3. Flexible Adjustment and Multi-functionality
The PF1010 impact crusher allows for easy adjustment of the rotor speed and the gap between the impact plates and hammers, easily changing the output particle size to meet the perse aggregate requirements of customers, ranging from 10-40mm. This flexibility enables a single production line to handle perse orders, enhancing market adaptability.
II. Core Advantages of this Combined Solution
• High Cost-Effectiveness Investment: Both the PE500×750 and PF1010 are classic models with mature technology and large market share. Equipment procurement costs are reasonable, maintenance is convenient, spare parts supply is ample, and the total investment payback period is short.
• Stable and Reliable Operation: The combination of these two crushers has been tested in numerous real-world projects, resulting in a low equipment failure rate. This ensures continuous and stable production, effectively reducing the risk of unexpected downtime during operation.
• Outstanding Finished Product Quality: Compared to using a two-stage jaw crusher or a jaw crusher + cone crusher configuration (cone crushers offer better particle shape but are more expensive), this solution offers a more cost-effective approach while maintaining good particle shape, making it particularly suitable for projects with requirements on stone particle shape but a moderate budget.
• Easy Maintenance: The impact crusher has a simpler structure than a cone crusher, and replacing easily worn parts such as hammers and impact liners is easier, helping to reduce long-term maintenance costs and labor time.
III. Practical Application Case Study
A medium-sized construction aggregate production project used limestone as raw material, with a compressive strength of approximately 150 MPa. The client adopted a classic three-stage closed-loop process: a feeder + a PE500×750 jaw crusher + a PF1010 impact crusher + a vibrating screen. Since its commissioning, the production line has consistently achieved a production capacity of over 65 tons per hour. The produced 20-31.5mm aggregate particles are full-shaped, fully meeting the material standards for the local high-speed rail project, and has received unanimous praise from the client and construction team.
IV. Equipment and Solution Recommendations
• Recommended Pre-feeding Equipment: To ensure uniform feeding and avoid clogging of the jaw crusher chamber, a ZSW380×96 vibrating feeder is recommended.
• Supporting Screening Equipment: It is recommended to use 2-3 3YK1548 or equivalent circular vibrating screens to form a closed-loop circulation system for accurate grading of the finished material.
• Upgrade Options: If the material is highly abrasive (e.g., granite, basalt), to reduce hammer wear costs, the secondary crusher can be replaced with a hydraulic cone crusher, such as the PYB1200 or equivalent model, but this will require a corresponding increase in investment budget.
V. Frequently Asked Questions (FAQ)
Q1: Besides the PF1010, are there other models that can be matched?
A: Of course. Impact crusher models with the same processing capacity as the PF1010 can be considered, such as the APK1010 and BP1010. The key is to confirm whether their feed particle size (capable of handling PE500×750 output) and hourly capacity (50-80 tons/hour range) match. We can provide specific model matching services for customers.
Q2: What is the final product particle size range for this configuration?
A: By adjusting the discharge gap of the PF1010 impact crusher and using different screen sizes, this production line can stably produce finished aggregates of various sizes, including 0-5mm (stone powder/sand), 5-10mm, 10-20mm, and 20-31.5mm, depending on the configuration of the screening system.
Q3: What is the lifespan of the impact crusher's wear parts (such as hammer plates)? Are the wear costs high?
A: The lifespan of the hammer plates mainly depends on the hardness and abrasiveness of the material being crushed, as well as the production line's operating time. For medium-hardness limestone, a set of high-quality alloy hammer plates typically lasts for hundreds of hours or more. We offer hammer plates in various materials (such as high-chromium cast iron and wear-resistant alloy steel) to balance cost-effectiveness and wear resistance, and provide rapid spare parts supply to ensure your operating costs are controllable.
