Crawler-Mounted Mobile Jaw Crushers in the Philippines
Baichy is currently undertaking a pebble crushing project in the Philippines. The equipment in use is a crawlermounted mobile jaw crushing station manufactured by Baichy Heavy Industry—an "iron beast" equipped with its own crawler chassis, capable of climbing slopes and navigating riverbeds.
I. What kind of crushing equipment is this?
This is not the kind of fixed production line that requires pouring concrete foundations or laying extensive power cables. Instead, it is a highly integrated mobile unit:
Crawler Chassis: Much like a tank, it can traverse muddy terrain and steep ramps. In the Philippines—a region characterized by heavy rainfall and muddy riverbanks—wheeled vehicles are prone to getting stuck, whereas this machine remains exceptionally stable.
Jaw Crusher Main Unit: The primary crushing unit features a jaw crusher. Equipped with a large "mouth" (feed opening) at the front, it is specifically designed to "devour" large, hard rocks. By utilizing the principle of compression between two jaw plates, it excels at processing materials of high hardness.
SelfSufficient Operation: It is powered by an onboard diesel engine, eliminating any concerns about a lack of grid electricity in remote mountainous areas. With the simple press of a button on a remote control, the machine can maneuver itself into position and commence crushing operations autonomously.

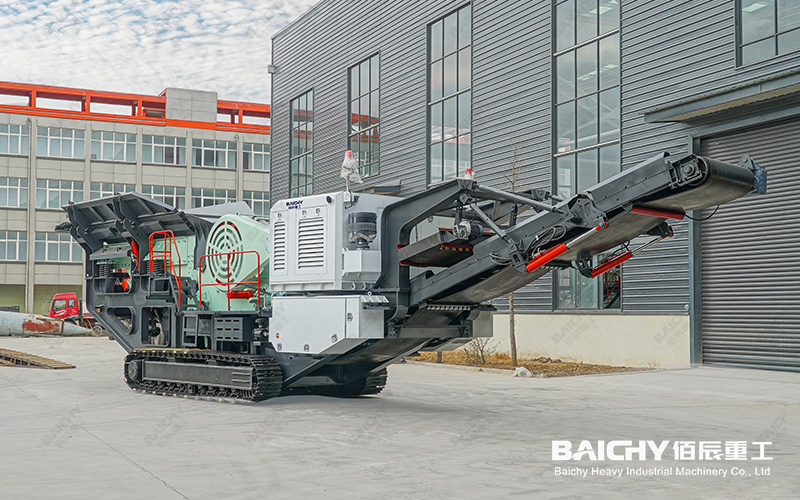

Crawler Mobile Crushing Station
II. What are the operating conditions for this equipment?
Rather than being deployed in a flat, conventional quarry, this equipment was driven directly into the heart of a remote mountain region, right alongside a riverbed.
Environment: The Philippines features a hot and humid climate, and the riverbanks are laden with hard pebbles—accumulated over years of sedimentation—that possess extremely high Mohs hardness ratings. Conventional crushing equipment in such environments is prone to jamming and rapid wear.
Challenges: The work site is narrow, the ground is soft, and the equipment requires frequent relocation. A traditional fixed crushing line would take at least half a month just to construct the foundations; this "beast," however, can simply be driven directly onto the site and put to work immediately.
III. What is the primary function of this equipment?
The client purchased this machine for three key reasons: efficiency, durability, and peace of mind.
1. Processing Hard Materials: It tackles hard pebbles that ordinary hammer crushers wouldn't dare touch. By utilizing a hydraulic system to precisely adjust the discharge opening, it steadily crushes these tough materials to produce aggregates ranging from 0 to 80 mm—ready for immediate use in infrastructure projects or sand production.
2. Withstanding Rigorous Use: Baichy has equipped this machine with a reinforced frame and highmanganese steel jaw plates, specifically designed to withstand highly abrasive materials. As the client remarked: "In the past, we had to replace spare parts every few days; now, we can run the machine continuously for a full month without needing to shut down for maintenance or repairs."
3. Quick Returns: Since there is no need to construct a permanent plant, the unit can begin producing processed material the very day it arrives onsite. Our clients have crunched the numbers: the savings on transportation and infrastructure costs alone allow them to recoup the entire price premium of the equipment within just six months.
Simply put, in regions like the Philippines—characterized by complex terrain and extremely hard rock—this crawlermounted jaw crusher serves as our clients' personal "moneyprinting machine." Wherever the rock is hardest, that is precisely where it rolls in to "chew" through it.
Why Choose the Baichy CrawlerMounted Jaw Crushing Station?
1. It is the "AllTerrain Tank" of the Mining World
The terrain in the Philippines is highly variable; traditional stationary production lines would require months just to complete the necessary infrastructure work. In contrast, the Baichy crawler station features a fully hydraulicdriven chassis that remains undaunted by muddy or rugged ground. An excavator can clear a path one moment, and the crushing station can move into position the very next—truly realizing the concept that "wherever the ore is, that is where the factory is."
2. It is the "Terminator" of Hard Rock and Cobblestones
Cobblestones are known for their high hardness and strong abrasiveness, making them a true "tough nut to crack" in the world of crushing. We have equipped this unit with a highperformance, highmanganese steel jaw crusher and optimized the crushing chamber profile to ensure a large feed intake and uniform discharge. Integrated seamlessly with its feeding and conveying systems, the machine directly transforms large raw boulders into highquality engineering aggregates.
3. The "Actuary" for Cost Reduction and Efficiency Gains
Zero Infrastructure: No need to pour concrete foundations; the unit is ready for installation upon arrival and can be put into production within just a few hours.
Freight Savings: The equipment drives directly to the raw material stockpile, completely eliminating the massive expense typically associated with transporting raw ore.
Intelligent Operation: Features remote control capabilities, requiring minimal onsite labor and significantly reducing operational costs.
Actual Operational Results
Operation Site: Philippines (Project Site)
Processed Material: Highhardness river pebbles/cobblestones
Operational Feedback: The equipment runs smoothly, wear parts demonstrate exceptional longevity, and the finished product features a rounded particle shape that perfectly meets local standards for road construction and building materials.
Baichy Heavy Industry: Tailored Crushing Solutions Just for You
Whether on the islands of Southeast Asia or at major mining sites across the globe, Baichy Heavy Industry remains committed to creating value through "mobility." If you are facing challenges such as site limitations, frequent site transfers, or processing hard materials, Baichy's Crawler Mobile Crushing Station is your ultimate choice.
📩 DM us now to receive detailed specifications and a customized quotation for the exact model used in the Philippines project!
🌐 Official Website: www.baichychina.com
📞 Inquiry Hotline: 0086 15093222637
IV. Core Advantages: Mobile Station vs. Fixed Line
To provide you with a clear, intuitive understanding of your potential Return on Investment (ROI), we have conducted a comprehensive comparison between Baichy's Crawler Mobile Crushing Station and traditional fixed production lines:
| Comparison Dimension | Traditional Fixed Production Line | Baichy Crawler Mobile Crushing Station | Customer Value |
| Initial Preparation | Requires ground hardening and pouring of concrete foundations | No infrastructure required; ready for installation upon arrival | Saves hundreds of thousands in infrastructure costs; shortens project timelines |
| Installation Cycle | 1–2 months (including civil works and commissioning) | Ready for production in just 2–4 hours | Seize market opportunities ahead of competitors; achieve rapid capital recovery |
| Relocation Costs | Requires disassembly and transport; timeconsuming with high material loss | Selfcontained tracks; onetouch relocation | Perfectly suited for scattered mining sites in the Philippines; zero migration costs |
| Transport Expenses | Requires numerous trucks to haul raw ore to the processing plant | Processing takes place at the source; materials remain off the ground | Reduces onsite transport costs by over 80% |
| Environmental Adaptability | Demands a high degree of site flatness/leveling | Strong climbing capability; impervious to rugged and muddy terrain | Perfectly suited for the rainforest and riverbed environments typical of the Philippines |
V. Philippines Project: OnSite Operational Results
This project is situated at a major infrastructure aggregate supply station in the Philippines. It primarily processes highhardness river pebbles sourced locally. The following is an analysis of the actual operational data:
| Operational Metric | Actual Parameters / Results |
| Processed Material | Highhardness river pebbles (Mohs hardness: 6–8) |
| Feed Size | Max. 500 mm – 600 mm |
| Finished Product Specifications | 0–10 mm, 10–20 mm, 20–30 mm (Adjustable upon request) |
| Daily Operating Hours | 10 – 12 hours |
| Automation Level | Full hydraulic control + Wireless remote control |
| Wear Parts Performance | Highmanganese steel wear parts; service life increased by 20% compared to similar products |
| Comprehensive Assessment | Wellrounded particle shape; optimal gradation; fully complies with local construction standards for highgrade highways |
VI. OnSite Photography: A Direct Look at Our Robust Capabilities
(Insert the two excellent onsite photos you provided here)

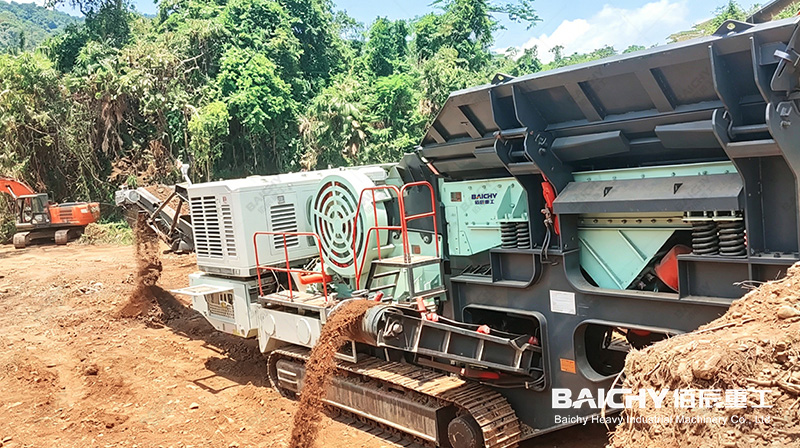

Image 1 (Panoramic View): Showcases Baichy Heavy Industry equipment operating stably against a backdrop of Southeast Asian vegetation, featuring substantial aggregate stockpiles and effective dust control.

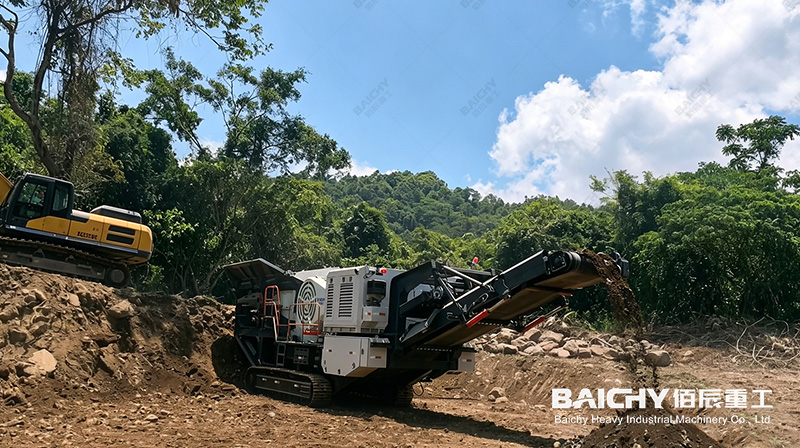

Image 2 (Feeding View): The demonstration highlights the excavator's efficient feeding capabilities, showcasing the equipment's spacious feed opening and its effortless ability to process largesized rocks.
Frequently Asked Questions
Q1: Can this equipment process the extremely hard river pebbles/cobblestones found locally in the Philippines?
A: Absolutely. Baichy Heavy Industry’s crawlermounted mobile crushing station is equipped with a deepcavity jaw crusher specifically designed for hard rock applications. Its moving and fixed jaw plates are cast from highquality highmanganese steel; combined with powerful crushing dynamics, the unit can effortlessly process hard rock materials with a Mohs hardness rating of 7 or higher, while producing finished products with excellent particle shape.
Q2: Given the muddy terrain prevalent during the rainy season in the Philippines, is there a risk of the crawlermounted mobile station getting stuck or slipping?
A: No. We utilize a highstrength, fully hydraulically driven crawler chassis characterized by low ground pressure and high traction force. This design enables the unit to traverse steadily across the muddy surfaces, soft dirt roads, or slopes of up to 30 degrees commonly encountered in Philippine mining areas, thereby achieving true "allterrain" operational capability.
Q3: How convenient is the local supply of spare parts and aftersales maintenance support in the Philippines following a purchase?
A: Baichy Heavy Industry maintains a comprehensive global aftersales service network. This equipment features a modular design, and its core wear parts (such as jaw plates and liner plates) adhere to standard specifications, allowing us to provide rapid crossborder logistics support. Furthermore, the equipment is equipped with an intelligent monitoring system that supports remote technical diagnostics, ensuring that downtime at your job site is minimized.
