In the field of mining crushing, choosing the right equipment is crucial for project success and maximizing economic benefits. Jaw crushers, as core coarse crushing equipment, are mainly pided into two categories: stationary and mobile tracked types. Many customers face a core question when making their selection: what are the advantages of tracked jaw crushers compared to stationary jaw crushers? This article will provide an in-depth analysis from multiple perspectives to help you make an informed investment decision.
I. Equipment Overview: Definition and Core Differences
Before delving into the comparison of advantages, we first need to clarify the basic concepts of the two types of equipment.
What is a Stationary Jaw Crusher?

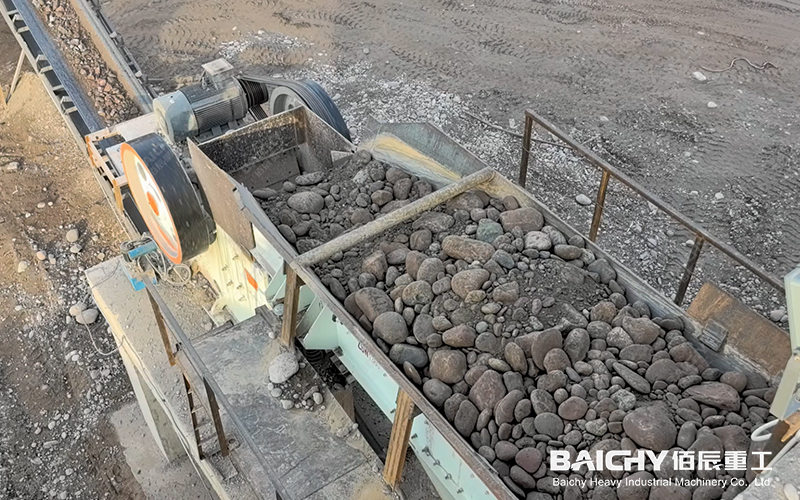

stationary jaw crusher
A stationary jaw crusher is the most traditional and oldest type of crushing equipment. It is typically installed on a solid concrete foundation, forming the core coarse crushing unit of a stationary crushing production line. Materials need to be transported from the mining site to the fixed crushing station for processing using trucks or other transportation vehicles.
What is a Tracked Jaw Crusher?
Tracked Jaw Crusher
A tracked jaw crusher, also known as a mobile jaw crushing station, is a mobile crushing unit that integrates feeding, crushing, and conveying systems. Equipped with a hydraulically driven tracked walking device, it boasts high mobility and rapid relocation capabilities, enabling direct deployment to material stockpiles or mining faces for operation, achieving "crushing wherever the raw materials are."
II. In-depth Analysis of Core Advantages: Five Key Advantages of Tracked Jaw Crusher
Compared to stationary equipment, the advantages of tracked jaw crushers are mainly reflected in flexibility, cost, and adaptability.
2.1 Unparalleled Flexibility and Convenient Relocation
This is the most significant advantage of tracked equipment. It requires no complex foundation construction; once on-site, it can be quickly put into production upon connection to power. For multi-site, dispersed mines or urban construction waste treatment projects, one unit can serve multiple sites, greatly improving equipment utilization.
2.2 Significantly Reduced Operating and Initial Investment Costs
• Reduced Transportation Costs: Moving the equipment next to the material stockpile avoids long-distance transportation of large quantities of raw materials, significantly reducing trucking costs.
• Reduced Infrastructure Investment: It eliminates the civil engineering costs and time required for concrete foundations, steel frame structures, etc., required for stationary equipment.
• Optimized Manpower: The entire mobile crushing unit can typically be operated by a single person or a small team.
2.3 Excellent Terrain and Environmental Adaptability
Its robust tracked chassis allows it to adapt to rugged mine roads, soft soil, and even slopes, overcoming the stringent site flatness requirements of fixed production lines.
2.4 Rapid Deployment, Immediate Output Benefits
From equipment transportation to site to discharge, the tracked jaw crusher can typically be ready within hours, achieving "ready to use immediately." This is crucial for projects with tight schedules or requiring rapid trial production.
2.5 Integrated Intelligent Control and Environmental Protection
Modern tracked jaw crushers integrate electrical control systems, iron separators, and dust suppression spray devices, offering a high degree of intelligent operation. They are also easy to install enclosed hoods and dust collection equipment, better meeting current stringent environmental requirements.
III. Comparison Overview: Which is More Suitable?
To illustrate this more clearly, we compare the two types of equipment across key dimensions using the table below:
| Comparison Dimensions | Tracked Jaw Crusher | Stationary Jaw Crusher |
| Mobility | Extremely high, self-contained track | None, fixed installation |
| Installation Cycle | Short (hours to days) | Long (weeks to months, including civil engineering) |
| Suitable Sites | Numerous and scattered mining sites, demolition sites, narrow construction sites | Large, stable quarries, concentrated mining sites |
| Initial Investment | Higher unit price, but saves significant civil engineering costs | Lower unit price, but higher total civil engineering and installation costs |
| Operating Costs | Fuel/electricity costs, but extremely low raw material transportation costs | Stable electricity costs, but high proportion of raw material transportation costs |
| Capacity Scale | Covers small to large scale | More suitable for medium to large-scale production lines |
| Long-Term Planning | Flexible, equipment can be adjusted or sold at any time | Fixed, production line modifications are costly |
IV. Application Case Sharing: Successful Practice of Tracked Jaw Crusher
Case Study: Segmented Mining Project of a Large Granite Mine in Russia
This ore body is widely distributed, requiring multi-stage mining of multiple working faces. The client originally planned to build a fixed production line, but faced problems with long raw material transportation distances and huge initial investment.
• Solution: Adopting a large tracked jaw crusher.
• Implementation Results: The equipment moves with the advance of the mining face, always operating within a 500-meter range of the blast pile. The crushed semi-finished stone is transported to the centralized processing area via a matching mobile conveyor belt. This saved more than 60% on raw material short-haul truck costs, and shortened the project's payback period by approximately 40%.
V. How to Choose? Our Recommended Equipment
The key to selection lies in assessing project needs:
• Choose a tracked jaw crusher if: your project has a short construction period, dispersed operating points, requires frequent site relocation, or you wish to minimize raw material transportation costs.
• Choose a stationary jaw crusher if: you have a concentrated mine with abundant reserves that can be mined long-term (over 10 years), you are pursuing maximum capacity and minimum energy consumption per ton, and site conditions allow for permanent construction.
Our company provides a full range of jaw crusher solutions, from high-performance stationary jaw crushers to intelligent tracked mobile crushers, all customizable to your material characteristics, capacity requirements, and investment budget.
VI. Frequently Asked Questions (FAQ)
Q1: Can the capacity of a tracked jaw crusher meet the needs of large mines?
A: Absolutely. Modern large-scale tracked jaw crusher stations can process 500-800 tons per hour or even higher, sufficient to meet the coarse crushing needs of most medium-sized mines. For very large mines, a model of "multiple tracked mobile crushers serving a centralized medium and fine crushing production line" can be adopted, combining flexibility and economies of scale.
Q2: Is the maintenance of tracked equipment more complex and expensive than that of stationary equipment?
A: Not at all. The core crusher structures of both are similar, and their maintenance items are basically the same. The tracked walking mechanism requires periodic maintenance, but this is a routine item. Its advantage lies in the fact that the equipment can be moved to a flat, convenient maintenance area for centralized maintenance, which actually improves the safety and efficiency of maintenance operations.
Q3: Besides fuel, can a tracked jaw crusher be connected to mains power?
A: Yes. Most tracked jaw crushers have a "dual-fuel" mode. When site conditions permit and a stable power supply is available, switching to external mains power can significantly reduce fuel costs for continuous production, making operation more economical and environmentally friendly.
