Mobile impact crushing plant (tire-mounted type) at a customer's site.
In the rapidly changing field of aggregate production and construction demolition and recycling, equipment flexibility and production efficiency often determine the cost and success of a project. The mobile impact crusher is an outstanding solution designed to address this core contradiction. It perfectly embodies the modern, efficient operational philosophy of bringing the production line to the material source, rather than transporting the material source to the production line. As a mobile crushing equipment manufacturer with 20 years of experience in the industry, we will provide a comprehensive analysis of the appeal of this star product in this article.
| Key Words | High-Capacity Crushing |
|---|---|
| Product Model | Mobile Impact Crusher |
| Feed Size | 0-500mm |
| Motor Power | 60-300kw |
| Capacity | 30-600 t/h |
| Core Equipment | PF Impact Crusher |
| Brand | Baichy Heavy Industry |
| Please note: The above table data is for reference only. For specific information, please contact us. | |
In-depth Analysis: Why Mobile + Impact?
The name mobile impact crusher itself embodies two key technological features:
1. Impact Crushing Principle: It uses impact energy for crushing. The material is broken down by the impact of the hammer and the collision with the impact plate, producing excellent cubic particle shapes, which are ideal for high-quality aggregate production. Its discharge particle size is flexibly adjustable, making it an ideal choice for producing construction sand and gravel, and highway surface materials.
2. Mobile Vehicle-Mounted Integration: The feeding, crushing, screening, and conveying systems are highly integrated onto one or more vehicle chassis. This design completely eliminates the constraints of fixed production lines on site and infrastructure, giving the equipment the ability to move at a moment's notice.
The combination of these two features creates an all-rounder that can guarantee high production capacity and excellent particle shape, while also enabling rapid relocation and flexible deployment.
Structural-diagram-of-a-wheeled-mobile-impact-crushing-plant
Overview of Core Equipment Advantages
Based on our 20 years of R&D and field experience, the core advantages of modern high-performance mobile impact crushers can be summarized as follows:
• Extreme Mobility and Convenience: Utilizes crawler or wheeled walking mechanisms, especially the crawler type, which is highly adaptable to complex terrain. It can be remotely controlled for movement, allowing for quick deployment or folding of the equipment on-site. No disassembly is required during relocation; it can be directly towed away by a tractor, significantly reducing equipment disassembly and transportation time.
• Significant High-Capacity Performance: Equipped with a high-performance heavy-duty rotor, large-capacity crushing chamber, and powerful drive system, the equipment ensures continuous and stable output of high-yield finished materials when processing medium-hard materials (such as limestone and concrete waste), meeting the material supply needs of large-scale projects.
• Integrated and Flexible Configuration: Often采用 an integrated feeding-crushing-screening design, or forms a closed-loop system with a mobile screening plant. A single machine can form a complete production line, allowing for flexible adjustment of final product specifications as needed.
• Significant Overall Cost Savings: Eliminates the massive steel frame structure and foundation construction costs of fixed production lines. By reducing material transportation and on-site handling, it greatly reduces fuel and transportation costs, especially suitable for projects with multiple, dispersed work sites.
• Environmental Protection and Safety Upgrades: Advanced dust removal and noise reduction systems effectively control dust and noise at the construction site. The equipment operates more safely, and the operation and maintenance space is designed ergonomically, meeting modern green construction standards.

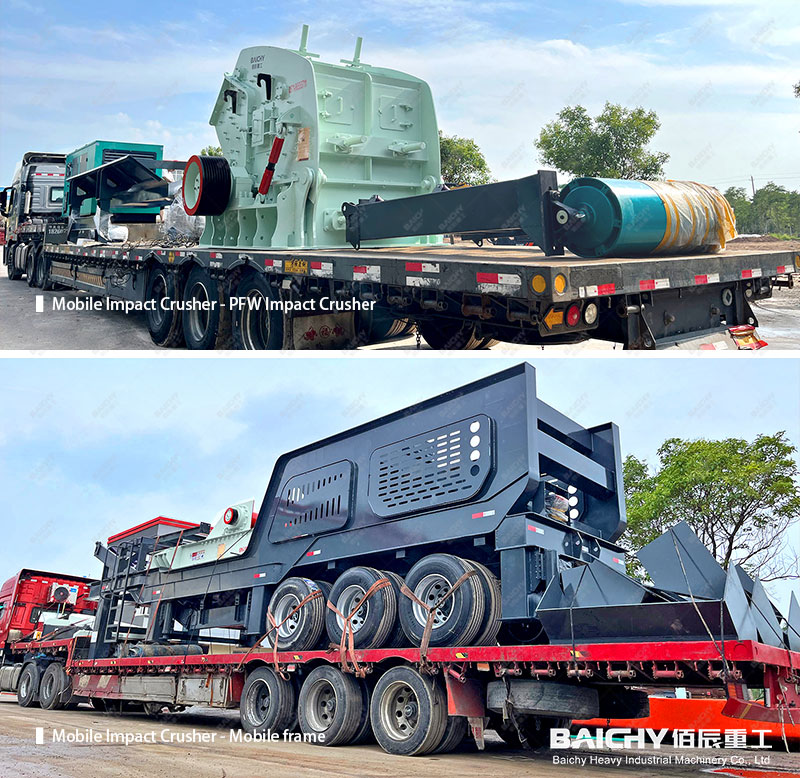

Mobile-impact-crusher-shipped
Successful Case Scenarios
Case Study 1: Urban Construction Waste Resource Utilization Project
In an urban renovation project in a major city, the site was narrow and environmental requirements were stringent. After deploying our medium-sized mobile impact crusher, it directly crushed the reinforced concrete blocks generated from demolition on-site. The equipment's excellent mobility allowed it to be quickly moved between different demolished buildings, and its high-capacity characteristics ensured the timely production of recycled aggregates, which were used for site backfilling and temporary road paving, achieving waste-to-resource conversion and zero waste transportation, resulting in both economic and social benefits.
Case Study 2: Sand and Gravel Aggregate Production at Multiple Mining Sites
A sand and gravel company had multiple dispersed mining sites in a mountainous area, each with limited reserves. Using a fixed production line was clearly uneconomical. After introducing our crawler-mounted mobile impact crusher, the equipment followed the mining face. After mining was completed at one site, it could quickly move itself or be towed a short distance to the next site, resuming production within a few hours. Its powerful crushing capacity ensured efficient production of qualified aggregates at each mining site, greatly improving asset utilization and return on investment. Related Equipment Recommendations
When choosing a mobile impact crusher, we recommend that customers consider the following aspects:
1. Material characteristics: Clearly define the hardness, size, and moisture content of the material to be crushed to determine the required hammer type and machine specifications.
2. Production capacity requirements: Select the appropriate model based on the project cycle and material supply needs, avoiding oversizing or insufficient capacity.
3. Frequency of movement: If frequent relocation is required (e.g., for engineering contractors), a crawler-type machine is the preferred choice; if the machine is mainly used in a fixed plant or for long-distance transfers between roads, a wheeled type may be more cost-effective.
4. Finished product requirements: If extremely high requirements for particle shape and gradation are needed, consider configuring pre-screening or forming a closed-loop system with a mobile screening plant.
Frequently Asked Questions (FAQ)
Q1: Can the production capacity of a mobile impact crusher truly compare to that of a fixed production line?
A1: With technological advancements, the core crushing unit of modern high-end mobile impact crushers is essentially the same as that of a fixed crusher of the same class. Its high production capacity can fully meet the needs of most medium and large-scale projects. The main difference lies in the continuity of raw material supply and finished product stacking, but with reasonable site layout and logistics management, a stable output similar to a fixed line can be achieved.
Q2: Is the maintenance of the equipment more complex than that of fixed equipment?
A2: On the contrary. High-quality mobile impact crushers integrate various modules into their design, and lubrication and inspection points are usually centralized and easily accessible. Routine maintenance, such as checking hammer wear and belt tension, is similar to that of fixed equipment. Due to its integrated design, it eliminates the need for maintenance of multiple independent conveyor belts, independent foundations, and other facilities.
Q3: Is it suitable for processing rebar in construction waste?
A3: Yes, impact crushers are commonly used for processing construction waste (such as reinforced concrete). Our equipment is usually equipped with rebar separation devices (such as magnetic separators) that can effectively separate most of the rebar before or after crushing, protecting the downstream conveyor belt. The equipment's rotor design also considers resistance to rebar entanglement and impact.
Q4: As a manufacturer with 20 years of experience, what are the unique features of your equipment?
A4: Our 20 years of experience are reflected in our unwavering commitment to equipment reliability. We utilize a more robust frame design, easily replaceable wear parts, a more intelligent fault diagnosis system, and hydraulic and electrical control systems optimized based on thousands of field applications worldwide. We offer not just a piece of equipment, but a reliable productivity solution built upon extensive experience.
