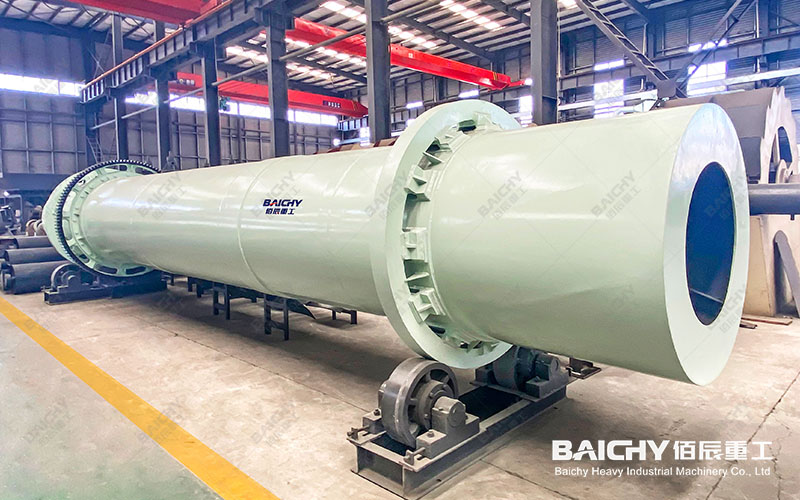

Mineral Rotary Dryer
Accidents involving mineral rotary dryers rarely occur as "spontaneous explosions"; instead, localized overheating and smoldering precede open flames—often without being detected by instrumentation in time. Baichy Heavy Industry advocates a safety strategy that combines temperature interlocks to manage visible overheating, CO monitoring to detect invisible smoldering, and explosion-proof structural designs to provide a controlled release path for energy. By employing a low-temperature, co-current flow process to keep the discharge temperature of most combustible materials below 90°C, fire hazards are transformed from "unknown risks" into "routine monitoring parameters."
I. Overview: Why Rotary Dryers Are "Fire Hazard Points" in Mineral Processing Lines
1.1 The Nature of the Risk: The Confluence of High Temperatures, Strong Airflow, and Combustible Materials
Rotary dryers inject hot air—reaching hundreds of degrees Celsius—directly into a rotating drum where it interacts with the material being tumbled within an enclosed space. When processing combustible minerals such as coal slime, lignite, sulfide concentrates, or coke breeze, the equipment effectively functions as a "confined-boundary combustor": the heat source and the material share the same airflow path, placing temperature and oxygen levels squarely within the flammable range. Dust explosions are chain reactions: an initial explosion kicks up accumulated dust, and a secondary explosion propagates through air ducts and dust collectors, exponentially amplifying the destructive impact.
1.2 The Reality of the Risk: Insights from Accident Statistics
Data from the U.S. Chemical Safety Board (CSB) study on combustible dust indicates that between 1980 and 2005, the United States experienced 281 combustible dust fire or explosion incidents, resulting in 119 fatalities and 718 injuries; in the majority of these cases, identifiable ignition sources existed prior to the incident. Regarding fires occurring inside the dryer, there are three primary ignition pathways:
• Localized overheating: Caused by material blockages, failure of the lifting mechanism, or airflow imbalances; heat accumulates in a stationary material bed, eventually exceeding the material's self-ignition temperature.
• Smoldering and self-heating: Low-rank coals (such as lignite and coal slime) have self-ignition temperatures as low as 250–300°C (varying by coal type). Pyrite in sulfur concentrates undergoes slow, exothermic oxidation at ambient temperatures; the spontaneous combustion of high-sulfur concentrates is classified as a Class B risk under the IMSBC Code. Drying effectively subjects these materials—which carry their own "ignition source"—to additional high heat.
• External ignition: Sparks introduced by the hot air stream, electrostatic discharge, or heat generated by mechanical friction.
Key Insight: Mineral drying explosions are almost invariably preceded by a sequence of "smoke followed by fire." Since smoldering is detectable, the use of an interlocking system based on both temperature and CO levels is fully justified.

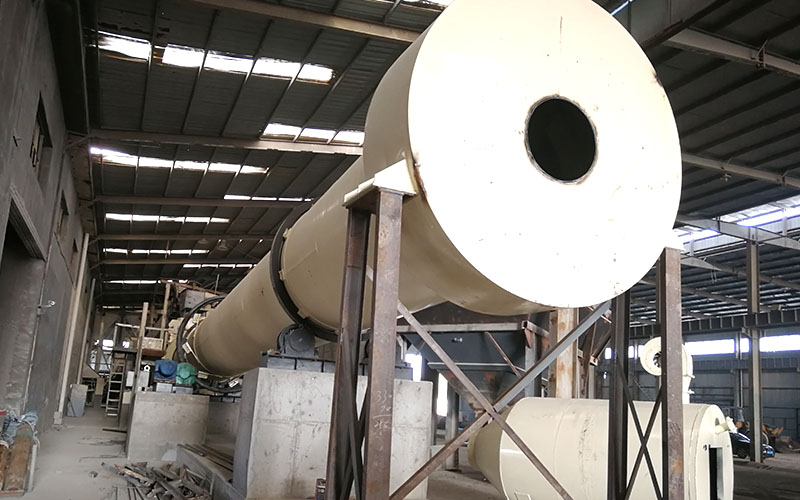

Single-drum dryer at a customer site
II. Temperature Interlock System: Tiered response to prevent overheating before ignition occurs
2.1 Monitoring locations: Multi-point layout rather than reliance on a single point
Typical monitoring points for Baichy mineral rotary dryers include: hot air inlet temperature, exhaust gas outlet temperature, discharge material temperature, and temperatures of the dryer shell and trunnion roller bearings. Relying on a single point can be misleading due to localized operating conditions (e.g., a surface thermometer might show no change even if the material bed is overheating internally). Therefore, a dual-criterion approach—"absolute threshold + trend analysis"—is employed: exhaust gas temperature must neither exceed the safe upper limit nor show a sustained upward deviation from the steady-state baseline.
2.2 Interlock Logic: Four-level response with automatic skip-level actions
| Response Level | Trigger Condition (Example) | Automatic Action |
|---|---|---|
| Level 1: Early Warning | Temperature approaching upper limit; CO concentration rising | Audible/visual alarm + Central control notification |
| Level 2: Load Reduction | Temperature exceeds limit or rises continuously | Reduce fuel / inlet air temperature; lower rotation speed and feed rate |
| Level 3: Shutdown | Temperature or CO reaches interlock setpoint | Cut off heat source; coordinated fan shutdown |
| Level 4: Protection | Confirmed fire / smoldering inside the drum | Inject steam or nitrogen for inerting; isolate airflow |
Two Golden Rules: Hard interlocks must be independent of the PLC (using relay circuits so they remain functional even if software crashes); shutdown interlocks must not be bypassed arbitrarily (bypassing requires approval and a time limit). Do not halt production if load reduction suffices, but never hesitate to shut down when necessary—losses from accidental shutdowns are measured in days, whereas losses from unnecessary shutdowns are measured only in hours.
III. CO Monitoring: Detecting the "prelude to smoldering" invisible to the naked eye

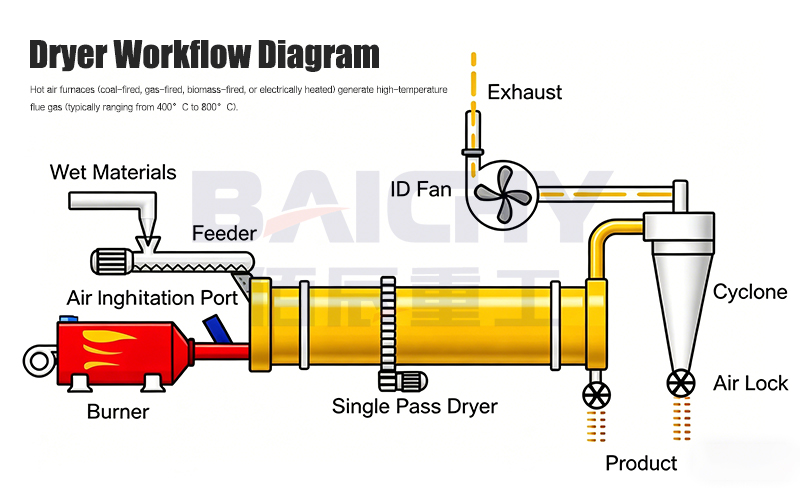

Working principle of the single-drum dryer
Smoldering is a slow oxidation process occurring in oxygen-deficient conditions; there is no open flame, yet the rate of carbon monoxide (CO) generation is far higher than in normal combustion. When material smolders in drum dead zones or deep within the material bed, surface temperature sensors cannot respond quickly enough; CO, however, is carried by the airflow toward the exhaust outlet—detectable minutes or even tens of minutes before an open flame appears. Thus, temperature interlocks and CO monitoring serve as a dual-safety system.
• Preferred Measurement Point: The main exhaust duct upstream of the dust collector—smoldering byproducts must pass through here; the difference in CO concentration between the baghouse inlet and outlet can indicate smoldering of accumulated dust on filter bags (the dust collector is a high-risk point for secondary explosions).
• Instrument Selection: Aspirated infrared or electrochemical analyzer; sampling lines must feature heated designs to prevent condensation and clogging; regular calibration is required.
• Threshold Setting: Typical values are in the range of tens of ppm (e.g., early warning at 50–100 ppm), supplemented by a "rate of rise" criterion—triggering an alarm even if the absolute limit isn't reached, provided there is a continuous rise. Interlock setpoints are determined based on material smoldering tests and risk assessments, rather than simply adopting default values.
IV. Protection Design: Structural measures to prevent fires and explosions
Explosion protection is not simply about making equipment walls thicker; rather, it involves providing a controlled outlet for energy release and interrupting the propagation path of secondary explosions. Protection is implemented across four layers:
• Pressure relief and isolation: Explosion relief vents are installed on the cylinder and dust collector, oriented away from personnel areas; explosion isolation valves are fitted in air ducts to prevent propagation (referencing NFPA 654 and GB/T 15605-2008 "Guide for Dust Explosion Venting");
• Fire suppression and inerting: Ports for steam/nitrogen inerting are provided; oxygen supply is automatically cut off upon detection of ignition; and rapid-acting shut-off valves are installed between the hot-blast stove and the dryer;
• Electrical explosion protection and static control: Explosion-proof electrical components are selected according to GB 50058-2014 and ATEX zoning standards; the entire airflow system is grounded for static dissipation; and anti-static filter media are used for the dust collector bags;
• Process-based error prevention: A co-current flow layout ensures high-moisture material contacts the hottest air first, avoiding the risk of "dry material encountering high temperatures"; material-breaking devices prevent clogging; and stable airflow and negative pressure suppress dust cloud formation.
V. Baichy Mineral Rotary Dryer: Main unit specifications and safety configuration
The table below lists actual specifications for the rotary dryer series (inlet temperatures of 700–800°C represent the equipment's upper limit and standard operating range). For combustible minerals, inlet air temperatures must be adjusted based on the specific material (e.g., 550–650°C for coal slime; 500–700°C for sulfur concentrate, using co-current flow). Safety configurations are customized according to material-specific risks, and actual production capacity is determined by material testing.
| Specifications (Shell Dia. × Length, mm) | Volume (m³) | Nominal Capacity (t/h)* | Inclination (%) | Max. Inlet Air Temp. (℃) | Rotation Speed (r/min) | Main Motor (kW) |
|---|---|---|---|---|---|---|
| Φ1200×12000 | 13.6 | 2.4–3.2 | 3–5 | 700–800 | 3–8 | 7.5 |
| Φ1500×12000 | 21.2 | 4.5–5.7 | 3–5 | 700–800 | 2–6 | 15 |
| Φ1800×14000 | 35.6 | 7.6–9.5 | 3–5 | 700–800 | 2–6 | 18.5 |
| Φ2000×18000 | 56.5 | 8.4–12.3 | 3–5 | 700–800 | 1.5–6 | 22 |
| Φ2200×18000 | 68.3 | 12.8–16.2 | 3–5 | 700–800 | 1.5–6 | 22 |
| Φ2400×20000 | 90.4 | 19.3–24.1 | 3–5 | 700–800 | 1.5–5 | 55 |
| Φ2600×24000 | 127.4 | 27.2–34.0 | 3–5 | 700–800 | 1.5–5 | 75 |
| Φ3000×25000 | 176.6 | 37.7–47.1 | 3–5 | 700–800 | 1.5–5 | 90 |
* Nominal capacity based on standard materials such as sand, coal, and mineral powder; feed moisture content is approximately... 10%; when combustible minerals are processed according to the temperature limits in the table above, production capacity fluctuates based on moisture content and material characteristics.
Safety Configuration Tiers (for price comparison and avoiding vague sales tactics regarding "extra charges for non-standard features"):
| Configuration Tier | Coverage | Applicable Materials |
|---|---|---|
| Basic Standard | Temperature monitoring points, over-temperature alarms, discharge temperature control | Low-fire-risk minerals (e.g., quartz sand, slag) |
| Recommended | Basic features + temperature-based tiered interlocking | Powdery minerals (e.g., iron ore concentrate, bentonite) |
| High-Risk Custom | Recommended features + online CO monitoring, explosion venting/isolation, inerting interfaces, explosion-proof electrical components | Coal slime/lignite, sulfide concentrates, coke breeze |
VI. Typical Application Scenarios and Risk Classification
| Material Category | Primary Risks | Key Safety Configurations |
|---|---|---|
| Low-rank coal & coal slime | Low self-heating threshold; Lower Explosive Limit (LEL) of only tens of g/m³ | Air temp ≤650°C, CO monitoring, explosion venting, explosion-proof electricals |
| Sulfide concentrates | Sulfide oxidation/self-heating; discoloration & grade degradation | Co-current low-temp drying, discharge temp ≤90°C, temp + CO interlocking |
| Metal ore powder | Fine dust generation; static electricity | Concentration control, anti-static grounding, over-temp interlocking |
| Non-metallic mineral powder | Material sticking/clogging causing localized overheating | Material breaking/disaggregation device, temperature interlocking |
| Tailings & processing sludge | High moisture/stickiness; dust generation after drying | Material breaking/back-mixing, two-stage dust removal, over-temp shutdown |
VII. Equipment Advantages: Translating Safety Design into Operational Gains
• Safety Means Continuous Production: Interlocking systems transform a scenario of "one burn-up incident leading to a two-week shutdown" into "one alarm requiring 10 minutes of handling"—crucial given that production losses from dust accidents often far exceed the cost of the equipment itself.
• Inherent Safety via Co-current Low-Temperature Drying: Discharge temperatures are controlled below 90°C, eliminating the heat accumulation conditions that trigger sulfide oxidation and coal self-heating.
• Secondary Explosion Prevention: Early detection of smoldering via CO monitoring combined with explosion isolation valves cutting off propagation paths neutralizes the greatest threat: chain-reaction explosions involving dust collectors.
• Compliance and Ease of Export: Design benchmarks align with NFPA 654/86, GB/T 15605, GB 50058, and... Compliance with ATEX zoning requirements; higher success rates for overseas safety assessments and acceptance inspections;
• Low-maintenance main unit + highly reliable instrumentation: features such as pin-type gears, helical lifters, and material-breaking devices reduce downtime costs; hard-wired interlocks operate independently of central control software.
VIII. Relevant Case Studies (Anonymized)
• Coal Slurry Drying Line at a Domestic Coal Preparation Plant: A Φ2200×18000 rotary dryer equipped with a baghouse dust collector. During a night shift, exhaust CO levels were observed rising from approximately 20 ppm to 80 ppm. The system issued an early warning based on the rate-of-rise criterion; smoldering dust accumulation on the filter bags was confirmed, and the system was shut down for cleaning, thereby preventing a typical dust collector ignition incident (according to plant operational records).
• Sulfur Concentrate Drying Project in South America: Feedstock contained approximately 25% sulfur and 16% moisture; the client prioritized the prevention of spontaneous combustion as the primary technical requirement. The solution utilized a low-temperature co-current drying process, maintaining discharge temperatures at or below 85°C throughout. Dual interlocks (temperature and CO) were calibrated based on the material's smoldering characteristics. The project passed local safety regulatory reviews, with the safety configuration specifications serving as a decisive factor in winning the bid.
• Explosion-Proof Retrofit at a Domestic Bentonite Plant: The original dust collection system lacked explosion venting or isolation designs. Retrofitting was completed to install explosion vents in accordance with GB/T 15605, alongside temperature interlocks and static grounding. The system passed safety acceptance inspections, with an implementation cost lower than the potential losses from a single production stoppage caused by a near-miss incident (according to the plant).
IX. Recommended Equipment for This Application
| Recommended Equipment | Function | Applicable Stage |
|---|---|---|
| Rotary mineral dryer (model featured here) | Drying of concentrates, coal slime, or mineral fines; equipped with comprehensive safety interlocks | Drying stage (post-dewatering/thickening) |
| Triple-pass rotary dryer | High capacity; alternative for space-constrained sites | Large-scale production lines / retrofitting & expansion |
| Hot blast stove (coal/natural gas/biomass) | Stable heat source; interlocked with temperature control systems | Drying system auxiliary |
| Cyclone + baghouse dust collector (with explosion venting/isolation) | Tail gas dust recovery; secondary explosion prevention | Drying system auxiliary |
| CO and temperature online monitoring instrument suite | Early warning of smoldering & tiered interlocks | Safety instrumented system |
| Steam/nitrogen inerting & fire suppression unit | Automatic protection upon fire confirmation | Specialized for high-risk materials |

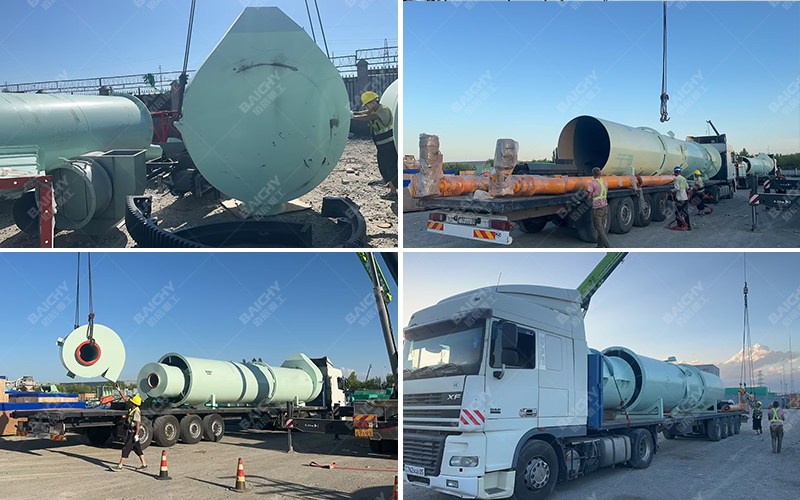

Photos of single-drum dryer shipment from the port
X. FAQ
Q1: Can mineral rotary dryers actually explode? Which materials are the most dangerous?
An explosion requires the simultaneous presence of a dust cloud, an oxygen-containing atmosphere, and an ignition source—conditions that are stringent but controllable. Coal slime, lignite, sulfur concentrate, and coke fines pose the highest risks: low-rank coals have low self-heating temperatures and low explosion limits (only tens of g/m³), while sulfur concentrates generate heat through oxidation. The correct approach is not to avoid drying, but to configure temperature interlocks, CO monitoring, and explosion venting structures based on material risk, thereby breaking the accident chain at each stage.
Q2: What is the appropriate ppm threshold for CO monitoring alarms?
There is no fixed value. Typical engineering practice involves setting a pre-warning threshold in the tens-of-ppm range (e.g., 50–100 ppm) for the exhaust manifold, combined with a criterion based on the rate of concentration rise; the interlock shutdown value is determined through material smoldering characteristic tests and risk assessments. When requesting a quote, you should ask the manufacturer for an interlock logic diagram that includes the basis for the settings, rather than just a statement that "CO alarms are included."
Q3: Are temperature interlocks and CO monitoring standard features? Can they be retrofitted onto existing lines?
It depends on the material risk: minerals with low fire risk primarily rely on basic temperature control, whereas combustible minerals require tiered temperature interlocks, CO monitoring, and explosion venting/isolation systems. Retrofitting existing lines is feasible—Baichy can install monitoring points, hard-wired interlock circuits, explosion vents, and explosion isolation valves on the existing vessel body, eliminating the need to replace the entire unit.
