| Key Words | Fly ash drying equipment |
|---|---|
| Product Name | Vertical Roller Mill |
| Feed Size | 0-38mm |
| Motor Power | 185-1000kw |
| Capacity | 10-120t/h |
| Core Functions | The crushing and grinding action of the rollers. |
| Brand | Baichy Heavy Industry |
| Packing | Standard containers，Nude Packing，Wooden boxes, etc |
| Installation | Engineer Guide |
| Factory visit | Welcomed Warmly |
| Export Countries | Southeast Asia, Central Asia, South America, North America, Africa |
| Payment | T/T,L/C payment,Paypal...etc |
| Please note: The above table data is for reference only. For specific information, please contact us. | |
1. Analysis of Fly Ash Drying Equipment and Vertical Roller Mill
Fly ash drying equipment refers to mechanical equipment designed to reduce the moisture content of fly ash, which is a key link in the comprehensive utilization of fly ash. With the global emphasis on solid waste resource utilization and environmental protection policies, the demand for efficient, energy-saving and environmentally friendly fly ash drying equipment is growing rapidly. Currently, common fly ash drying equipment includes rotary dryers, vertical roller mills, and fluidized bed dryers. Among them, vertical roller mill stands out as a integrated equipment that combines drying and grinding functions, perfectly matching the market demand for efficient and compact fly ash processing solutions, which is also a hot topic in recent Google searches for fly ash processing equipment.
From the perspective of practical application, fly ash usually has a moisture content of 10%-60%, and it needs to be dried to below 5% to facilitate subsequent processing such as grinding, pelletizing, and mixing into cement. Unlike traditional fly ash drying equipment that only has a single drying function, vertical roller mill can complete drying and grinding in one step, which not only simplifies the production process but also reduces equipment investment and floor space. As a professional mining crushing and grinding equipment manufacturer, Baichy has optimized the vertical roller mill according to the characteristics of fly ash, making it more suitable for fly ash drying and processing needs.
2. Overview of Vertical Roller Mill as Fly Ash Drying Equipment
2.1 What is Vertical Roller Mill?
Vertical roller mill is a high-efficiency industrial equipment that integrates drying, grinding, classification, and conveying functions. It is mainly used for processing granular, powdery materials with certain humidity, and is widely used in mining, building materials, electric power, and other industries. When used as fly ash drying equipment, it can effectively dry wet fly ash while grinding it into the required fineness, realizing the integration of drying and grinding, which is more efficient than separate drying and grinding equipment.
Baichy vertical roller mill, as a professional fly ash drying equipment, is specially designed for the characteristics of fly ash—fine particle size, strong viscosity when wet, and easy agglomeration. It adopts advanced material bed grinding technology and internal hot air drying system, which can effectively improve drying efficiency, ensure drying quality, and meet the requirements of fly ash high-value utilization stipulated by relevant policies.

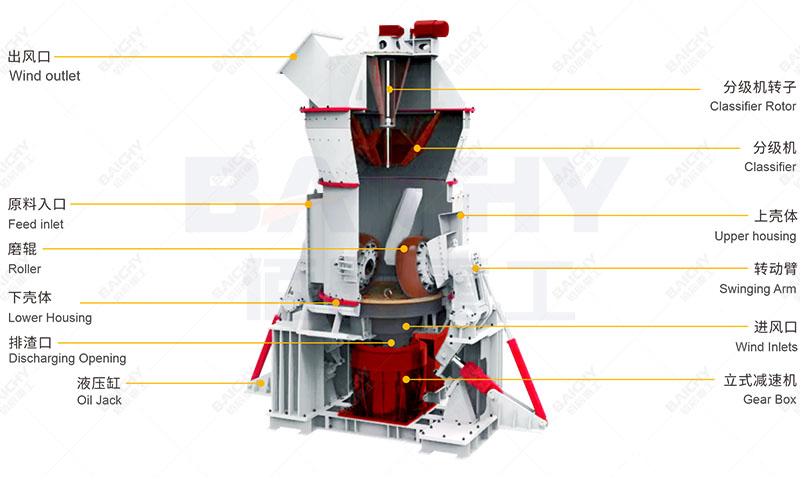

2.2 Working Principle of Vertical Roller Mill for Fly Ash Drying
The working principle of Baichy vertical roller mill as fly ash drying equipment is scientific and efficient. First, wet fly ash is evenly fed into the mill through the feeding device. The motor drives the reducer to drive the grinding disc to rotate, and the fly ash moves to the edge of the grinding disc under the action of centrifugal force. Under the pressure of the grinding roller, the fly ash is crushed and ground. At the same time, high-temperature hot air enters the mill from the air inlet, and fully contacts with the wet fly ash during the upward flow process.
In the process of heat exchange, the moisture in the fly ash is quickly evaporated into water vapor, which is discharged with the hot air through the exhaust port. The ground and dried fly ash is lifted by the hot air to the classifier for classification: the fine powder that meets the fineness requirements is collected as the finished product, while the coarse powder falls back to the grinding disc for re-grinding and drying. The whole process is continuous and automated, which can stably control the moisture content of the finished fly ash below 3%, and the fineness can be adjusted according to actual needs, realizing efficient integration of fly ash drying and grinding.
3. Core Advantages of Baichy Vertical Roller Mill as Fly Ash Drying Equipment
Baichy combines years of R&D and production experience in mining equipment to optimize the vertical roller mill for fly ash drying, which has obvious advantages compared with traditional fly ash drying equipment and ordinary vertical roller mills, fully meeting the current market demand for energy saving and environmental protection:
3.1 Integrated Design, High Efficiency and Space Saving
Baichy vertical roller mill integrates drying, grinding, classification, and conveying functions into one, which can complete two processes of fly ash drying and grinding at one time, avoiding the trouble of matching separate fly ash drying equipment and grinding equipment. This not only simplifies the production process, reduces the number of equipment, but also saves 50% of the floor space compared with the traditional combined equipment, which is especially suitable for enterprises with limited plant space. At the same time, the continuous operation mode greatly improves the production efficiency, with a single machine processing capacity of 8-420 tph, which can meet the needs of different scale projects.
3.2 Energy Saving and Environmental Protection, Low Operating Cost
In line with the global energy conservation and environmental protection trend and relevant policy requirements, Baichy vertical roller mill adopts an advanced energy-saving structure and waste heat recovery system, which can recover the waste heat in the exhaust gas for secondary heating, reducing energy consumption by 30%-50% compared with traditional fly ash drying equipment and ordinary vertical roller mills. The equipment is equipped with a fully sealed dust removal system, which can control the dust emission concentration below 10 mg/m³, meeting the national environmental protection standards and realizing green production. In addition, the equipment uses wear-resistant alloy materials for key components, which reduces wear and tear, lowers maintenance costs, and the overall operating cost is 25% lower than that of similar products.
3.3 Strong Adaptability and Stable Drying Quality
Baichy vertical roller mill has strong adaptability to fly ash with different moisture contents and properties, and can handle fly ash with an initial moisture content of up to 18%, stably drying it to below 3%. The internal hot air circulation system ensures uniform heat distribution, avoiding local over-drying or insufficient drying of fly ash. The dynamic classifier inside the equipment can accurately control the fineness of the finished product, with a screen pass rate of 97% at 10-40 μm, ensuring stable product quality and meeting the requirements of different downstream application scenarios such as cement mixing and concrete admixtures.
3.4 Intelligent Operation and Easy Maintenance
Baichy vertical roller mill is equipped with a fully automatic control system, which can realize intelligent adjustment of parameters such as temperature, pressure, and feed rate, reducing manual operation intensity and ensuring stable equipment operation. The equipment has a simple structure and reasonable layout, and the key components are standardized and universal, which is convenient for disassembly, maintenance, and replacement. The external independent thin oil lubrication station makes oil change more convenient, and the hydraulic maintenance device facilitates the replacement of grinding roller sleeves, greatly reducing maintenance time and costs.
4. Practical Case of Baichy Vertical Roller Mill as Fly Ash Drying Equipment
Customer: A large building materials enterprise in Indonesia
Demand: The enterprise needs to process fly ash produced by a local power plant, with an initial moisture content of 15%-18%, requiring drying to below 3% and grinding to 325 mesh for use as a cement admixture. The daily processing capacity requirement is 50 tph, and the equipment needs to be energy-saving, environmentally friendly, and suitable for long-term continuous operation.
Solution: Baichy provided a customized vertical roller mill as the core fly ash drying equipment, matching the corresponding feeding device, hot air system, and dust removal system. According to the characteristics of the customer's fly ash, the internal hot air circulation system and grinding roller structure were optimized to improve drying efficiency and avoid fly ash agglomeration. At the same time, a waste heat recovery system was configured to reduce energy consumption and meet local environmental protection standards.
Application Effect: The equipment has been in stable operation for 18 months. The drying and grinding effect is excellent, the moisture content of the finished fly ash is stably controlled at 2%-3%, and the fineness meets the 325-mesh requirement, which is fully suitable for cement admixture production. The energy consumption is reduced by 38% compared with the original equipment used by the customer, and the dust emission meets the local environmental protection standards. The integrated design saves a lot of plant space and reduces equipment investment. The customer highly recognizes the performance of the equipment and the professional technical support provided by Baichy.
5. Related Recommendations of Fly Ash Drying Equipment

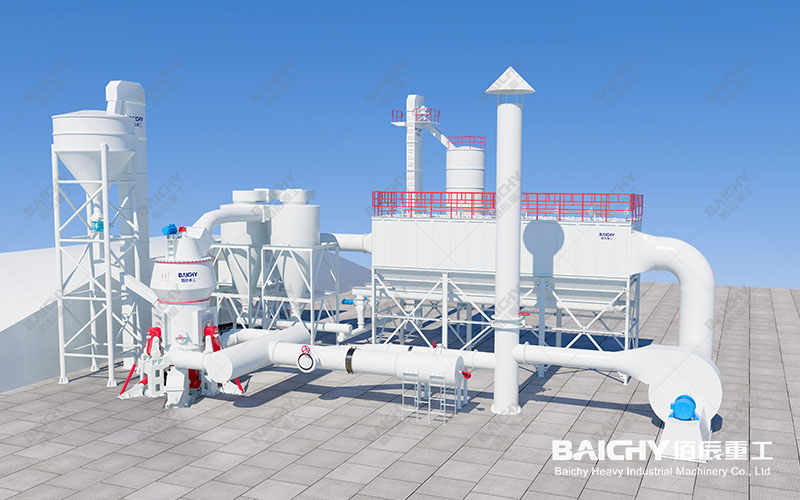

In addition to vertical roller mill, Baichy also provides a complete set of fly ash processing equipment to form a full-process fly ash drying and processing line, meeting the diverse needs of customers. While using vertical roller mill as fly ash drying equipment, you can match the following equipment:
-

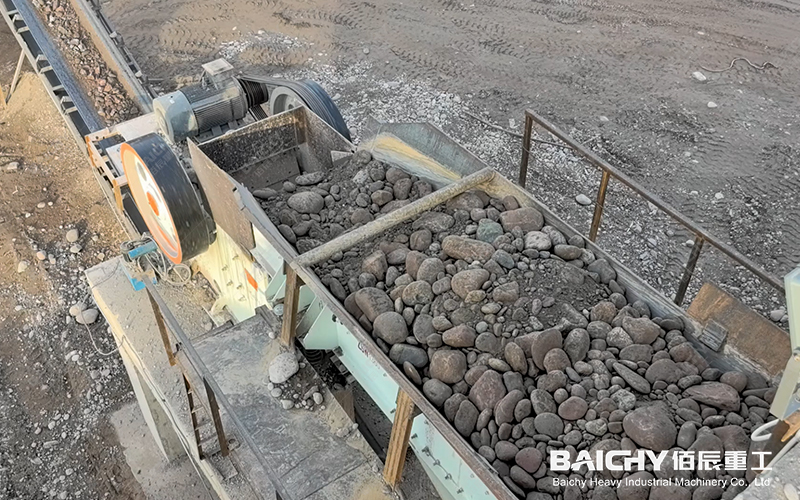

Baichy High-Efficiency Crusher: For fly ash with large agglomerates, it can be crushed first to ensure smooth feeding and avoid blocking the vertical roller mill. The crusher has high crushing efficiency, stable operation, and is suitable for crushing various industrial wastes including fly ash.
-
Baichy Cyclone Dust Collector: Matching with the vertical roller mill, it can further collect the fine dust in the exhaust gas, improve the dust removal effect, protect the environment, and meet higher environmental protection standards. The dust removal efficiency is as high as 99.2%.
-
Baichy Fly Ash Storage Silo: Used to store the dried and ground fly ash, which is convenient for subsequent transportation and use. The silo is equipped with a level gauge and a discharge device, which can realize automatic feeding and discharging, improving production efficiency.
6. FAQs About Vertical Roller Mill as Fly Ash Drying Equipment

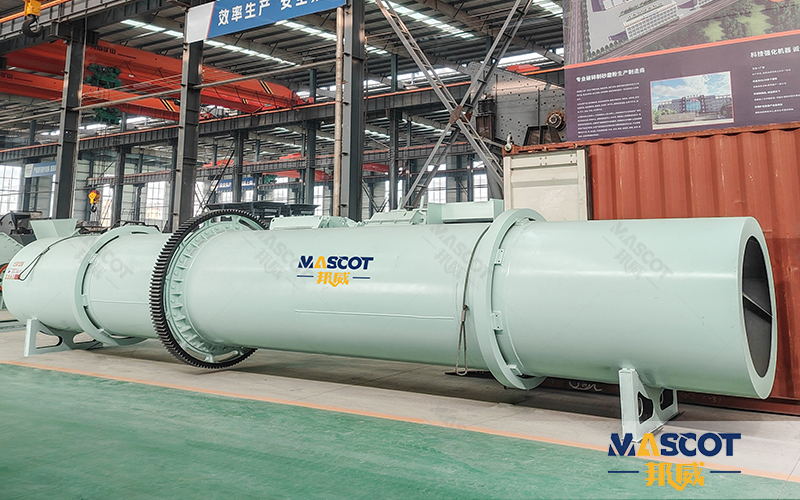

Q1: What is the difference between vertical roller mill and rotary dryer as fly ash drying equipment?
A1: Rotary dryer is a single-function fly ash drying equipment, which only completes the drying process and needs to be matched with grinding equipment separately. Vertical roller mill integrates drying and grinding functions, which simplifies the process, saves space and energy consumption, and is suitable for large-scale continuous production. For enterprises that need both drying and grinding of fly ash, vertical roller mill is more cost-effective; for enterprises that only need simple drying, rotary dryer is a more economical choice.
Q2: How to adjust the drying effect of Baichy vertical roller mill for different fly ash moisture contents?
A2: The drying effect can be adjusted by two key parameters: first, adjust the temperature of the hot air (the higher the temperature, the faster the drying speed, which can be adjusted according to the initial moisture content of fly ash); second, adjust the feed rate and the rotation speed of the grinding disc (reducing the feed rate or increasing the rotation speed can extend the contact time between fly ash and hot air, improving the drying effect). The automatic control system of Baichy vertical roller mill can realize intelligent adjustment according to the real-time moisture content of fly ash.
Q3: What is the service life of Baichy vertical roller mill as fly ash drying equipment, and what after-sales services are provided?
A3: The service life of the whole machine is 8-10 years, and the service life of key components (grinding roller, grinding disc) is 3-5 years (depending on the frequency of use and maintenance). Baichy provides a one-year free warranty service, including free replacement of wearing parts within the warranty period. In addition, we have a professional after-sales team that can provide on-site installation, commissioning, maintenance guidance, and technical training to ensure the stable operation of the equipment.
