What is a Cone Crusher Plant?

A cone crushing plant is a cornerstone of modern aggregate production, mineral processing, and mining operations. Unlike simple standalone machines, a crushing plant integrates a cone crusher as its core component with a suite of supporting equipment. This system is engineered to receive, crush, screen, and classify raw feed material into specified sizes of finished products, from coarse aggregates for construction to finely crushed ores for further processing. The design focuses on a closed-circuit layout where oversized material is continuously recirculated back to the crusher, ensuring optimal particle size and plant efficiency.

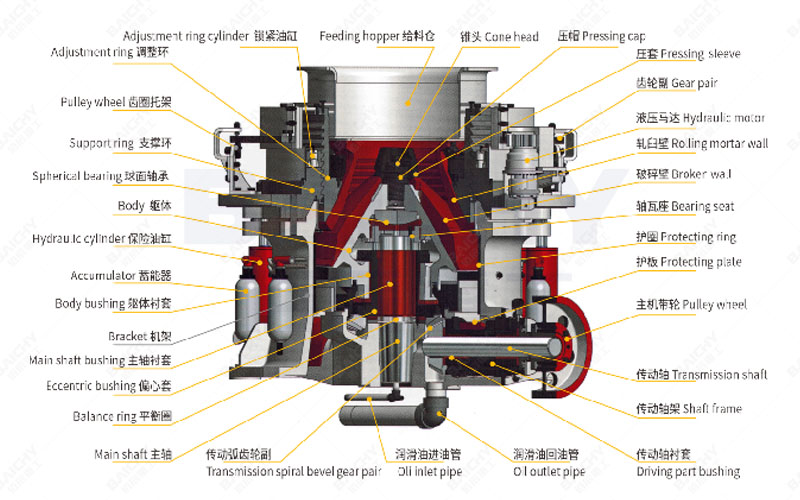

Working Principle Diagram of a Hydraulic Cone Crusher

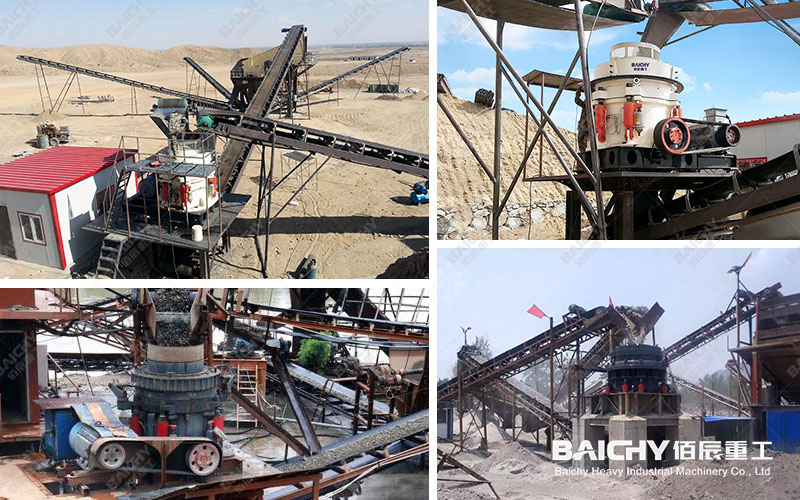

Core Components and Workflow

A typical cone crushing plant is more than just the crusher itself. Its efficiency stems from a synchronized system:

Feeding System: A vibrating feeder or conveyor belt that regulates the flow of raw material (e.g., blasted rock, river gravel) into the crusher.
Core - Cone Crusher: The heart of the plant. It uses a gyrating mantle within a concave bowl to compress and crush rock against itself.
Screening System: Vibrating screens separate the crushed material into different size fractions.
Conveying System: A network of belt conveyors transports material between the crusher, screens, and stockpiles.
Control System: A centralized electrical control panel allows operators to monitor and adjust the entire plant's performance.

Why Choose a Stationary Cone Crushing Plant?

Investing in a stationary cone crushing plant offers distinct advantages over mobile setups or alternative crushing methods, particularly for high-tonnage, long-term quarrying or mining projects.

Key Advantages for Your Operation

High Efficiency and Consistent Output: Modern cone crushers excel in providing a steady, high-volume output of uniformly shaped, cubical end products. This consistency is critical for meeting strict aggregate specifications.
Lower Operating Costs: The interparticle crushing action of a cone crusher minimizes wear on the liners compared to impact crushing, leading to lower cost per ton in abrasive applications. Advanced hydraulic systems allow for easy adjustment and clearing.
Versatility in Crushing Stages: Cone crushers are ideal for secondary, tertiary, and quaternary crushing stages. They can be finely tuned to produce everything from railway ballast to manufactured sand, maximizing the value extracted from your raw material.
Robust and Reliable Design: Built for continuous, heavy-duty operation, stationary plants offer superior stability and longevity. Their design allows for integration with large-scale, fixed infrastructure.

Real-World Application: A Granite Quarry Case Study

Challenge: A large granite quarry in Southeast Asia needed to increase its production of high-quality aggregates for a major infrastructure project. Their existing setup struggled with high wear costs and inconsistent product gradation.

Our Solution: We designed and supplied a complete 500 TPH stationary cone crushing plant. The solution featured a high-performance multi-cylinder hydraulic cone crusher for the secondary crushing stage, paired with a precise triple-deck vibrating screen.

Results: The plant achieved a 35% increase in overall production throughput. The product shape improved dramatically, exceeding local construction standards. Furthermore, the intelligent hydraulic system and durable wear parts reduced operating costs by an estimated 20% due to less downtime and lower liner consumption.

Optimizing Your Plant: Key Equipment Recommendations

To build a high-performance cone crushing plant, selecting the right ancillary equipment is as crucial as choosing the crusher itself.

High-Capacity Apron Feeder: For handling large, abrasive primary feed directly from the dump truck, ensuring a steady flow to the crusher.
Pre-Screening Unit: A scalping screen before the crusher removes fines and small material, increasing crusher efficiency and reducing unnecessary wear.
Closed-Circuit Conveying: Implementing robust, radial stackers allows for efficient stockpiling of multiple product fractions, enabling quick load-out.

Frequently Asked Questions (FAQ)

Q1: What is the main difference between a jaw crusher and a cone crusher in a plant setup?

A jaw crusher is typically used as the primary crusher to break down large boulders into smaller pieces (150-300mm). A cone crusher is then used as a secondary or tertiary crusher to take that smaller feed and crush it further into finely graded aggregates (often below 40mm). They are complementary machines in a full crushing circuit.

Q2: How do I maintain my cone crusher for maximum uptime?

Regular maintenance is key. This includes daily checks of oil levels and temperature, monitoring wear liners and mantles, ensuring proper feed distribution to avoid uneven wear, and following a scheduled maintenance plan for lubrication system filters and hydraulic components.

Q3: Can a cone crushing plant produce manufactured sand (M-Sand)?

Absolutely. By using a cone crusher in a specific closed-circuit configuration with a specialized vertical shaft impact (VSI) crusher for final shaping, or by fine-tuning a multi-cylinder cone crusher's settings, you can efficiently produce high-quality manufactured sand that meets the required gradation for concrete and plastering.
