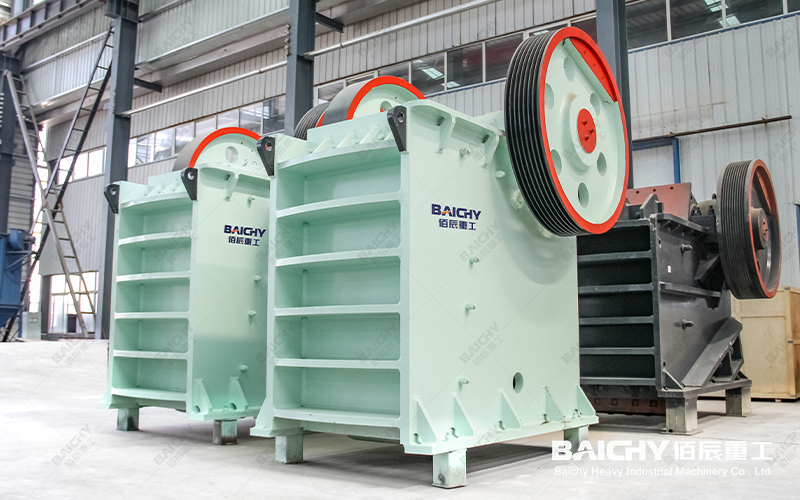

Primary Crusher - PE Jaw Crusher
In the quarrying, mining, and aggregates processing industries, time truly is money. Any unexpected downtime—whether caused by equipment failure, the replacement of wear parts, or improper maintenance—translates directly into lost production and evaporated revenue. Faced with increasingly fierce market competition and mounting cost pressures, selecting an efficient, durable, and reliable jaw crusher as your primary crushing equipment is, without question, the cornerstone for ensuring smooth operations and maximizing profitability.
If you are currently plagued by frequent downtime and exorbitant maintenance costs, this article will reveal the key characteristics of a superior primary jaw crusher—and explain why it serves as the indispensable anchor of stability within the coarse crushing stage.
PE Jaw Crusher PDF,Download ↓↓↓
Why Should Equipment Reliability Be Your Primary Selection Criterion?
The primary crushing stage constitutes the "bottleneck" of the entire processing workflow. Should a problem arise at this juncture, every subsequent operation in the process will grind to a halt. Consequently, a level of reliability that transcends conventional standards is far more critical than the equipment's initial purchase price. A truly reliable jaw crusher should possess the following attributes:
- Robust Structural Integrity: Constructed using high-quality cast steel or welded steel frames with a reinforced design, the machine is built to withstand the impact and abrasion associated with the harshest operating conditions from the very moment it is commissioned.
- Extended Operational Cycles: An optimized dynamic design—featuring components such as heavy-duty eccentric shafts and high-inertia flywheels—ensures stable performance even under heavy-load conditions, thereby maximizing the equipment's effective uptime.
- Lower Cost Per Ton Processed: Although the initial capital investment may be slightly higher, the equipment's exceptionally long service life and remarkably low failure rate mean that, when costs are amortized across every ton of processed material, your Total Cost of Ownership (TCO) over the equipment's entire lifecycle will be significantly reduced.
Further Reading: PE600x900 Jaw Crusher — Performance Parameters and Selection Guide for Ancillary Equipment in Production Lines

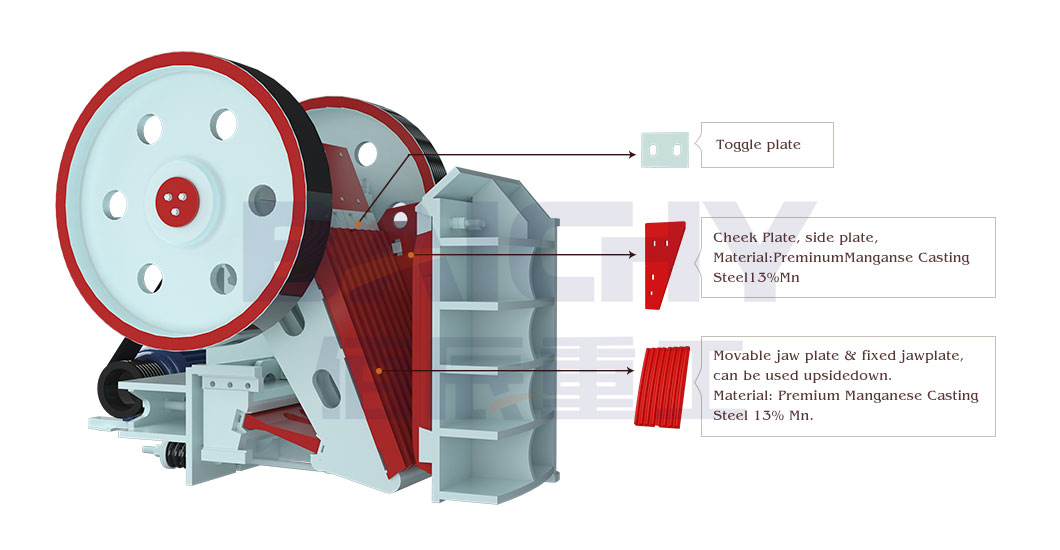

Structural Diagram of the PE Jaw Crusher
Key Technical Features of the Jaw Crusher: How Do They Translate Directly into Operational Benefits for You?
Our primary jaw crusher is far more than a mere assembly of mechanical components; it represents the pinnacle of "efficiency engineering." The following design features will directly generate tangible value for you:
1. Optimized Crushing Chamber Profile and Energy-Efficient Design
• Deep "V" Crushing Chamber Structure: Utilizing a symmetrical or asymmetrical deep-chamber design—combined with a large-inclination movable jaw and long-stroke characteristics—this configuration achieves higher material throughput and superior finished product shape, thereby directly boosting the overall efficiency of high-yield crushing operations. This design effectively mitigates the risk of material clogging, increases the crushing ratio, and reduces the operational load on downstream processes.
- Low-Power Operation: Compared to complex gyratory or impact crushers, the jaw crusher features a simpler structure with fewer moving parts. Coupled with a large-diameter flywheel for energy storage, it maintains stable operation even when processing hard rock, significantly reducing energy consumption per unit of output.
2. Minimal Maintenance and Rapid Wear Part Replacement System
• Modular and User-Friendly Design: Wear parts—such as jaw plates and side liners—are secured using bolts or wedges, eliminating the need for complex specialized tools. Certain models feature a hydraulic adjustment system that allows for rapid adjustment of the discharge opening or assists in replacing jaw plates, thereby significantly reducing scheduled maintenance downtime.
- Core Wear-Resistant Components: The movable and fixed jaw plates are fabricated from high-strength manganese steel (ZGMn13) or higher-grade alloy steel. Through a "tooth-peak-to-tooth-valley" interlocking design, the crushing action incorporates bending forces in addition to compression; this not only enhances crushing efficiency but also extends the service life of the jaw plates, thereby reducing the frequency of replacements.
3. Multiple Overload Protection Layers and Intelligent Safety Mechanisms
• Mechanical Safety Mechanism (Toggle Plate): A traditional yet highly reliable method of overload protection. When uncrushable materials (such as iron scraps or drill rods) inadvertently enter the crushing chamber, a precisely engineered weak link—the Toggle Plate—fractures first, thereby interrupting power transmission and protecting expensive core components (such as the main shaft, bearings, and frame) from catastrophic damage.
- Hydraulic Overload Protection (Modern Models): High-end models are equipped with a hydraulic system; in the event of an overload, the hydraulic cylinder automatically releases pressure or retracts the movable jaw to discharge the foreign object, subsequently resetting itself automatically. This eliminates the downtime typically required to replace a broken toggle plate, thereby further enhancing equipment availability and uptime.
Beyond the Machine Itself: We Offer More Than Just a Crusher—We Deliver a Solemn Promise of Worry-Free Production
Choosing us means gaining access to a comprehensive productivity solution:
Primary Crusher - PE Jaw Crusher
• Expert Model Selection Support: Based on your specific material characteristics (such as granite, basalt, iron ore, or recycled concrete), required throughput, and on-site operating conditions, our engineers will recommend the jaw crusher model best suited to your needs (e.g., the PE series for primary crushing or the JC series for high-efficiency European-style crushing).
• Comprehensive After-Sales Service: From installation guidance to periodic maintenance reminders, and from the supply of genuine spare parts to emergency technical support, we ensure that your equipment remains in optimal operating condition throughout its entire lifecycle.
• Quantifiable Return on Investment: Our objective extends far beyond simply selling a machine; we aim to help you maximize your return on investment. By boosting production efficiency, reducing maintenance costs, and minimizing downtime, your investment will pay for itself rapidly while continuing to generate economic value for your business.

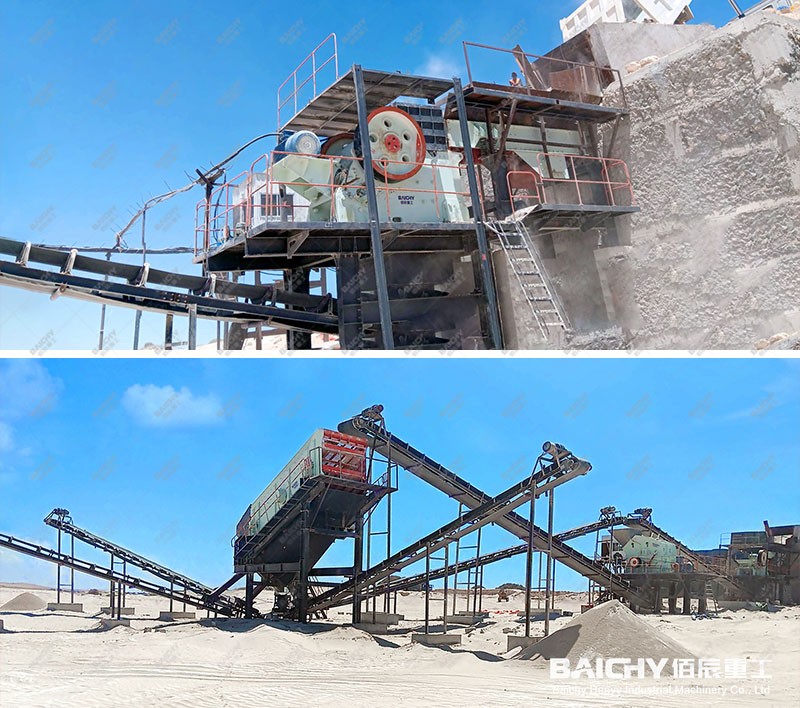

Primary Jaw Crusher Production Line Site
Conclusion: A Prudent Investment Begins with Precise Control over "Total Cost of Ownership" (TCO)
When selecting primary crushing equipment for a mine or quarry, it is essential to adopt a long-term perspective. True cost savings are derived from the substantial output generated by equipment that operates continuously and reliably. Thanks to its core advantages—including a simple structure, ease of maintenance, and robust overload protection—a high-quality jaw crusher is not merely a cost expenditure on your production line, but a valuable asset that consistently generates value for your business.
Contact us today to receive a customized jaw crusher selection proposal and a comprehensive Total Cost of Ownership (TCO) analysis report.
