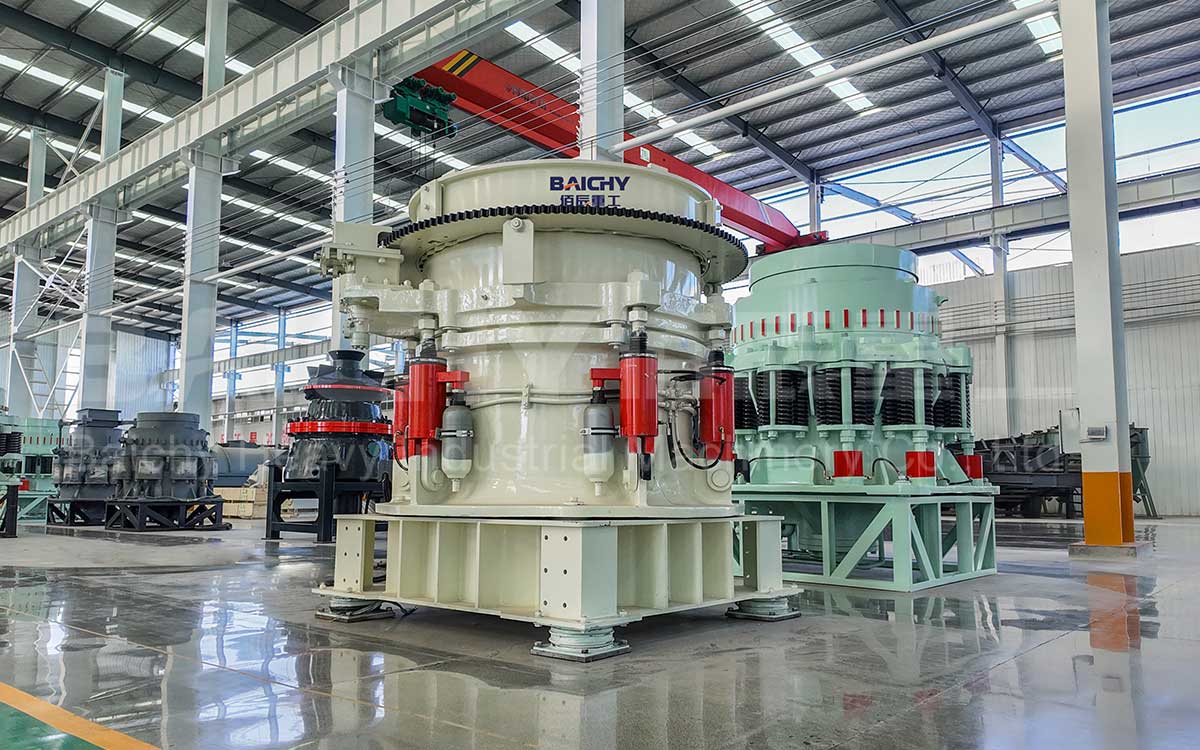

Cone Crusher Supplier & Manufacturer
In mining, aggregate production, and metallurgical processing, the hydraulic cone crusher is the workhorse of medium and fine crushing. Its performance directly determines your finished product quality, throughput consistency, and total operating cost. Choosing the right cone crusher supplier is not just a procurement decision — it is an engineering investment with multi-year operational consequences. This guide outlines the five technical criteria that separate a qualified cone crusher manufacturer from the rest, and explains why factory-direct sourcing delivers measurable ROI.
1. Does the Supplier Master the Layered Crushing Principle? — The Foundation of Output and Particle Shape
The layered crushing principle is the most fundamental technological advantage of a modern cone crusher. Unlike single-particle impact crushing, this approach compresses material within a multi-layer bed formed between the mantle and concave — the material crushes itself under inter-particle pressure, reducing direct liner-to-rock contact.
When evaluating a cone crusher supplier, ask: Does their equipment design genuinely implement inter-particle breakage? Baichy cone crushers are engineered with optimized crushing chamber geometry that maximizes the layered crushing effect, delivering three measurable outcomes:
- High throughput: Multi-layer compression processes significantly more material per cycle than single-particle designs, boosting t/h output without increasing motor power.
- Superior particle shape: The cubic particle ratio exceeds 85%, with minimal flaky and elongated content — critical for high-strength concrete and asphalt aggregate specifications.
- Longer liner life: Reduced direct abrasion extends mantle and concave service intervals by 30–50% compared to conventional designs, slashing spare parts cost per ton crushed.
2. Is the Hydraulic System Robust and Fully Integrated? — Intelligent Control, Not Just Add-Ons
A genuine cone crusher manufacturer treats the hydraulic system as a core design element, not an afterthought. Modern hydraulic cone crushers integrate three essential functions into one system:
- Automatic tramp release: When uncrushable objects (drill bits, bucket teeth) enter the chamber, the system instantly lowers the mantle to expel the foreign material, then resets to the preset CSS — protecting the mainframe, eccentric assembly, and bearings from catastrophic damage.
- Hydraulic CSS adjustment: Closed-side setting can be adjusted under load via the hydraulic station, enabling precise particle size control without production interruption. Operators can dial in gradation curves in minutes rather than hours.
- Overload protection: Real-time pressure monitoring automatically triggers buffer protection when abnormal loads are detected, preventing mechanical failure.
Baichy's single-cylinder and multi-cylinder hydraulic series both feature fully integrated hydraulic systems designed and tested as a complete unit — not pieced together from third-party components. This system-level engineering approach is what separates a cone crusher factory with genuine R&D capability from a mere assembler.

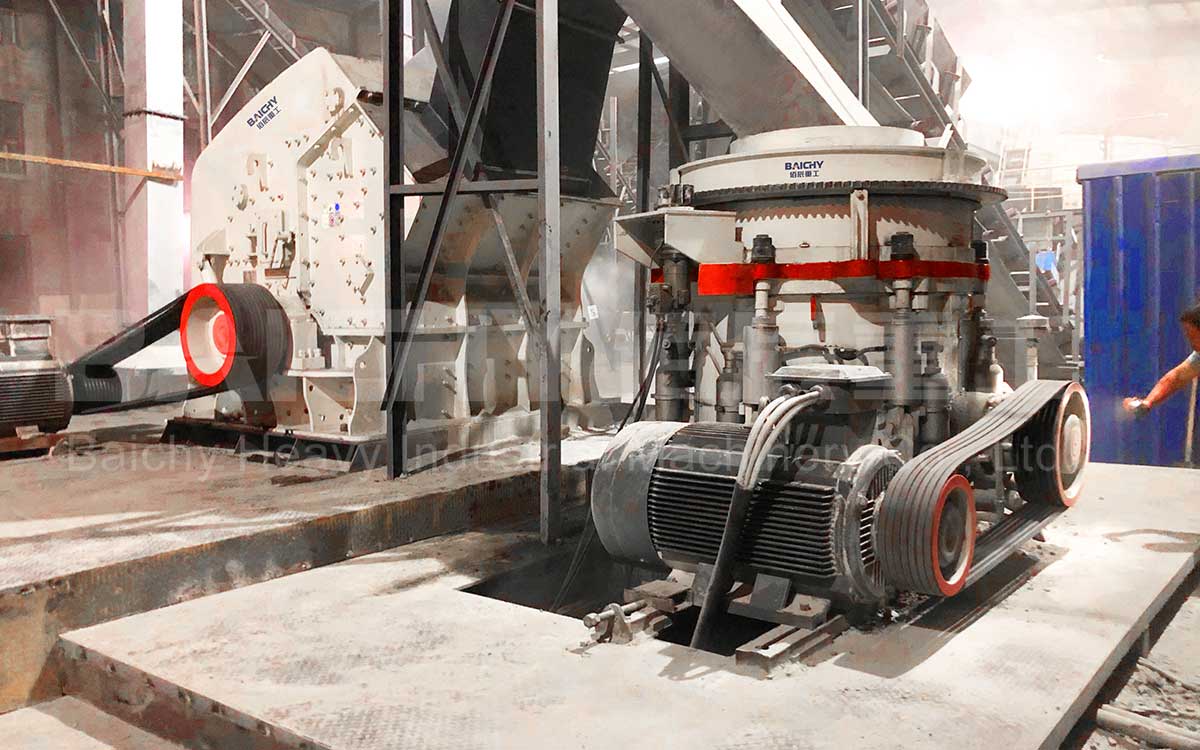

<<200tph Granite Mobile Crushing Plant in Russia | PE750x1060 + PFW1315 + HP300>>
Hydraulic cone crusher customer site
3. Can the Supplier Match Multiple Crushing Chamber Profiles to Your Material?
"One machine, one chamber" is outdated. A qualified cone crusher supplier offers multiple interchangeable mantle-concave profiles so the same mainframe can be configured for coarse, medium, or fine crushing by changing liners alone. This modularity translates directly to operational flexibility and lower inventory cost.
|
Chamber Type |
Application Stage |
Feed Size Range |
Typical Product Size |
Best For |
|---|---|---|---|---|
| Extra Coarse (EC) | Secondary crushing | 200–350 mm | 40–80 mm | Primary jaw crusher discharge, high-volume quarry |
| Coarse (C) | Secondary crushing | 150–250 mm | 30–65 mm | Granite, basalt, river pebble secondary stage |
| Medium (M) | Tertiary crushing | 70–150 mm | 16–40 mm | Balanced capacity and shape; railway ballast |
| Fine (F) | Quaternary / sand making | 30–70 mm | 5–20 mm | Manufactured sand, high-grade concrete aggregate |
| Extra Fine (EF) | Fine sand production | 15–40 mm | 3–13 mm | Premium manufactured sand, asphalt aggregate |
Baichy stocks chamber profiles across all five types for every cone crusher model, ensuring you can adapt to changing product specifications without replacing the entire machine.
4. Is the Structural Design Built for 24/7 Heavy-Duty Operation?
Cone crushers operate under extreme cyclic loads — a lightweight frame or undersized bearing will fail prematurely and cost far more in downtime than any upfront savings. A reliable cone crusher manufacturer invests in:
- Heavy-duty cast mainframe: High-grade ductile iron or cast steel, FEM-optimized rib structure, stress-relieved after casting to prevent deformation under sustained load.
- Oversized spiral bevel gears: Low-speed, high-torque transmission with case-hardened tooth surfaces. Baichy uses Gleason-type spiral bevel gears with ground tooth flanks — quieter operation, longer service life, and smoother power delivery.
- Large-diameter main shaft and bearings: Designed for 20,000+ service hours under full load; oversized bearing selection reduces specific pressure and extends replacement intervals.
- Low vibration and noise: Precision-balanced eccentric assembly keeps vibration within 0.05 mm/s at rated speed, meeting stringent environmental and workplace safety standards.
These structural choices are invisible on a spec sheet but define the gap between a machine that lasts 3 years and one that delivers 10+ years of reliable service. Factory-direct sourcing from Baichy means you can inspect the casting quality, gear machining, and assembly process firsthand before shipment.
5. Does the Supplier Integrate Intelligent Monitoring and Remote Diagnostics?
The difference between a commodity cone crusher and an intelligent crushing solution lies in the control system. A forward-thinking cone crusher supplier equips its machines with real-time monitoring of:
- Spindle position sensor: Continuous CSS monitoring with micron-level accuracy; compensates for liner wear automatically.
- Lubrication system monitoring: Oil temperature, flow rate, filter condition, and return oil metal particle count — early-warning indicators for bearing health.
- Motor current and power draw: Automatic feed rate adjustment maintains the crusher at optimal power utilization without risking overload.
- Remote access module: Engineers can diagnose and tune parameters via encrypted VPN, reducing on-site service trips by over 60%.
Baichy's optional ICsmart control package turns these data streams into actionable insights — shifting maintenance from reactive to predictive, and enabling operators to maximize throughput while minimizing energy per ton crushed.
Why Baichy Heavy Industry Is Your Reliable Cone Crusher Supplier
Selecting a cone crusher supplier is ultimately about trust in engineering competence and manufacturing discipline. Baichy Heavy Industrial Machinery Co., Ltd brings:
- 20+ years of focused crushing equipment manufacturing — not a general machinery trader, but a dedicated crusher and beneficiation equipment factory.
- Global deployment across 120+ countries — Baichy cone crushers operate in granite quarries in Zambia, copper mines in Chile, construction aggregate plants in the Philippines, and manufactured sand lines in Mexico. Each installation validates our engineering under real-world conditions.
- Factory-direct pricing and support — eliminating the distributor margin means you pay for engineering and manufacturing, not middlemen. Spare parts ship from our Zhengzhou warehouse within 48 hours of order confirmation.
- Full-range hydraulic cone crusher portfolio: single-cylinder (BCS series, 45–600 t/h), multi-cylinder (HPT series, 55–750 t/h), and Symons-type spring cone crushers (PYB/PYD/PYZ, 5–1,000 t/h) — one supplier, all configurations.
Frequently Asked Questions
Q: How do I determine the right cone crusher model for my material?
A: Send Baichy your material type, feed size (mm), target output (t/h), and desired product size range. Our application engineers run crushing simulation software and recommend the optimal chamber profile, CSS setting, and motor power within 24 hours.
Q: What is the typical lead time for a Baichy cone crusher?
A: Standard models (BCS, HPT up to 400 t/h) ship within 15–25 days from order confirmation. Large-capacity models (500+ t/h) and customized configurations require 30–45 days. Spare parts ship within 48 hours.
Q: Do you provide on-site installation and commissioning support?
A: Yes. Baichy dispatches senior engineers for installation supervision, commissioning, and operator training. Remote video support is also available for routine troubleshooting.
