PE750x1060 + PFW1315 + HP300 Triple-Stage Solution

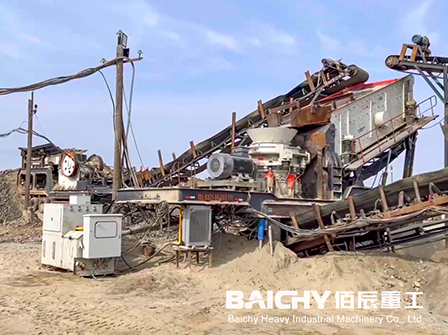

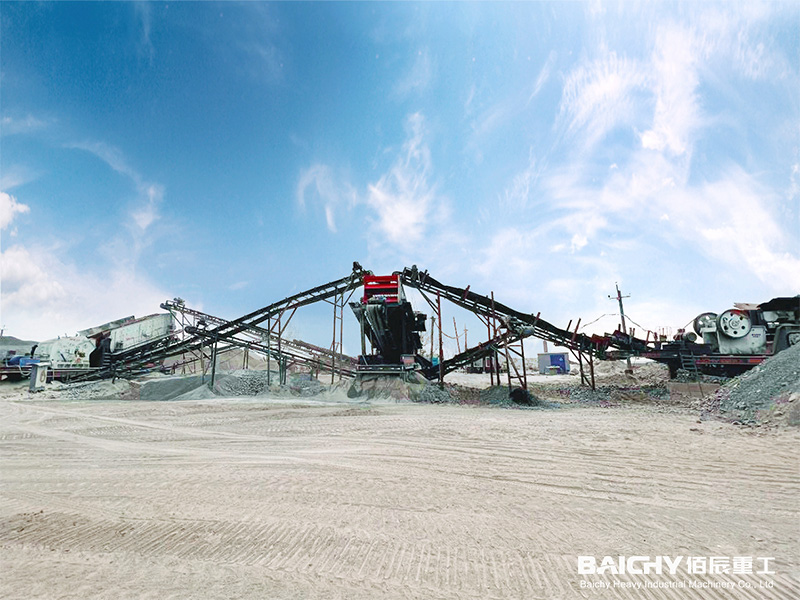

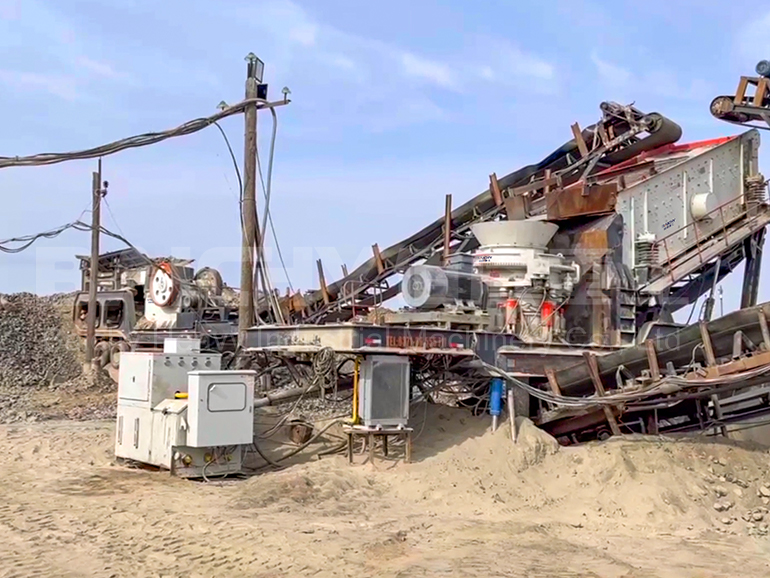

Baichy Heavy Industry supplied a complete 200tph tire-type mobile granite crushing plant to a quarry in Russia — a 3-stage system combining PE750x1060 jaw crusher, PFW1315 impact crusher, and HP300 cone crusher, each mounted on a wheeled chassis for fast on-site relocation and zero foundation installation.
Project Overview & Equipment Configuration
This Russian granite project required a mobile solution capable of processing hard, abrasive granite into high-quality cubical aggregates. Baichy engineers configured three independent tire-type mobile stations connected in series.

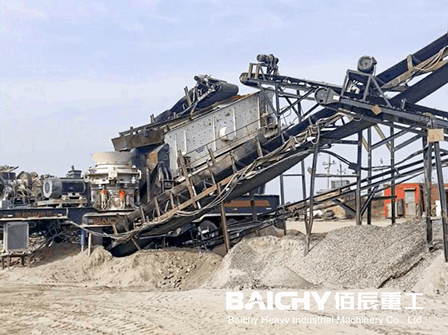

PE750x1060 Mobile Jaw Crusher — Primary Crushing
The PE750x1060 jaw crusher handles granite blocks up to 650mm, reducing them to ≤200mm in a single pass. Its deep crushing chamber and optimized toggle plate deliver a crushing ratio of 4:1–6:1 on hard stone. As the first-stage unit, it sets the production rhythm for the entire line — Baichy's reinforced frame structure with high-manganese steel jaw plates guarantees continuous 200tph throughput even under Russia's demanding quarry conditions.
• Feed opening: 750×1060mm
• Max feed size: 630mm
• Discharge range: 80–200mm
• Capacity: 110–320 t/h

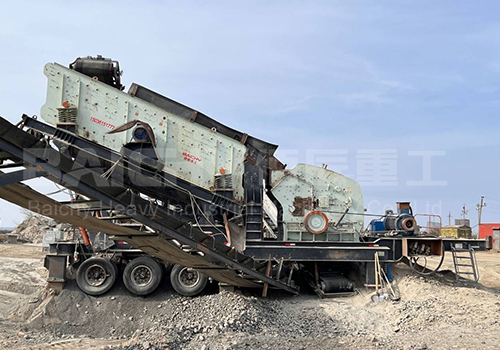

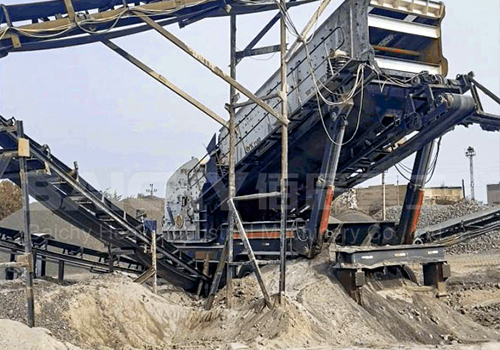

PFW1315 Mobile Impact Crusher — Secondary Shaping
The PFW1315 impact crusher is the core shaping unit in this configuration. Employing a heavy-duty rotor (Φ1300×1500mm) with 4 high-chrome blow bars, it fractures granite along natural cleavage planes — producing predominantly cubical intermediate products. This hydraulic-open European-style impactor excels at reducing recirculating load (typically 15–25% lower vs. conventional impactors), directly lowering energy cost per ton of finished aggregate.
• Rotor size: Φ1300×1500mm
• Feed opening: 625×1530mm
• Max feed size: 350mm
• Capacity: 180–280 t/h

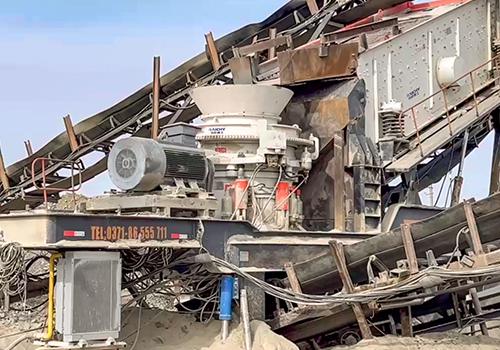

HP300 Mobile Cone Crusher — Fine Crushing
The HP300 cone crusherserves as the final-stage crusher for both fine reduction and shape refinement. Its inter-particle lamination crushing principle produces well-graded aggregates with precise size control. By changing cavity liners (Standard / Medium / Short Head), operators can flexibly adjust the output gradation curve for different Russian market demands. HP300's bronze bushing design and automatic tramp release system ensure stable long-hour operation with minimal downtime.
• Cone diameter: 940mm (37 inches)
• Max feed size: 230mm (coarse chamber)
• Closed-side setting: 10–45mm
• Capacity: 115–440 t/h
