In today's pursuit of high-quality construction aggregates and manufactured sand, the tertiary impact crusher—particularly the Vertical Shaft Impact (VSI) crusher—has emerged as the "heart" and "shaping master" of modern sand and aggregate production lines. It is far more than a simple piece of crushing equipment; it is a core asset for optimizing particle shape, enhancing product added value, and meeting the rigorous standards required for national construction projects. As a professional manufacturer of mining and crushing equipment, we will delve into the exceptional performance of the tertiary impact crusher in the realms of sand production and aggregate shaping.

Sand Making Machine PDF，Download ↓↓↓

I. Equipment Overview: What is a Tertiary Impact Crusher?

A tertiary impact crusher typically refers to a Vertical Shaft Impact (VSI) crusher capable of freely switching between two operating principles: "stone-on-stone" and "stone-on-iron." Its core mechanism involves material gaining immense kinetic energy within a high-speed rotating impeller; this material then undergoes violent collisions and friction—either against the surrounding liner plates or against other particles—thereby achieving a comprehensive "crushing-shaping-sand-making" effect.

It is hailed as a "tertiary" crusher because, within a single crushing chamber, it integrates the functions of coarse crushing, medium-to-fine crushing, and ultra-fine crushing (sand making), while simultaneously performing aggregate shaping. Inside the vortex-style crushing chamber, the material is subjected to multiple impacts, collisions, and friction from various angles. Ultimately, this process results in finished particles that tend toward polyhedral or cubical shapes, featuring moderate surface roughness and superior mechanical properties.

II. Analysis of Core Application Scenarios

1. Production of High-Quality Manufactured Sand

This represents the most classic application of the tertiary impact crusher. With the depletion of natural sand resources and restrictions on mining operations, manufactured sand has become the mainstream choice in the market. However, ordinary manufactured sand often suffers from poor particle shape, irregular gradation, and high stone powder content. Through a precise control system, the VSI crusher can consistently produce high-quality manufactured sand characterized by continuous gradation, rounded particles, and an adjustable fineness modulus—fully meeting the sand requirements for high-strength concrete grades of C60 and above.

2. Aggregate (Crushed Stone) Shaping and Optimization

In traditional "jaw crusher + cone crusher" production lines, the resulting crushed stone often contains an excessive proportion of needle-like or flaky particles (exceeding 15%). This negatively impacts the workability and strength of concrete, while also necessitating an increased usage of cement. The tertiary impact crusher serves as a shaping stage positioned at the end of the production line. It acts to "refine and sculpt" aggregates that have undergone primary crushing (such as stones ranging from 12 to 31.5 mm), significantly reducing the content of needle-like and flaky particles to below 5%. This process vastly improves the overall quality and market value of the aggregate products.

3. High-Standard Engineering Construction

The high-quality aggregates and manufactured sand produced by this equipment serve as the cornerstone for ensuring the quality of key national engineering projects. They are widely utilized in:

• High-speed railways and expressways: These projects demand exceptionally high compressive strength and impact resistance for base and surface course materials.

• Hydroelectric dams: These require concrete aggregates characterized by high density, high strength, and excellent durability.

• High-rise buildings and cross-sea bridges: These structures impose rigorous standards regarding the strength and durability of concrete.

• Airport runways: These facilities require aggregates possessing extremely high resistance to abrasion and impact.

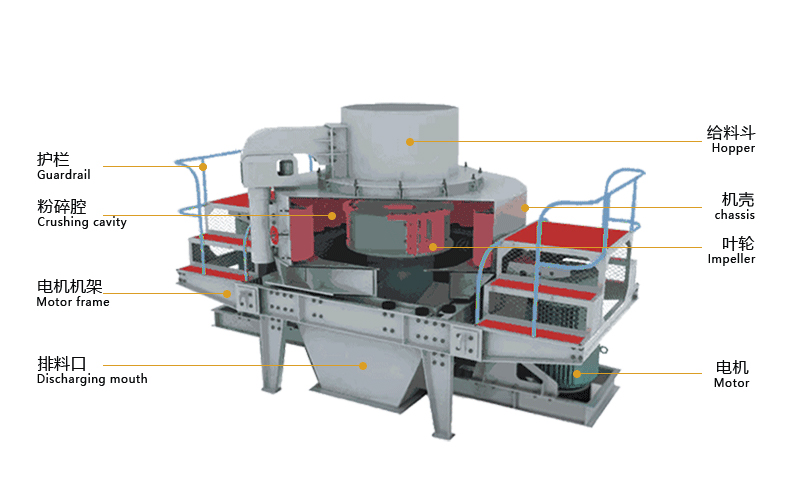

Sand Making Machine Structure Diagram

III. Core Advantages and Technical Parameters

The reason the tertiary impact crusher has become the preferred choice for high-standard sand and aggregate production lies in its irreplaceable technical advantages.

Core Advantages

1.  Superior particle shape with extremely low needle-like and flaky content: The "stone-on-stone" crushing principle causes materials to abrade against one another; the finished products exhibit a perfect cubic or polyhedral shape, resulting in high bulk density and strong compressive strength.

2.  Continuously adjustable gradation: By adjusting the rotor speed, feed rate, and material cascade mode, the fineness modulus and stone powder content of the finished sand can be flexibly controlled to meet the specific mix design requirements of various concrete applications.

3.  Multi-functional and highly efficient: Integrating coarse crushing, fine crushing, sand making, and shaping into a single unit, the equipment simplifies the process flow while simultaneously reducing both capital investment and operational costs.

4.  Rounded sand particle shape: The aggregate shaping effect is significant, producing sand particles with an optimal surface roughness that not only ensures strong bonding with cement but also enhances the overall workability (flowability) of the concrete mix.

5.  Long service life for wear parts and convenient maintenance: Core wear components are manufactured using premium materials—such as high-chromium alloys—and the peripheral guard plates are reversible (flippable), significantly extending the replacement cycle and further reducing operating costs.

Example of Typical Equipment Parameters (Illustrated using our VSI-1140 model)

IV. Successful Application Cases

Case Study 1: A Large-scale Green Building Materials Base in East China

• Requirement: To produce 3 million tons of high-quality aggregates and manufactured sand annually, supplying surrounding commercial concrete plants and key road and bridge construction projects.

• Solution: Implementation of a closed-circuit process utilizing a configuration of "Vibrating Feeder + Jaw Crusher + Single-Cylinder Cone Crusher + Tertiary Impact Crusher (VSI-1140) + Vibrating Screen."

• Results: The tertiary impact crusher simultaneously handled the shaping of 5–10 mm aggregates and the production of 0–5 mm manufactured sand. The finished aggregates featured a cubical particle shape with a flakiness and elongation index below 4%; the manufactured sand achieved a gradation meeting the Zone II (Medium Sand) standard, with a stable fineness modulus of 2.8. The products commanded a price premium of over 15%, quickly establishing the facility as a benchmark in the regional market.

Case Study 2: A Dedicated Aggregate Plant for a High-Speed Rail Project in Southwest China

• Requirement: To exclusively supply high-standard concrete aggregates for a high-speed rail project, subject to exceptionally rigorous requirements regarding crushed stone particle shape and the fines content of the manufactured sand. • Solution: We adopted a "two-stage crushing + two-stage shaping" process, featuring a Vertical Shaft Impact (VSI) crusher as the core shaping and sand-making unit, equipped with advanced dry dust removal and air classification systems.

• Results: The production line consistently yields high-quality aggregates that fully comply with the *Acceptance Standards for Construction Quality of Railway Concrete Engineering*. Upon project acceptance, the client highly praised the aggregate particle shape and the Methylene Blue Value (MB Value) of the manufactured sand, thereby ensuring the quality and durability of the final engineering structure.

V. Recommended Equipment

Based on varying requirements for production capacity, feed materials, and finished products, we recommend the following flagship series of tertiary impact crushers:

1.  VSI Series Vertical Shaft Impact Crusher

◦ Features: Utilizes a deep-cavity rotor design for high throughput; combines central feeding with cascade feeding to achieve high efficiency in both sand making and aggregate shaping. A hydraulic lid-opening device facilitates easy maintenance.

◦ Applications: Large- and medium-scale sand and aggregate production lines, particularly suitable for projects with stringent requirements regarding both production capacity and finished product quality.

2.  5X Series New-Generation Sand Making and Shaping Machine

◦ Features: Features an optimized crushing chamber profile and impeller flow channels, resulting in lower wear costs and superior energy efficiency. The thin-oil lubrication scheme offers enhanced reliability, and the machine boasts a high degree of automation.

◦ Applications: Green mining initiatives and large-scale building material groups that prioritize long-term operating costs and intelligent management.

3.  Mobile Impact Crushing Station

◦ Features: Integrates the tertiary impact crusher onto a single, unified chassis, enabling flexible site transfers and rapid commissioning.

◦ Applications: Small- to medium-scale projects with dispersed raw material sources, construction waste recycling sites, and various construction sites requiring flexible equipment deployment.

VI. Frequently Asked Questions (FAQ)

Q1: What is the fundamental difference between a tertiary impact crusher and a traditional hammer crusher for sand making?

A1: The fundamental difference lies in the crushing principle and the quality of the finished product. Hammer crushers rely primarily on the impact of hammers; this method is prone to over-crushing and generating micro-cracks within particles, resulting in a high content of needle-like and flaky particles. In contrast, the tertiary impact crusher primarily utilizes a "stone-on-stone" crushing mechanism, where material particles collide and grind against one another. This process generates a "self-shaping" effect; consequently, the finished aggregates feature a rounded shape, a well-balanced gradation, and superior compressive strength, making this machine the ideal choice for producing high-quality shaped aggregates and manufactured sand.

Q2: What is the service life of the equipment's core wear parts (such as the impeller and liner plates)? Is their replacement a complicated process?

A2: Our equipment features a modular design and utilizes ultra-wear-resistant materials. Taking the impeller as an example—which is cast from either a full ceramic composite or a multi-element high-chromium alloy—its normal service life can exceed 800 to 1,200 hours when processing hard rocks such as granite. The liner plates are reversible (top-to-bottom), effectively doubling their utilization rate. Furthermore, the equipment is designed with a hydraulic lid-opening mechanism; this eliminates the need for heavy lifting machinery, allowing a single operator to complete the replacement of major wear parts within just a few hours, thereby significantly minimizing downtime.

Q3: If I wish to use a single machine to simultaneously produce aggregates of various specifications as well as manufactured sand, how should the process flow be configured?

A3: We recommend adopting a "closed-circuit circulation" process. This involves integrating the tertiary impact crusher with a multi-deck vibrating screen to form a closed-loop system. Larger-sized aggregates retained on the screen are returned to the crusher for further shaping until their particle shape meets the required standards, at which point they are classified as finished products; conversely, the material passing through the screen constitutes high-quality manufactured sand. By adjusting the screen mesh sizes and the crusher's operating parameters, you can flexibly control the proportion and output of various finished product specifications (e.g., 0–5mm sand, 5–10mm gravel, 10–20mm stone), thereby enabling multi-product output from a single machine and maximizing economic benefits.
