Three-stage crushing plant
Construction waste—such as concrete blocks, bricks, and mortar—generated during urban renewal projects can be transformed into recyclable aggregates through the precision processing capabilities of a three-stage crusher, thereby fostering the development of green buildings. As the pivotal equipment for the resource utilization of construction waste, the three-stage crusher employs a staged crushing process to achieve waste reduction, resource recovery, and harmless disposal. This approach breaks the cycle of "land occupation through stockpiling and environmental pollution through landfilling," thereby driving a low-carbon transition within the construction industry.
I. The Three-Stage Crusher: The Core Pillar of Construction Waste Resource Utilization
At the heart of construction waste resource utilization lies the three-stage crusher. Distinguished from traditional crushing equipment by its "precision" and "versatility," this machine can accommodate a wide spectrum of construction waste crushing requirements. Depending on the specific application scenario, it produces recycled aggregates of various specifications, making them suitable for perse fields such as roadbed sub-bases and recycled bricks. Whether handling the bulk processing of waste from large-scale building demolitions or the sporadic recycling of materials from smaller projects, the three-stage crusher efficiently transforms construction waste—turning "waste into resources." By delivering both environmental and economic benefits, it serves as a critical link in the resource utilization value chain.
II. The Precision Crushing Process of the Three-Stage Crusher
The three-stage crusher employs a closed-loop workflow comprising "pre-treatment, staged crushing, screening and impurity removal, and finished product output." This process is characterized by its precision, controllability, and high resource utilization rate:
PE Jaw Crusher
1. Pre-treatment: This stage involves air-drying to remove moisture, crushing oversized blocks, manually sorting out impurities (such as metals), and screening to remove soil. These steps lay the foundation for subsequent crushing operations and enhance the purity of the resulting aggregates.

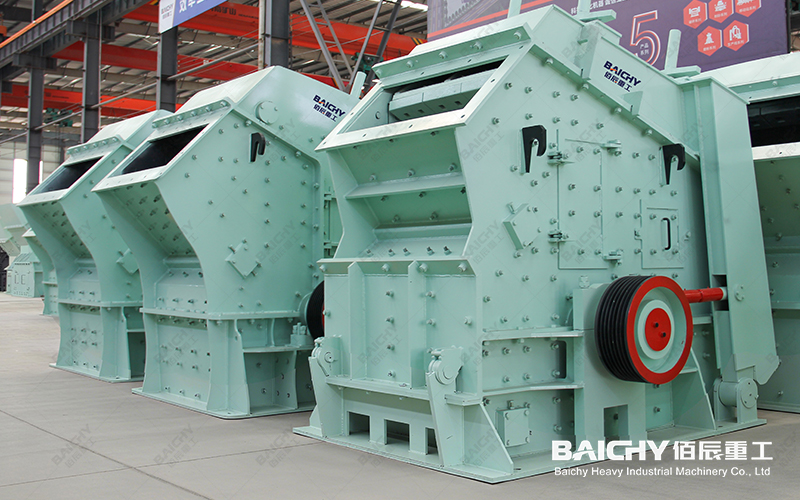

PF Impact Crusher
2. Three-Stage Crushing: This process consists of primary coarse crushing (reducing sizes to ≤100mm), secondary medium crushing (30–100mm), and tertiary fine crushing (≤30mm). Through this progressive refinement, the aggregate grain shape is improved, ensuring suitability for a variety of different requirements.

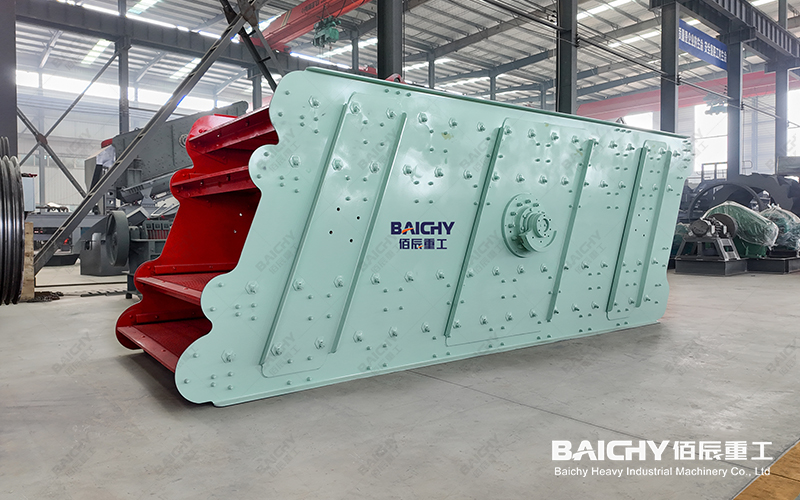

Vibrating Screen
3. Screening and Sorting: Vibrating screens are utilized to separate aggregates by particle size. This is combined with gravity- or water-based sorting methods to separate brick aggregates from concrete aggregates, while magnetic and air separation systems are employed to remove impurities, thereby ensuring full compliance with national industry standards.
4. Finished Product Output: The process yields recycled micro-fines as well as recycled aggregates in specific size ranges—0.15–5mm, 5–15mm, and 15–25mm. These products are utilized in various applications—such as mortar, recycled concrete, and roadbed sub-bases—thereby achieving the comprehensive utilization of all generated materials.
III. Core Advantages of the Three-Stage Crusher
- High Adaptability: Capable of processing various types of construction waste; parameters can be flexibly adjusted to suit perse operational scenarios, ensuring trouble-free operation without material jamming or clogging issues.
- High Efficiency & Energy Saving: Processing capacity ranges from 30 to 150 tons per hour, with a unit energy consumption of ≤1.5 kWh per ton. Its high degree of automation reduces both labor requirements and energy costs.
- Controllable Quality: Features thorough impurity removal and precise control over aggregate particle size and shape. The output meets relevant national standards, ensuring stable and traceable product quality.
- Robust Stability: Built with high-quality components and comprehensive safety protection systems, resulting in a low failure rate, a long service life, and minimal maintenance costs.
IV. The Multifaceted Value of the Three-Stage Crusher
1. Environmental Value: Reduces the land footprint and pollution associated with construction waste landfills; serves as a substitute for the mining of natural sand and gravel; contributes to "Waste-Free City" initiatives and "Dual Carbon" goals; and improves the operational environment.
2. Economic Value: Produces recycled aggregates at a low cost, thereby reducing procurement expenses by replacing natural sand and gravel. It extends the industrial chain, creates employment opportunities, qualifies for environmental protection subsidies, and generates substantial returns.
3. Social Value: Promotes the concept of resource recycling; improves the urban environment; drives the transformation and upgrading of the construction industry; and contributes to sustainable development.
V. Common FAQs Regarding the Three-Stage Crusher
FAQ 1: Does the quality of the recycled aggregates meet the required standards? Can they serve as a substitute for natural sand and gravel?
They fully meet the required standards and can—depending on the specific application scenario—replace a portion or the entirety of natural sand and gravel. The three-stage crusher's closed-loop processing system and impurity removal mechanisms ensure that aggregate purity and particle size meet national industry standards. Aggregates of various specifications are suitable for applications such as road bases and recycled concrete; furthermore, with ongoing technological upgrades, the substitution ratio is expected to increase even further.
FAQ 2: What is the processing efficiency like? What advantages does it offer compared to traditional equipment?
It boasts a processing capacity of 30 to 150 tons per hour—an efficiency rate that is 30% to 50% higher than that of traditional equipment. Its core advantages lie in its precision processing capabilities, high adaptability, energy efficiency (consuming 20% to 30% less energy), controllable output quality, and low maintenance costs. It is the preferred choice for the large-scale processing of construction waste.
FAQ 3: Is the return on investment significant? What factors should be taken into consideration?
The return on investment is substantial, driven by low raw material costs and strong market demand. Additionally, operators are eligible to receive environmental protection subsidies, further enhancing profitability. Key Considerations: Select compatible equipment models, complete necessary environmental compliance procedures, establish supply and demand channels, ensure proper equipment maintenance, stay abreast of policy updates and technological advancements, and safeguard revenue stability.
