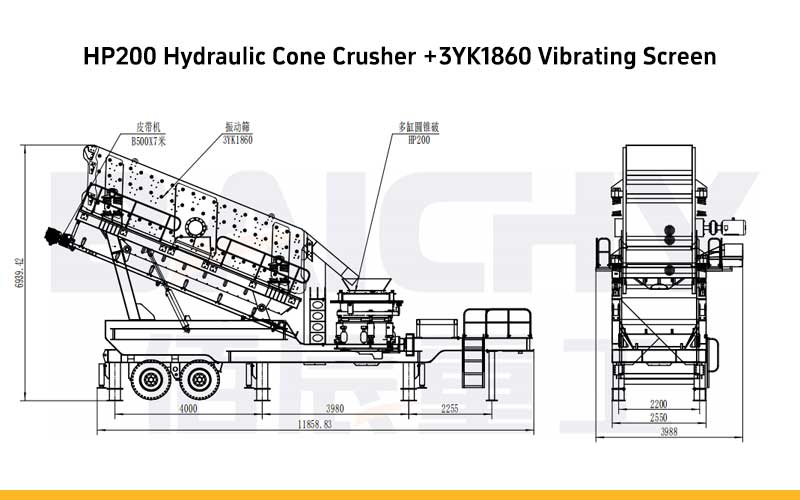

HP200 hydraulic cone crusher + 3YK1860 mobile vibrating screen station is a high-performance mobile crushing and screening equipmentintegrating crushing, screening and conveying, which is widely used in mining, construction waste treatment, sand and gravel aggregate production and other fields. With its high-efficiency crushing capacity, multi-level screening accuracy and flexible transfer advantages, this combined equipment has become an ideal choice for processing medium-hard materials.
Core equipment introduction

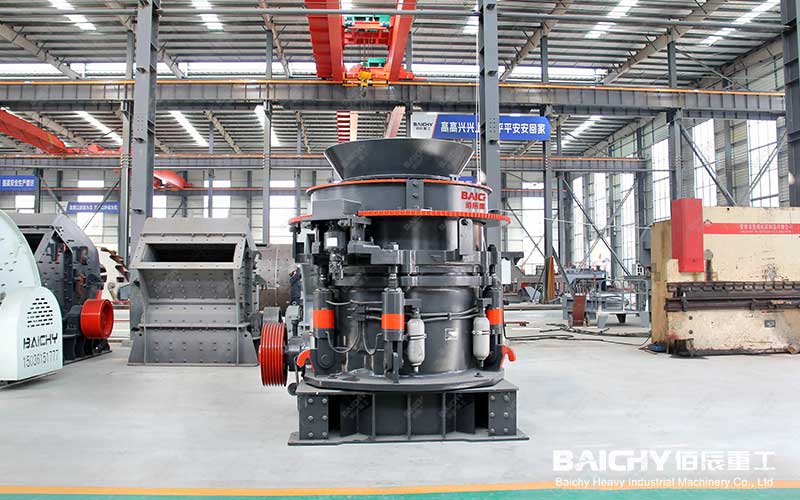

1. HP200 hydraulic cone crusher
• High-performance crushing: hydraulic adjustment of the discharge port and iron protection device are adopted to ensure stable discharge and low failure rate.
• Intelligent control: equipped with an automated control system to monitor the operating status in real time and optimize production efficiency.
• Applicable materials: granite, basalt, iron ore and other high-hardness materials.
Technical parameters:
• Maximum feed size: ≤180mm
• Processing capacity: 90-260t/h
• Motor power: 160kW

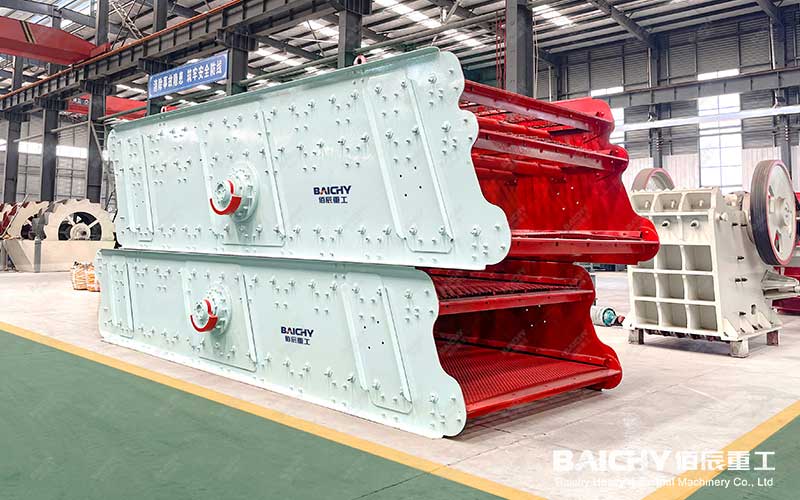

2. 3YK1860 vibrating screen
• Three-layer high-efficiency screening: Accurately separate materials of different particle sizes (0-5mm, 5-10mm, 10-20mm).
• High-strength screen: wear-resistant material, long service life, and reduced maintenance costs.
• Low noise design: Optimize vibration structure, reduce operating noise, and meet environmental protection requirements.
Technical parameters:
• Screen surface size: 1800×6000mm
• Number of screen layers: 3 layers
• Processing capacity: 80-450t/h
Advantages of equipment combination
✔ Integrated design: Reduce intermediate transportation links and reduce operating costs.
✔ Flexible movement: crawler or tire chassis, adapt to complex working environments.
✔ Intelligent control: PLC control system, remote monitoring and fault diagnosis.
✔ Environmental protection and energy saving: low noise, low dust emission, in line with green production standards.
Application scenarios
1. Mining stone crushing: efficient processing of granite, limestone, etc., to produce high-quality aggregates.
2. Construction waste recycling: crushing concrete and bricks to achieve resource recycling.
3. Sand and gravel aggregate production: integrated screening to meet the needs of sand and gravel of different specifications.
Why choose our equipment?
✔ Factory direct supply: provide HP200 cone crusher + 3YK1860 vibrating screen complete solution at a preferential price.
✔ Professional technical support: free installation and commissioning, operation training, lifelong maintenance service.
✔ Rich in successful cases: has served 5000+ mines and building materials companies, and the equipment runs stably and efficiently.
Consult now: Get the latest quotation, technical parameters, case videos, please contact our sales team!
WhatsApp: 0086 15093222637 | Email: [email protected]
FAQ
Q1: What is the price of HP200 cone crusher + 3YK1860 mobile vibrating screen?
A: The price varies depending on the configuration (such as tire type/crawler type). Please contact customer service for a detailed quotation.
Q2: Can the equipment capacity meet the needs of large stone factories?
A: The combined processing capacity can reach 200-400t/h, which is suitable for small and medium-sized production lines. If higher capacity is required, customized solutions can be provided.
Q3: Is after-sales maintenance service provided?
A: We provide 24-hour technical response and are equipped with a professional engineer team for support.
HP200 hydraulic cone crusher + 3YK1860 mobile vibrating screen has become the preferred equipment in the modern crushing and screening industry with its high efficiency, flexibility and intelligence. Whether it is mining or construction waste treatment, this equipment can provide a stable and reliable solution.
