BAICHY’s new C-Series jaw crushers really demonstrate excellence in terms of versatility and efficiency, especially in hard rock applications. The following is a detailed analysis of this crusher:
First of all, BAICHY’s C-series jaw crushers are versatile and can adapt to a variety of crushing needs. Its design is flexible and can be adjusted and optimized according to different material characteristics and crushing requirements to achieve efficient and precise crushing operations. Whether used in mining, construction or other industries, this crusher delivers outstanding crushing results.
Secondly, this crusher excels in hard rock applications. Due to its high hardness and wear resistance, hard rock often places extremely high demands on crushing equipment. However, BAICHY's C series jaw crusher uses high-strength materials and advanced design to ensure its stability and durability when crushing hard rock. At the same time, its optimized crushing chamber and crushing force distribution make the crushing process more efficient and reduce energy consumption and maintenance costs.
In addition, BAICHY's C series jaw crusher is also characterized by easy operation and maintenance. Its intelligent control system makes the operation simpler and more intuitive, reducing the difficulty of operation. At the same time, its modular design makes it easier to maintain and replace parts, improving the reliability and service life of the equipment.
BAICHY’s new C-Series jaw crushers excel in versatility and efficiency, especially for hard rock applications. Whether in terms of crushing effect, stability or maintenance convenience, it has demonstrated excellent performance and is an ideal choice in the field of hard rock crushing.
Technical parameters of C series jaw crusher
| Model | Feeder Opening Size(mm) | Max. Feeding Size(mm) | Outlet adjusting range(mm) | Centrifugal Shaft Speed(rmp) | Capacity(t/h) | Motor Power(kw) |
|---|---|---|---|---|---|---|
| Stationarytype application | ||||||
| C80 | 500×750 | 400 | 40-150 | 290 | 50-160 | 55-75 |
| C90 | 610×910 | 500 | 60-180 | 260 | 60-180 | 90 |
| C100 | 760×1060 | 600 | 70-200 | 260 | 150-300 | 132 |
| C110 | 850×1100 | 700 | 70-200 | 230 | 200-400 | 132-160 |
| C125 | 950×1250 | 800 | 100-250 | 220 | 300-800 | 160 |
| C140 | 1070×1400 | 900 | 125-270 | 220 | 400-900 | 200 |
| C160 | 1200×1600 | 1000 | 150-300 | 220 | 500-1200 | 250 |
| C200 | 1500×2000 | 1200 | 175-300 | 200 | 800-1400 | 400 |

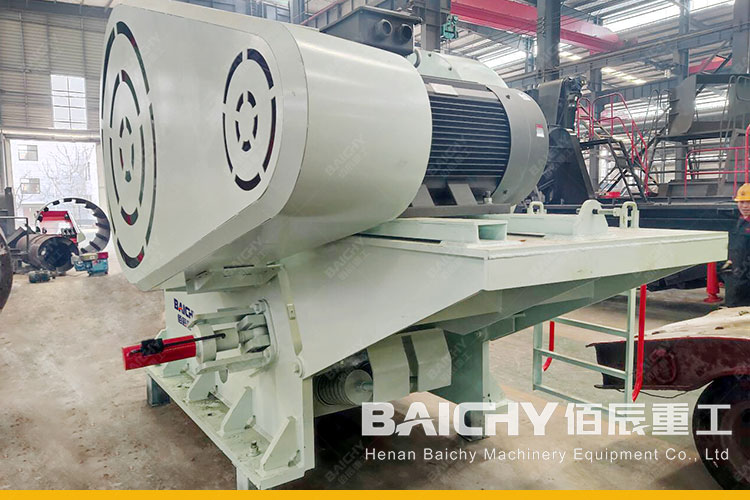

C series jaw crusher delivery series pictures
