30-100 t/h Combined mobile crushing and screening plant

2022-10-10 13:58:48
Baichy
plays
Warm Tip:

If you want to know more details about equipment, solutions, etc, please click the button below for free consultation, or leave your requirements!




Product Description:

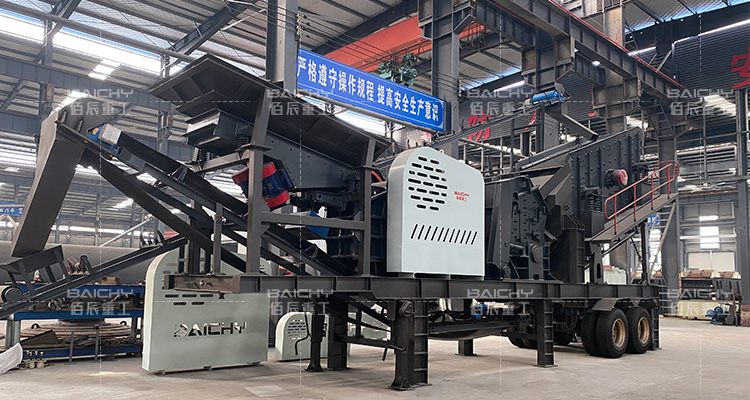

Multi-machine combination is a common combination crushing plant at present, and it is also a combination crushing station with high productivity at present. For small and medium production requirements, frequent moving operating environments, and independent completion of customer needs for stone production, a multi-stage combination mobile crushing station is the best choice. It is mainly composed of a vibrating screen, jaw crusher, cone crusher, impact crusher, impact crusher, etc. according to different types of coarse crushing, medium crushing, and fine crushing. The primary crushing station can be self-loaded for conveying and screening and can move quickly to complete the work.



Technical parameter

Technical Data//Model

MF1007E46

MC900E57

Transportation size (mm)

14700x2400x4150

17000x2500x4300

Weight(t)

40

45

Vibrating feeder

ZSW0725

ZSW8530

Crusher 1

PE400x600

PE500x750

Crusher2

PF1007

PYB900

Vibrating screen

3YK1237

3YK1548

Belt conveyer above the screen

B500x4.5m

B500x5.5m

Belt conveyor under screen

B500x8m

B800x10m

Main belt conveyor

B500x15m

B500x15m

Side belt conveyor

B500x14m

B800x18m

Electric control (standard)

control box + control panel

control box + control panel

Support leg (standard)

6

6

Capacity(t/h)

30-60t/h

60-100t/h




Working principle:

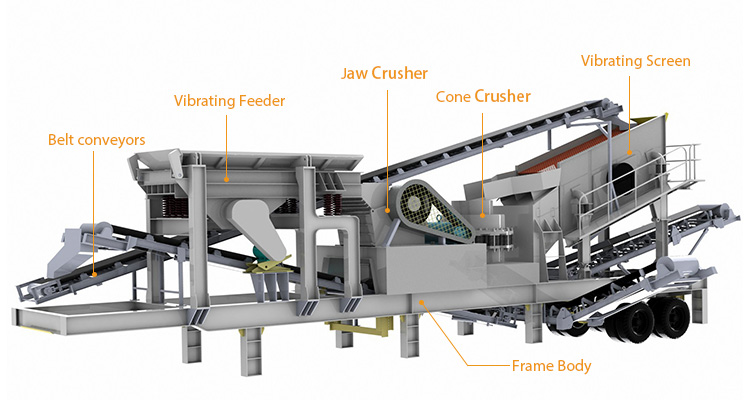

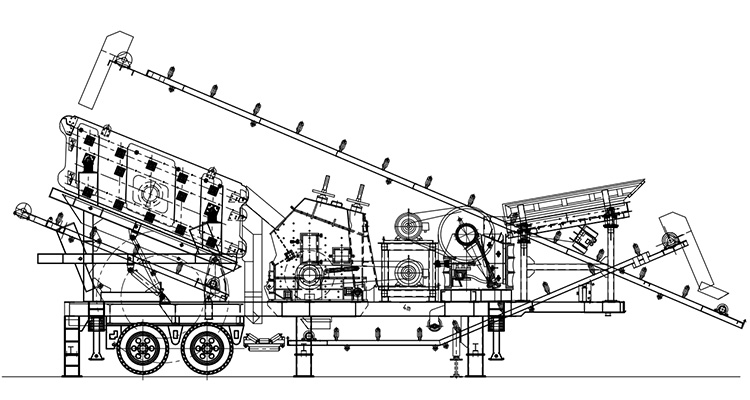

The combined mobile plant inclined vibrating feeder, jaw crusher, cone/impact crusher, and vibrating screen on one truck body to crushing and screening. This four-in-one crushing plant is a reasonable circular crushing system to crush stones with higher efficiency. When the mobile stone crusher plant works, the material by the feeder goes evenly to the jaw crusher. After primary crushing by the jaw crusher, the stone goes to the vibrating screen by the main belt conveyor. During the screening, the first layer of unqualified material goes into a secondary crusher to break. The qualified material from other screen layers is discharged to the finished material area. The output from the secondary crusher is discharged to the main belt conveyor for further screening too. Thus, the material is in the circulation system of crushing-screening-crushing. The finished material could meet the final demand greatly.


Product advantages





The combined mobile plant (ie the combined mobile crushing plant) integrates a complete set of units, which reduces the requirements of the split components for the site infrastructure and the difficulty of installation of auxiliary facilities and can save a lot of infrastructure and relocation costs. The material can be crushed on-site and can be moved with the advancement of the raw material mining surface, thereby greatly reducing the transportation cost of the material. Truly provide customers with hardware facilities for efficient and low-cost project operation.



Baichy Heavy Industry has been committed to the production of marble crushing equipment for more than 30 years.

It not only has very rich production experience but also has advanced production technology and completeproduction facilities. Baichy Machinery regards quality as its life and selects high-quality raw materials. The quality of the marble crushing equipment produced by Baichy Machinery has passed the international quality system certification and has been unanimously recognized by the majority of users.

Not only that, the marble crushing equipment produced by Baichy Machinery is very affordable, which can greatly reduce the user's investment in production. If users need or want to know more about their equipment, they can call Baichy Heavy Industry's free consultation hotline at any time. 8615093222637, we will serve every user attentively, and according to the actual production needs of the user, give the user a more reasonable and preferential price.
