250-400 T/H Complete Sand Making Plant Solution

Certainly. Here is a professional design proposal for a large-scale sand-making production line with a capacity of 250–400 tons per hour. This capacity range characterizes a large-scale, high-output, and modern aggregate production line, with the core objectives being high efficiency, operational stability, superior product quality, and intelligent operation.

Large-Scale Sand-Making Production Line Proposal (250–400 tons/hour)

I. Core Design Philosophy

•   High Output & Stability: Equipment selection prioritizes large-scale, heavy-duty, and highly reliable machinery to ensure continuous and uninterrupted operation.

•   Superior Product Quality: Through multi-stage crushing, shaping, and high-efficiency screening, the grain shape, gradation, and stone powder content of the finished sand are strictly controlled.

•   Eco-friendly & Intelligent: Features a fully enclosed design and high-efficiency dust removal systems, complemented by a central control system to enable automated production and remote monitoring.

•   Flexible Configuration: The design is customized based on the specific characteristics of the raw materials (hardness, clay content, particle size) and the requirements for the finished products (ratio of crushed stone to manufactured sand).

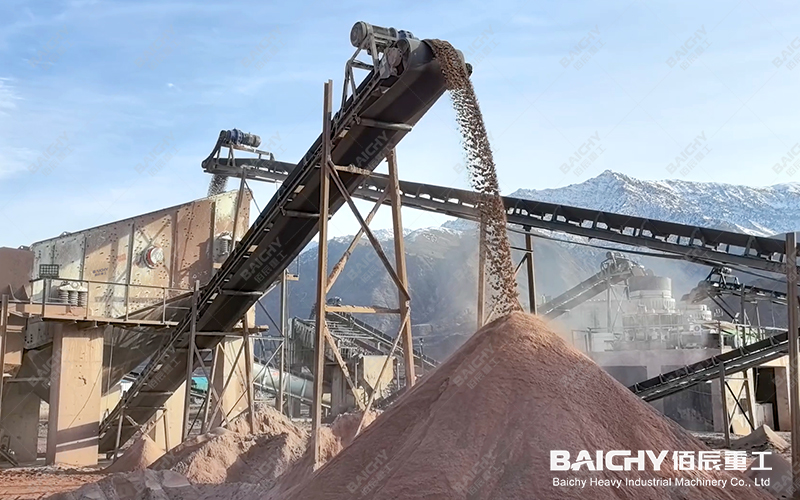

250-400 T/H Complete Sand Making Plant Solution

II. Typical Process Flow (Three Stages with Closed Circuit)

This represents the most mature and efficient configuration for large-scale production lines.

1.  Stage 1: Primary Crushing

◦   Equipment: Jaw Crusher or Large Gyratory Crusher.

◦   Selection Recommendations:

▪   PE-1200×1500 or a larger-sized Jaw Crusher.

▪   If the raw material particle size is exceptionally large (>1000mm) and the output requirement is extremely high, a Gyratory Crusher is the preferred choice due to its massive processing capacity, smooth operation, and ability to produce a more uniform discharge size.

◦   Function: To crush raw stone (typically ≤1200mm) obtained from blasting down to a size of ≤300mm.

2.  Stage 2: Secondary Crushing

◦   Equipment: Single-Cylinder Hydraulic Cone Crusher or Multi-Cylinder Hydraulic Cone Crusher.

◦   Selection Recommendations: Model HST315/SCH440 or higher. Suitable for processing rocks of medium-to-high hardness (e.g., granite, basalt); features excellent wear resistance and a low powder generation rate, primarily producing crushed stone aggregates in the 10–30mm size range.

3.  Stage 3: Sand Making & Fine Crushing

◦   Core Equipment: Vertical Shaft Impact Crusher (Sand Making Machine).

◦   Model Selection Recommendation: VSI1140, VSI1263, or larger models. This is the critical equipment for producing high-quality manufactured sand; utilizing "stone-on-stone" and "stone-on-iron" crushing principles, it crushes and shapes materials that have undergone secondary crushing, yielding manufactured sand (0–5 mm) with excellent, rounded grain shapes.

4.  Closed-Circuit Screening System

◦   Equipment: Multi-deck heavy-duty vibrating screens (typically 2–3 units operating in parallel, or a large-scale screening tower).

◦   Process: All crushed materials are fed into the vibrating screens.

▪   Oversize material (>30 mm): Returned to the secondary cone crusher for further processing.

▪   Qualified aggregates (e.g., 10–30 mm, 5–10 mm): Directly discharged as finished crushed stone products.

▪   Undersize material (<5 mm): Directed to the powder separation/sand washing stage.

5.  Finished Sand Processing & Environmental Protection

◦   Stone Powder Control & Recovery: Equipped with high-efficiency powder separators to remove excess stone powder (0–0.075 mm) from the finished sand. The stone powder content can be adjusted as needed (typically controlled within 3–15%) to meet the sand specifications required for various concrete grades. The separated stone powder can be centrally collected and utilized.

◦   Washing & Dewatering: If the raw materials contain clay or if high cleanliness standards are required, a wheel-bucket sand washer and an integrated fine sand recovery/dewatering unit should be installed. This ensures thorough cleaning while minimizing the loss of fine sand and controlling moisture content.

◦   Comprehensive Dust Removal: Pulse bag filters are strategically installed at all potential dust-generating points—including feeding, material transfer, screening, and sand making—to ensure environmentally friendly production.

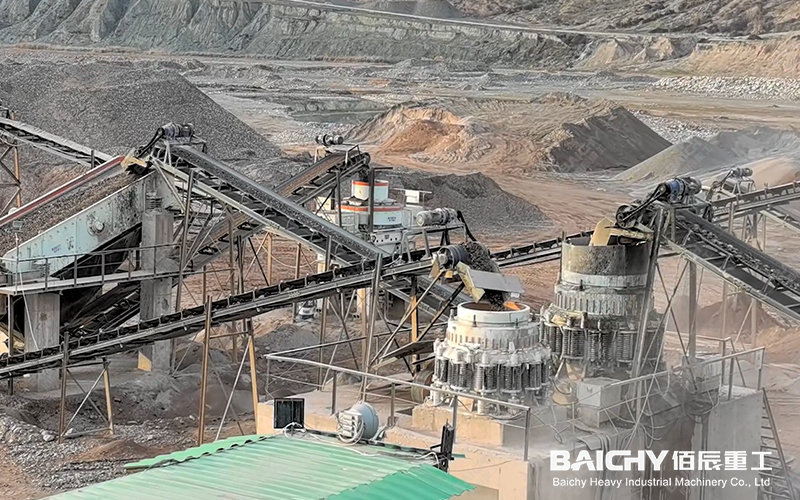

250-400 T/H Complete Sand Making Plant Solution

III. Estimated List of Key Equipment

IV. Investment and Site Requirements

•   Total Investment Estimate: Depending on the equipment brand (imported, high-end domestic, or standard domestic), the level of automation, and the investment in environmental protection measures, the equipment investment for this type of production line typically ranges from 15 million to 30 million RMB. Costs for civil engineering, electrical works, installation, etc., are calculated separately.

•   Site Requirements: A large area of level ground is required. Taking into account space for raw material stockpiles, the production line itself, finished product stockpiles, and vehicle maneuvering areas, the total land footprint is recommended to be no less than 50 mu (approximately 33,000 square meters). Energy consumption can be reduced if the natural terrain elevation difference can be utilized.

•   Construction Period: From civil engineering completion to commissioning and full-scale production, the process typically takes 4 to 8 months. V. Finished Products and Revenue Analysis

•   Key Products:

1.  Premium Manufactured Sand (0–5 mm): Accounts for approximately 30–40% of output; possesses high added value.

2.  High-Quality Crushed Stone Aggregates (5–10 mm, 10–20 mm, 20–30 mm, etc.): Accounts for approximately 60–70% of output.

•   Key Revenue Drivers: The project's profitability is highly dependent on raw material costs and local market prices for sand and aggregates. Against the current backdrop of bans and restrictions on natural sand mining, there is robust market demand for high-quality manufactured sand, and prices remain firm; furthermore, large-scale production lines demonstrate significant economies of scale.

VI. Recommendations for Selection

1.  Prioritize Raw Materials: It is imperative to conduct detailed lithological testing of raw materials and determine their crushing work index; this serves as the fundamental basis for selecting appropriate equipment.

2.  Emphasize Planning: Engage a professional design institute or an experienced equipment manufacturer to undertake comprehensive planning and process design, thereby avoiding operational "bottlenecks" caused by equipment mismatches.

3.  Inspect Case Studies: Personally visit and inspect several operational projects of a similar scale to gain firsthand insight into the actual performance and energy consumption of equipment from various brands.

4.  Focus on Service: Select a reliable supplier capable of providing holistic solutions—including installation, commissioning, and long-term operation and maintenance support.

Summary: Constructing a large-scale sand manufacturing line with a capacity of 250–400 tons per hour is a complex, systemic undertaking. It necessitates comprehensive and forward-looking investments across process design, equipment, environmental protection, and intelligent automation. However, the resulting economies of scale, enhanced product competitiveness, and stable financial returns position this type of project as a pivotal choice for the sand and aggregate industry as it transitions toward modernization and green development.
