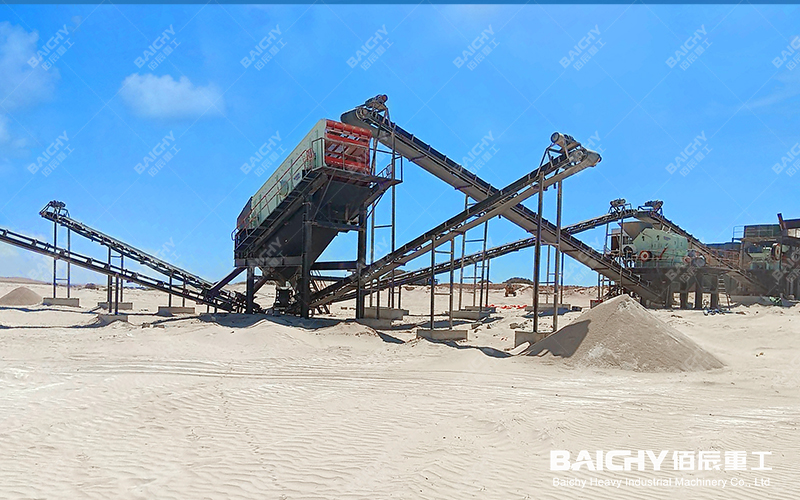

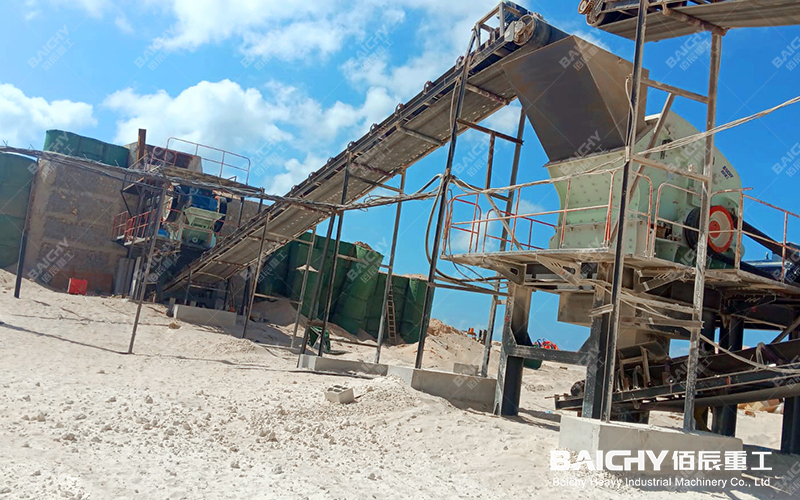

150-200 TPH Stone Crushing Plant Solutions
In today's increasingly competitive sand and aggregate industry, investing in a stone crushing plant that features a scientifically sound configuration, operates with high efficiency, and can flexibly adapt to market fluctuations is crucial for medium-sized aggregate plants seeking to achieve profitability and sustainable growth. Faced with complex raw material characteristics (ranging from extremely hard granite to medium-hardness limestone) and Perse finished product requirements (from standard aggregates to high-quality manufactured sand), how does one select a 150–200 TPH production line that effectively controls initial investment while ensuring long-term stable production and a high yield of premium-quality products?
As a professional supplier of mining machinery and equipment, Baichy Machinery draws upon experience from hundreds of successful projects to provide you with an in-depth analysis of a mature, reliable, and highly flexible stone crushing plant solution with a capacity of 150–200 tons per hour. This article will not only showcase the plant's robust core performance capabilities but will also focus on dissecting two classic process flows tailored to different raw materials, providing key process design parameters to serve as a comprehensive reference for your decision-making.
Stone Crushing Plant PDF，Download ↓↓↓
Part I: Production Line Core Performance Overview—A Triple Guarantee of Capacity, Quality, and Adaptability
The core value of an exceptional crushing plant lies in its ability to deliver stable output, produce high-quality products, and adapt to complex operating conditions. This solution has been designed to deliver precisely that.
1. Exceptional and Stable Processing Capacity: This production line is designed with a capacity ranging from 150 to 200 tons per hour. This capacity range perfectly aligns with the production scale requirements of medium-sized sand and aggregate quarries; it not only meets the aggregate supply demands of regional infrastructure projects but also avoids the equipment idleness and capital waste often associated with overcapacity. Through scientifically optimized equipment matching and process design, the system ensures consistent output stability during continuous, round-the-clock operations.
2. Efficient Synergy of Core Machinery: The "heart" of the production line is powerfully driven by a combination of primary and secondary (medium-to-fine) crushing equipment. Typically, a PE-series jaw crusher is employed as the primary crushing unit; its robust crushing force and high reliability allow it to effortlessly handle the initial reduction of large-sized raw materials. Subsequently, it is paired with either a PFW-series impact crusher or a multi-cylinder hydraulic cone crusher for secondary crushing. The former excels in both crushing and aggregate shaping, while the latter offers distinct advantages in wear resistance and energy efficiency when processing high-hardness, highly abrasive materials. This specific combination ensures a high crushing ratio and results in superior finished aggregate particle shape.
3. Broad Raw Material Adaptability: This solution is far from being a "one-size-fits-all" approach; its modular design enables the efficient processing of a wide variety of mineral rocks. Whether dealing with high-hardness, highly abrasive materials like granite and basalt, medium-hardness and brittle materials such as limestone and bluestone, or even construction waste concrete, the system can be adapted by adjusting the type of primary crusher and the overall process flow. This adaptability allows for "one machine, multiple uses" and "one plant, multiple products."
4. Perse Finished Product Specifications: The specifications of the final aggregate products can be flexibly adjusted to meet specific market demands—a key factor in maximizing the economic value of the production line. Common output specifications include: 0–5mm (high-quality manufactured sand, suitable for commercial concrete and dry-mix mortars), 5–10mm, 10–20mm, and 20–31.5mm (or 20–40mm), among others. Aggregates of different specifications can be applied to various fields—such as commercial concrete, aspalt concrete, road base layers, and railway ballast—thereby satisfying the Perse sales requirements of the client.
Part Two: A Detailed Look at Two Classic Process Flows—"Tailor-Made" Solutions for Your Raw Materials
There is no single "best" piece of equipment; there is only the most suitable configuration. Baichuan Heavy Industry offers two sets of proven process solutions—validated by a vast number of projects—tailored to the two most common categories of raw materials: medium-to-low hardness rocks and high-hardness rocks.
Solution A: Two-Stage, Closed-Circuit Crushing Process (For medium-to-low hardness materials, such as limestone and bluestone)

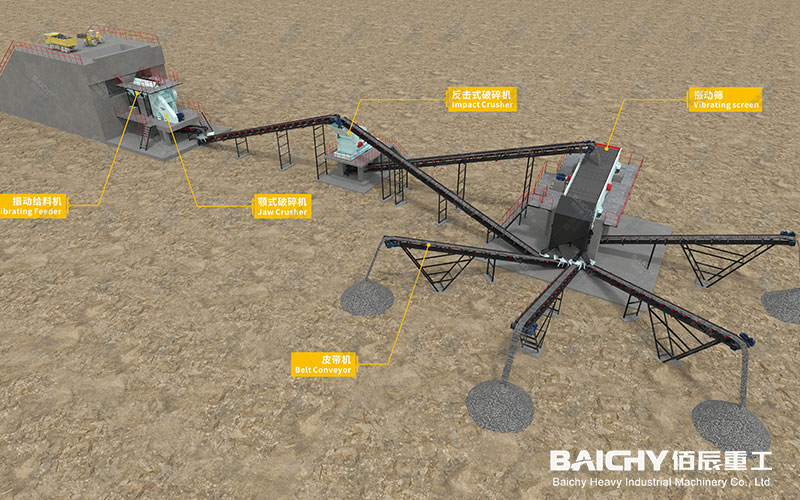

Stone Crushing Plant - Jaw Crusher +Impact Crusher
• Process Flow: Vibrating Feeder → Jaw Crusher (Coarse Crushing) → Impact Crusher (Medium & Fine Crushing) → Circular Vibrating Screen (Screening/Grading). Oversized, non-compliant materials retained on the screen are returned to the impact crusher to form a closed-circuit loop, while qualified materials passing through the screen are transported via conveyor belt to the finished product stockpile.
• Key Features:
◦ Minimal Investment Cost: The process involves fewer pieces of equipment and a streamlined workflow, significantly reducing both the initial hardware investment for the production line and the subsequent land area requirements for the plant facility.
◦ Low Energy Consumption & Operating Costs: The system's simplicity results in lower electricity consumption; furthermore, the impact crusher performs a dual function—both crushing and shaping—producing finished aggregates with a particle shape suitable for most application scenarios, thereby offering excellent cost-effectiveness.
◦ Applicable Scenarios: Particularly well-suited for the crushing and processing of materials with a compressive strength below 250 MPa—such as limestone, bluestone, and marl—making it an ideal choice for the production of road base materials and standard concrete aggregates.
Solution B: Three-Stage, Closed-Circuit Crushing & Sand-Making Process (For high-hardness, highly abrasive materials, such as granite and basalt)
Stone Crushing Plant - Jaw Crusher +Cone Crusher
• Process Flow: Vibrating Feeder → Jaw Crusher (Coarse Crushing) → Cone Crusher (Medium Crushing) → Impact Crusher (Sand-Making & Shaping) → Circular Vibrating Screen (Screening/Grading). This constitutes a more refined closed-circuit system, with a particular emphasis placed on the sand-making stage.
• Key Features:
◦ Superior Particle Shape & Excellent Gradation: The introduction of a cone crusher for the medium crushing stage—utilizing its unique laminated crushing principle—effectively minimizes the generation of needle-like and flaky particles. Subsequent shaping is performed using an impact crusher (or a vertical shaft impact crusher) specifically optimized for sand production. This process ensures that the final product features a cubical, polyhedral particle shape, with the content of needle-like and flaky particles controlled to below 8%, thereby significantly enhancing the added value of both the aggregate and manufactured sand products.
◦ Production of High-Quality Manufactured Sand: This solution is the preferred choice for producing construction sand that meets stringent standards (e.g., sand for high-strength concrete grades such as C60 and above). By adjusting crusher parameters and screen mesh sizes, the fineness modulus and stone powder content of the manufactured sand can be precisely controlled.
◦ High System Wear Resistance: When processing high-hardness materials, the wear resistance and stability of a cone crusher—utilized here as the secondary crushing device—are superior to those of an impact crusher; consequently, the overall long-term operating costs may be lower.
◦ Applicable Scenarios: Specifically designed for high-hardness materials such as granite, basalt, and river pebbles, this solution is ideally suited for key infrastructure projects and high-end commercial concrete batching plants that impose strict requirements on the particle shape, gradation, and quality of the finished aggregate and manufactured sand.
Part III: Key Process Design Parameters—Stability Rooted in Scientific Design
Beyond the macro-level workflow, meticulous parameter design serves as the micro-level guarantee for the efficient and stable operation of the production line.
• Rational Allocation of Total Crushing Ratio: For an input feed size of ≤425 mm and a requirement for multiple output specifications, the total crushing ratio is typically designed to fall between 30 and 40. Scientifically distributing the crushing workload across the primary, secondary, and tertiary (sand-making) stages—thereby avoiding scenarios where specific equipment stages are either overloaded or underutilized—is critical to ensuring the smooth and continuous operation of the entire system.
• Control of Closed-Circuit Circulation Load: A properly balanced circulation load acts as the lever for optimizing the trade-off between production output and particle size distribution. In this design scheme, the circulation load ratio within the closed-circuit screening loop is typically controlled to remain at ≤150%. Through precise calculations and the careful selection of vibrating screen mesh sizes and surface areas, the volume of recirculated material can be optimized, thereby maximizing the processing capacity of the main crushing equipment while simultaneously guaranteeing that the finished product meets the specified particle size requirements.
• Control of Finished Product Fines Content and Cleanliness: For manufactured sand or aggregates requiring specific cleanliness standards, the production line can be seamlessly integrated with auxiliary equipment, such as wheel-type sand washers or integrated fine sand recovery and dewatering units. This system effectively removes clay and impurities from aggregate surfaces while precisely controlling the stone powder content (particles ≤ 0.075 mm) within the manufactured sand—specifically stabilizing it within the ideal 5–10% range prescribed by national standards—thereby significantly enhancing product quality and market competitiveness.
150-200 TPH Stone Crushing Plant Solutions
Part IV: Choose Baichy Machinery—Choose Long-Term Assurance
• Reliable Equipment, Rooted in In-House Manufacturing: The core crushing, screening, and feeding equipment at the heart of our production lines are independently developed and manufactured by Baichy Machinery. This ensures perfect compatibility between components and guarantees consistent, stable performance over the long term. Furthermore, we provide genuine OEM spare parts support, significantly reducing future maintenance costs and minimizing the risk of downtime.
• Proven Solutions, Grounded in Practice: The two process schemes outlined in this article are not merely theoretical concepts; rather, they are the result of rigorous verification and continuous optimization across hundreds of successfully operating 150–200 TPH projects worldwide. These proven track records serve as the most reliable endorsement for the success of your investment.
• Comprehensive Turnkey Services: We offer a complete "turnkey" engineering service package—covering every stage from site surveys, process design, equipment manufacturing, and logistics to installation, commissioning, technical training, and after-sales support. Our engineers remain involved throughout the entire process to ensure that the production line transitions smoothly from blueprints into tangible, productive reality, continuously generating value for your business.
Conclusion
Whether you are focused on the local market and processing common limestone raw materials, or aspiring to build a premium aggregate brand by tackling challenging, hard granite, a scientifically designed 150–200 TPH production line serves as the solid cornerstone of your enterprise. Baichy Machinery is committed to becoming your most trusted partner, leveraging our professional expertise and reliable products to support your success.
Contact us today to receive a customized process design scheme and a detailed equipment quotation list—tailored specifically to your raw materials, site conditions, and product requirements—and let professionalism create value for you!
