Introduction: Why Stone Crusher Machines Matter in Modern Mining
In the modern mining industry, efficiency, throughput, and particle size control directly determine profitability. A stone crusher machine—also known as a rock crushing equipment—is the backbone of any mineral processing plant. From primary blasting to final grinding, crushers reduce large rocks into smaller, manageable sizes suitable for downstream processes such as screening, washing, and milling.
As a professional manufacturer specializing in mining crushers, ore grinding mills, and mineral beneficiation equipment, we help global mining operators select the right crushing solutions based on material hardness, capacity requirements, and site conditions.
Crushing Production Line – Customer Site
What Is a Stone Crusher Machine?
A stone crusher machine is a mechanical device designed to reduce large rocks, ores, and minerals into smaller fragments by applying compressive force, impact force, or shearing action. These machines are essential in:
• Open-pit and underground mining
• Quarrying and aggregate production
• Construction waste recycling
• Cement and chemical raw material preparation
Stone crushers are typically classified by their crushing stages:
| Crushing Stage | Typical Equipment | Feed Size | Output Size |
| Primary Crushing | Jaw Crusher, Gyratory Crusher | ≤1500 mm | 100–300 mm |
| Secondary Crushing | Cone Crusher, Impact Crusher | ≤350 mm | 20–80 mm |
| Tertiary / Fine Crushing | VSI Crusher, Fine Jaw Crusher | ≤60 mm| | 5–20 mm |
This classification helps engineers design complete crushing circuits tailored to specific mining projects.
Working Principle of Stone Crusher Machines
Although different crusher types vary in structure, their core working principle revolves around size reduction through mechanical force. Below are the most common principles used in mining crushers:

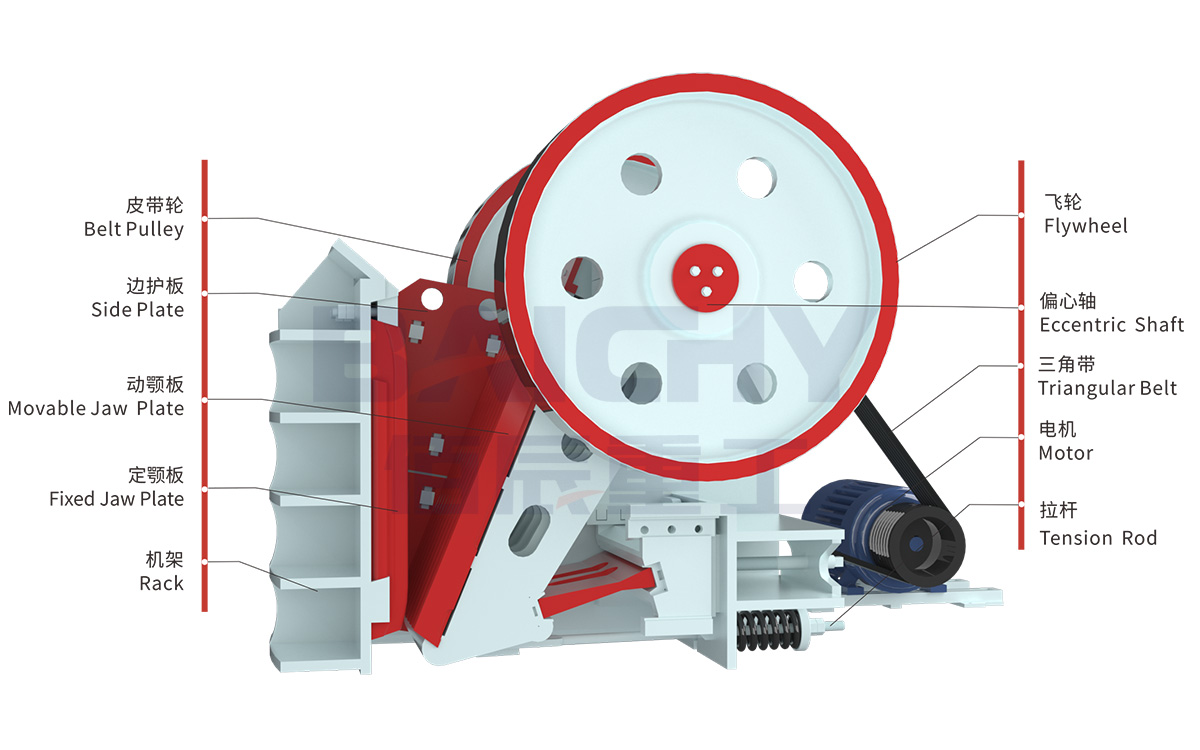

Diagram of the PE Jaw Crusher Structure
Jaw Crusher Working Principle
A jaw crusher uses a fixed jaw plate and a movable jaw plate to form a crushing chamber. The movable jaw swings back and forth driven by an eccentric shaft, compressing material between the two plates until it breaks.
• Best for hard and abrasive materials (granite, basalt, iron ore)
• Simple structure, easy maintenance
• High reduction ratio (up to 6:1)
Cone Crusher Working Principle

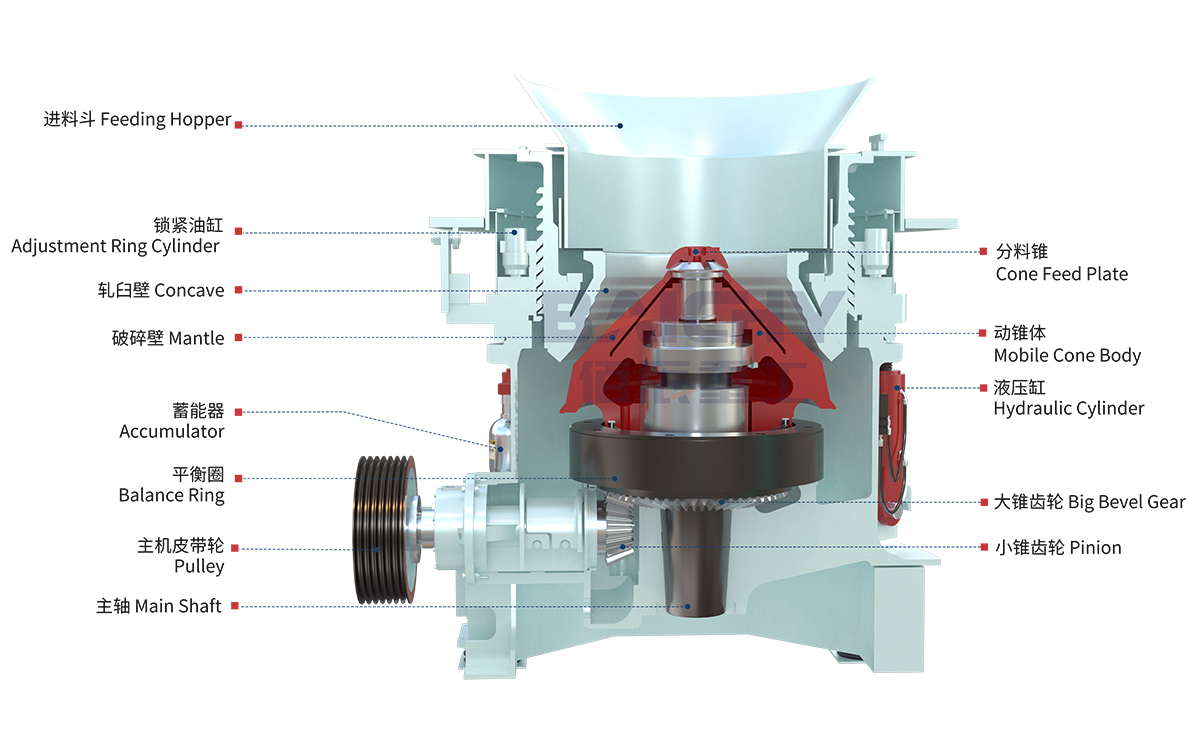

Structural Diagram of the HP Series Multi-Cylinder Hydraulic Cone Crusher
A cone crusher operates with a rotating mantle inside a concave bowl. As the mantle gyrates, it crushes material against the bowl liner through continuous compression.
• Ideal for secondary and tertiary crushing
• Excellent particle shape
• Hydraulic systems allow automatic overload protection
Impact Crusher Working Principle

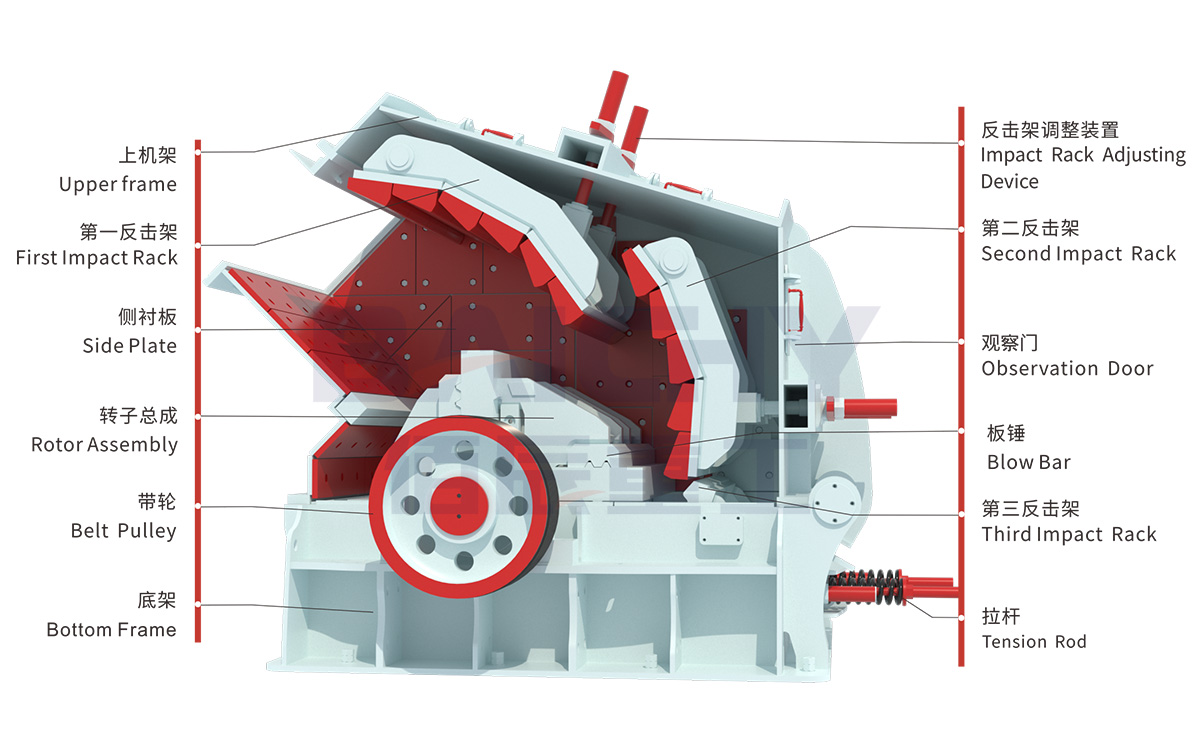

Structural diagram of the PF series impact crusher
Impact crushers use high-speed rotors equipped with blow bars. Material is fed into the crushing chamber and struck by the rotating bars, then impacted against breaker plates.
• Suitable for medium-hard and soft rocks
• High reduction ratios (10:1–20:1)
• Good for shaping aggregates
VSI Crusher (Vertical Shaft Impact Crusher)

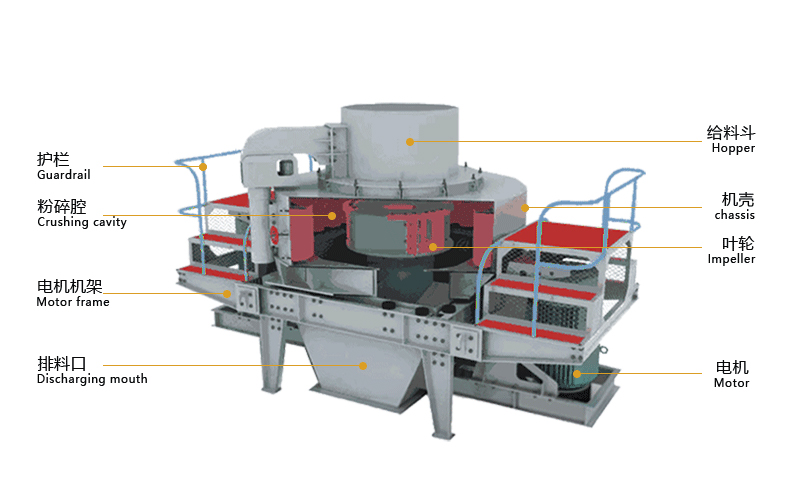

Structural Diagram of the VSI Series Sand-Making Machine
VSI crushers accelerate material in a rotor and throw it against a crushing chamber or anvil. This “rock-on-rock” or “rock-on-steel” action produces fine, cubical particles.
• Widely used in sand making
• Low wear cost when processing non-abrasive materials
• Enhances product quality for concrete and asphalt
Key Applications in Mining
A mining crusher is not limited to ore extraction; it supports multiple stages of mineral processing. Major application scenarios include:
1. Hard Rock Metal Mining
In gold, copper, and iron ore mines, stone crushers reduce run-of-mine (ROM) ore before grinding mills. For example:
• Jaw crusher handles blasted rock up to 1200 mm
• Cone crusher refines ore to 20–50 mm for ball mill feeding
2. Aggregate Production for Mine Infrastructure
Mining sites require massive amounts of aggregates for roads, foundations, and tailings dams. Crushers produce consistent gravel and sand to meet engineering specifications.
3. Underground Mining Operations
Compact mobile crushers are deployed underground to crush ore near the working face, reducing haulage costs and improving ventilation efficiency.
4. Mineral Processing Plants
Crushing circuits are integrated with vibrating feeders, screens, and conveyors to ensure continuous material flow. Proper crusher selection improves overall plant availability and reduces energy consumption per ton.
Advantages of Using Professional Stone Crusher Machines
Choosing the right rock crushing equipment from an experienced manufacturer delivers measurable benefits:
1. Higher Crushing Efficiency
Optimized cavity design and advanced wear materials increase throughput while maintaining low energy consumption.
2. Reduced Operating Costs
Hydraulic adjustment, automated lubrication, and remote monitoring minimize downtime and labor costs.
3. Enhanced Product Quality
Modern crushers produce uniform particle sizes and excellent cubicity, which improve downstream recovery rates in flotation and leaching processes.
4. Strong Adaptability
From desert open-pit mines to humid tropical quarries, professional crushers withstand harsh environments with corrosion-resistant coatings and heavy-duty components.
Real-World Case Study: Copper Mine in Chile

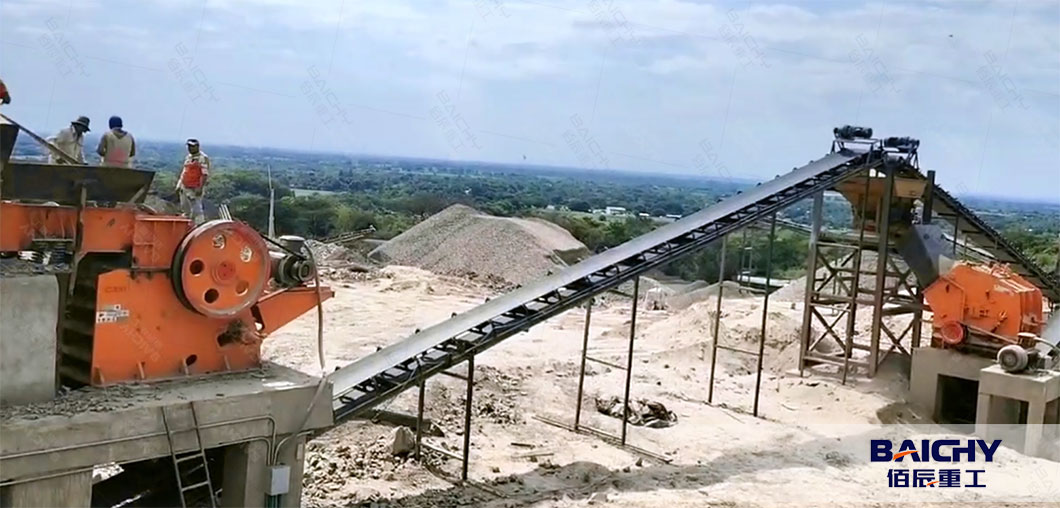

Crushing production line at a customer site in Chile
A large copper mine in northern Chile faced challenges with inconsistent feed size and frequent crusher downtime. After consulting with our technical team, they implemented a three-stage crushing circuit:
1. Primary: PE1200×1500 Jaw Crusher
2. Secondary: HPT500 Multi-Cylinder Hydraulic Cone Crusher
3. Tertiary: VSI6X Sand Making Machine
Results after 12 months:
• Throughput increased by 22%
• Power consumption reduced by 15 kWh per ton
• Wear part life extended by 30%
• Final product met strict flotation feed size requirements
This case demonstrates how selecting the correct stone crusher machine directly impacts operational KPIs in mining.
Recommended Stone Crusher Equipment
Based on decades of manufacturing experience, we recommend the following crushers for mining applications:
Jaw Crusher Series (PE / PEW)
• Feed opening: 400×600 mm – 1600×2100 mm
• Capacity: 16–1500 t/h
• Best for primary crushing of hard rock
Hydraulic Cone Crusher Series (HPT / HST)
• Cavity types: coarse, medium, fine
• Capacity: 45–1200 t/h
• Ideal for secondary and tertiary crushing with hydraulic protection
VSI Sand Making Machine (VSI6X)
• Rotor speed: 50–85 m/s
• Capacity: 100–585 t/h
• Perfect for fine crushing and manufactured sand production
All equipment can be integrated into stationary plants or mobile crushing stations depending on project needs.
FAQ: Stone Crusher Machine in Mining
Q1: How do I choose the right stone crusher for my mining project?
Selecting the correct crusher depends on material hardness, feed size, required output size, and plant capacity. For hard rock, jaw + cone combinations are preferred. For softer materials, impact crushers offer higher reduction ratios. Consulting with an experienced manufacturer ensures optimal configuration.
Q2: What is the typical service life of a stone crusher machine?
With proper maintenance, a high-quality mining crusher can operate 8–15 years. Wear parts (jaw plates, concaves, mantles) usually last 3–12 months depending on abrasiveness and operating hours. Regular inspections and timely replacements extend overall equipment life.
Q3: Can stone crushers be used in environmentally sensitive areas?
Yes. Modern crushers feature dust suppression systems, noise reduction covers, and closed-circuit designs. Mobile crushers further reduce environmental impact by minimizing material transport and allowing on-site recycling of construction waste.
Conclusion: Optimize Your Mining Operation with the Right Crusher
Understanding what a stone crusher machine is, how it works, and where it applies empowers mining operators to make informed equipment decisions. Whether you need a rugged jaw crusher for primary crushing or a precision cone crusher for tertiary stages, choosing reliable rock crushing equipment enhances productivity, lowers costs, and improves product quality.
As a trusted manufacturer of crushing, grinding, and beneficiation machinery, we provide customized solutions backed by engineering expertise and global service support. Contact us today to design a crushing circuit that maximizes your mine’s performance.
